Suspensions
As accessories included in the vacuum division product range, suspensions or level compensators enable to provide complete gripping solutions.
SUSPENSIONS FOR TFA GRIPPERS - TFASP
.

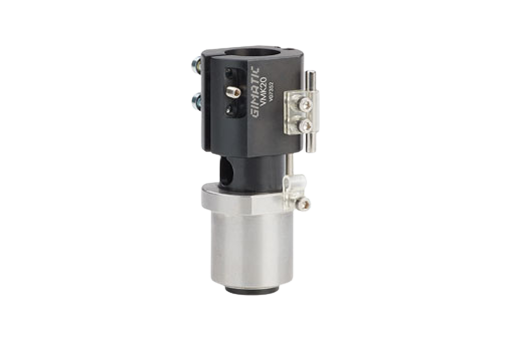

Non-rotative universal suspensions - VMK
For all actuators and brackets with 14mm, 20mm and 30mm shank. | With through-hole for air pipes. | Clamp-mounting. | Optional magnetic sensor. | Optional inductive sensor (not for VMK14). | FDA-H1 food-grade grease..

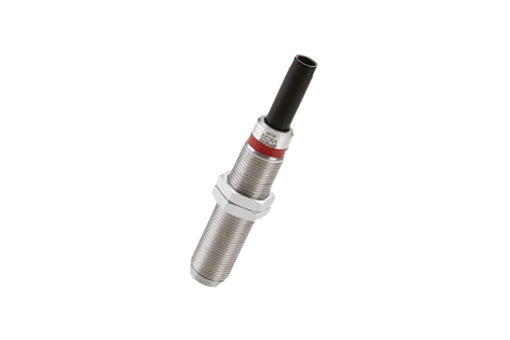

Threaded-body non-rotative telescopic suspensions - VSC
Body and rod in anodised aluminium. | Anti-friction treatment on the rod. | Polymer bearing for smoother movement. | Non-rotating rod with reduced play. | Telescopic movement: fittings and pipes do not move. | Unidirectional gaskets: only usable with vacuum. | Operating pressure: -1 to 0 bar. | FDA-H1 food-grade grease..

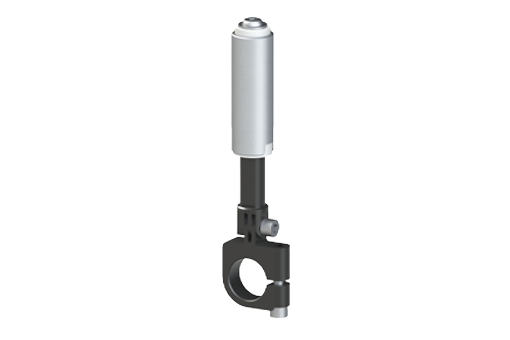

non-rotative suspensions with smooth body and adjustable clamp - VSD
The angle is continuously adjustable between 0° and +/-90°. | External power supply. | Body and rod in anodised aluminium. | Non-rotating rod. | FDA-H1 food-grade grease..
Non-rotative suspensions with integrated elbow arm - VSE
The angle is continuously adjustable between 0° and +/-90°. | External power supply. | Body and rod in anodised aluminium. | Non-rotating rod with high load capacity. | Operating pressure: -1 to 8 bar. | FDA-H1 food-grade grease..

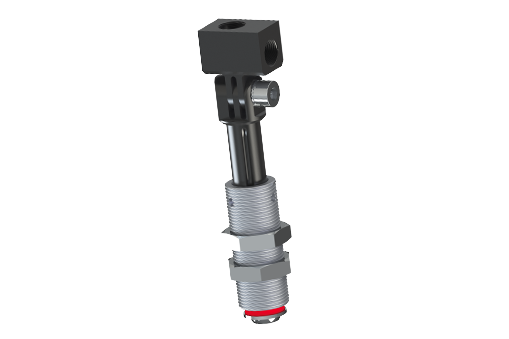

Non-rotative suspensions with angular connector and threaded body - VSET
The angle is continuously adjustable between 0° and +/-90°. | External power supply. | Body and rod in anodised aluminium. | Non-rotating rod with high load capacity. | Operating pressure: -1 to 8 bar. | FDA-H1 food-grade grease..

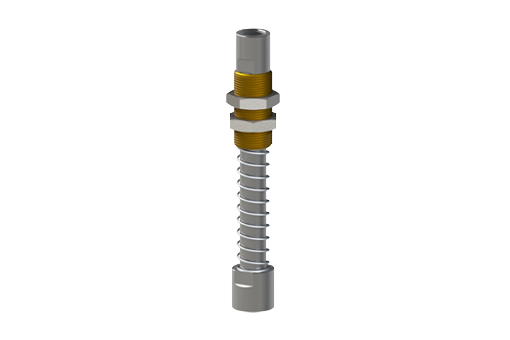

Rotative heavy-duty suspensions with threaded body - VSHT
New (6)Brass body with sliding bearings for heavy-duty applications with high dynamic stresses | Rod and spring in stainless steel | Rotating rod | Sixe M20x1 | Available stroke: 25, 50 and 75 mm | Suitable for use under rough conditions | Easy maintenance.New (6)

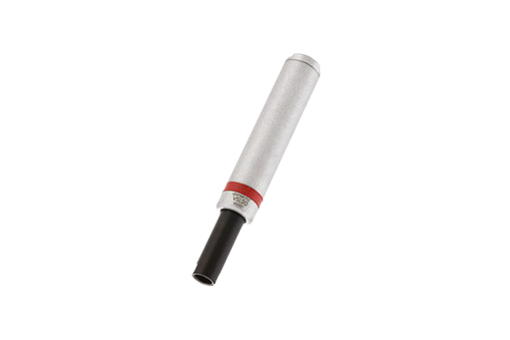

Smooth-body non-rotative telescopic suspensions - VSL
Body and rod in anodised aluminium. | Anti-friction treatment on the rod. | Polymer bearing for smoother movement. | Non-rotating rod with reduced play. | Telescopic movement: fittings and pipes do not move. | Unidirectional gaskets: only usable with vacuum. | Operating pressure: -1 to 0 bar. | FDA-H1 food-grade grease..

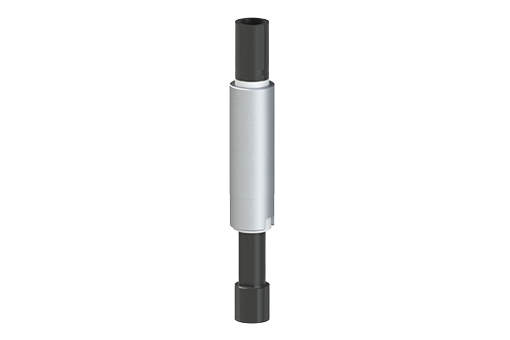

Smooth-body non rotative suspensions - VSNG
New (1)Body and rod in anodised aluminium. | Stainless steel spring | Non-rotating rod with high load capacity. | Operating pressure: -1 to 8 bar. | FDA-H1 food-grade grease..New (1)

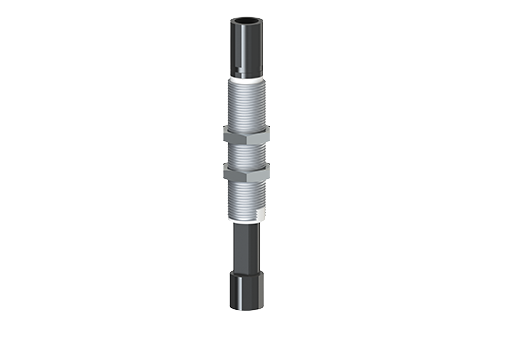

Threaded-body non rotative telescopic suspensions - VSNTG
New (2)Body and rod in anodised aluminium. | Stainless steel spring. | Non-rotating rod with high load capacity. | Operating pressure: -1 to 8 bar. | FDA-H1 food-grade grease..New (2)

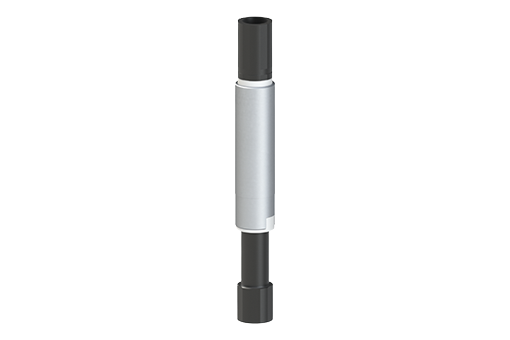

Smooth-body rotative suspensions - VSR
New (4)Body and rod in anodised aluminium. | Swivelling rod. | Operating pressure: -1 to 8 bar. | FDA-H1 food-grade grease..New (4)

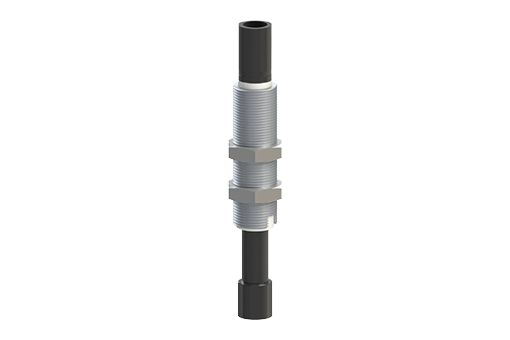

Rotative suspensions with threaded body - VSRT
New (8)Body and rod in anodised aluminium. | Swivelling rod. | Operating pressure: -1 to 8 bar. | FDA-H1 food-grade grease..New (8)

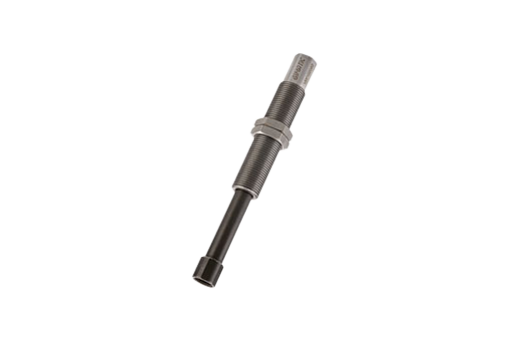

Rotative stainless suspensions with threaded body - VSRTG
Body, rod and spring in stainless steel. | Swivelling rod. | FDA-H1 food-grade grease. | Operating pressure: -1 to 8 bar..

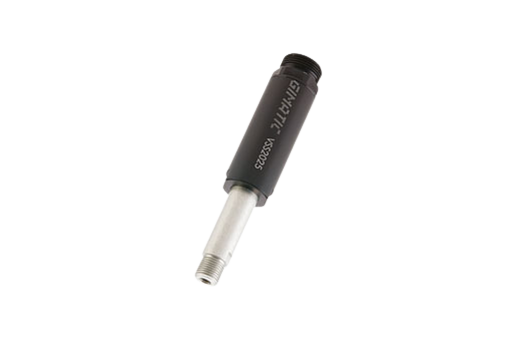

Telescopic self-retracting suspensions with smooth body - VSS
Body and rod in anodised aluminium. | Seal without gaskets. | Usable only with vacuum. | When the vacuum cup picks up a piece, the vacuum which acts on the internal piston exceeds the force of the spring and moves the rod. | The speed of the retraction movement can be calibrated with a standard flow regulator. | When the vacuum is removed, the piece is released and the internal spring brings the rod back to the end of the stroke. | Operating pressure: -1 to 0 bar. | FDA-H1 food-grade grease..

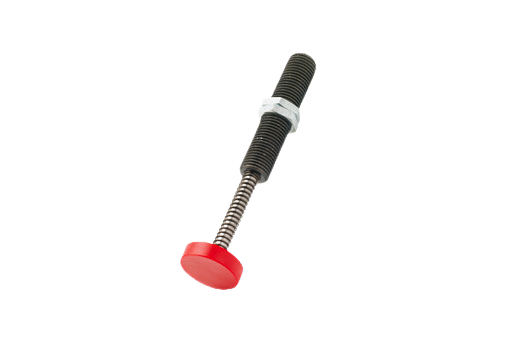

Spring rod - VSX
.
Non-rotative heavy duty stainless suspensions - VVX
Body, rod, bearing and spring are in stainless steel. | Ball bearing for very high load capacity. | Zero backlash. | FDA-H1 food-grade grease. | Operating pressure: -1 to 8 bar..
