Non-rotative universal suspensions - VMK
- For all actuators and brackets with 14mm, 20mm and 30mm shank.
- With through-hole for air pipes.
- Clamp-mounting.
- Optional magnetic sensor.
- Optional inductive sensor (not for VMK14).
- FDA-H1 food-grade grease.
- For all actuators and brackets with 14mm, 20mm and 30mm shank.
- With through-hole for air pipes.
- Clamp-mounting.
- Optional magnetic sensor.
- Optional inductive sensor (not for VMK14).
- FDA-H1 food-grade grease.
Suspension stroke
Male fitting shank
Weight

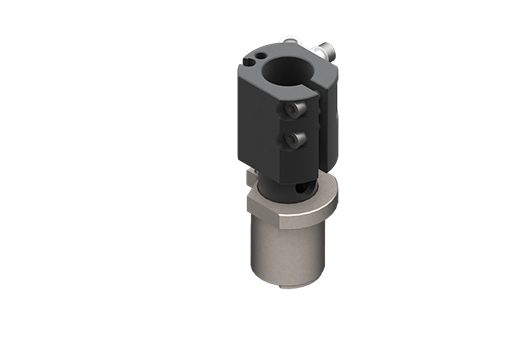

VMK14
Non-rotative universal suspensions, stroke 10 mm for 14-mm shank, with adapter for inductive sensor
Fixing Shank Male
14.0 mm
Suspension Stroke
10.0 mm
Weight
75.0 Gr

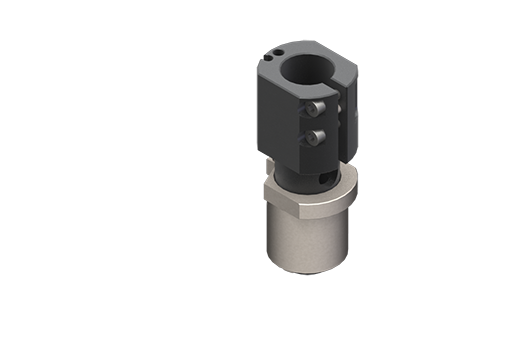

VMK20
Non-rotative universal suspensions, stroke 13 mm for 20-mm shank, with adapter for inductive sensor
Fixing Shank Male
20.0 mm
Suspension Stroke
13.0 mm
Weight
177.0 Gr

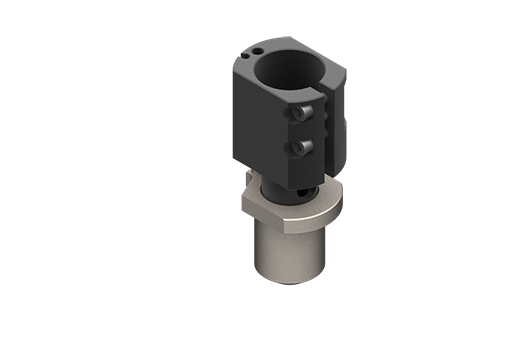

VMK30
Non-rotative universal suspensions, stroke 16 mm for 30-mm shank, with adapter for inductive sensor
Fixing Shank Male
30.0 mm
Suspension Stroke
16.0 mm
Weight
244.0 Gr
