Suction cups
The product range includes bellows and multibellows suction cups to compensate for differences in level, flat suction cups to ensure firm gripping and compatibility with handling operations that involve tipping, rectangular suction cups suitable for gripping snacks even from the side and suction cups with cleats to increase friction and prevent slipping on wet and oily surfaces. Finally, the range includes polyurethane suction cups with dual hardness to maximise their ability to adapt to porous materials such as cardboard. Also available are FDA-certified suction cups specifically designed for handling unpackaged food and suction cups for handling flow packs and bags. The available materials are Silicone, FDA-compliant silicone, NBR, HNBR (mark-free), polyurethane and EPDM.

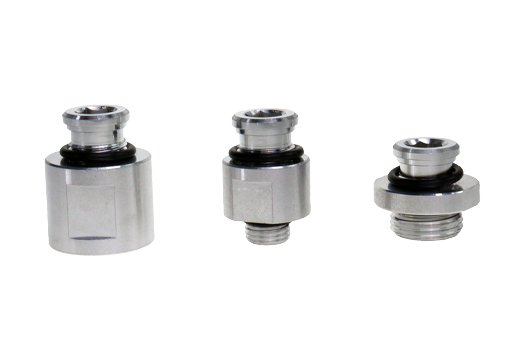

Fittings - FT
New (45).New (45)

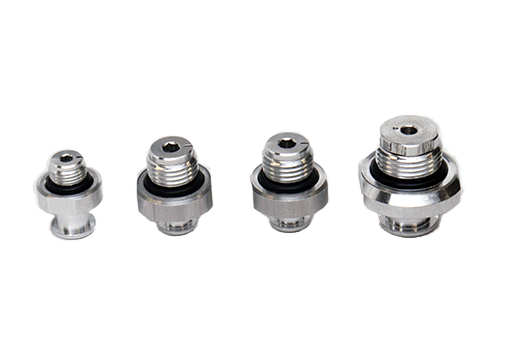

Fittings with self-closing valve and calibrated hole - FT.S
New (1)Ideal for applications that involve the handling of surfaces of different shapes and sizes | Suitable for centralised applications, they allow the size of the pump and therefore also consumption to be reduced, although several suction cups may not be gripping | Suitable for both sealed and porous applications | The integrated internal self-closing valve and calibrated hole can also be used for applications that involve handling at 180° | Available with male threads in G1/8" - G1/4" and G3/8" versions.New (1)
Standard bellows suction cups - VG.B
New (11)The silicone compound is suitable for high working temperatures | Suitable for objects with flat or slightly curved surfaces | They enable to compensate for differences in height | The HNBR compound is robust and wear resistant, suitable for the removal of hot plastic parts from the relevant moulds | A FDA-compliant silicone version, suitable for handling unpackaged food, is available..New (11)

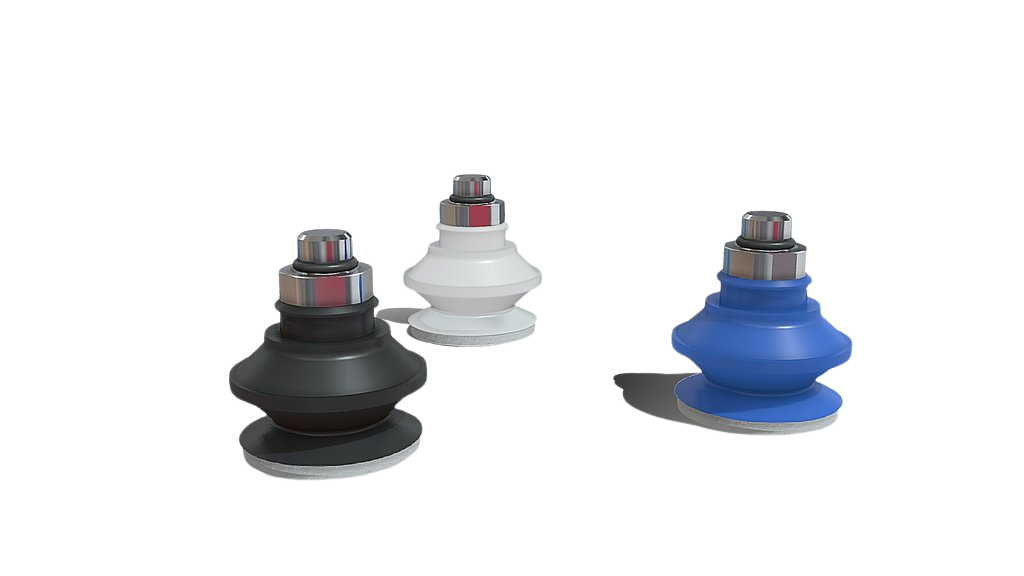

Bellows suction cups compliant with silicone ring - VG.B.SFO
New (62)Ideal to handle uneven and porous surfaces | High adaptability on rough wood panels, corrugated sheet metal and non-slip sheet metal | Ring in mark-free silicone foam.New (62)

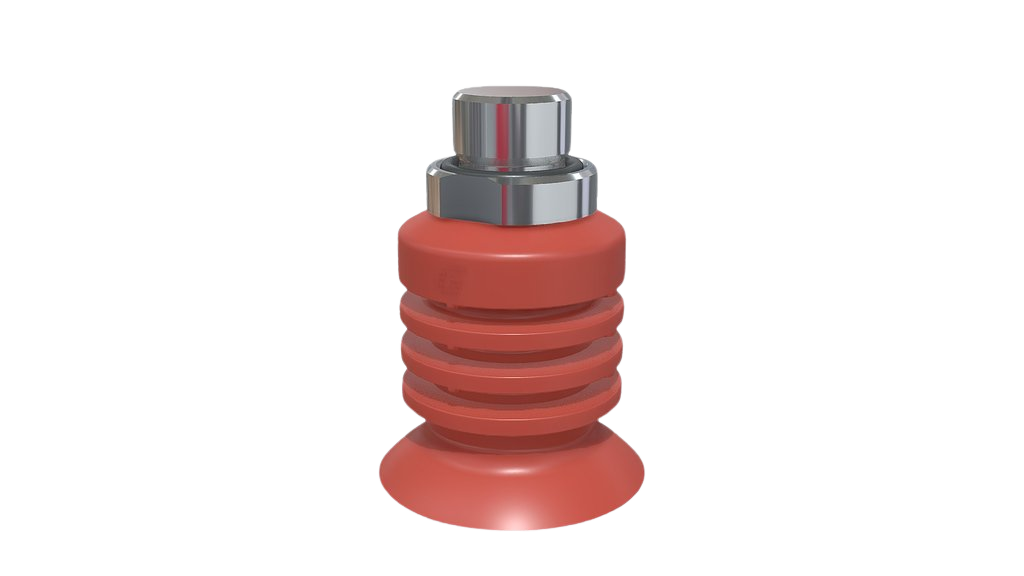

Multi-bellows suction cups in silicone - VG.BC
Ideal for handling bags containing fragile products and bags with liquids and frozen foods | Strong bellows, soft and flexible lip and special high flow rate fittings | Version with 4.5 bellows | They enable to compensate for level differences.

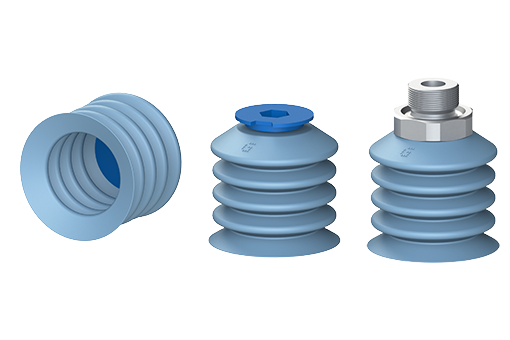

Detectable suction cups - VG.BDT
Ideal for handling food products | Detectable FDA-compliant silicone compliant with FDA 21 CFR 177.2600 standards | Available with separable, acid-resistant, food-grade stainless steel fitting | Easy to clean thanks to the hygienic design with no cavities where food dust or dirt might build up | Available with clips for connection to demoulders in the bakery sector.

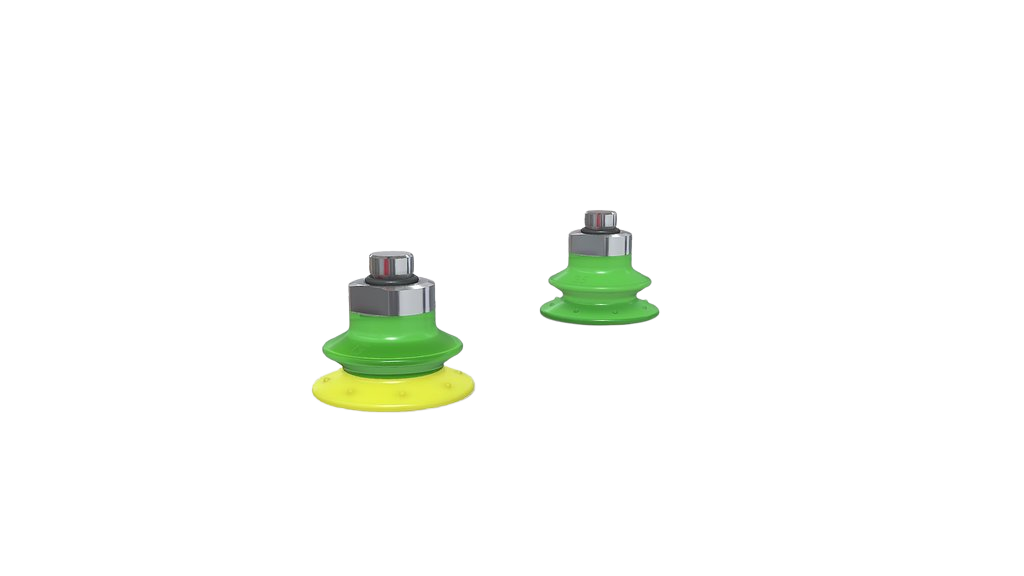

Bellows suction cups in polyurethane - VG.BP
Suitable for minimal level compensations, with high stability | Excellent gripping performance on corrugated or porous surfaces, or non-sealed surfaces, such as cardboard, plastic items and composite materials with uneven surface | Also suitable for applications with lifting forces parallel to the surface | Features an exceptional elastic memory | Available with 50 Shore hardness, green colour | Available with 30/70 Shore hardness. The two-colour suction cup is robust and flexible at the same time.

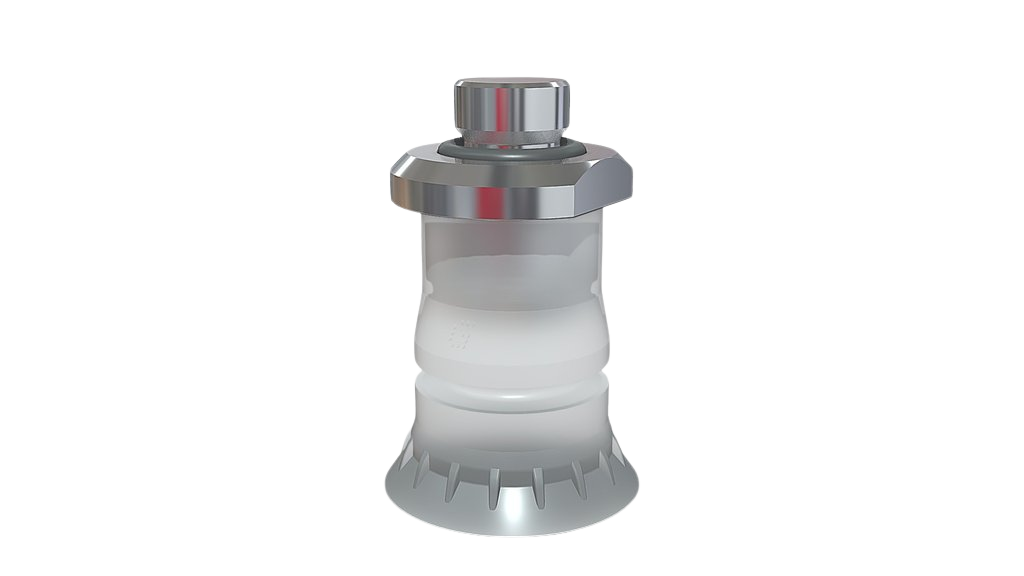

Bellows suction cups in FDA-compliant silicone - VG.BPG
Suitable for handling bags, pouches and flexible packages for solids and liquids | Version with 1.5 bellows | Suction cups in FDA-compliant silicone | Reinforced bellows for higher grip stability | The lip of the suction cup has been designed to maximise the grip and allow perfect adhesion even on wrinkles without damaging the grip surfaces.Rectangular bellows suctions cups in polyurethane - VG.BR
New (2)Suitable for handling snack foods and food bars in flow packs | Version with 1.5 bellows | Ideal for picking up an object and placing it on its side | Thin lip capable of adapting perfectly to the plastic film.New (2)

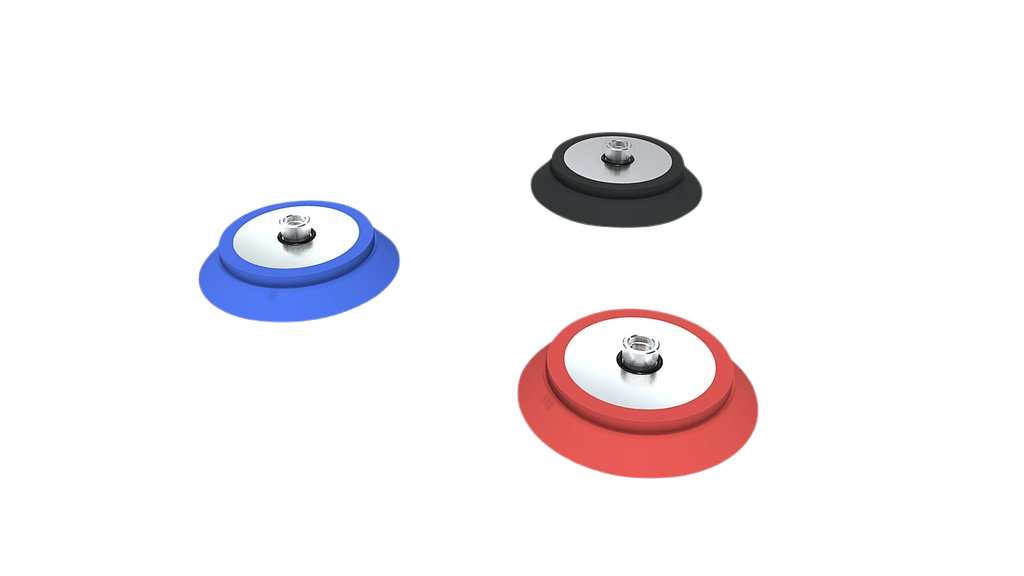

Flat suction cups - VG.CF
Suitable for items with flat surfaces | Suitable for handling items with lifting force parallel to the surface thanks to the reinforcements that increase friction and prevent deformations | The silicone version enables to work at high and low temperatures | The NBR and HNBR versions are ideal for handling plastic parts and dry sheet metal. | The HNBR version enables to work at high temperatures, whereas silicone or other mixtures may release traces of material. Ideal for applications where contamination of the material must be avoided (PWIS).

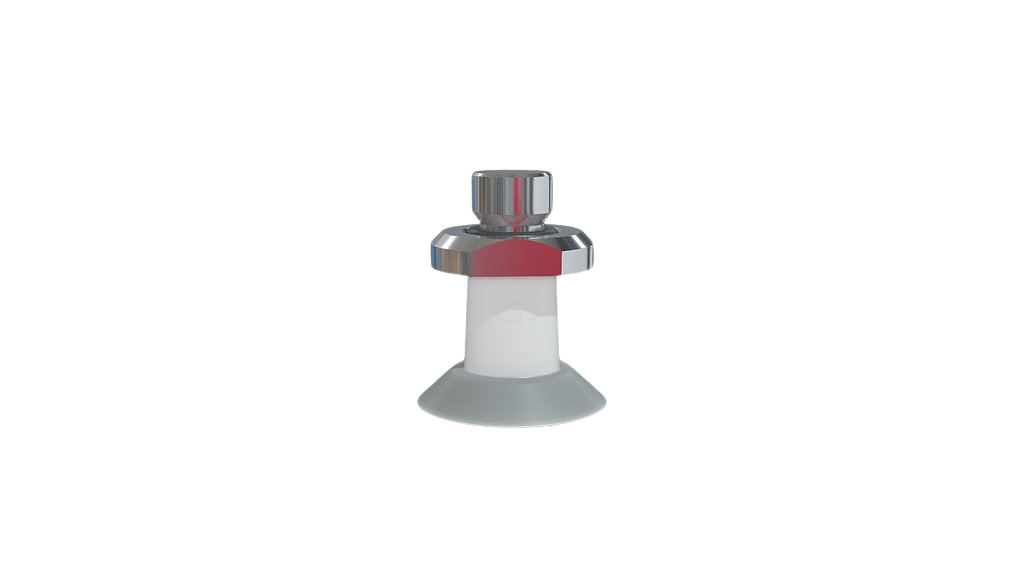

Flat suction cups for bag opening - VG.FO
Suitable for opening bags and handling thin and delicate objects such as sheets and film | The internal texture and the thin lip prevent damage to the handled object while maintaining its flatness | Suction cups in FDA-approved transparent silicone.
Rings in EPDM and silicone - VG.FOAM
.

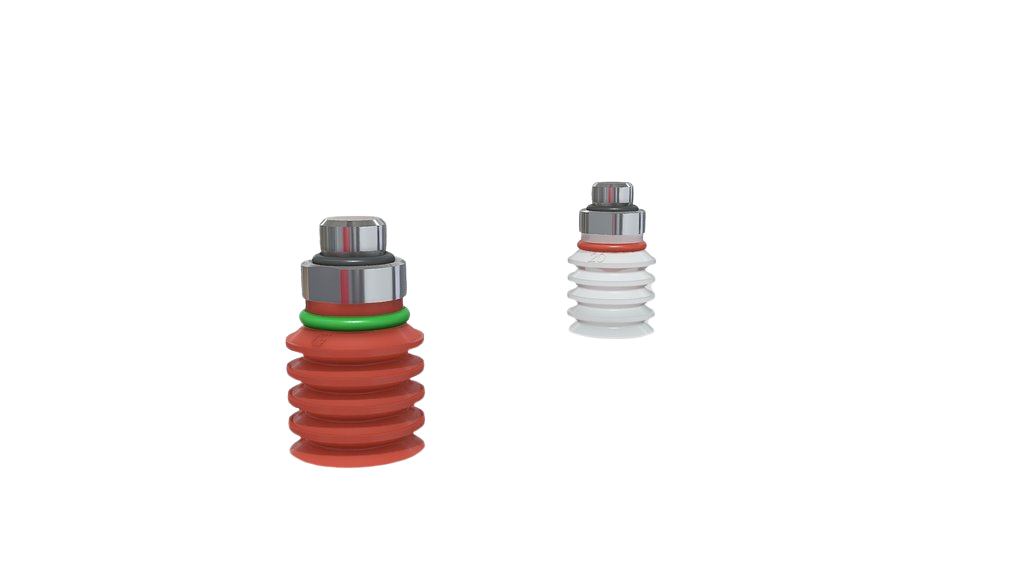

Multi-bellows suction cups in silicone - VG.FP
Ideal for handling packaged snack foods | Suitable for level compensation | High vertical movement, useful for separating thin parts | It can be equipped with a perforated disc to increase stability and to allow the handling of thin films | A FDA-compliant silicone version, suitable for handling unpackaged food, is available..Multi-bellows suction cups in polyurethane - VG.GX
Suitable for compensating for different heights | Ideal for handling items with porous and uneven surface | Features an exceptional elastic memory | Available with 50 Shore hardness, green colour | Available with 30/60 Shore hardness. The two-colour suction cup is robust and flexible at the same time.

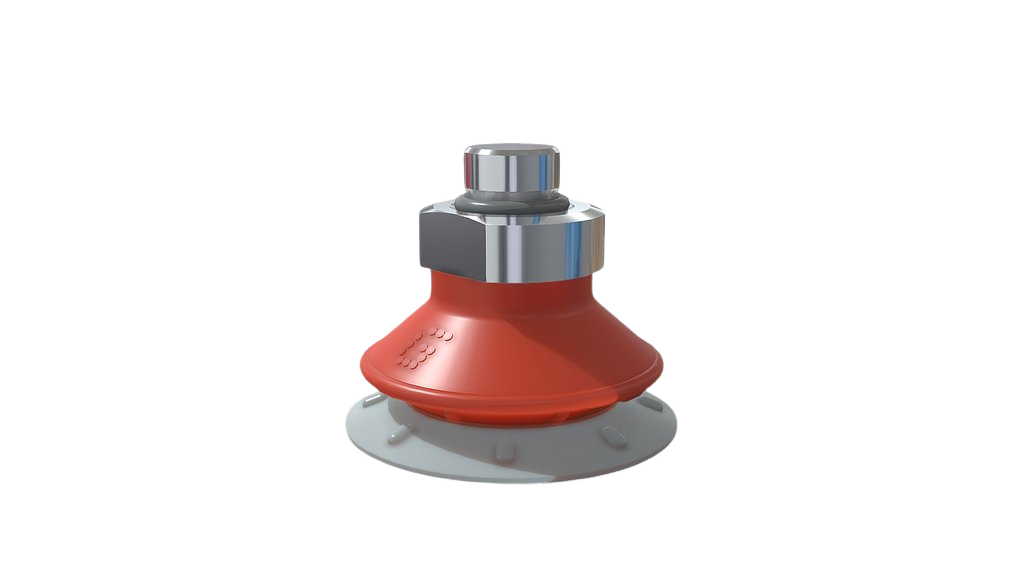

Bellows suction cups in polyurethane - VG.IS
New (7)Ideal to handle uneven and rough surfaces | High flexibility: the wide yet thin lip allows for adaptation to uneven surfaces | Polyurethane material with double hardness, 30/60 Shore | Good resistance to wear.New (7)

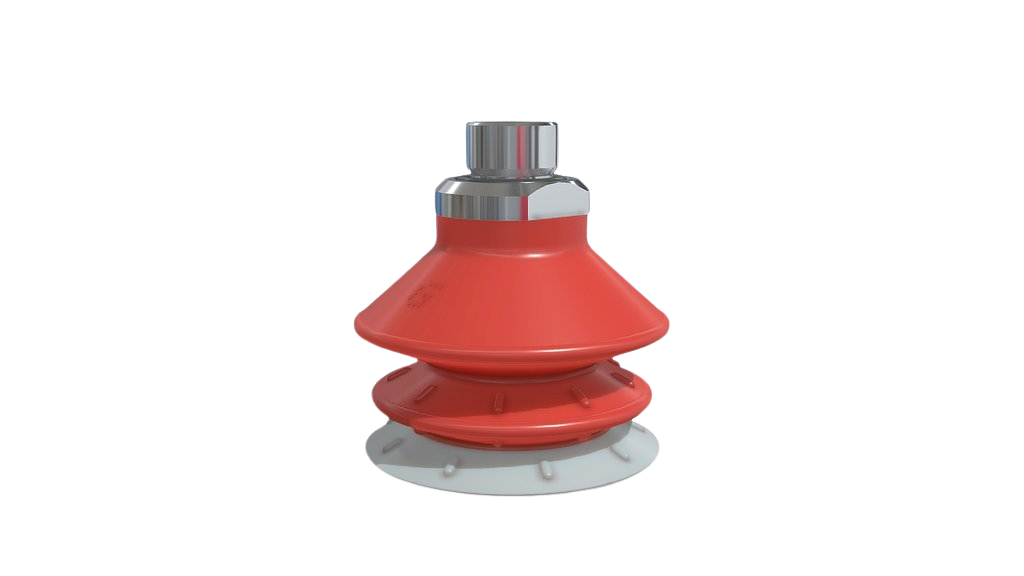

Multi-bellows suction cups in polyurethane - VG.ISX
New (20)The 2.5 blowers, with their new design, bestow high rigidity to the suction cup when it is compressed, preventing oscillations and ensuring excellent compensation and stability | Ideal for the handling of rough and irregular surfaces | High flexibility: the lip is both wide and thin and adapts well to irregular surfaces | In polyurethane with double hardness, 35/60 Shore | Excellent wear resistance.New (20)

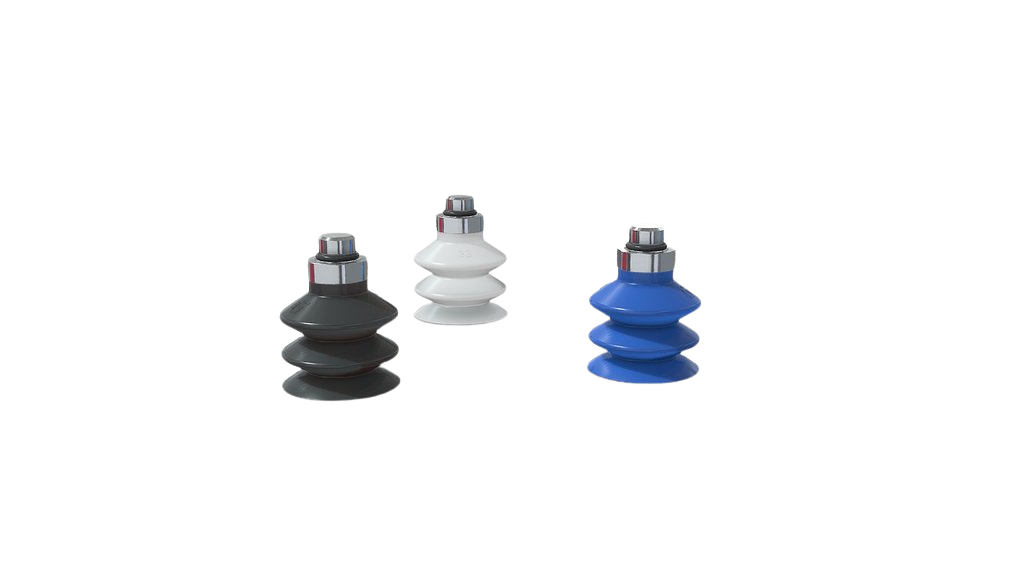

Multi-bellows suction cups - VG.LB
New (1)Suitable for objects with flat or slightly curved surfaces | They enable to compensate for differences in height | Ideal for leafing through and picking up thin metal sheets, glass sheets, chipboard or pressed wood panels, plastic laminates | The HNBR compound is robust and wear resistant, suitable for the removal of hot plastic parts from the relevant moulds | A food-grade silicone compound (FDA-approved) is available.New (1)

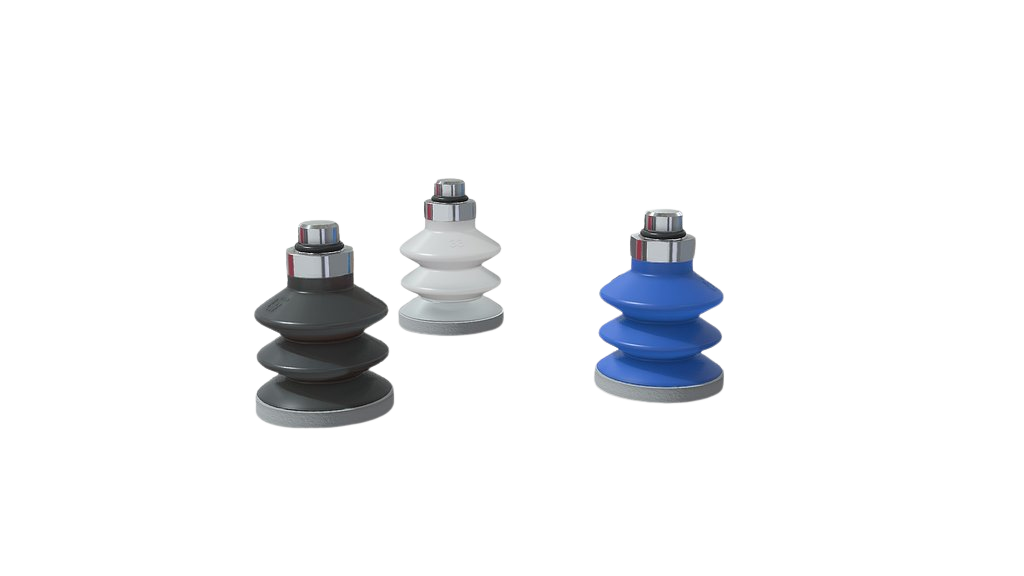

Multibellows suction cups (Long Bellow) with silicone ring - VG.LB.SFO
New (62)Ideal to handle uneven and porous surfaces | High adaptability on rough wood panels, corrugated sheet metal and non-slip sheet metal | Ring in mark-free silicone foam | They enable to compensate for differences in height.New (62)

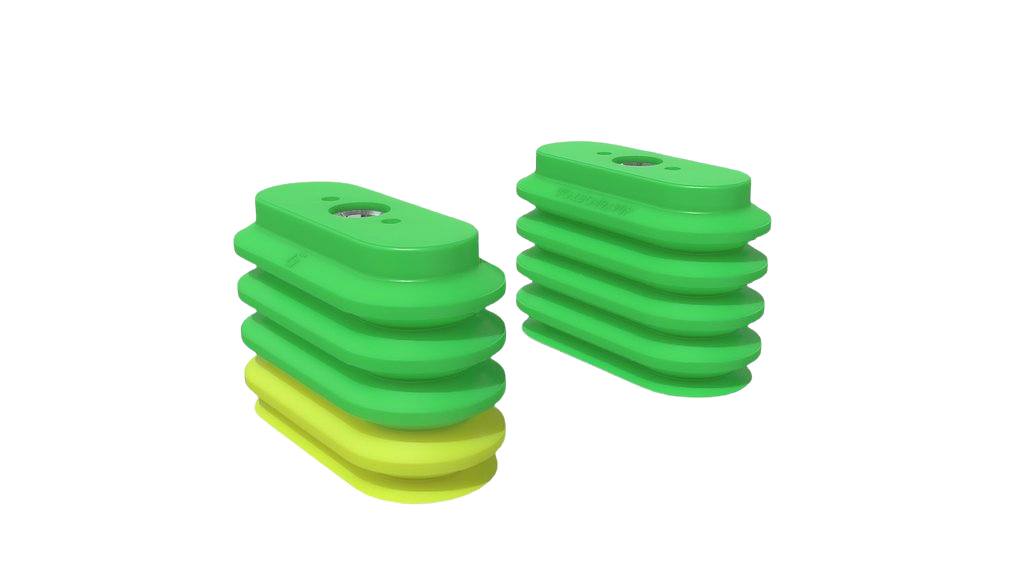

Oval multibellows suction cups in Polyurethane - VG.LBO
New (3).New (3)

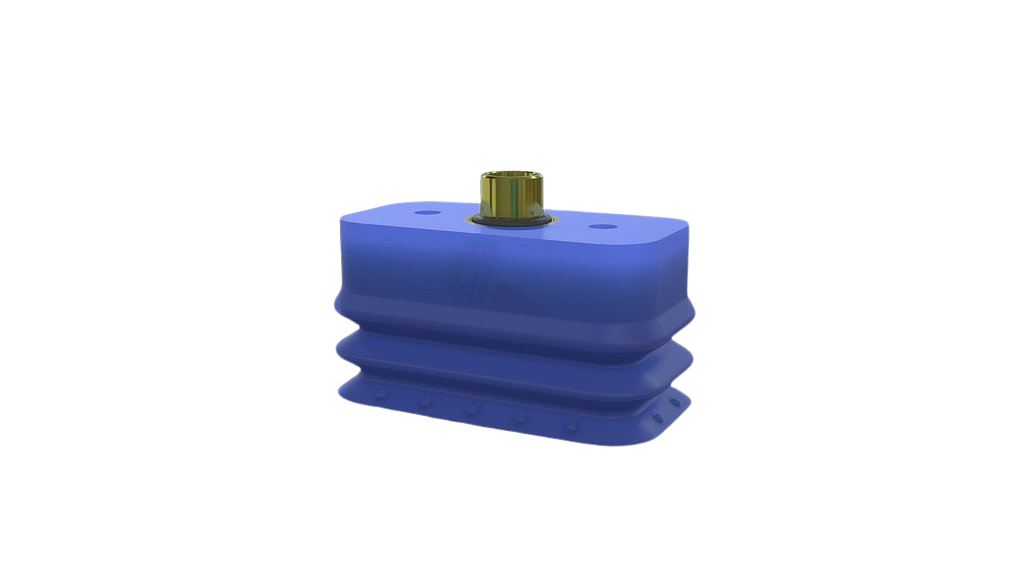

Rectangular bellows suctions cups in polyurethane - VG.LBR
New (2)Suitable for handling snack foods and food bars in flow packs | Version with 2.5 bellows | Ideal for picking up an object and placing it on its side | Thin lip capable of adapting perfectly to the plastic film.New (2)

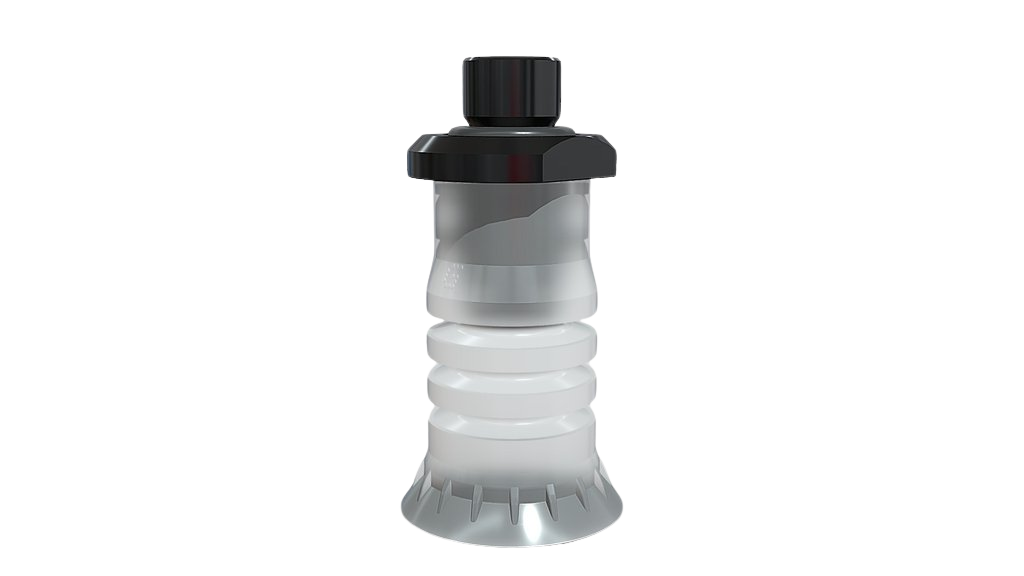

Suction cups with 3.5 bellows in FDA-compliant silicone - VG.LPG
Suitable for handling bags, pouches and flexible packages for solids and liquids | Version with 3.5 bellows | Suction cups in FDA-compliant silicone | Reinforced bellows for higher grip stability | The lip of the suction cup has been designed to maximise the grip and allow perfect adhesion even on wrinkles without damaging the grip surfaces.

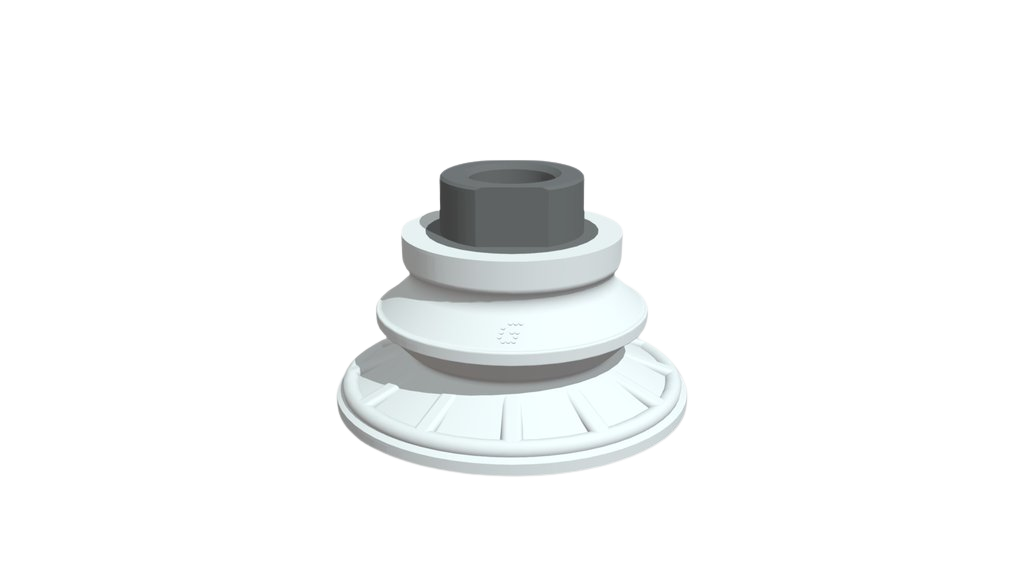

Non-slip bellows suction cups - VG.MB
New (8)Ideal for handling oiled sheet metal in stamping processes | Handling of flat glass and shaped glass | Special cleats that increase friction on lubricated surfaces | Internal supports help to prevent deformation of thin sheet metal | Suitable for handling flat and slightly curved surfaces thanks to the wide lip.New (8)
Non-slip oval bellows suction cups - VG.MBO
New (8)Ideal for handling oiled sheet metal in stamping processes | Handling of flat glass and shaped glass | Special cleats that increase friction on lubricated surfaces | Ideal for applications where contamination of the material must be avoided (PWIS) | Bellows suction cups in NBR, 60 Shore, with vulcanised fitting | Internal supports help to prevent deformation of thin sheet metal | Suitable for handling flat and slightly curved surfaces thanks to the wide lip.New (8)

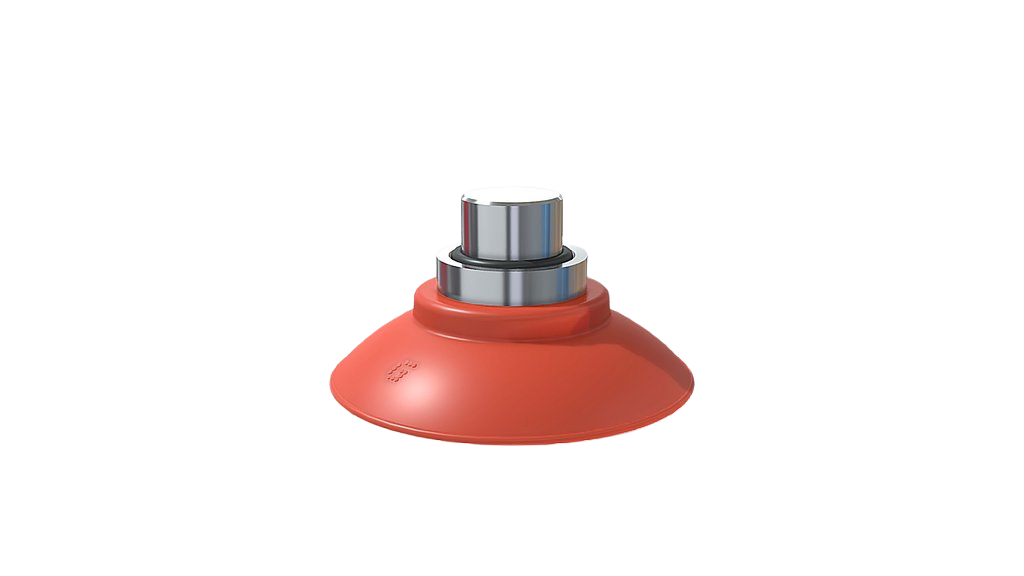

Non-slip flat suction cups - VG.MF
Ideal for handling oiled sheet metal in stamping processes | Special cleats that increase friction on lubricated surfaces | Excellent stability.PAAT suction cups - VG.PAAT
.
Multi-bellows suction cups in silicone - VG.SBC
Ideal for handling bags containing fragile products and bags with liquids and frozen foods | Strong bellows, soft and flexible lip and special high flow rate fittings | Version with 2.5 bellows | High stability in very fast packaging processes (case packer and Pick & Place applications).

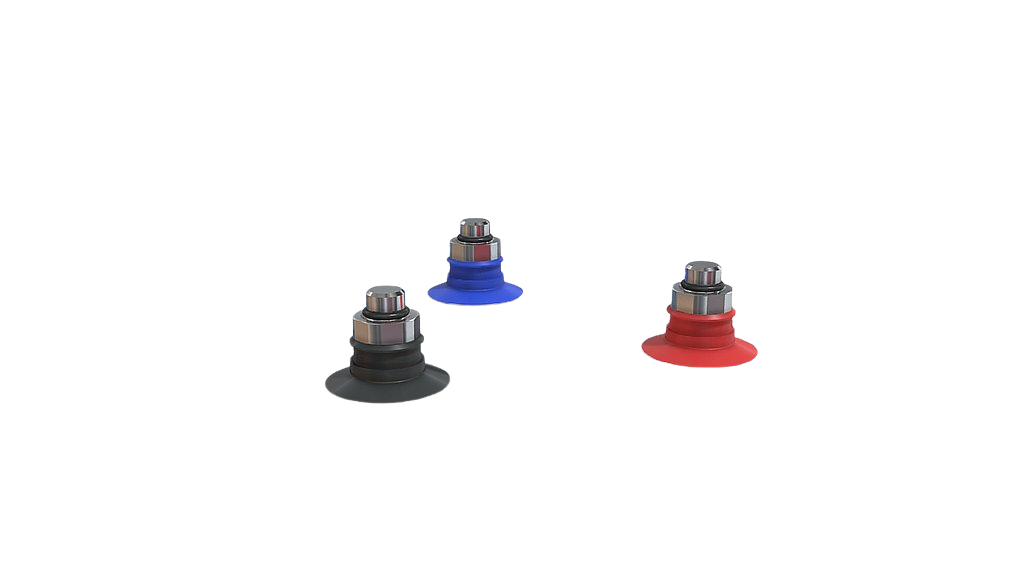

Universal flat suction cups - VG.U
Suitable for objects with flat or slightly curved surfaces | The HNBR version enables to work at high temperatures, whereas silicone or other mixtures may release traces of material. Ideal for applications where contamination of the material must be avoided (PWIS) | A food-grade silicone version (FDA-approved) is available.

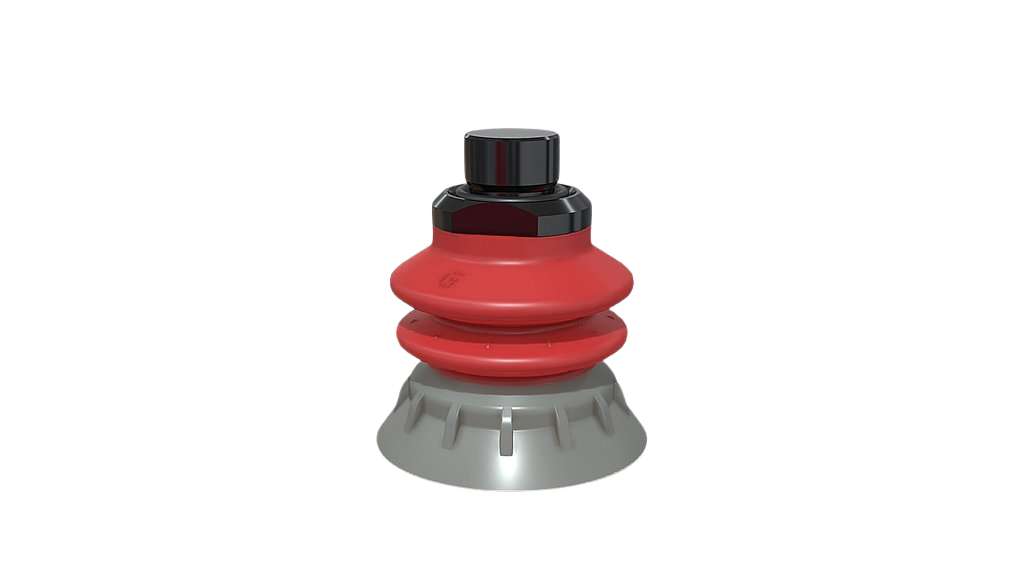

Flowpack suction cup in Polyurethane - VG.XG
New (11)Ideal for handing bags, sacks and flexible packaging containing liquids and solids | Version with 2.5 bellows | Polyurethane suction cups with double hardness, 30/70 Shore | Rigid bellows (70 Shore) for greater gripping stability, suitable for applications with elevated cycle rates | The lip of the suction cup, which is both thin and flexible, was designed to optimise the grip on difficult-to-handle flow packs and to prevent damage to the gripping surface.New (11)
