Non-slip oval bellows suction cups - VG.MBO
- Ideal for handling oiled sheet metal in stamping processes
- Handling of flat glass and shaped glass
- Special cleats that increase friction on lubricated surfaces
- Ideal for applications where contamination of the material must be avoided (PWIS)
- Bellows suction cups in NBR, 60 Shore, with vulcanised fitting
- Internal supports help to prevent deformation of thin sheet metal
- Suitable for handling flat and slightly curved surfaces thanks to the wide lip
- Ideal for handling oiled sheet metal in stamping processes
- Handling of flat glass and shaped glass
- Special cleats that increase friction on lubricated surfaces
- Ideal for applications where contamination of the material must be avoided (PWIS)
- Bellows suction cups in NBR, 60 Shore, with vulcanised fitting
- Internal supports help to prevent deformation of thin sheet metal
- Suitable for handling flat and slightly curved surfaces thanks to the wide lip
Weight

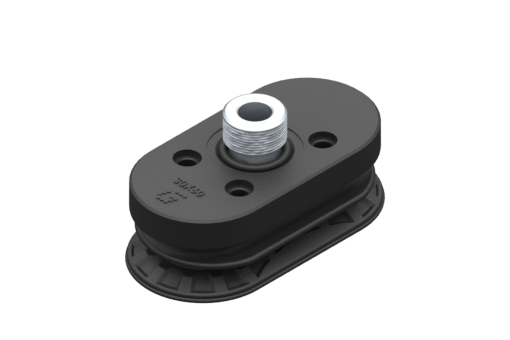

New 3100064
Suction cup VG.MBO30X60 NBR 60, G1/4'' Maschio rotating
Air Feeding Connection
G1/4'' Maschio
Air Feeding In
G1/4'' Maschio
Vacuum Cup Material
NBR
Weight
24.0 Gr

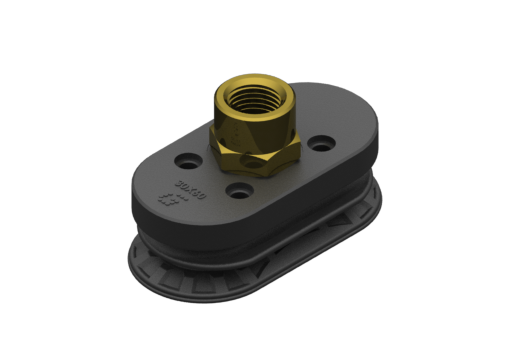

New 3100065
VG.MBO30X60 suction cup, NBR, 60 Shore, G1/4" female
Air Feeding Connection
G1/4'' Femmina
Air Feeding In
G1/4'' Femmina
Vacuum Cup Material
NBR
Weight
42.0 Gr

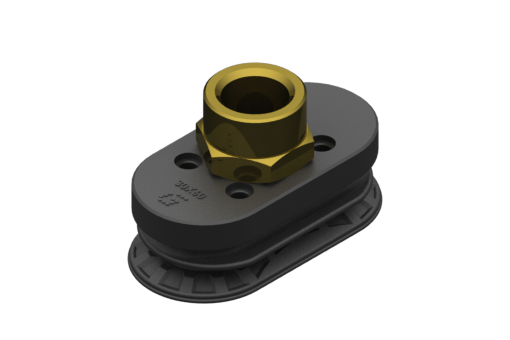

New 3100067
VG.MBO30X60 suction cup, NBR, 60 Shore, G3/8" female
Air Feeding In
G3/8'' Femmina
Vacuum Cup Material
NBR
Weight
57.0 Gr

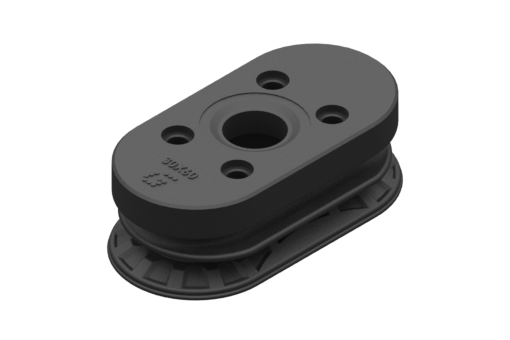

New 3100068
VG.MBO30X60 suction cup, NBR, 60 Shore
Vacuum Cup Material
NBR
Weight
20.0 Gr

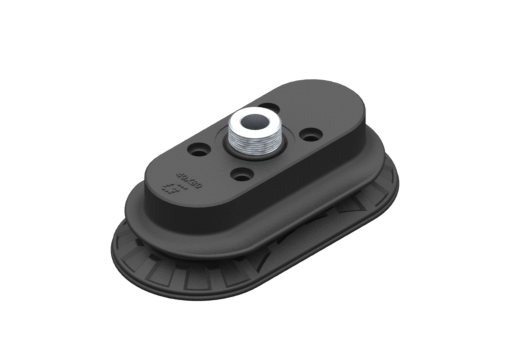

New 3100069
Suction cup VG.MBO40X80 NBR 60, G1/4'' Maschio rotating
Air Feeding Connection
G1/4'' Maschio
Air Feeding In
G1/4'' Maschio
Vacuum Cup Material
NBR
Weight
33.0 Gr

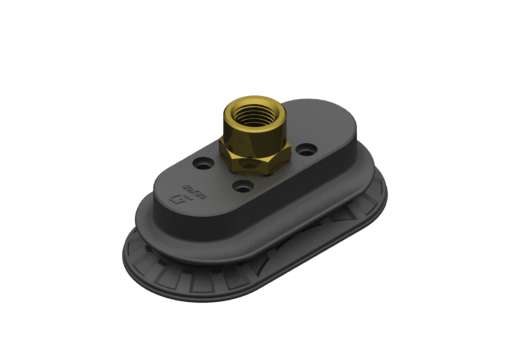

New 3100070
VG.MBO40X80 suction cup, NBR, 60 Shore, G1/4" female
Air Feeding Connection
G1/4'' Femmina
Air Feeding In
G1/4'' Femmina
Vacuum Cup Material
NBR
Weight
32.0 Gr

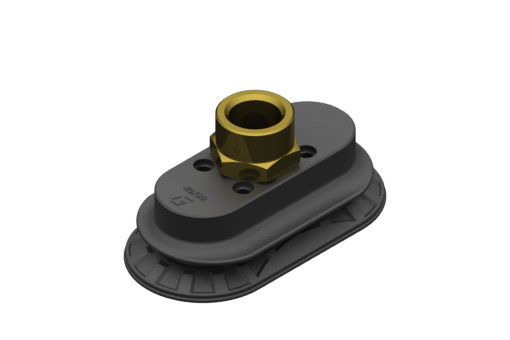

New 3100072
VG.MBO40X80 suction cup, NBR, 60 Shore, G3/8" female
Air Feeding In
G3/8'' Femmina
Vacuum Cup Material
NBR
Weight
33.0 Gr

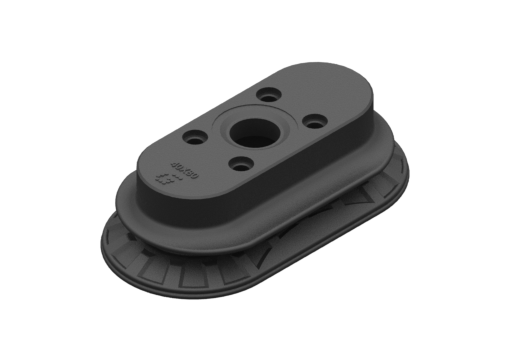

New 3100073
VG.MBO40X80 suction cup, NBR, 60 Shore
Vacuum Cup Material
NBR
Weight
29.0 Gr
3100064 New
Air Feeding Connection
G1/4'' Maschio
Air Feeding In
G1/4'' Maschio
Vacuum Cup Material
NBR
Weight
24.0 Gr
3100065 New
Air Feeding Connection
G1/4'' Femmina
Air Feeding In
G1/4'' Femmina
Vacuum Cup Material
NBR
Weight
42.0 Gr
3100067 New
Air Feeding In
G3/8'' Femmina
Vacuum Cup Material
NBR
Weight
57.0 Gr
3100068 New
Vacuum Cup Material
NBR
Weight
20.0 Gr
3100069 New
Air Feeding Connection
G1/4'' Maschio
Air Feeding In
G1/4'' Maschio
Vacuum Cup Material
NBR
Weight
33.0 Gr
3100070 New
Air Feeding Connection
G1/4'' Femmina
Air Feeding In
G1/4'' Femmina
Vacuum Cup Material
NBR
Weight
32.0 Gr
3100072 New
Air Feeding In
G3/8'' Femmina
Vacuum Cup Material
NBR
Weight
33.0 Gr
3100073 New
Vacuum Cup Material
NBR
Weight
29.0 Gr
