Multi-bellows suction cups in polyurethane - VG.ISX

  • The 2.5 blowers, with their new design, bestow high rigidity to the suction cup when it is compressed, preventing oscillations and ensuring excellent compensation and stability
  • Ideal for the handling of rough and irregular surfaces
  • High flexibility: the lip is both wide and thin and adapts well to irregular surfaces
  • In polyurethane with double hardness, 35/60 Shore
  • Excellent wear resistance
  • The 2.5 blowers, with their new design, bestow high rigidity to the suction cup when it is compressed, preventing oscillations and ensuring excellent compensation and stability
  • Ideal for the handling of rough and irregular surfaces
  • High flexibility: the lip is both wide and thin and adapts well to irregular surfaces
  • In polyurethane with double hardness, 35/60 Shore
  • Excellent wear resistance

Weight

Suction cup diameter

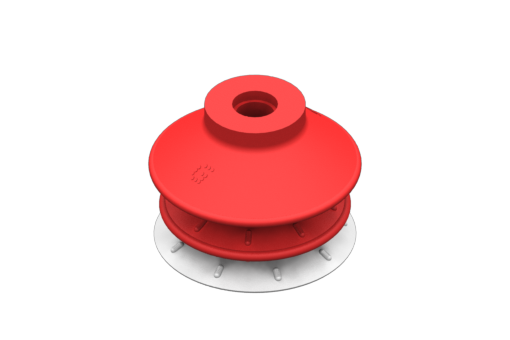

2322300 New

2322300

Suction cups 2.5 bellows VG.ISX55 Polyurethane 35/60 Shore

  • Vacuum Cup Diameter

    55.0 mm

  • Vacuum Cup Material

    POLYURETHANE

  • Weight

    30.0 Gr

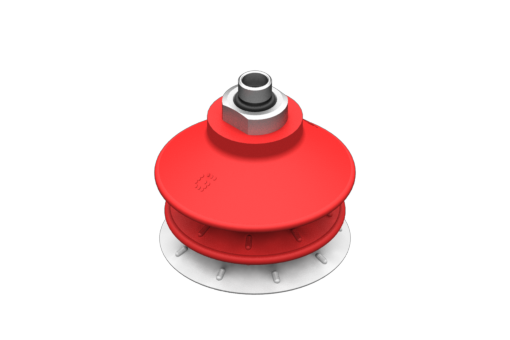

2322301 New

2322301

Suction cup VG.ISX55 Polyurethane 35/60 Shore, G1/8” Male

  • Air Feeding In

    G1/8'' Maschio

  • Vacuum Cup Diameter

    55.0 mm

  • Vacuum Cup Material

    POLYURETHANE

  • Weight

    36.0 Gr

2322302 New

2322302

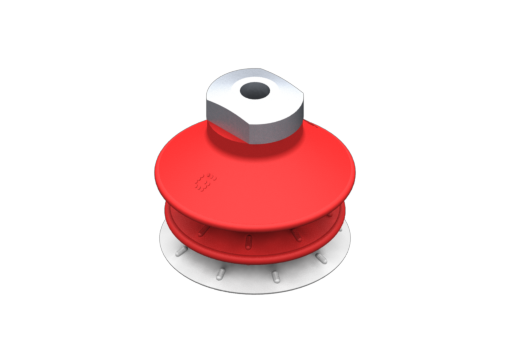

Suction cup VG.ISX55 Polyurethane 35/60 Shore, G1/8” Female

  • Air Feeding In

    G1/8'' Femmina

  • Vacuum Cup Diameter

    55.0 mm

  • Vacuum Cup Material

    POLYURETHANE

  • Weight

    42.0 Gr

2322303 New

2322303

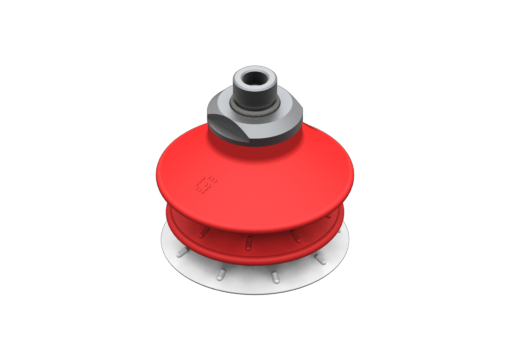

Suction cup VG.ISX55 Polyurethane 35/60 Shore, G1/4” Male

  • Air Feeding In

    G1/4'' Maschio

  • Vacuum Cup Diameter

    55.0 mm

  • Vacuum Cup Material

    POLYURETHANE

  • Weight

    42.0 Gr

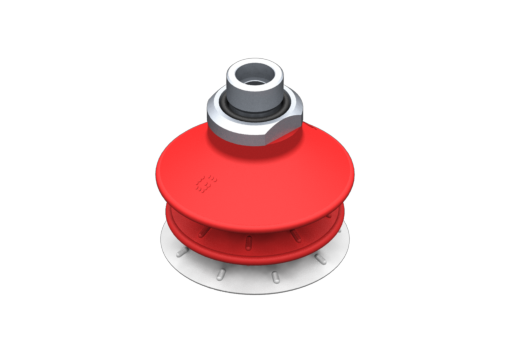

2322304 New

2322304

Suction cup VG.ISX55 Polyurethane 35/60 Shore, G3/8” Male

  • Air Feeding In

    G3/8'' Maschio

  • Vacuum Cup Diameter

    55.0 mm

  • Vacuum Cup Material

    POLYURETHANE

  • Weight

    42.0 Gr

2322305 New

2322305

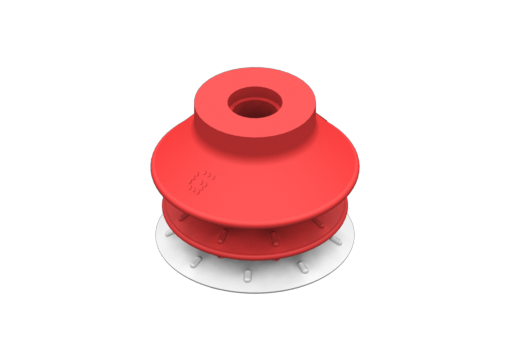

Suction cups 2.5 bellows VG.ISX45 Polyurethane 35/60 Shore

  • Vacuum Cup Diameter

    45.0 mm

  • Vacuum Cup Material

    POLYURETHANE

  • Weight

    19.0 Gr

2322306 New

2322306

Suction cup VG.ISX45 Polyurethane 35/60 Shore, G1/8” Male

  • Air Feeding In

    G1/8'' Maschio

  • Vacuum Cup Diameter

    45.0 mm

  • Vacuum Cup Material

    POLYURETHANE

  • Weight

    26.0 Gr

2322307 New

2322307

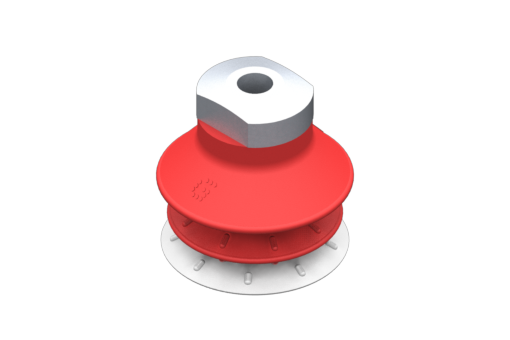

Suction cup VG.ISX45 Polyurethane 35/60 Shore, G1/8” Female

  • Air Feeding In

    G1/8'' Femmina

  • Vacuum Cup Diameter

    45.0 mm

  • Vacuum Cup Material

    POLYURETHANE

  • Weight

    31.0 Gr

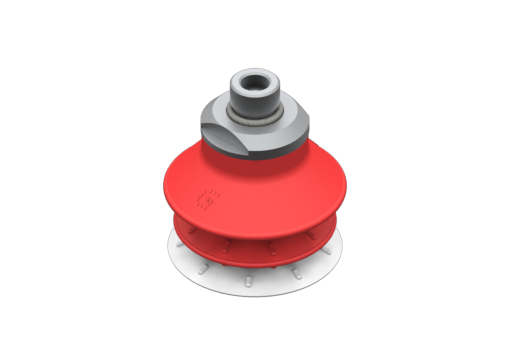

2322308 New

2322308

Suction cup VG.ISX45 Polyurethane 35/60 Shore, G1/4” Male

  • Air Feeding In

    G1/4'' Maschio

  • Vacuum Cup Diameter

    45.0 mm

  • Vacuum Cup Material

    POLYURETHANE

  • Weight

    31.0 Gr

2322309 New

2322309

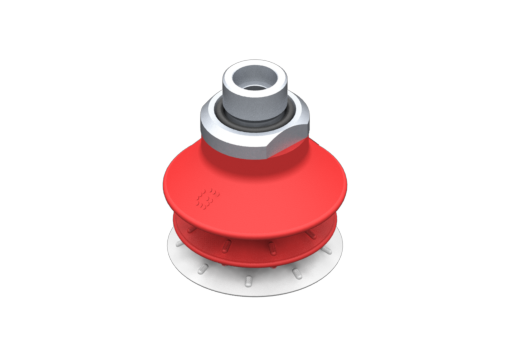

Suction cup VG.ISX45 Polyurethane 35/60 Shore, G3/8” Male

  • Air Feeding In

    G3/8'' Maschio

  • Vacuum Cup Diameter

    45.0 mm

  • Vacuum Cup Material

    POLYURETHANE

  • Weight

    32.0 Gr

2322310 New

2322310

Suction cups 2.5 bellows VG.ISX35 Polyurethane 35/60 Shore

  • Vacuum Cup Diameter

    35.0 mm

  • Vacuum Cup Material

    POLYURETHANE

  • Weight

    12.0 Gr

2322311 New

2322311

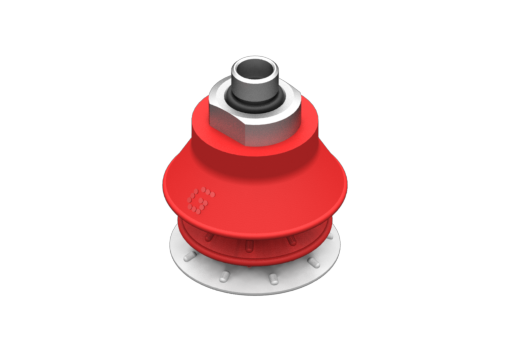

Suction cup VG.ISX35 Polyurethane 35/60 Shore, G1/8” Male

  • Air Feeding In

    G1/8'' Maschio

  • Vacuum Cup Diameter

    35.0 mm

  • Vacuum Cup Material

    POLYURETHANE

  • Weight

    19.0 Gr

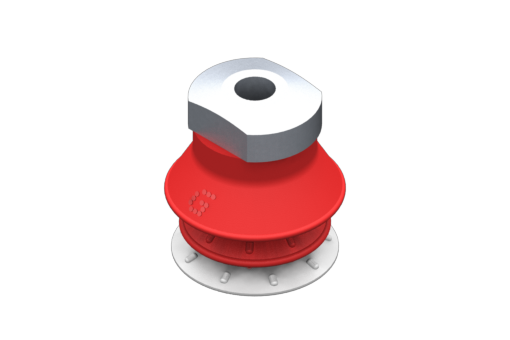

2322312 New

2322312

Suction cup VG.ISX35 Polyurethane 35/60 Shore, G1/8” Female

  • Air Feeding In

    G1/8'' Femmina

  • Vacuum Cup Diameter

    35.0 mm

  • Vacuum Cup Material

    POLYURETHANE

  • Weight

    24.0 Gr

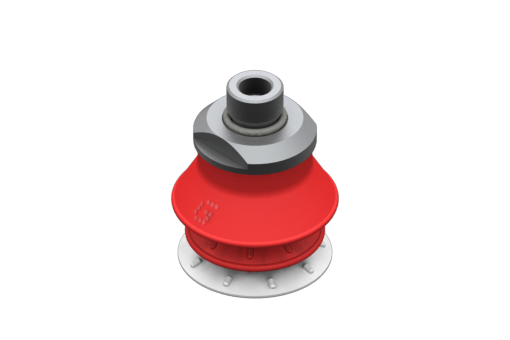

2322313 New

2322313

Suction cup VG.ISX35 Polyurethane 35/60 Shore, G1/4” Male

  • Air Feeding In

    G1/4'' Maschio

  • Vacuum Cup Diameter

    35.0 mm

  • Vacuum Cup Material

    POLYURETHANE

  • Weight

    24.0 Gr

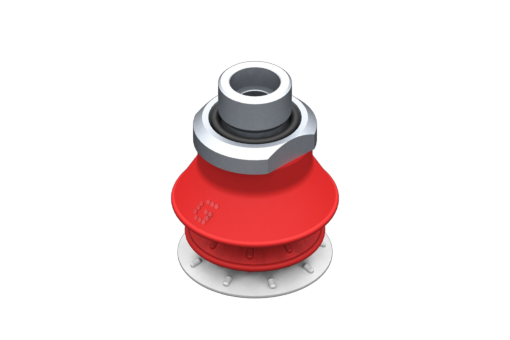

2322314 New

2322314

Suction cup VG.ISX35 Polyurethane 35/60 Shore, G3/8” Male

  • Air Feeding In

    G3/8'' Maschio

  • Vacuum Cup Diameter

    35.0 mm

  • Vacuum Cup Material

    POLYURETHANE

  • Weight

    25.0 Gr

2322315 New

2322315

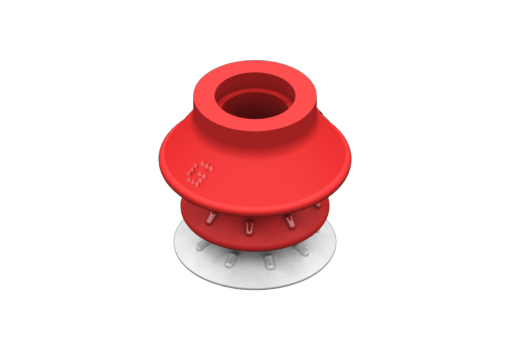

Suction cups 2.5 bellows VG.ISX25 Polyurethane 35/60 Shore

  • Vacuum Cup Diameter

    25.0 mm

  • Vacuum Cup Material

    POLYURETHANE

  • Weight

    5.4 Gr

2322316 New

2322316

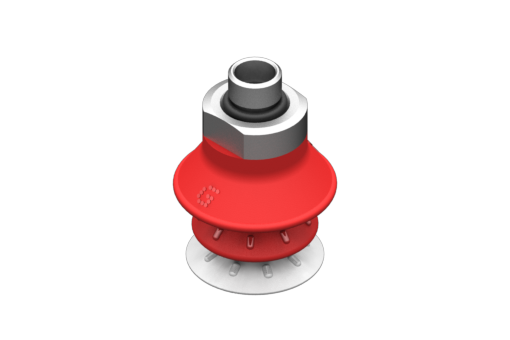

Suction cup VG.ISX25 Polyurethane 35/60 Shore, G1/8” Male

  • Air Feeding In

    G1/8'' Maschio

  • Vacuum Cup Diameter

    25.0 mm

  • Vacuum Cup Material

    POLYURETHANE

  • Weight

    12.0 Gr

2322317 New

2322317

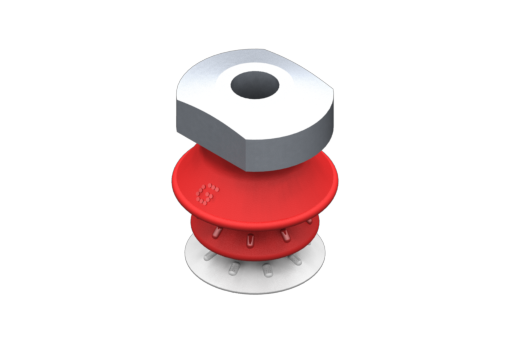

Suction cup VG.ISX25 Polyurethane 35/60 Shore, G1/8” Female

  • Air Feeding In

    G1/8'' Femmina

  • Vacuum Cup Diameter

    25.0 mm

  • Vacuum Cup Material

    POLYURETHANE

  • Weight

    18.0 Gr

2322318 New

2322318

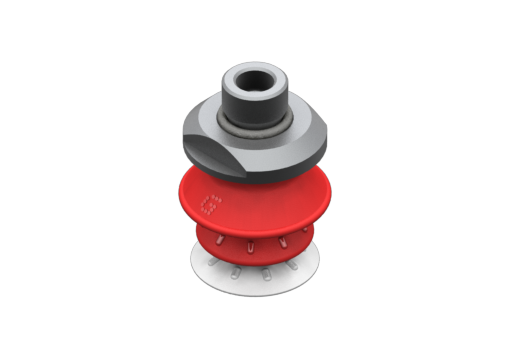

Suction cup VG.ISX25 Polyurethane 35/60 Shore, G1/4” Male

  • Air Feeding In

    G1/4'' Maschio

  • Vacuum Cup Diameter

    25.0 mm

  • Vacuum Cup Material

    POLYURETHANE

  • Weight

    18.0 Gr

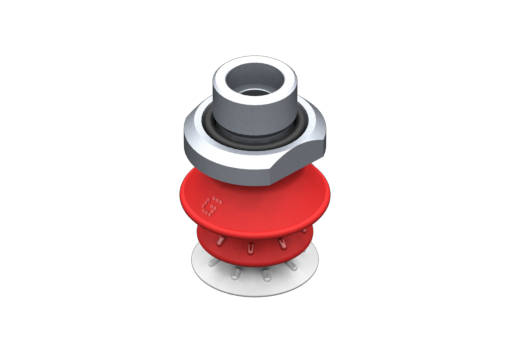

2322319 New

2322319

Suction cup VG.ISX25 Polyurethane 35/60 Shore, G3/8” Male

  • Air Feeding In

    G3/8'' Maschio

  • Vacuum Cup Diameter

    25.0 mm

  • Vacuum Cup Material

    POLYURETHANE

  • Weight

    18.0 Gr
