Multi-bellows suction cups in silicone - VG.FP
- Ideal for handling packaged snack foods
- Suitable for level compensation
- High vertical movement, useful for separating thin parts
- It can be equipped with a perforated disc to increase stability and to allow the handling of thin films
- A FDA-compliant silicone version, suitable for handling unpackaged food, is available.
- Ideal for handling packaged snack foods
- Suitable for level compensation
- High vertical movement, useful for separating thin parts
- It can be equipped with a perforated disc to increase stability and to allow the handling of thin films
- A FDA-compliant silicone version, suitable for handling unpackaged food, is available.
Weight
Suction cup diameter

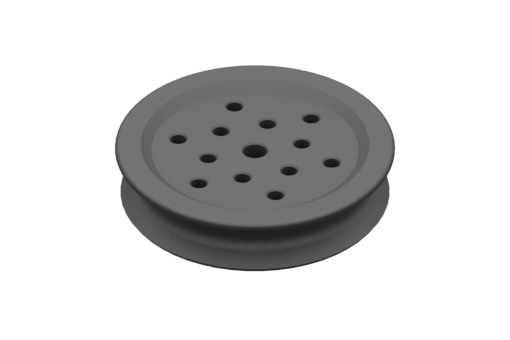

2321755
Perforated disc for thin films, diameter 40 mm
Weight
5.0 Gr

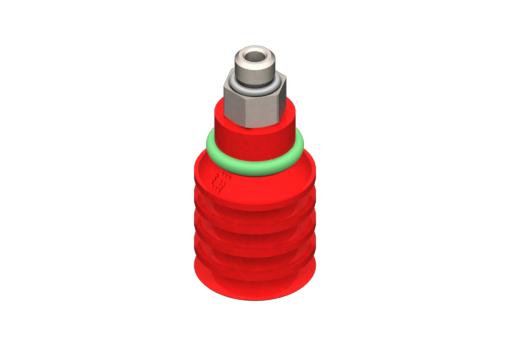

2321756
Suction cup FP.15 Silicone 50 °Shore, M5 Male
Air Feeding In
M5 Maschio
Vacuum Cup Diameter
15.0 mm
Vacuum Cup Material
SILICONE
Weight
3.7 Gr

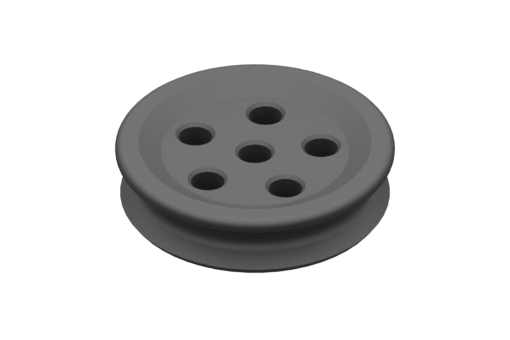

2321780
Perforated disc for thin films, diameter 20 mm
Weight
0.57 Gr

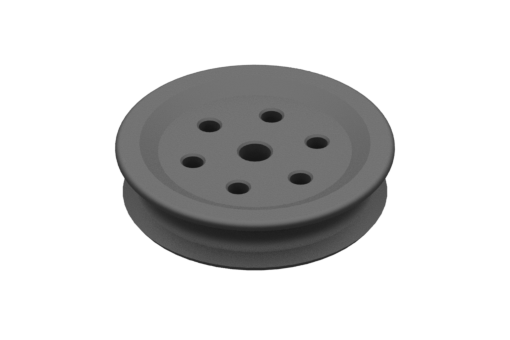

2321781
Perforated disc for thin films, diameter 30 mm
Weight
2.2 Gr

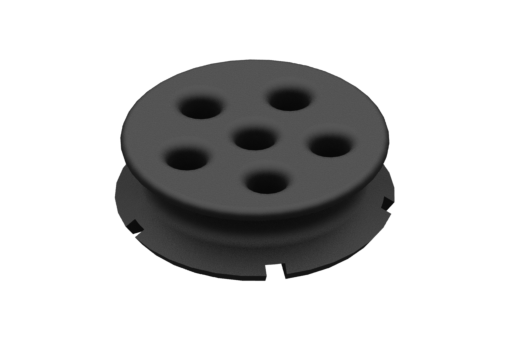

2321782
Perforated disc for thin films, diameter 15mm
Weight
0.2 Gr

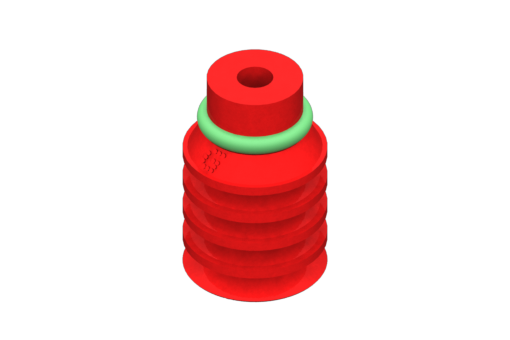

2322052
VG.FP15 suction cup, silicone, 50 Shore
Vacuum Cup Diameter
15.0 mm
Vacuum Cup Material
SILICONE
Weight
1.4 Gr

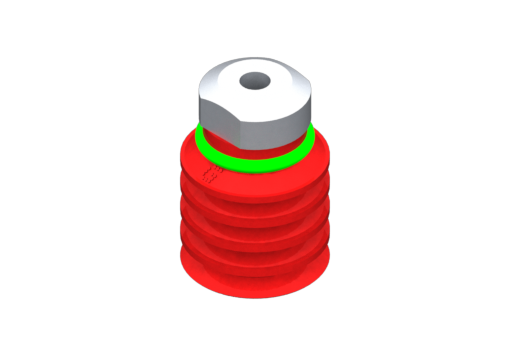

2322053
VG.FP20 suction cup, silicone, 50 °Shore, M5 female
Air Feeding In
M5 Femmina
Vacuum Cup Diameter
20.0 mm
Vacuum Cup Material
SILICONE
Weight
4.5 Gr

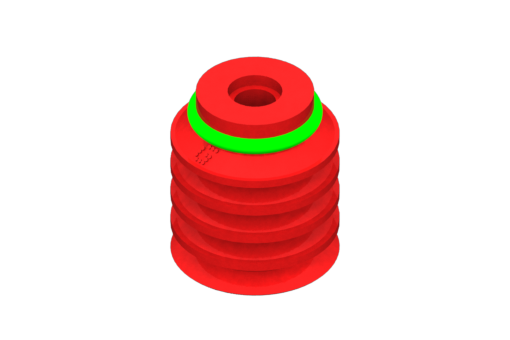

2322054
VG.FP20 suction cup, silicone, 50 Shore
Vacuum Cup Diameter
20.0 mm
Vacuum Cup Material
SILICONE
Weight
1.9 Gr
2322055
VG.FP20 suction cup, silicone, 50 °Shore, G1/8 male
Air Feeding In
G1/8'' Maschio
Vacuum Cup Diameter
20.0 mm
Vacuum Cup Material
SILICONE
Weight
5.0 Gr

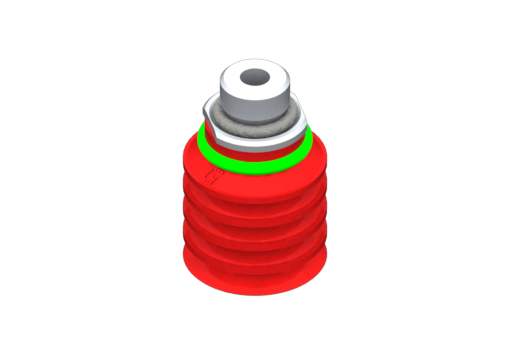

2322056
VG.FP20 suction cup, silicone, 50 Shore, G1/8″ male / M5 female
Air Feeding In
G1/8'' Maschio
Vacuum Cup Diameter
20.0 mm
Vacuum Cup Material
SILICONE
Weight
3.7 Gr

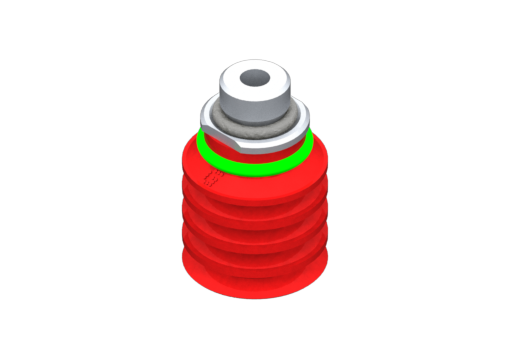

2322057
VG.FP20 suction cup, silicone, 50 Shore, G1/8" male/M5 female with 0.6 mm calibrated hole
Air Feeding In
G1/8'' Maschio
Vacuum Cup Diameter
20.0 mm
Vacuum Cup Material
SILICONE
Weight
3.8 Gr

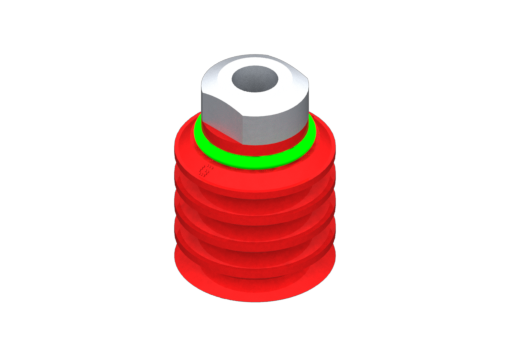

2322058
VG.FP30 suction cup, silicone, 50 Shore, 1/8″ NPSF female
Air Feeding In
G1/8'' Femmina
Vacuum Cup Diameter
30.0 mm
Vacuum Cup Material
SILICONE
Weight
12.0 Gr

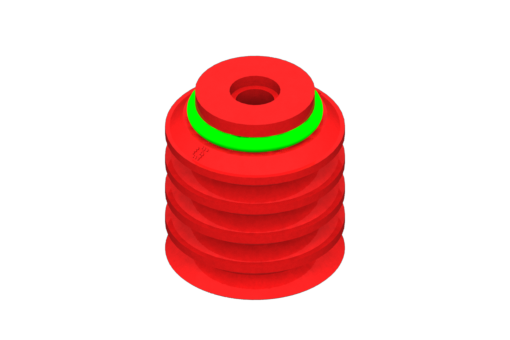

2322059
VG.FP30 suction cup, silicone, 50 Shore
Vacuum Cup Diameter
30.0 mm
Vacuum Cup Material
SILICONE
Weight
5.7 Gr

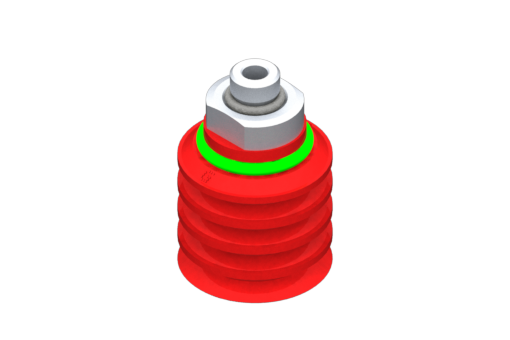

2322060
VG.FP30 suction cup, silicone, 50 Shore, G1/8″ male
Air Feeding In
G1/8'' Maschio
Vacuum Cup Diameter
30.0 mm
Vacuum Cup Material
SILICONE
Weight
11.0 Gr

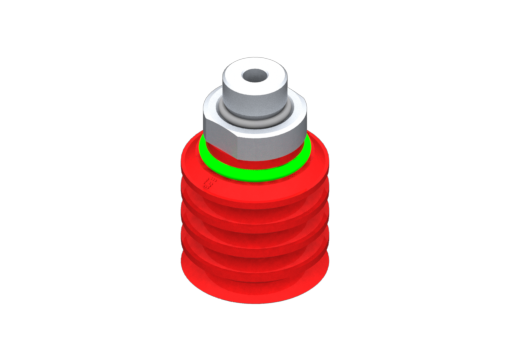

2322061
VG.FP30 suction cup, silicone, 50 Shore, G1/4" male
Air Feeding In
G1/4'' Maschio
Vacuum Cup Diameter
30.0 mm
Vacuum Cup Material
SILICONE
Weight
14.0 Gr

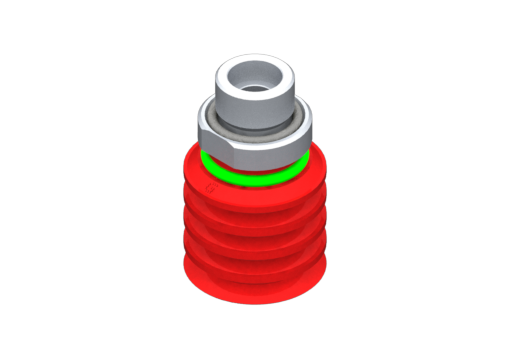

2322062
VG.FP30 suction cup, silicone, 50 Shore, G3/8" male
Air Feeding In
G3/8'' Maschio
Vacuum Cup Diameter
30.0 mm
Vacuum Cup Material
SILICONE
Weight
16.0 Gr

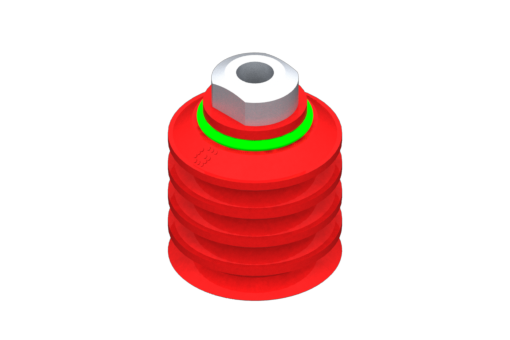

2322063
VG.FP40 suction cup, silicone, 50 Shore, 1/8″ NPSF female
Air Feeding In
G1/8'' Femmina
Vacuum Cup Diameter
40.0 mm
Vacuum Cup Material
SILICONE
Weight
18.0 Gr

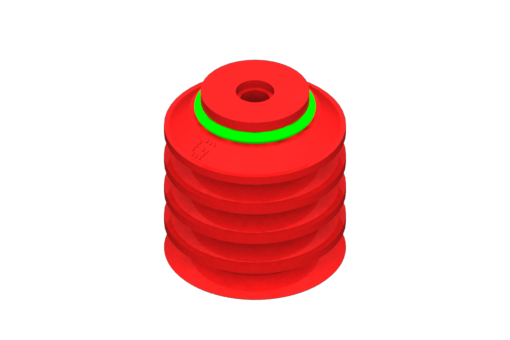

2322064
VG.FP40 suction cup, silicone, 50 Shore
Vacuum Cup Diameter
40.0 mm
Vacuum Cup Material
SILICONE
Weight
12.0 Gr

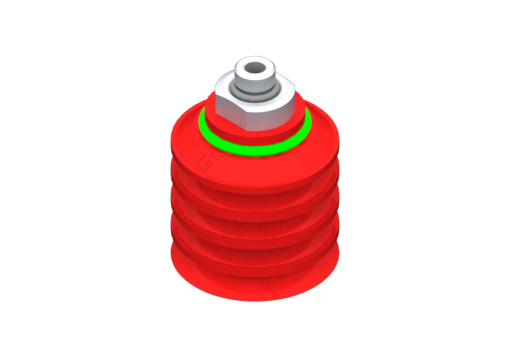

2322065
VG.FP40 suction cup, silicone, 50 Shore, G1/8″ male
Air Feeding In
G1/8'' Maschio
Vacuum Cup Diameter
40.0 mm
Vacuum Cup Material
SILICONE
Weight
17.0 Gr
2322066

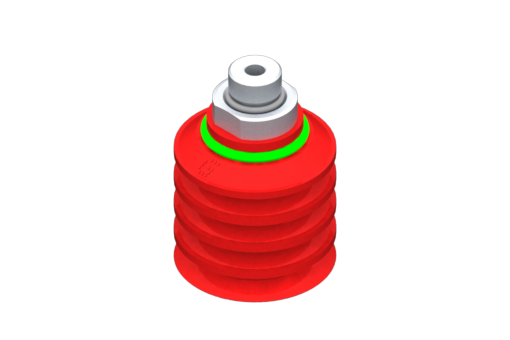

VG.FP40 suction cup, silicone, 50 °Shore, G1/4 male
Air Feeding In
G1/4'' Maschio
Vacuum Cup Diameter
40.0 mm
Vacuum Cup Material
SILICONE
Weight
20.0 Gr
2322067

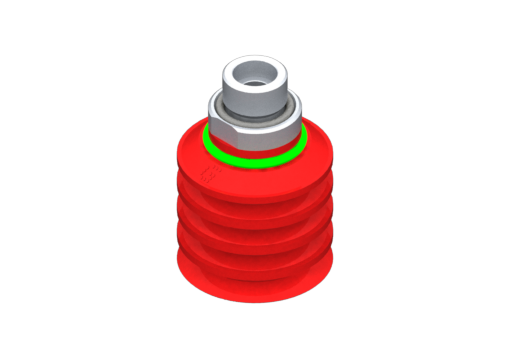

VG.FP40 suction cup, silicone, 50 °Shore, G3/8 male
Air Feeding In
G3/8'' Maschio
Vacuum Cup Diameter
40.0 mm
Vacuum Cup Material
SILICONE
Weight
22.0 Gr

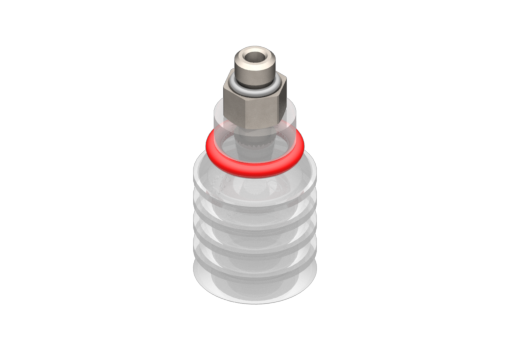

2322068
VG.FP15 suction cup, FDA-compliant silicone, 50 Shore, M5 male
Air Feeding In
M5 Maschio
Vacuum Cup Diameter
15.0 mm
Vacuum Cup Material
SILICONE ALIMENTARE
Weight
3.7 Gr

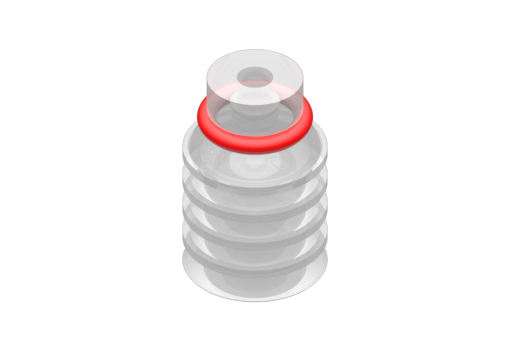

2322069
VG.FP15 suction cup, FDA-compliant silicone, 50 Shore
Vacuum Cup Diameter
15.0 mm
Vacuum Cup Material
SILICONE ALIMENTARE
Weight
1.4 Gr
2322070

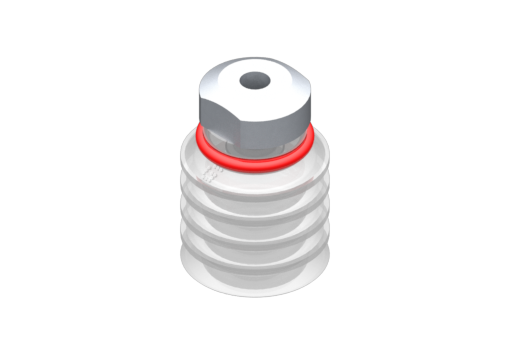

VG.FP20 suction cup, FDA-compliant silicone, 50 °Shore, M5 female
Air Feeding In
M5 Femmina
Vacuum Cup Diameter
20.0 mm
Vacuum Cup Material
SILICONE ALIMENTARE
Weight
4.5 Gr

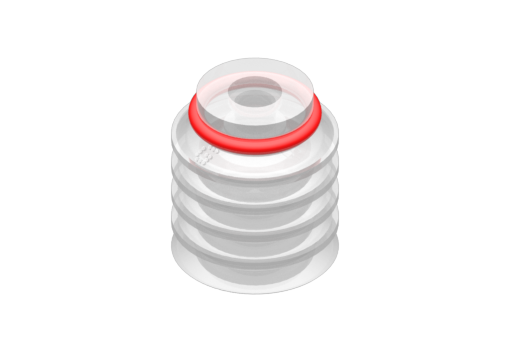

2322071
VG.FP20 suction cup, FDA-compliant silicone, 50 Shore
Vacuum Cup Diameter
20.0 mm
Vacuum Cup Material
SILICONE ALIMENTARE
Weight
1.9 Gr

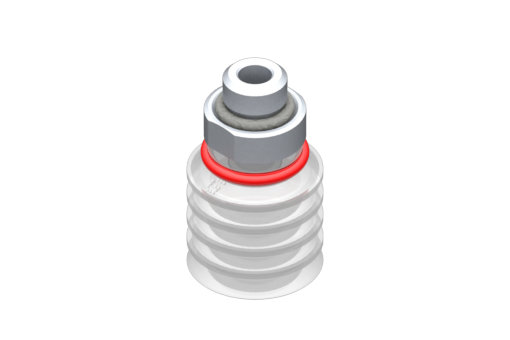

2322072
Suction cup FP.20 Silicone FDA 50 °Shore, G1/8 Male
Air Feeding In
G1/8'' Maschio
Vacuum Cup Diameter
20.0 mm
Vacuum Cup Material
SILICONE ALIMENTARE
Weight
5.0 Gr
2322073
VG.FP20 suction cup, FDA-compliant silicone, 50 Shore, G1/8″ male / M5 female
Air Feeding In
G1/8'' Maschio
Vacuum Cup Diameter
20.0 mm
Vacuum Cup Material
SILICONE ALIMENTARE
Weight
3.7 Gr

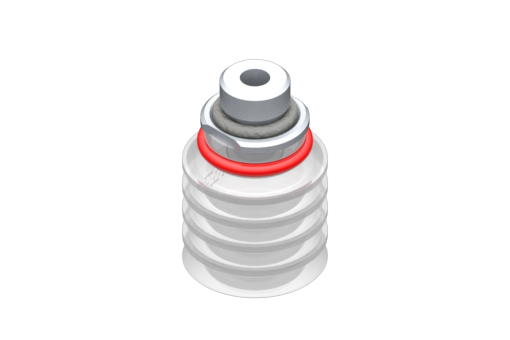

2322074
VG.FP20 suction cup, FDA-compliant silicone, 50 Shore, G1/8" male/M5 female with 0.6 mm calibrated hole
Air Feeding In
G1/8'' Maschio
Vacuum Cup Diameter
20.0 mm
Vacuum Cup Material
SILICONE ALIMENTARE
Weight
3.8 Gr

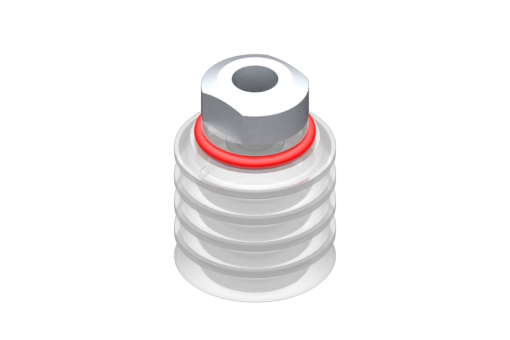

2322075
VG.FP30 suction cup, FDA-compliant silicone, 50 Shore, G1/8" NPSF female
Air Feeding In
G1/8'' Femmina
Vacuum Cup Diameter
30.0 mm
Vacuum Cup Material
SILICONE ALIMENTARE
Weight
12.0 Gr

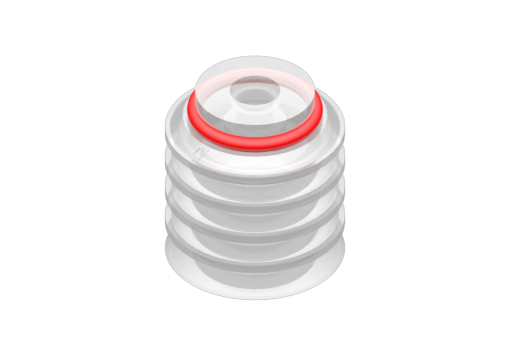

2322076
VG.FP30 suction cup, FDA-compliant silicone, 50 Shore
Vacuum Cup Diameter
30.0 mm
Vacuum Cup Material
SILICONE ALIMENTARE
Weight
5.7 Gr

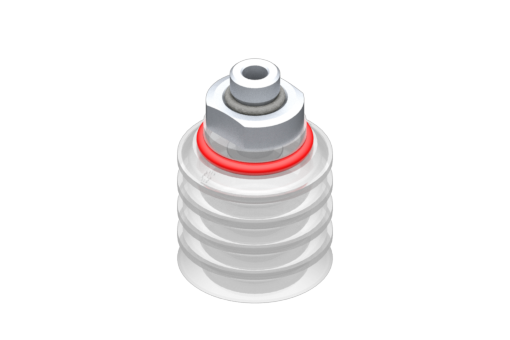

2322077
VG.FP30 suction cup, FDA-compliant silicone, 50 °Shore, G1/8 male
Air Feeding In
G1/8'' Maschio
Vacuum Cup Diameter
30.0 mm
Vacuum Cup Material
SILICONE ALIMENTARE
Weight
11.0 Gr

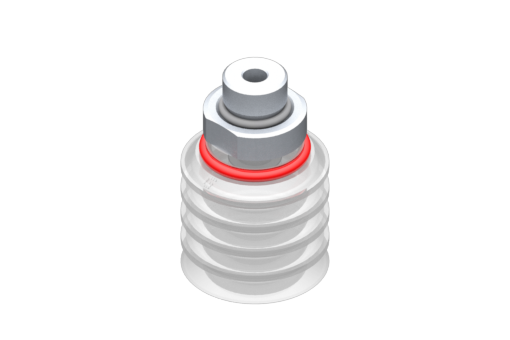

2322078
VG.FP30 suction cup, FDA-compliant silicone, 50 Shore, G1/4″ male
Air Feeding In
G1/4'' Maschio
Vacuum Cup Diameter
30.0 mm
Vacuum Cup Material
SILICONE ALIMENTARE
Weight
14.0 Gr
2322079
VG.FP30 suction cup, FDA-compliant silicone, 50 Shore, G3/8″ male
Air Feeding In
G3/8'' Maschio
Vacuum Cup Diameter
30.0 mm
Vacuum Cup Material
SILICONE ALIMENTARE
Weight
16.0 Gr

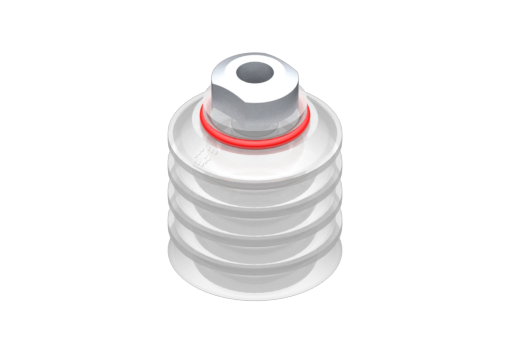

2322080
VG.FP40 suction cup, FDA-compliant silicone, 50 Shore, G1/8″ NPSF female
Air Feeding In
G1/8'' Femmina
Vacuum Cup Diameter
40.0 mm
Vacuum Cup Material
SILICONE ALIMENTARE
Weight
18.0 Gr

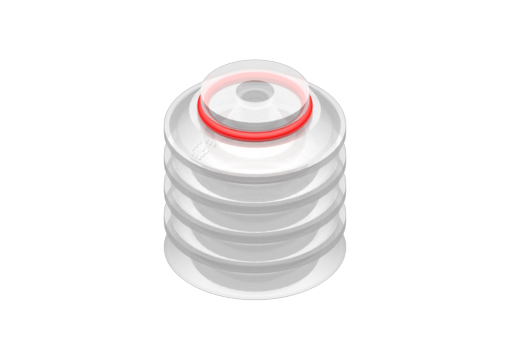

2322081
Suction cups VG.FP40 Silicone 50 Shore
Vacuum Cup Diameter
40.0 mm
Vacuum Cup Material
SILICONE ALIMENTARE
Weight
12.0 Gr

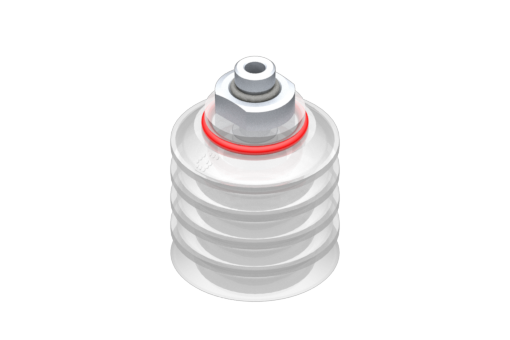

2322082
VG.FP40 suction cup, FDA-compliant silicone, 50 Shore, G1/8" male
Air Feeding In
G1/8'' Maschio
Vacuum Cup Diameter
40.0 mm
Vacuum Cup Material
SILICONE ALIMENTARE
Weight
17.0 Gr

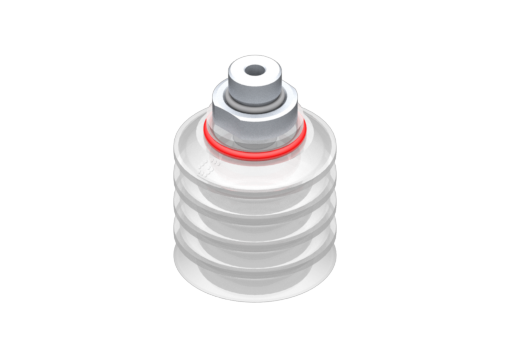

2322083
Suction cup FP.40 Silicone FDA 50 °Shore, G1/4 Male
Air Feeding In
G1/4'' Maschio
Vacuum Cup Diameter
40.0 mm
Vacuum Cup Material
SILICONE ALIMENTARE
Weight
20.0 Gr

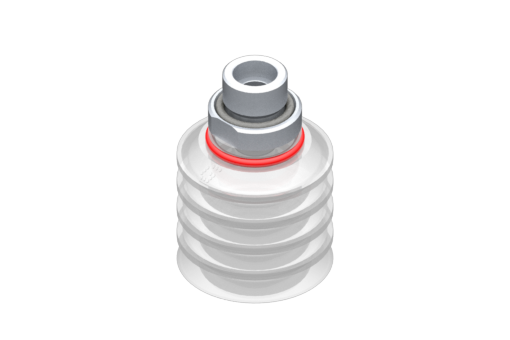

2322084
VG.FP40 suction cup, FDA-compliant silicone, 50 Shore, G3/8″ male
Air Feeding In
G3/8'' Maschio
Vacuum Cup Diameter
40.0 mm
Vacuum Cup Material
SILICONE ALIMENTARE
Weight
22.0 Gr
