Multi-bellows suction cups in polyurethane - VG.GX
- Suitable for compensating for different heights
- Ideal for handling items with porous and uneven surface
- Features an exceptional elastic memory
- Available with 50 Shore hardness, green colour
- Available with 30/60 Shore hardness. The two-colour suction cup is robust and flexible at the same time
- Suitable for compensating for different heights
- Ideal for handling items with porous and uneven surface
- Features an exceptional elastic memory
- Available with 50 Shore hardness, green colour
- Available with 30/60 Shore hardness. The two-colour suction cup is robust and flexible at the same time
Weight
Suction cup diameter

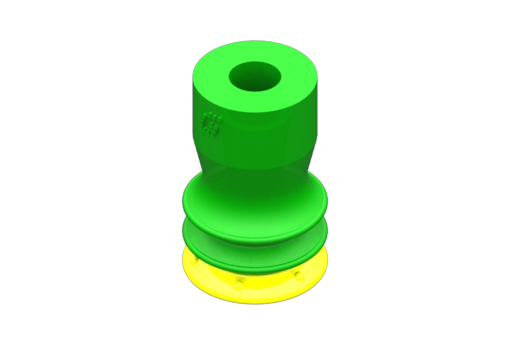

1010000
VG.GX10P suction cup, polyurethane, 30/60 Shore
Vacuum Cup Diameter
10.0 mm
Vacuum Cup Material
POLYURETHANE
Weight
0.58 Gr

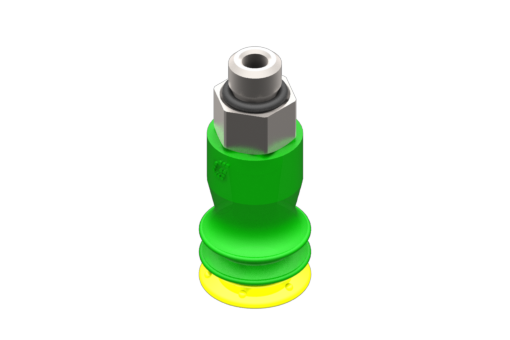

1010005
VG.GX10P suction cup, polyurethane, 30/60 °Shore, M5 male
Air Feeding In
M5 Maschio
Vacuum Cup Diameter
10.0 mm
Vacuum Cup Material
POLYURETHANE
Weight
2.9 Gr

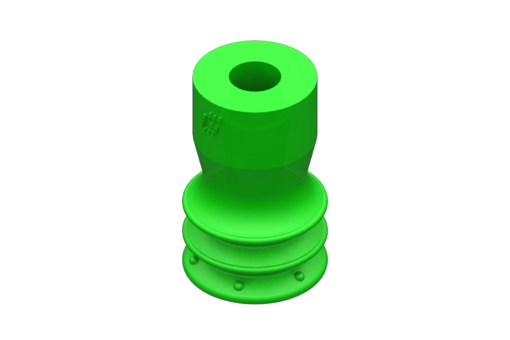

1020000
VG.GX10P suction cup, polyurethane, 50 Shore
Vacuum Cup Diameter
10.0 mm
Vacuum Cup Material
POLYURETHANE
Weight
0.58 Gr

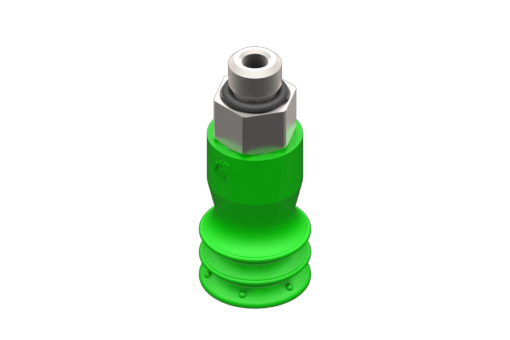

1020005
Suction cup VG.GX10P Polyurethane 50 °Shore, M5 Male
Air Feeding In
M5 Maschio
Vacuum Cup Diameter
10.0 mm
Vacuum Cup Material
POLYURETHANE
Weight
2.9 Gr

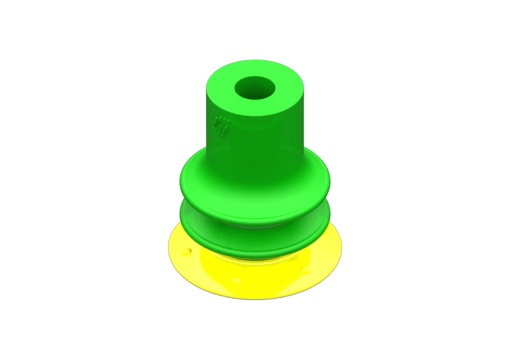

1510000
VG.GX15P suction cup, polyurethane, 30/60 Shore
Vacuum Cup Diameter
15.0 mm
Vacuum Cup Material
POLYURETHANE
Weight
0.92 Gr

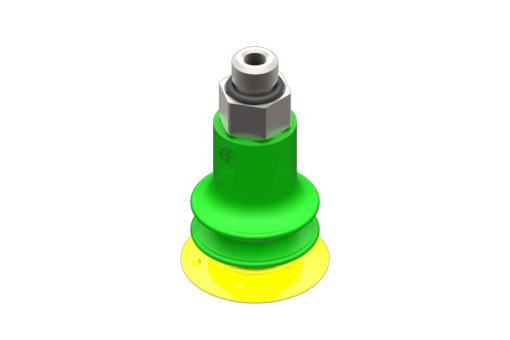

1510005
Suction cup VG.GX15P Polyurethane 30/60 °Shore, M5 Male
Air Feeding In
M5 Maschio
Vacuum Cup Diameter
15.0 mm
Vacuum Cup Material
POLYURETHANE
Weight
3.2 Gr

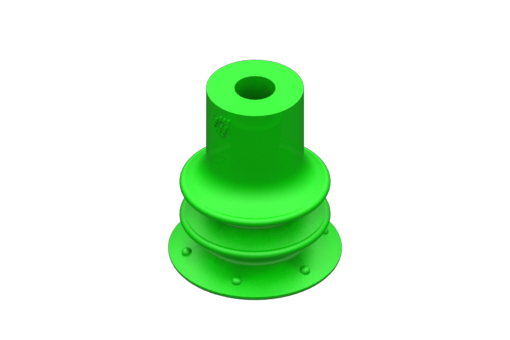

1520000
VG.GX15P suction cup, polyurethane, 50 Shore
Vacuum Cup Diameter
15.0 mm
Vacuum Cup Material
POLYURETHANE
Weight
0.92 Gr

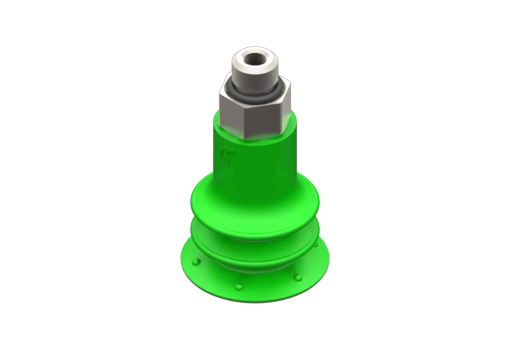

1520005
VG.GX15P suction cup, polyurethane, 50 Shore, M5 male
Air Feeding In
M5 Maschio
Vacuum Cup Diameter
15.0 mm
Vacuum Cup Material
POLYURETHANE
Weight
3.2 Gr

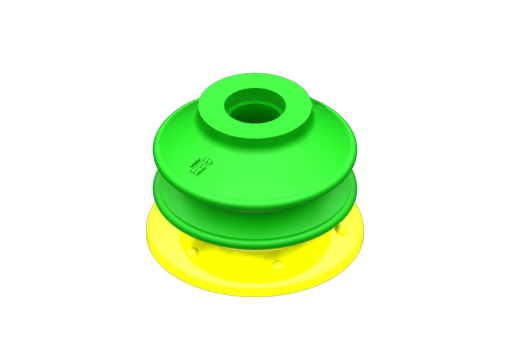

2010000
VG.GX20P suction cup, polyurethane, 30/60 Shore
Vacuum Cup Diameter
20.0 mm
Vacuum Cup Material
POLYURETHANE
Weight
1.4 Gr

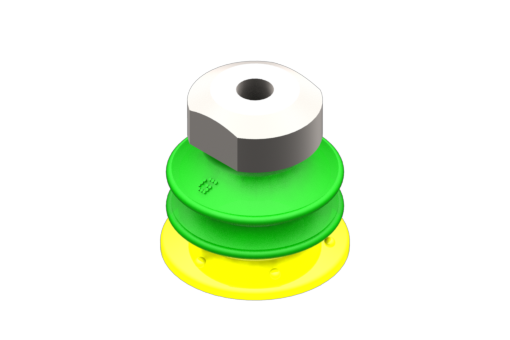

2010006
Suction cup VG.GX20P Polyurethane 30/60 Shore, M5 Female
Air Feeding In
M5 Femmina
Vacuum Cup Diameter
20.0 mm
Vacuum Cup Material
POLYURETHANE
Weight
4.0 Gr
2010007
VG.GX20P suction cup, polyurethane, 30/60 Shore, G1/8" male / M5 female, with 0.6 mm calibrated hole
Air Feeding In
G1/8'' Maschio
Vacuum Cup Diameter
20.0 mm
Vacuum Cup Material
POLYURETHANE
Weight
3.3 Gr

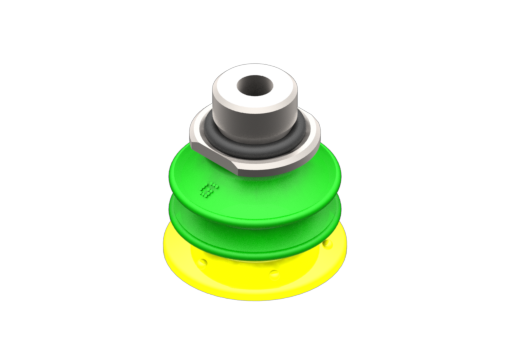

2010016
VG.GX20P suction cup, polyurethane, 30/60 °Shore, G1/8 male / M5 female
Air Feeding In
G1/8'' Maschio
Vacuum Cup Diameter
20.0 mm
Vacuum Cup Material
POLYURETHANE
Weight
3.2 Gr
2010018
VG.GX20P suction cup, polyurethane, 30/60 °Shore, G1/8 male
Air Feeding In
G1/8'' Maschio
Vacuum Cup Diameter
20.0 mm
Vacuum Cup Material
POLYURETHANE
Weight
4.5 Gr

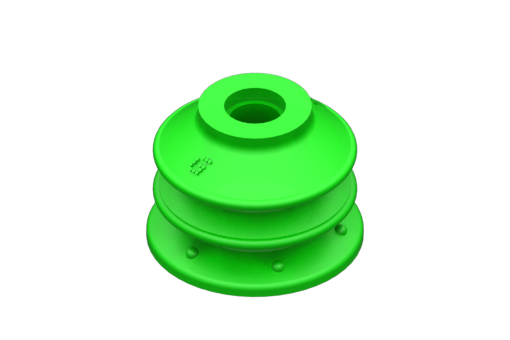

2020000
VG.GX20P suction cup, polyurethane, 50 Shore
Vacuum Cup Diameter
20.0 mm
Vacuum Cup Material
POLYURETHANE
Weight
1.4 Gr

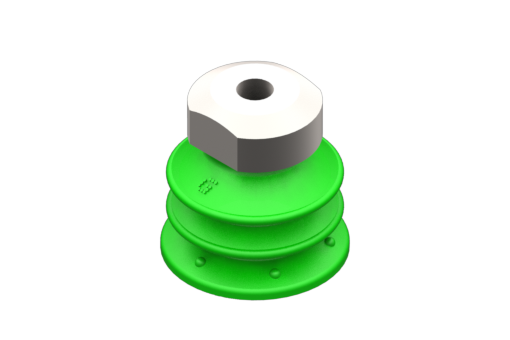

2020006
VG.GX20P suction cup, polyurethane, 50 Shore, M5 female
Air Feeding In
M5 Femmina
Vacuum Cup Diameter
20.0 mm
Vacuum Cup Material
POLYURETHANE
Weight
4.0 Gr
2020007
VG.GX20P suction cup, polyurethane, 50 Shore, G1/8" male / M5 female, with 0.6 mm calibrated hole
Air Feeding In
G1/8'' Maschio
Vacuum Cup Diameter
20.0 mm
Vacuum Cup Material
POLYURETHANE
Weight
3.3 Gr

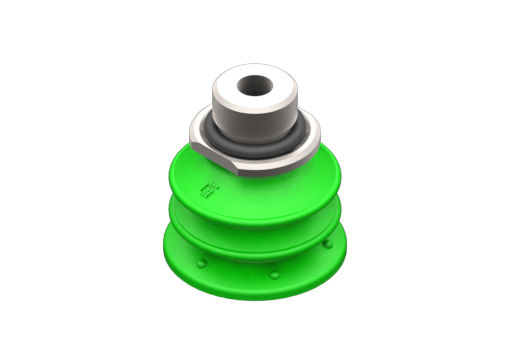

2020016
VG.GX20P suction cup, polyurethane, 50 Shore, G1/8″ male / M5 female
Air Feeding In
G1/8'' Maschio
Vacuum Cup Diameter
20.0 mm
Vacuum Cup Material
POLYURETHANE
Weight
3.2 Gr

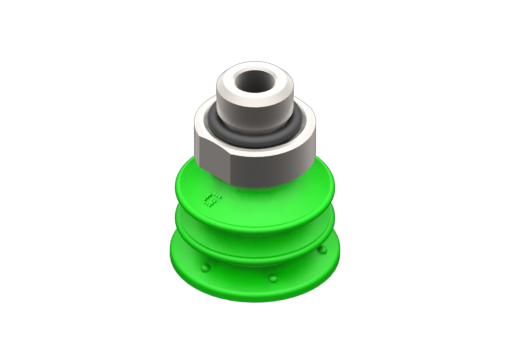

2020018
VG.GX20P suction cup, polyurethane, 50 Shore, G1/8″ male
Air Feeding In
G1/8'' Maschio
Vacuum Cup Diameter
20.0 mm
Vacuum Cup Material
POLYURETHANE
Weight
4.5 Gr

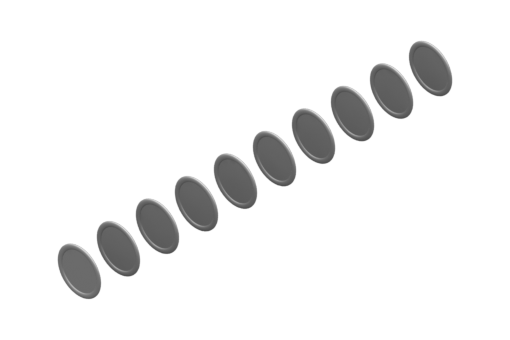

2500001
VG.GX25 internal filter (10 pieces)
Weight
1.0 Gr

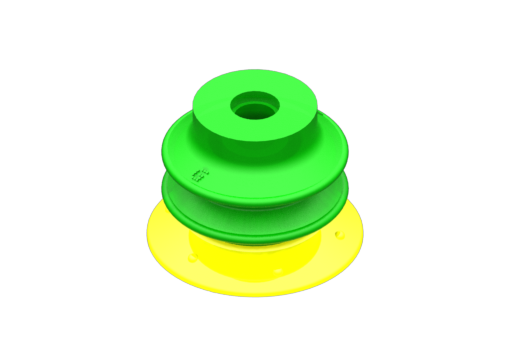

2510000
VG.GX25P suction cup, polyurethane, 30/60 Shore, with internal filter
Vacuum Cup Diameter
25.0 mm
Vacuum Cup Material
POLYURETHANE
Weight
2.5 Gr

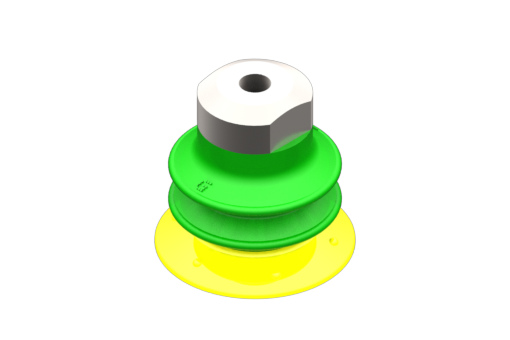

2510006
VG.GX25P suction cup, polyurethane, 30/60 Shore, with internal filter, M5 female
Air Feeding In
M5 Femmina
Vacuum Cup Diameter
25.0 mm
Vacuum Cup Material
POLYURETHANE
Weight
5.1 Gr

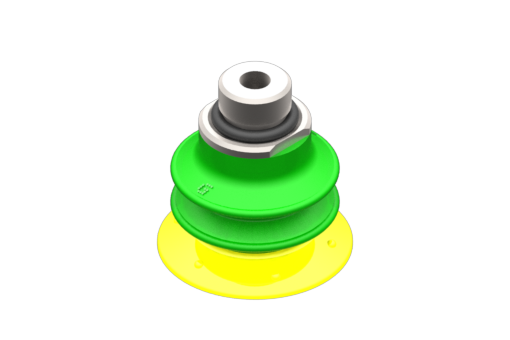

2510007
VG.GX25P suction cup, polyurethane, 30/60 Shore, G1/8" male / M5 female, with 0.6 mm calibrated hole
Air Feeding In
G1/8'' Maschio
Vacuum Cup Diameter
25.0 mm
Vacuum Cup Material
POLYURETHANE
Weight
4.3 Gr

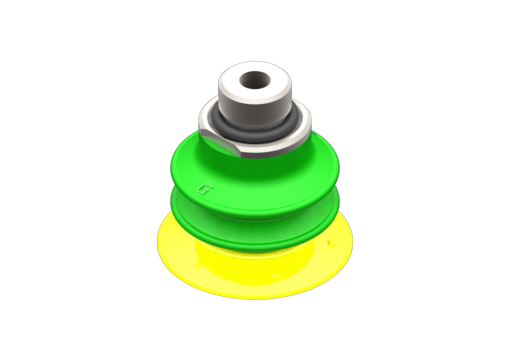

2510016
VG.GX25P suction cup, polyurethane, 30/60 °Shore, with internal filter, G1/8 male / M5 female
Air Feeding In
G1/8'' Maschio
Vacuum Cup Diameter
25.0 mm
Vacuum Cup Material
POLYURETHANE
Weight
4.3 Gr

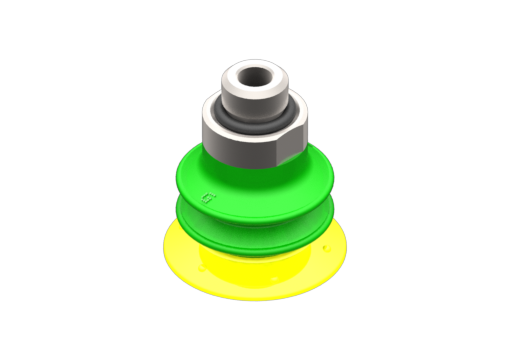

2510018
VG.GX25P suction cup, polyurethane, 30/60 Shore, with internal filter, G1/8″ male
Air Feeding In
G1/8'' Maschio
Vacuum Cup Diameter
25.0 mm
Vacuum Cup Material
POLYURETHANE
Weight
5.6 Gr

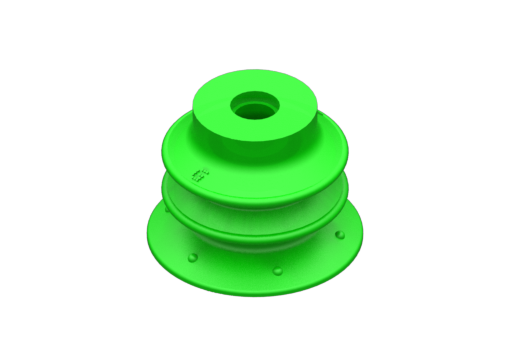

2520000
VG.GX25P suction cup, polyurethane, 50 Shore, with internal filter
Vacuum Cup Diameter
25.0 mm
Vacuum Cup Material
POLYURETHANE
Weight
2.5 Gr

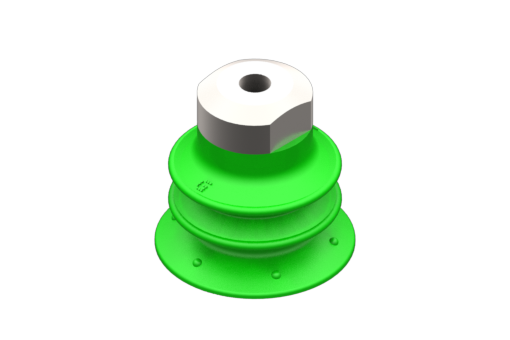

2520006
VG.GX25P suction cup, polyurethane, 50 Shore, with internal filter, M5 female
Air Feeding In
M5 Femmina
Vacuum Cup Diameter
25.0 mm
Vacuum Cup Material
POLYURETHANE
Weight
5.0 Gr

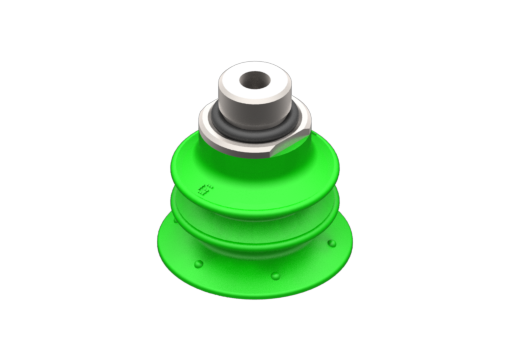

2520007
VG.GX25P suction cup, polyurethane, 50 Shore, G1/8" male / M5 female, with 0.6 mm calibrated hole
Air Feeding In
G1/8'' Maschio
Vacuum Cup Diameter
25.0 mm
Vacuum Cup Material
POLYURETHANE
Weight
4.3 Gr

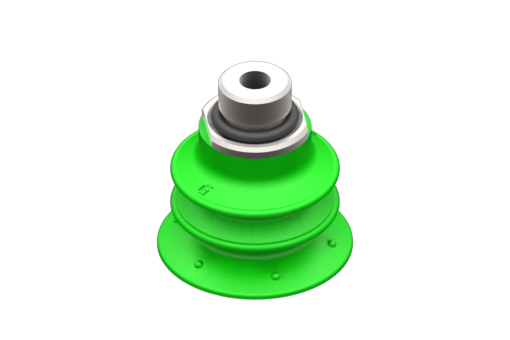

2520016
VG.GX25P suction cup, polyurethane, 50 Shore, with internal filter, G1/8″ male / M5 female
Air Feeding In
G1/8'' Maschio
Vacuum Cup Diameter
25.0 mm
Vacuum Cup Material
POLYURETHANE
Weight
4.2 Gr

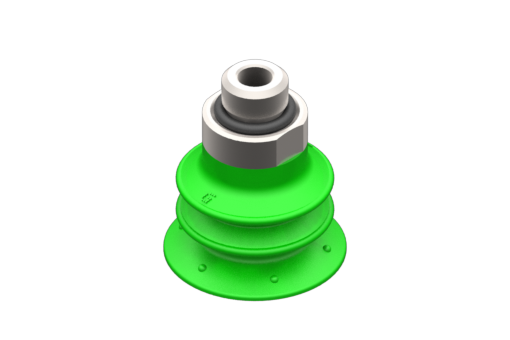

2520018
VG.GX25P suction cup, polyurethane, 50 Shore, with internal filter, G1/8″ male
Air Feeding In
G1/8'' Maschio
Vacuum Cup Diameter
25.0 mm
Vacuum Cup Material
POLYURETHANE
Weight
5.6 Gr

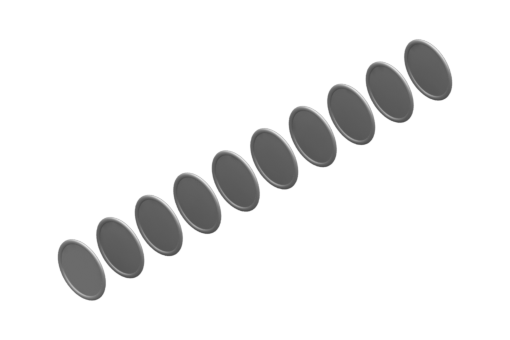

3500001
VG.GX35 internal filter (10 pieces)
Weight
2.0 Gr

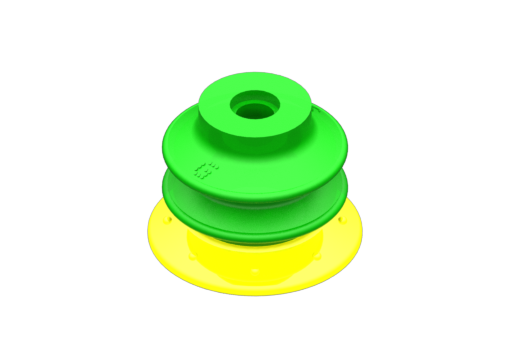

3510000
VG.GX35P suction cup, polyurethane, 30/60 °Shore, with internal filter
Vacuum Cup Diameter
35.0 mm
Vacuum Cup Material
POLYURETHANE
Weight
6.4 Gr

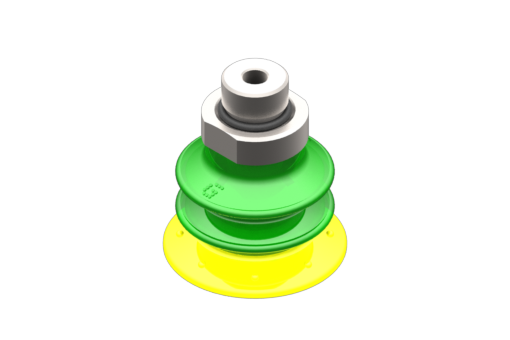

3510014
VG.GX35P suction cup, polyurethane, 30/60 Shore, with internal filter, G1/4″ male
Air Feeding Connection
G1/4'' Maschio
Air Feeding In
G1/4'' Maschio
Vacuum Cup Diameter
35.0 mm
Vacuum Cup Material
POLYURETHANE
Weight
14.0 Gr

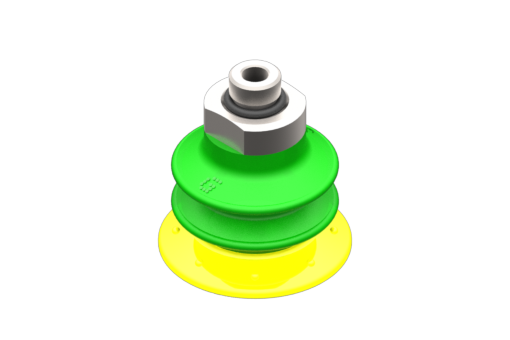

3510018
Suction cup VG.GX35P Polyurethane 30/60 °Shore with filter, G1/8 Male
Air Feeding Connection
G1/8'' Maschio
Air Feeding In
G1/8'' Maschio
Vacuum Cup Diameter
35.0 mm
Vacuum Cup Material
POLYURETHANE
Weight
12.0 Gr

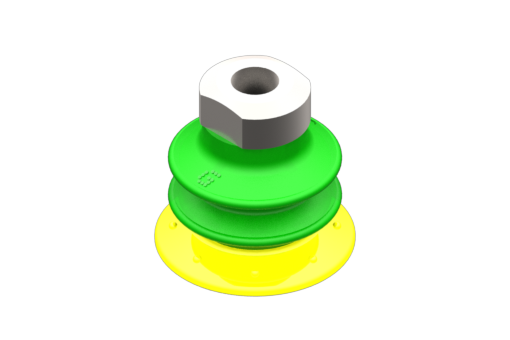

3510019
Suction cup VG.GX35P Polyurethane 30/60 Shore, with filter, 1/8" NPSF female
Air Feeding Connection
G1/8'' Femmina
Air Feeding In
G1/8'' Femmina
Vacuum Cup Diameter
35.0 mm
Vacuum Cup Material
POLYURETHANE
Weight
12.0 Gr

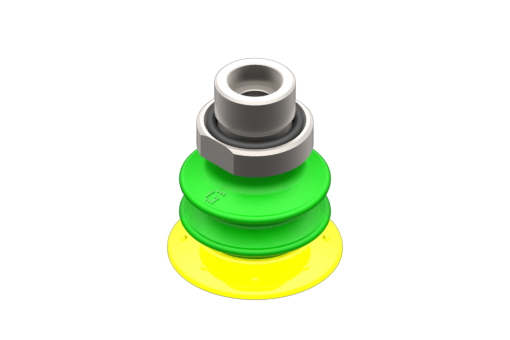

3510038
Suction cup VG.GX35P Polyurethane 30/60 with filter, G3/8" Male
Air Feeding In
G3/8'' Maschio
Vacuum Cup Diameter
35.0 mm
Vacuum Cup Material
POLYURETHANE
Weight
17.0 Gr

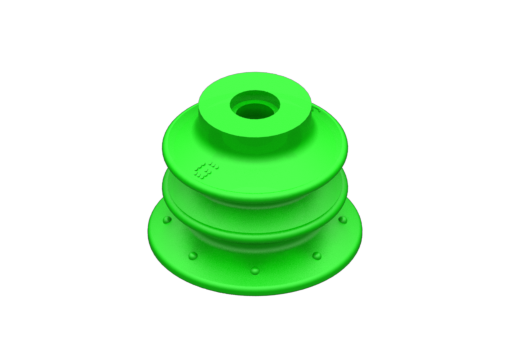

3520000
VG.GX35P suction cup, polyurethane, 50 Shore, with internal filter
Vacuum Cup Diameter
35.0 mm
Vacuum Cup Material
POLYURETHANE
Weight
6.4 Gr

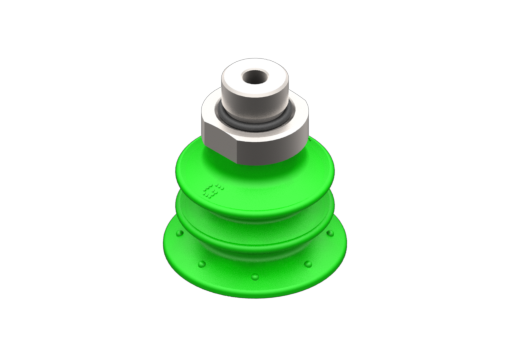

3520014
VG.GX35P suction cup, polyurethane, 50 Shore, with internal filter, G1/4" male
Air Feeding Connection
G1/4'' Maschio
Air Feeding In
G1/4'' Maschio
Vacuum Cup Diameter
35.0 mm
Vacuum Cup Material
POLYURETHANE
Weight
14.0 Gr

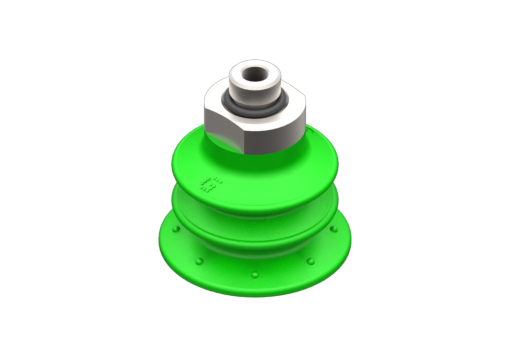

3520018
VG.GX35P suction cup, polyurethane, 50 Shore, with internal filter, G1/8″ male
Air Feeding Connection
G1/8'' Maschio
Air Feeding In
G1/8'' Maschio
Vacuum Cup Diameter
35.0 mm
Vacuum Cup Material
POLYURETHANE
Weight
12.0 Gr

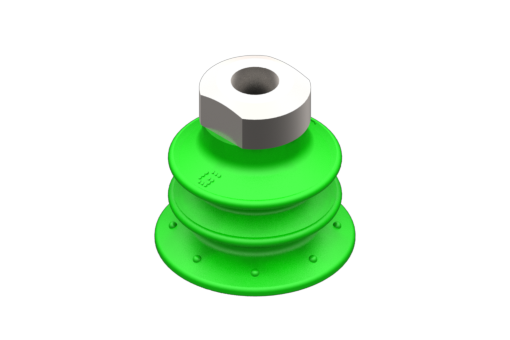

3520019
VG.GX35P suction cup, polyurethane, 50 Shore, with internal filter, 1/8″ NPSF female
Air Feeding Connection
G1/8'' Femmina
Air Feeding In
G1/8'' Femmina
Vacuum Cup Diameter
35.0 mm
Vacuum Cup Material
POLYURETHANE
Weight
12.0 Gr

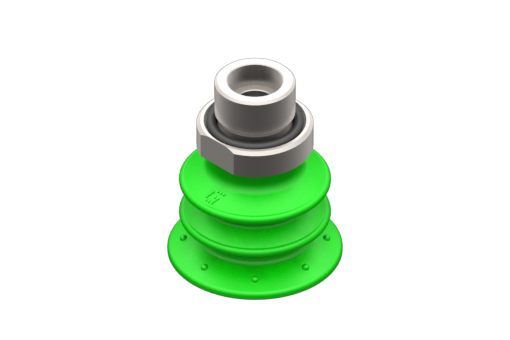

3520038
VG.GX35P suction cup, polyurethane, 50 Shore, with internal filter, G3/8″ male
Air Feeding In
G3/8'' Maschio
Vacuum Cup Diameter
35.0 mm
Vacuum Cup Material
POLYURETHANE
Weight
17.0 Gr
5200001
VG.GX52 internal filter (10 pieces)
Weight
12.0 Gr

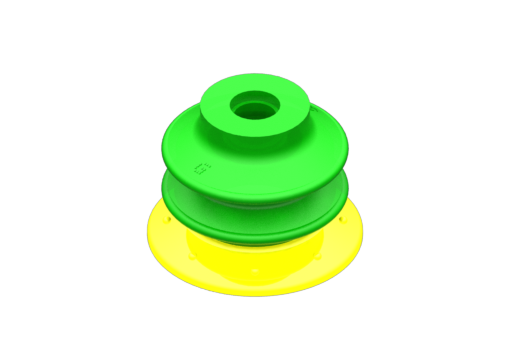

5210000
VG.GX52P suction cup, polyurethane, 30/60 Shore, with internal filter
Vacuum Cup Diameter
52.0 mm
Vacuum Cup Material
POLYURETHANE
Weight
21.0 Gr

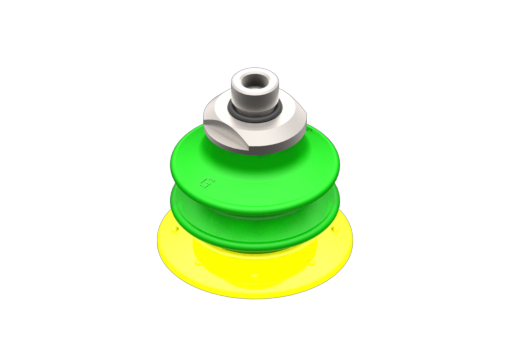

5210014
VG.GX52P suction cup, polyurethane, 30/60 Shore, with internal filter, G1/4″ male
Air Feeding In
G1/4'' Maschio
Vacuum Cup Diameter
52.0 mm
Vacuum Cup Material
POLYURETHANE
Weight
33.0 Gr

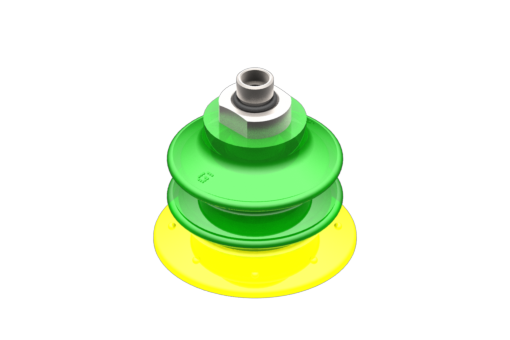

5210018
VG.GX52P suction cup, polyurethane, 30/60 °Shore, with internal filter, G1/8" male
Air Feeding In
G1/8'' Maschio
Vacuum Cup Diameter
52.0 mm
Vacuum Cup Material
POLYURETHANE
Weight
28.0 Gr

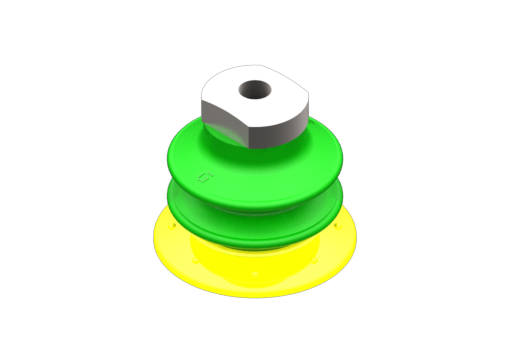

5210019
VG.GX52P suction cup, polyurethane, 30/60 Shore, with internal filter, 1/8″ NPSF female
Air Feeding In
G1/8'' Femmina
Vacuum Cup Diameter
52.0 mm
Vacuum Cup Material
POLYURETHANE
Weight
33.0 Gr

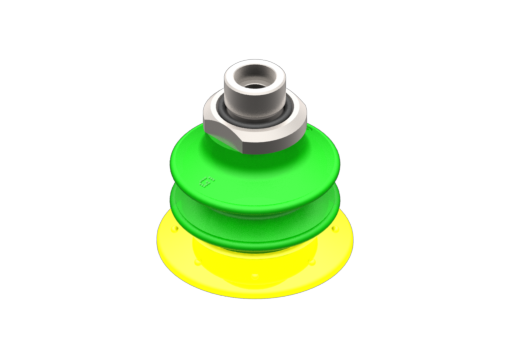

5210038
VG.GX52P suction cup, polyurethane, 30/60 °Shore, with internal filter, G3/8 male
Air Feeding In
G3/8'' Maschio
Vacuum Cup Diameter
52.0 mm
Vacuum Cup Material
POLYURETHANE
Weight
34.0 Gr

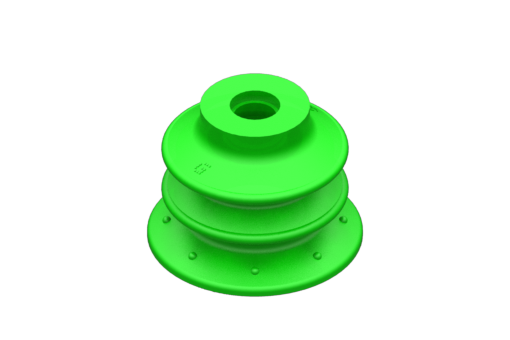

5220000
VG.GX52P suction cup, polyurethane, 50 Shore, with internal filter
Vacuum Cup Diameter
52.0 mm
Vacuum Cup Material
POLYURETHANE
Weight
21.0 Gr

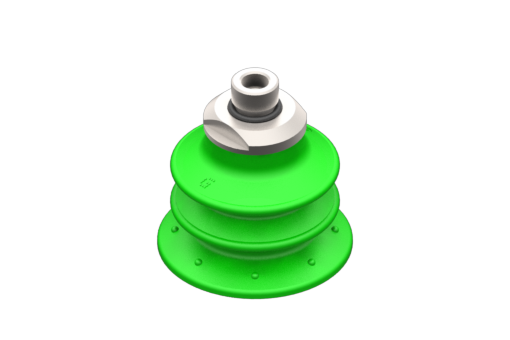

5220014
VG.GX52P suction cup, polyurethane, 50 Shore, with internal filter, G1/4″ male
Air Feeding In
G1/4'' Maschio
Vacuum Cup Diameter
52.0 mm
Vacuum Cup Material
POLYURETHANE
Weight
33.0 Gr

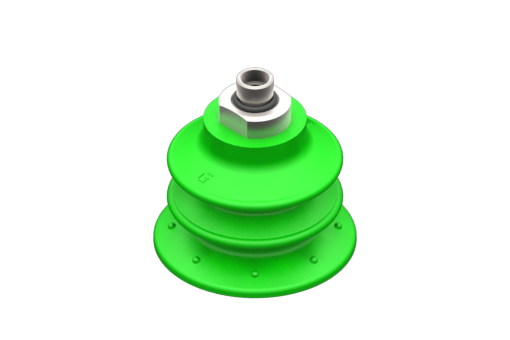

5220018
VG.GX52P suction cup, polyurethane, 50 °Shore, with internal filter, G1/8" male
Air Feeding In
G1/8'' Maschio
Vacuum Cup Diameter
52.0 mm
Vacuum Cup Material
POLYURETHANE
Weight
27.0 Gr

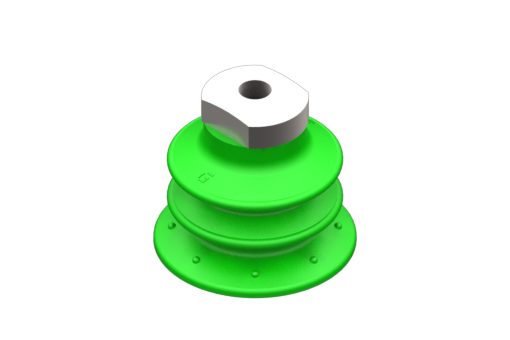

5220019
VG.GX52P suction cup, polyurethane, 50 Shore, with internal filter, 1/8″ NPSF female
Air Feeding In
G1/8'' Femmina
Vacuum Cup Diameter
52.0 mm
Vacuum Cup Material
POLYURETHANE
Weight
33.0 Gr

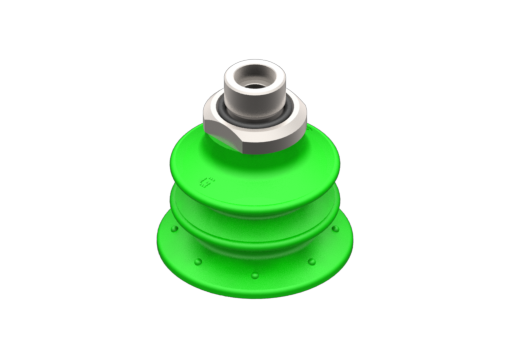

5220038
Suction cup VG.GX52P Polyurethane 50 Shore with filter, G3/8" Male
Air Feeding In
G3/8'' Maschio
Vacuum Cup Diameter
52.0 mm
Vacuum Cup Material
POLYURETHANE
Weight
34.0 Gr

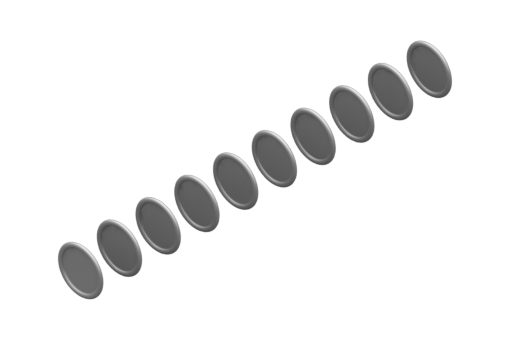

7500001
Internal filter VG.GX75

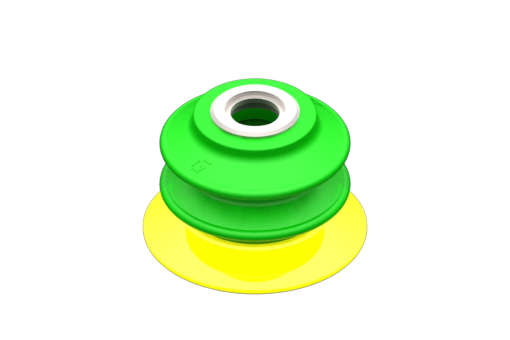

7510000
Suction cups VG.GX75P Polyurethane 30/60 Shore with filter
Vacuum Cup Diameter
75.0 mm
Vacuum Cup Material
POLYURETHANE
Weight
56.0 Gr

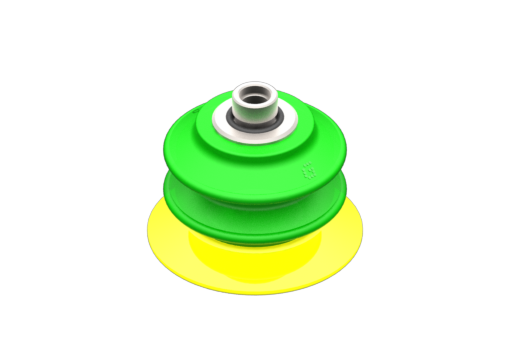

7510038
Suction cup VG.GX75P Polyurethane 30/60 Shore, with filter, 3/8" Male
Air Feeding In
G3/8'' Maschio
Vacuum Cup Diameter
75.0 mm
Vacuum Cup Material
POLYURETHANE
Weight
62.0 Gr

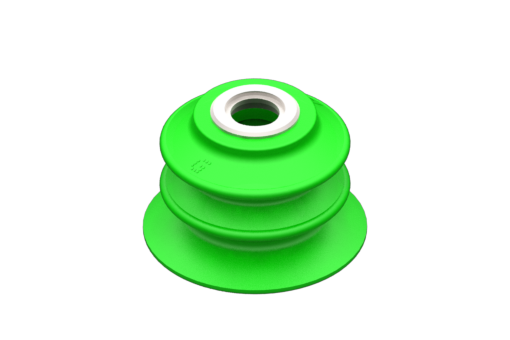

7520000
VG.GX75P suction cup, polyurethane, 50 Shore, with internal filter
Vacuum Cup Diameter
75.0 mm
Vacuum Cup Material
POLYURETHANE
Weight
56.0 Gr

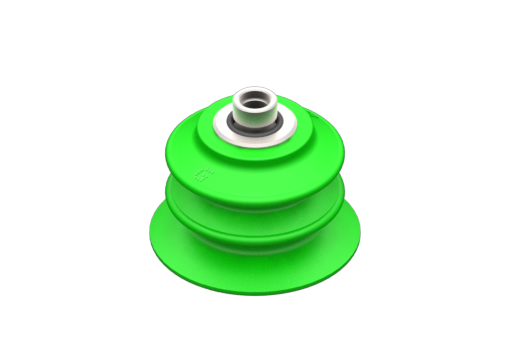

7520038
VG.GX75P suction cup, polyurethane, 50 Shore, with filter, G3/8″ male
Air Feeding In
G3/8'' Maschio
Vacuum Cup Diameter
75.0 mm
Vacuum Cup Material
POLYURETHANE
Weight
62.0 Gr
1010000
Vacuum Cup Diameter
10.0 mm
Vacuum Cup Material
POLYURETHANE
Weight
0.58 Gr
1010005
Air Feeding In
M5 Maschio
Vacuum Cup Diameter
10.0 mm
Vacuum Cup Material
POLYURETHANE
Weight
2.9 Gr
1020000
Vacuum Cup Diameter
10.0 mm
Vacuum Cup Material
POLYURETHANE
Weight
0.58 Gr
1020005
Air Feeding In
M5 Maschio
Vacuum Cup Diameter
10.0 mm
Vacuum Cup Material
POLYURETHANE
Weight
2.9 Gr
1510000
Vacuum Cup Diameter
15.0 mm
Vacuum Cup Material
POLYURETHANE
Weight
0.92 Gr
1510005
Air Feeding In
M5 Maschio
Vacuum Cup Diameter
15.0 mm
Vacuum Cup Material
POLYURETHANE
Weight
3.2 Gr
1520000
Vacuum Cup Diameter
15.0 mm
Vacuum Cup Material
POLYURETHANE
Weight
0.92 Gr
1520005
Air Feeding In
M5 Maschio
Vacuum Cup Diameter
15.0 mm
Vacuum Cup Material
POLYURETHANE
Weight
3.2 Gr
2010000
Vacuum Cup Diameter
20.0 mm
Vacuum Cup Material
POLYURETHANE
Weight
1.4 Gr
2010006
Air Feeding In
M5 Femmina
Vacuum Cup Diameter
20.0 mm
Vacuum Cup Material
POLYURETHANE
Weight
4.0 Gr
2010007
Air Feeding In
G1/8'' Maschio
Vacuum Cup Diameter
20.0 mm
Vacuum Cup Material
POLYURETHANE
Weight
3.3 Gr
2010016
Air Feeding In
G1/8'' Maschio
Vacuum Cup Diameter
20.0 mm
Vacuum Cup Material
POLYURETHANE
Weight
3.2 Gr
2010018
Air Feeding In
G1/8'' Maschio
Vacuum Cup Diameter
20.0 mm
Vacuum Cup Material
POLYURETHANE
Weight
4.5 Gr
2020000
Vacuum Cup Diameter
20.0 mm
Vacuum Cup Material
POLYURETHANE
Weight
1.4 Gr
2020006
Air Feeding In
M5 Femmina
Vacuum Cup Diameter
20.0 mm
Vacuum Cup Material
POLYURETHANE
Weight
4.0 Gr
2020007
Air Feeding In
G1/8'' Maschio
Vacuum Cup Diameter
20.0 mm
Vacuum Cup Material
POLYURETHANE
Weight
3.3 Gr
2020016
Air Feeding In
G1/8'' Maschio
Vacuum Cup Diameter
20.0 mm
Vacuum Cup Material
POLYURETHANE
Weight
3.2 Gr
2020018
Air Feeding In
G1/8'' Maschio
Vacuum Cup Diameter
20.0 mm
Vacuum Cup Material
POLYURETHANE
Weight
4.5 Gr
2500001
Weight
1.0 Gr
2510000
Vacuum Cup Diameter
25.0 mm
Vacuum Cup Material
POLYURETHANE
Weight
2.5 Gr
2510006
Air Feeding In
M5 Femmina
Vacuum Cup Diameter
25.0 mm
Vacuum Cup Material
POLYURETHANE
Weight
5.1 Gr
2510007
Air Feeding In
G1/8'' Maschio
Vacuum Cup Diameter
25.0 mm
Vacuum Cup Material
POLYURETHANE
Weight
4.3 Gr
2510016
Air Feeding In
G1/8'' Maschio
Vacuum Cup Diameter
25.0 mm
Vacuum Cup Material
POLYURETHANE
Weight
4.3 Gr
2510018
Air Feeding In
G1/8'' Maschio
Vacuum Cup Diameter
25.0 mm
Vacuum Cup Material
POLYURETHANE
Weight
5.6 Gr
2520000
Vacuum Cup Diameter
25.0 mm
Vacuum Cup Material
POLYURETHANE
Weight
2.5 Gr
2520006
Air Feeding In
M5 Femmina
Vacuum Cup Diameter
25.0 mm
Vacuum Cup Material
POLYURETHANE
Weight
5.0 Gr
2520007
Air Feeding In
G1/8'' Maschio
Vacuum Cup Diameter
25.0 mm
Vacuum Cup Material
POLYURETHANE
Weight
4.3 Gr
2520016
Air Feeding In
G1/8'' Maschio
Vacuum Cup Diameter
25.0 mm
Vacuum Cup Material
POLYURETHANE
Weight
4.2 Gr
2520018
Air Feeding In
G1/8'' Maschio
Vacuum Cup Diameter
25.0 mm
Vacuum Cup Material
POLYURETHANE
Weight
5.6 Gr
3500001
Weight
2.0 Gr
3510000
Vacuum Cup Diameter
35.0 mm
Vacuum Cup Material
POLYURETHANE
Weight
6.4 Gr
3510014
Air Feeding Connection
G1/4'' Maschio
Air Feeding In
G1/4'' Maschio
Vacuum Cup Diameter
35.0 mm
Vacuum Cup Material
POLYURETHANE
Weight
14.0 Gr
3510018
Air Feeding Connection
G1/8'' Maschio
Air Feeding In
G1/8'' Maschio
Vacuum Cup Diameter
35.0 mm
Vacuum Cup Material
POLYURETHANE
Weight
12.0 Gr
3510019
Air Feeding Connection
G1/8'' Femmina
Air Feeding In
G1/8'' Femmina
Vacuum Cup Diameter
35.0 mm
Vacuum Cup Material
POLYURETHANE
Weight
12.0 Gr
3510038
Air Feeding In
G3/8'' Maschio
Vacuum Cup Diameter
35.0 mm
Vacuum Cup Material
POLYURETHANE
Weight
17.0 Gr
3520000
Vacuum Cup Diameter
35.0 mm
Vacuum Cup Material
POLYURETHANE
Weight
6.4 Gr
3520014
Air Feeding Connection
G1/4'' Maschio
Air Feeding In
G1/4'' Maschio
Vacuum Cup Diameter
35.0 mm
Vacuum Cup Material
POLYURETHANE
Weight
14.0 Gr
3520018
Air Feeding Connection
G1/8'' Maschio
Air Feeding In
G1/8'' Maschio
Vacuum Cup Diameter
35.0 mm
Vacuum Cup Material
POLYURETHANE
Weight
12.0 Gr
3520019
Air Feeding Connection
G1/8'' Femmina
Air Feeding In
G1/8'' Femmina
Vacuum Cup Diameter
35.0 mm
Vacuum Cup Material
POLYURETHANE
Weight
12.0 Gr
3520038
Air Feeding In
G3/8'' Maschio
Vacuum Cup Diameter
35.0 mm
Vacuum Cup Material
POLYURETHANE
Weight
17.0 Gr
5200001
Weight
12.0 Gr
5210000
Vacuum Cup Diameter
52.0 mm
Vacuum Cup Material
POLYURETHANE
Weight
21.0 Gr
5210014
Air Feeding In
G1/4'' Maschio
Vacuum Cup Diameter
52.0 mm
Vacuum Cup Material
POLYURETHANE
Weight
33.0 Gr
5210018
Air Feeding In
G1/8'' Maschio
Vacuum Cup Diameter
52.0 mm
Vacuum Cup Material
POLYURETHANE
Weight
28.0 Gr
5210019
Air Feeding In
G1/8'' Femmina
Vacuum Cup Diameter
52.0 mm
Vacuum Cup Material
POLYURETHANE
Weight
33.0 Gr
5210038
Air Feeding In
G3/8'' Maschio
Vacuum Cup Diameter
52.0 mm
Vacuum Cup Material
POLYURETHANE
Weight
34.0 Gr
5220000
Vacuum Cup Diameter
52.0 mm
Vacuum Cup Material
POLYURETHANE
Weight
21.0 Gr
5220014
Air Feeding In
G1/4'' Maschio
Vacuum Cup Diameter
52.0 mm
Vacuum Cup Material
POLYURETHANE
Weight
33.0 Gr
5220018
Air Feeding In
G1/8'' Maschio
Vacuum Cup Diameter
52.0 mm
Vacuum Cup Material
POLYURETHANE
Weight
27.0 Gr
5220019
Air Feeding In
G1/8'' Femmina
Vacuum Cup Diameter
52.0 mm
Vacuum Cup Material
POLYURETHANE
Weight
33.0 Gr
5220038
Air Feeding In
G3/8'' Maschio
Vacuum Cup Diameter
52.0 mm
Vacuum Cup Material
POLYURETHANE
Weight
34.0 Gr
7500001
7510000
Vacuum Cup Diameter
75.0 mm
Vacuum Cup Material
POLYURETHANE
Weight
56.0 Gr
7510038
Air Feeding In
G3/8'' Maschio
Vacuum Cup Diameter
75.0 mm
Vacuum Cup Material
POLYURETHANE
Weight
62.0 Gr
7520000
Vacuum Cup Diameter
75.0 mm
Vacuum Cup Material
POLYURETHANE
Weight
56.0 Gr
7520038
Air Feeding In
G3/8'' Maschio
Vacuum Cup Diameter
75.0 mm
Vacuum Cup Material
POLYURETHANE
Weight
62.0 Gr
