Suction cups with 3.5 bellows in FDA-compliant silicone - VG.LPG

Suitable for handling bags, pouches and flexible packages for solids and liquids
Version with 3.5 bellows
Suction cups in FDA-compliant silicone
Reinforced bellows for higher grip stability
The lip of the suction cup has been designed to maximise the grip and allow perfect adhesion even on wrinkles without damaging the grip surfaces

Flyer file

Suitable for handling bags, pouches and flexible packages for solids and liquids
Version with 3.5 bellows
Suction cups in FDA-compliant silicone
Reinforced bellows for higher grip stability
The lip of the suction cup has been designed to maximise the grip and allow perfect adhesion even on wrinkles without damaging the grip surfaces

Flyer file

Weight

Suction cup diameter

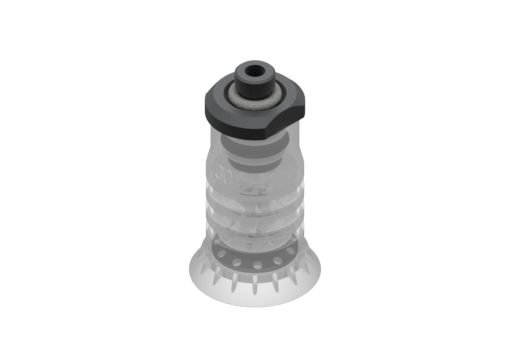

2322102

2322102

LPG.30 suction cup, FDA-compliant silicone, 40 Shore, G1/8" male

Air Feeding In
G1/8'' Maschio
Vacuum Cup Diameter
30.0 mm
Vacuum Cup Material
SILICONE ALIMENTARE
Weight
22.0 Gr

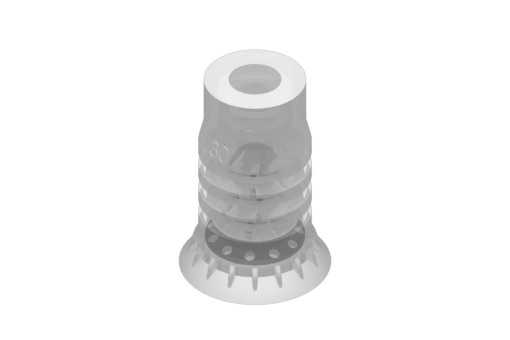

2322103

2322103

VG.LPG30 suction cup, FDA-compliant silicone, 40 Shore, with insert

Vacuum Cup Diameter
30.0 mm
Vacuum Cup Material
SILICONE ALIMENTARE
Weight
10.0 Gr

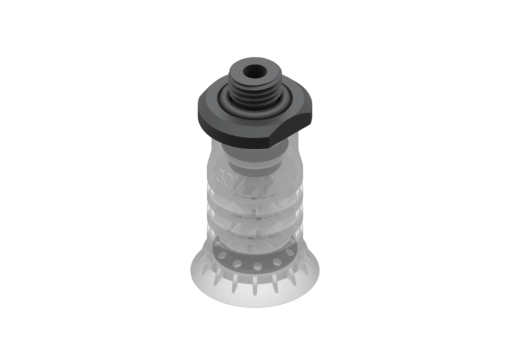

2322104

2322104

LPG.30 suction cup, FDA-compliant silicone, 40 Shore, G1/4″ male, with insert

Air Feeding In
G1/4'' Maschio
Vacuum Cup Diameter
30.0 mm
Vacuum Cup Material
SILICONE ALIMENTARE
Weight
25.0 Gr

2322105

2322105

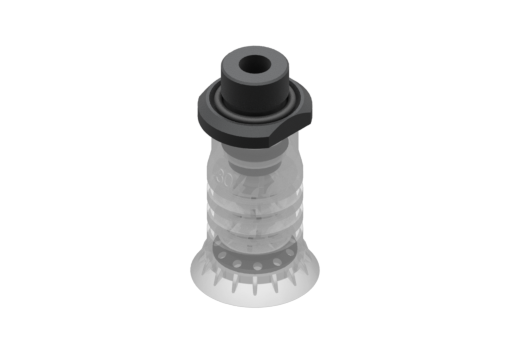

LPG.30 suction cup, FDA-compliant silicone, 40 Shore, G3/8″ male, with insert

Air Feeding In
G3/8'' Maschio
Vacuum Cup Diameter
30.0 mm
Vacuum Cup Material
SILICONE ALIMENTARE
Weight
27.0 Gr

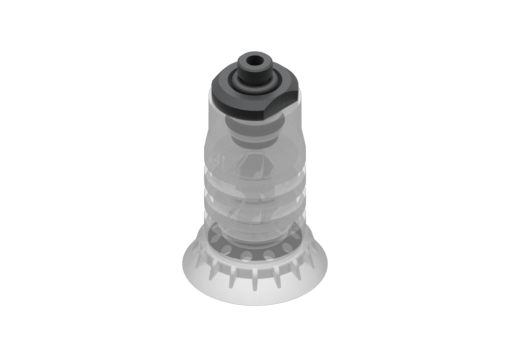

2322106

2322106

LPG.41 suction cup, FDA-compliant silicone, 40 Shore, G1/8″ male, with insert

Air Feeding In
G1/8'' Maschio
Vacuum Cup Diameter
41.0 mm
Vacuum Cup Material
SILICONE ALIMENTARE
Weight
29.0 Gr

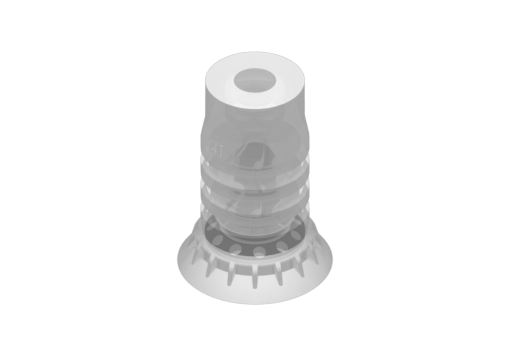

2322107

2322107

VG.LPG41 suction cup, FDA-compliant silicone, 40 Shore, with insert

Vacuum Cup Diameter
41.0 mm
Vacuum Cup Material
SILICONE ALIMENTARE
Weight
17.0 Gr

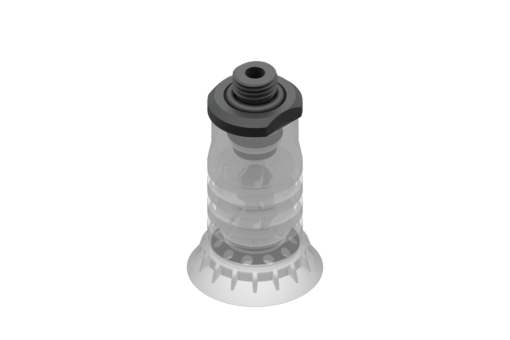

2322108

2322108

LPG.41 suction cup, FDA-compliant silicone, 40 Shore, G1/4″ male, with insert

Air Feeding In
G1/4'' Maschio
Vacuum Cup Diameter
41.0 mm
Vacuum Cup Material
SILICONE ALIMENTARE
Weight
32.0 Gr

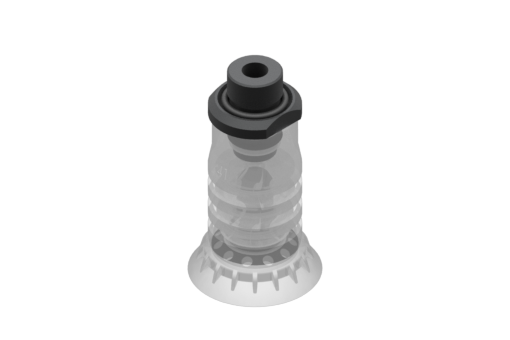

2322109

2322109

LPG.41 suction cup, FDA-compliant silicone, 40 °Shore, G3/8 male

Air Feeding In
G3/8'' Maschio
Vacuum Cup Diameter
41.0 mm
Vacuum Cup Material
SILICONE ALIMENTARE
Weight
34.0 Gr

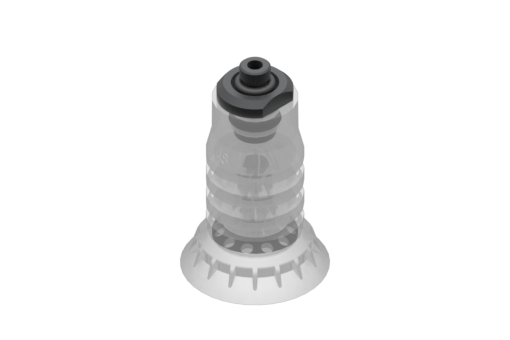

2322110

2322110

LPG.48 suction cup, FDA-compliant silicone, 40 Shore, G1/8″ male, with insert

Air Feeding In
G1/8'' Maschio
Vacuum Cup Diameter
48.0 mm
Vacuum Cup Material
SILICONE ALIMENTARE
Weight
36.0 Gr

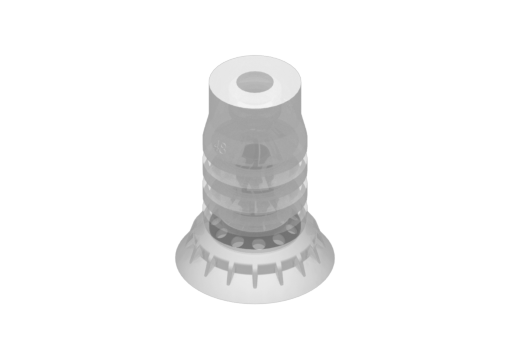

2322111

2322111

VG.LPG48 suction cup, FDA-compliant silicone, 40 Shore, with insert

Vacuum Cup Diameter
48.0 mm
Vacuum Cup Material
SILICONE ALIMENTARE
Weight
24.0 Gr

2322112

2322112

LPG.48 suction cup, FDA-compliant silicone, 40 Shore, G1/4″ male, with insert

Air Feeding In
G1/4'' Maschio
Vacuum Cup Diameter
48.0 mm
Vacuum Cup Material
SILICONE ALIMENTARE
Weight
38.0 Gr

2322113

2322113

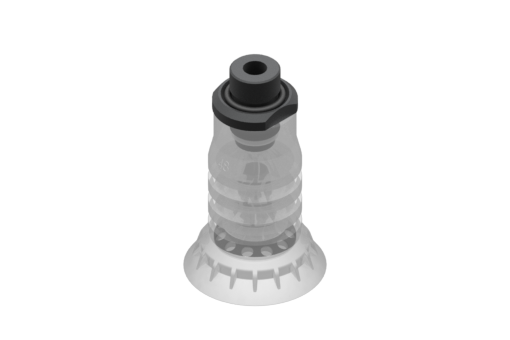

LPG.48 suction cup, FDA-compliant silicone, 40 Shore, G3/8″ male, with insert

Air Feeding In
G3/8'' Maschio
Vacuum Cup Diameter
48.0 mm
Vacuum Cup Material
SILICONE ALIMENTARE
Weight
40.0 Gr

2322147

2322147

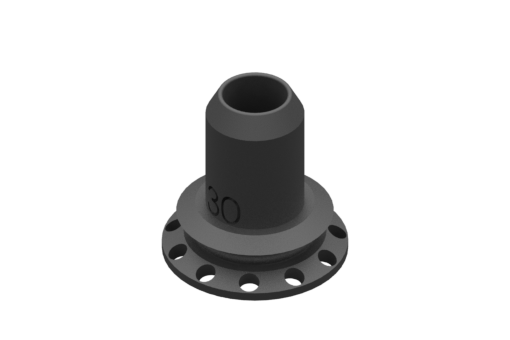

Insert for flow pack for VG.LPG, size 30 mm

Weight
0.43 Gr

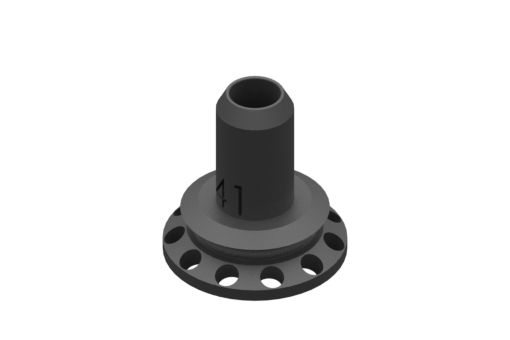

2322148

2322148

Insert for flow pack for VG.LPG, size 41 mm

Weight
1.4 Gr

2322149

2322149

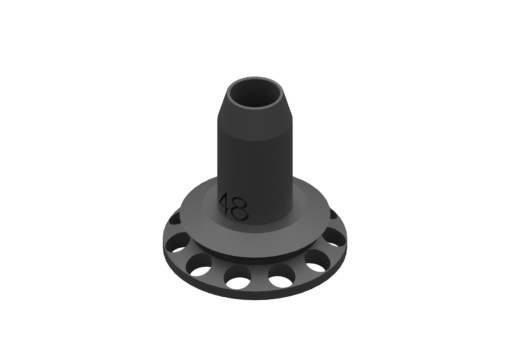

Insert for flow pack for VG.LPG, size 48 mm

Weight
2.8 Gr

2323102

2323102

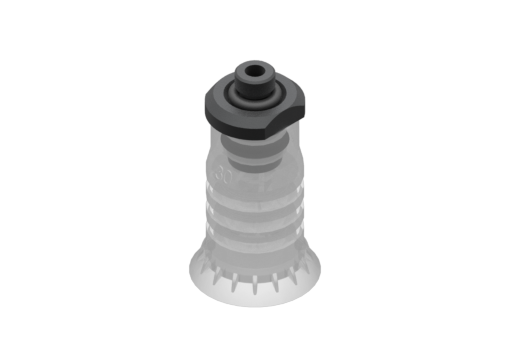

LPG.30 suction cup, FDA-compliant silicone, 40 Shore, G1/8" male

Air Feeding In
G1/8'' Maschio
Vacuum Cup Diameter
30.0 mm
Vacuum Cup Material
SILICONE ALIMENTARE
Weight
19.0 Gr

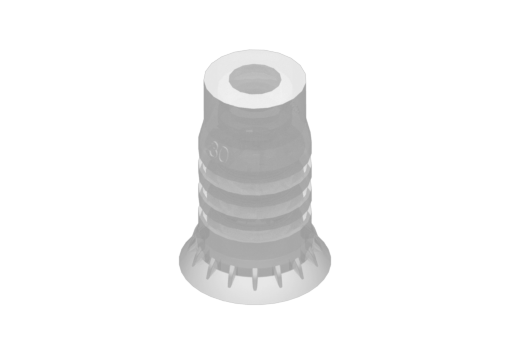

2323103

2323103

VG.LPG30 suction cup, FDA-compliant silicone, 40 Shore

Vacuum Cup Diameter
30.0 mm
Vacuum Cup Material
SILICONE ALIMENTARE
Weight
8.7 Gr

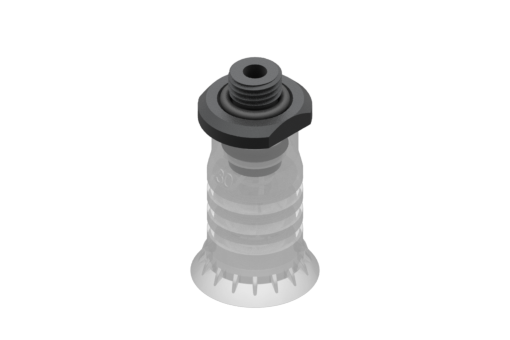

2323104

2323104

LPG.30 suction cup, FDA-compliant silicone, 40 Shore, G1/4" male

Air Feeding In
G1/4'' Maschio
Vacuum Cup Diameter
30.0 mm
Vacuum Cup Material
SILICONE ALIMENTARE
Weight
22.0 Gr

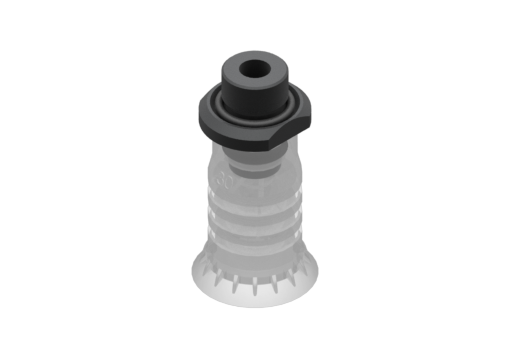

2323105

2323105

LPG.30 suction cup, FDA-compliant silicone, 40 Shore, G3/8" male

Air Feeding In
G3/8'' Maschio
Vacuum Cup Diameter
30.0 mm
Vacuum Cup Material
SILICONE ALIMENTARE
Weight
23.0 Gr

2323106

2323106

LPG.41 suction cup, FDA-compliant silicone, 40 Shore, G1/8" male

Air Feeding In
G1/8'' Maschio
Vacuum Cup Diameter
41.0 mm
Vacuum Cup Material
SILICONE ALIMENTARE
Weight
26.0 Gr

2323107

2323107

VG.LPG41 suction cup, FDA-compliant silicone, 40 Shore

Vacuum Cup Diameter
41.0 mm
Vacuum Cup Material
SILICONE ALIMENTARE
Weight
16.0 Gr

2323108

2323108

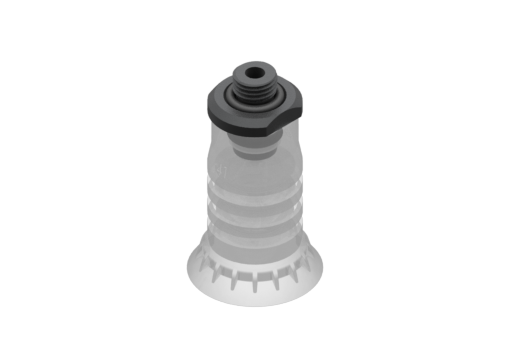

LPG.41 suction cup, FDA-compliant silicone, 40 Shore, G1/4" male

Air Feeding In
G1/4'' Maschio
Vacuum Cup Diameter
41.0 mm
Vacuum Cup Material
SILICONE ALIMENTARE
Weight
29.0 Gr

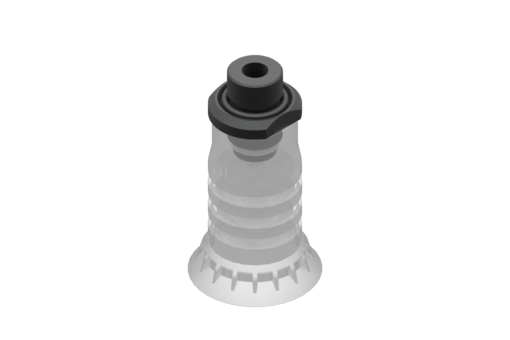

2323109

2323109

LPG.41 suction cup, FDA-compliant silicone, 40 Shore, G3/8" male

Air Feeding In
G3/8'' Maschio
Vacuum Cup Diameter
41.0 mm
Vacuum Cup Material
SILICONE ALIMENTARE
Weight
30.0 Gr

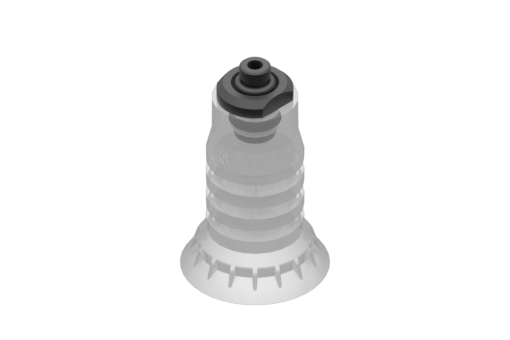

2323110

2323110

LPG.48 suction cup, FDA-compliant silicone, 40 Shore, G1/8" male

Air Feeding In
G1/8'' Maschio
Vacuum Cup Diameter
48.0 mm
Vacuum Cup Material
SILICONE ALIMENTARE
Weight
32.0 Gr

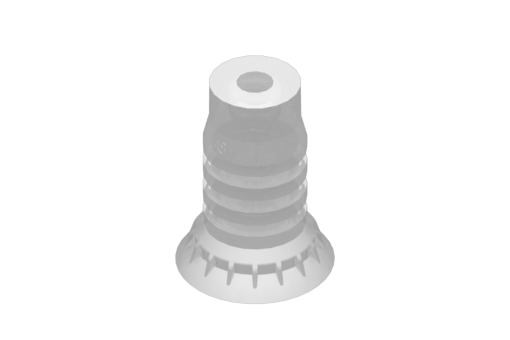

2323111

2323111

VG.LPG48 suction cup, FDA-compliant silicone, 40 Shore

Vacuum Cup Diameter
48.0 mm
Vacuum Cup Material
SILICONE ALIMENTARE
Weight
22.0 Gr

2323112

2323112

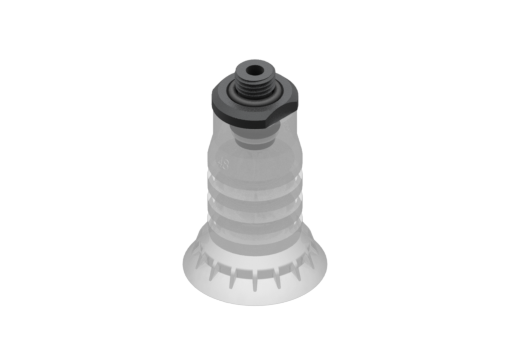

LPG.48 suction cup, FDA-compliant silicone, 40 Shore, G1/4" male

Air Feeding In
G1/4'' Maschio
Vacuum Cup Diameter
48.0 mm
Vacuum Cup Material
SILICONE ALIMENTARE
Weight
35.0 Gr

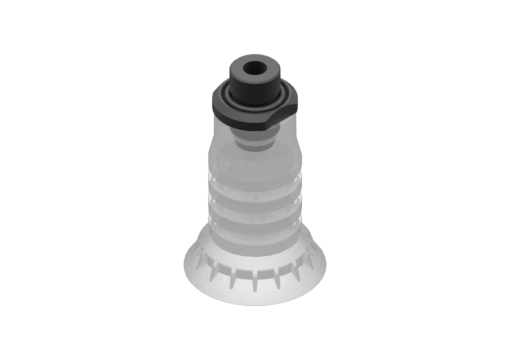

2323113

2323113

LPG.48 suction cup, FDA-compliant silicone, 40 Shore, G3/8" male

Air Feeding In
G3/8'' Maschio
Vacuum Cup Diameter
48.0 mm
Vacuum Cup Material
SILICONE ALIMENTARE
Weight
36.0 Gr

2330115

2330115

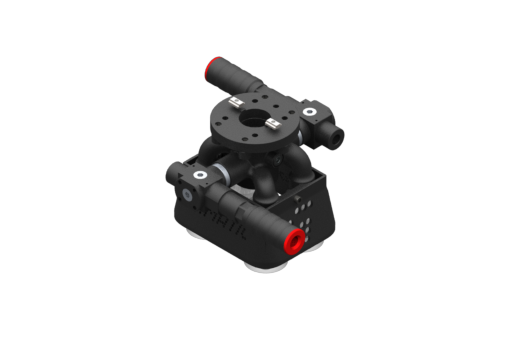

Gripping hand, ISO40 connection, n°4 silicone cups VG.LPG48

Weight
985.0 Gr
