Vacuum gripping systems

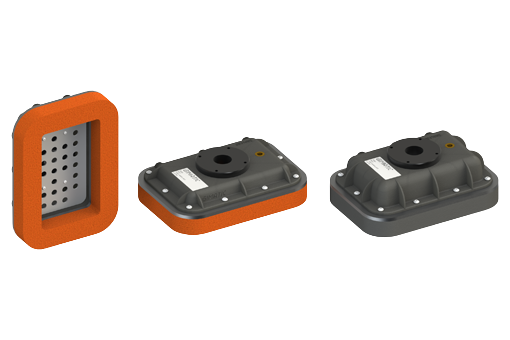

The FBG series of vacuum gripping systems is designed for handling heavy bags of both liquid and solid materials with different shapes and weights | It can be equipped with different types of Gimatic pneumatic pumps (2 to 8 LARGE cartridges) (1), or alternatively with a connector for external vacuum generation (2) | Available in three sizes 245x125 mm, 250x180 mm and 350x250 mm, and two heights 70 mm and 90 mm | The body (PA12) is compact and lightweight yet sturdy | The 30mm thick orange-coloured foam is made of natural rubber and can be adapted perfectly to the bag to be handled (bags of irregular shape) | The 30-mm thick black foam is in EPDM, has excellent wear resistance and guarantees highly stable gripping (bags of regular shape) – Sold separately | Internal metal plate to avoid damaging the bag being handled (it can be removed when not needed) | Optional use of level suspensions to compensate for any differences in height.

The FBG-L series of vacuum gripping systems with integrated vacuum generators is a compact solution designed for handling heavy bags of both liquid and solid materials with different shapes and weights | It is fitted with two LARGE ejectors that can be either two or three-stage | Available in the size 245x125 mm and with two heights 70 mm and 90 mm | The body (PA12) is compact and lightweight yet sturdy | The foam, 30 mm thick, is available in an orange version in natural rubber that adapts perfectly to the bag to be handled, and in a black version in EPDM that has excellent wear resistance | Internal metal plate that protects the bag being handled against damage | The additional MFI-A374-A kit can be used for directly fixing to the most common cobots on the market (ISO-9409-1-50-4-M6).

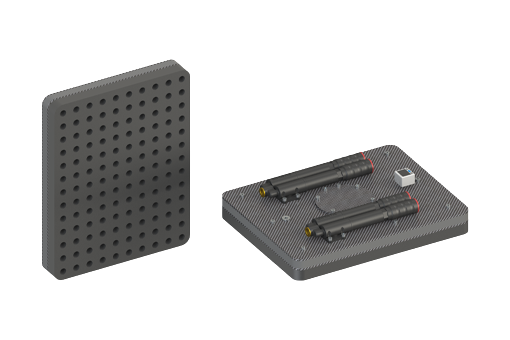

The FCG-400 series of vacuum gripping systems, in the version with suction cups, is a modular and versatile solution for handling a variety of products of different sizes, shapes and porosity | Ideal mainly for palletising cardboard boxes, interlayers and pallets | Power&light version with light carbon body and high suction flow rate | Integrated energy-efficient multi-stage EJ-LARGE-HF-3 cartridges | Central vacuum port for connection to external vacuum source (blower, electric pump) | Self-closing valves permit use with a smaller vacuum pump, ensuring a high vacuum level even if most of the surface of the gripper is not covered | Additional vacuum sensing ports to monitor the vacuum level during gripping.

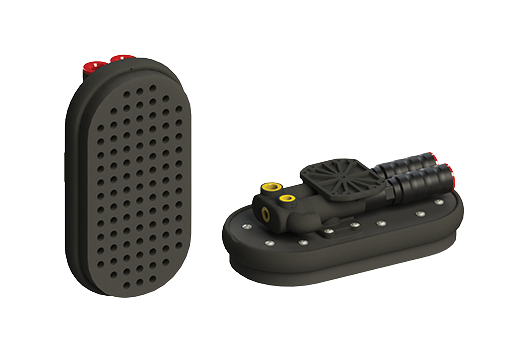

The FCR series of vacuum gripping systems is ideal for pick-and-place operations and for handling products with different sizes, shapes, and porosities, making it suitable for a wide range of applications | The version with calibrated holes is ideal for applications that require turning of the handled object by more than 45° and at least half of the surface of the gripper to be in contact with the object | The compact size of 240x120 mm makes it ideal for filling packs | Integrated EJ-LARGE-HF multistage cartridges to ensure high suction flow rate and low power consumption | Ideal for collaborative applications thanks to its rounded shape and reduced weight. It can also feature an ISO-50 flange (MFI-A374-A) for direct mounting to collaborative robots.

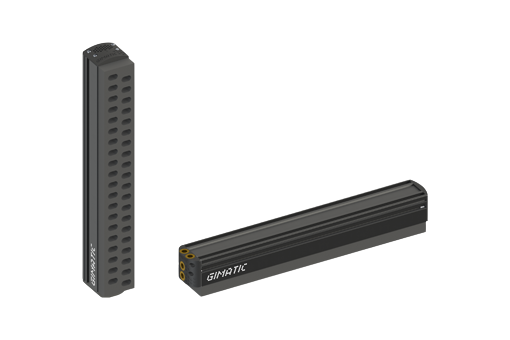

The FGS-060 series of vacuum gripping systems, in the version with foam, is a modular and versatile solution for handling a variety of products of different sizes, shapes and porosity | Integrated EJ-LARGE-HF-3 multistage cartridges to ensure high suction flow rate and low power consumption | The version with calibrated holes is ideal for applications that involve the handling of objects of a specific shape and weight and with a sealed surface (glass, sheet metal) | The version with self-closing valves is ideal for applications where objects of different sizes/shapes need to be handled. It allows the user to work with smaller vacuum pumps and reduces consumption and maintains a high vacuum level even though most of the surface area of the gripper may not be gripping.

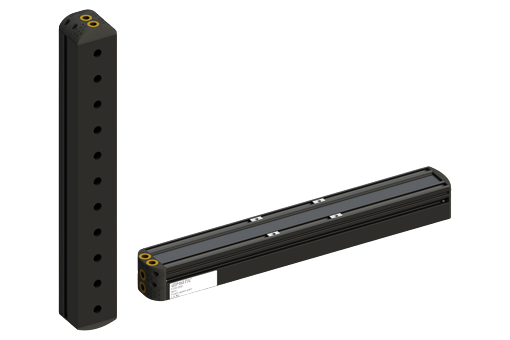

The FGS-060 series vacuum gripping systems, in the version that can be fitted with suction cups, is a modular and configurable solution | Integrated EJ-LARGE-HF-3 multistage cartridges to ensure high suction flow rate and low power consumption | Wide range of Gimatic suction cups in different shapes and materials for every possible application | Gimatic fittings with self-closing valve and calibrated hole can be used to handle objects of different sizes / formats, offering the advantages of both technologies and the option of overturning | Typical applications are palletization and handling in the sectors of packaging, sheet metal, glass and wood.

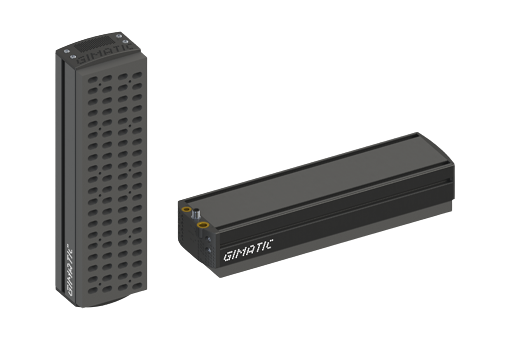

The FGS-120 series of vacuum gripping systems, in the version with foam, is a modular and versatile solution for handling a variety of products of different sizes, shapes and porosity | Integrated EJ-LARGE-HF-3 multistage cartridges to ensure high suction flow rate and low power consumption | The version with calibrated holes is ideal for applications that involve the handling of objects of a specific shape and weight and with a sealed surface (glass, sheet metal) | The version with self-closing valves is ideal for applications where objects of different sizes/shapes need to be handled. It allows the user to work with smaller vacuum pumps and reduces consumption and maintains a high vacuum level even though most of the surface area of the gripper may not be gripping.

.

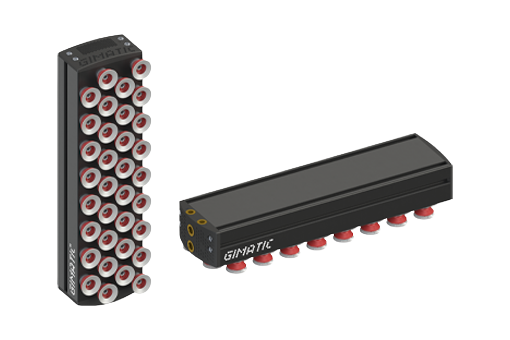

The FGS-120 series vacuum gripping systems, in the version that can be fitted with suction cups, is a modular and configurable solution | Integrated EJ-LARGE-HF-3 multistage cartridges to ensure high suction flow rate and low power consumption | Wide range of Gimatic suction cups in different shapes and materials for every possible application | Gimatic fittings with self-closing valve and calibrated hole can be used to handle objects of different sizes / formats, offering the advantages of both technologies and the option of overturning | Typical applications are palletization and handling in the sectors of packaging, sheet metal, glass and wood.

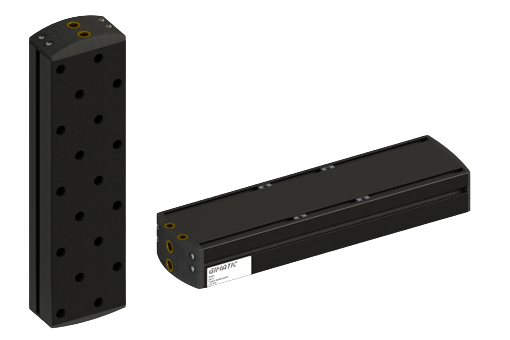

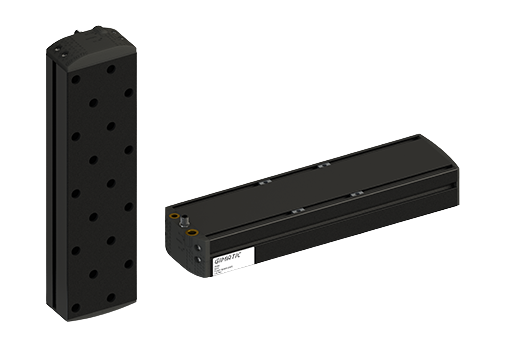

The FGS-120-PSC-BSV series vacuum gripping systems, in the version that can be fitted with suction cups, is a modular and configurable solution | Integrated EJ-LARGE-HF-3 multistage cartridges to ensure high suction flow rate and low power consumption | Wide range of Gimatic suction cups in different shapes and materials for every possible application | Gimatic fittings with self-closing valve and calibrated hole can be used to handle objects of different sizes / formats, offering the advantages of both technologies and the option of overturning | With ON/OFF vacuum solenoid valve with manual override control | With ON/OFF blow-off solenoid valve with manual override control | Typical applications are palletization and handling in the sectors of packaging, sheet metal, glass and wood.

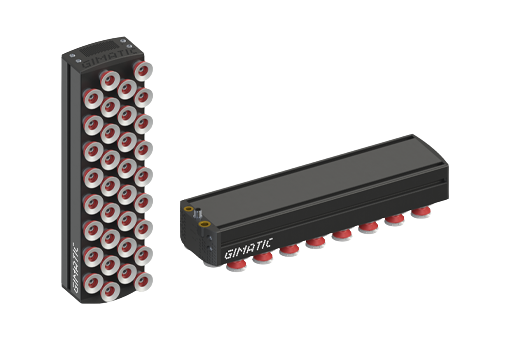

The FGS-120-SC series of vacuum gripping systems, in the version with suction cups, is a modular and configurable solution | Integrated EJ-LARGE-HF-3 multistage cartridges for high suction flow rate and low energy consumption | The VG.IS polyurethane suction cups ensure high wear resistance and adaptability to uneven surfaces | The VG.BPG suction cups in FDA-compliant silicone ensure perfect gripping of many types of bags, including medical ones, and products containing liquids.

.
