Size 60 vacuum gripping systems with threaded holes for connecting suction cups - FGS-060-PSC
- The FGS-060 series vacuum gripping systems, in the version that can be fitted with suction cups, is a modular and configurable solution
- Integrated EJ-LARGE-HF-3 multistage cartridges to ensure high suction flow rate and low power consumption
- Wide range of Gimatic suction cups in different shapes and materials for every possible application
- Gimatic fittings with self-closing valve and calibrated hole can be used to handle objects of different sizes / formats, offering the advantages of both technologies and the option of overturning
- Typical applications are palletization and handling in the sectors of packaging, sheet metal, glass and wood
- The FGS-060 series vacuum gripping systems, in the version that can be fitted with suction cups, is a modular and configurable solution
- Integrated EJ-LARGE-HF-3 multistage cartridges to ensure high suction flow rate and low power consumption
- Wide range of Gimatic suction cups in different shapes and materials for every possible application
- Gimatic fittings with self-closing valve and calibrated hole can be used to handle objects of different sizes / formats, offering the advantages of both technologies and the option of overturning
- Typical applications are palletization and handling in the sectors of packaging, sheet metal, glass and wood
Weight

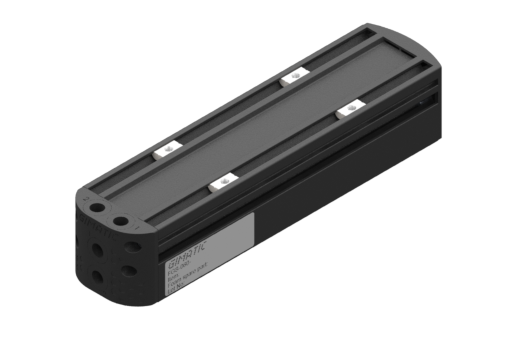

New 360350202
60x200 mm vacuum gripping system, integrated vacuum generator, G1/4" holes for Ø22 to Ø35 mm suction cup fittings
Weight
700.0 Gr

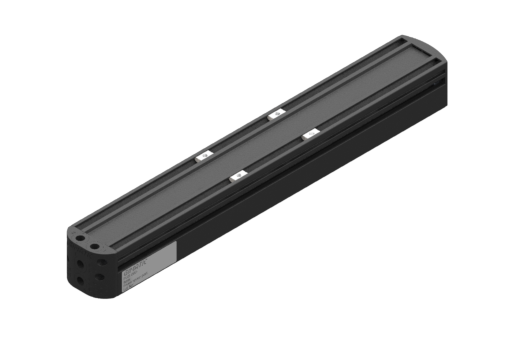

New 360350402
60x400 mm vacuum gripping system, integrated vacuum generator, G1/4" holes for Ø22 to Ø35 mm suction cup fittings
Weight
1230.0 Gr
New 360350603
60x600 mm vacuum gripping system, integrated vacuum generator, G1/4" holes for Ø22 to Ø35 mm suction cup fittings
Weight
1820.0 Gr
New 360350804
60x800 mm vacuum gripping system, integrated vacuum generator, G1/4" holes for Ø22 to Ø35 mm suction cup fittings
Weight
2360.0 Gr

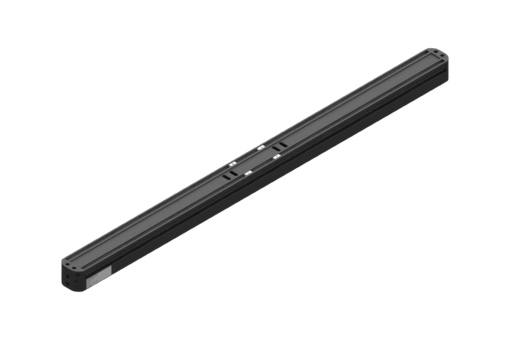

New 360351004
60x1000 mm vacuum gripping system, integrated vacuum generator, G1/4" holes for Ø22 to Ø35 mm suction cup fittings
Weight
2900.0 Gr
New 360550402
Vacuum Gripper 060x0400, integrated vacuum generation, G14 fitting for vacuum cups Ø55 max
Weight
1230.0 Gr

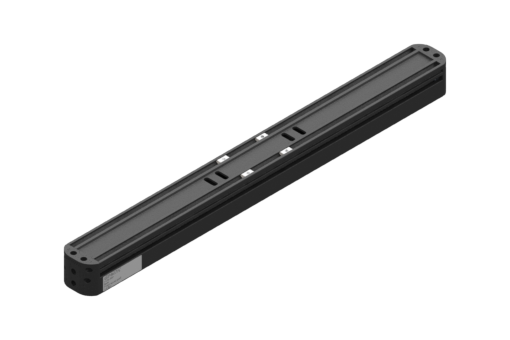

New 360550603
Vacuum Gripper 060x0600, integrated vacuum generation, G14 fitting for vacuum cups Ø55 max
Weight
1820.0 Gr

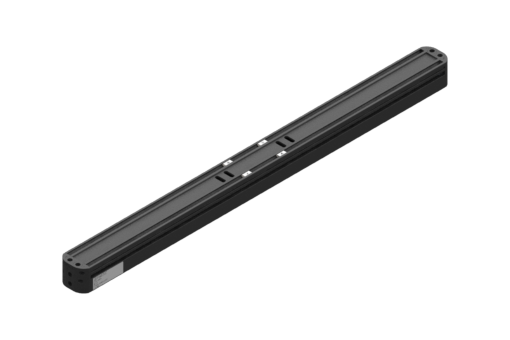

New 360550804
Vacuum Gripper 060x0800, integrated vacuum generation, G14 fitting for vacuum cups Ø55 max
Weight
2370.0 Gr
New 360551004
Vacuum Gripper 060x1000, integrated vacuum generation, G14 fitting for vacuum cups Ø55 max
Weight
2900.0 Gr

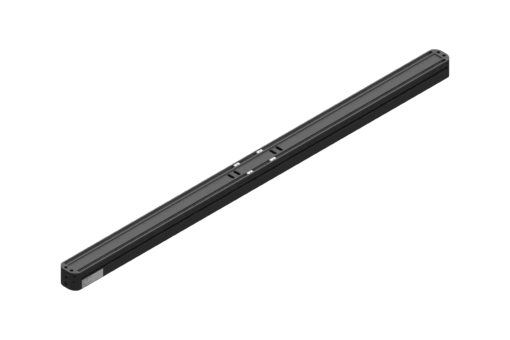

New 360551204
Vacuum Gripper 060x1200, integrated vacuum generation, G14 fitting for vacuum cups Ø55 max
Weight
3430.0 Gr
