Vacuum gripping systems for bags, integrated vacuum generators, with 30 mm thick foam - FBG-L

The FBG-L series of vacuum gripping systems with integrated vacuum generators is a compact solution designed for handling heavy bags of both liquid and solid materials with different shapes and weights
It is fitted with two LARGE ejectors that can be either two or three-stage
Available in the size 245x125 mm and with two heights 70 mm and 90 mm
The body (PA12) is compact and lightweight yet sturdy
The foam, 30 mm thick, is available in an orange version in natural rubber that adapts perfectly to the bag to be handled, and in a black version in EPDM that has excellent wear resistance
Internal metal plate that protects the bag being handled against damage
The additional MFI-A374-A kit can be used for directly fixing to the most common cobots on the market (ISO-9409-1-50-4-M6)

The FBG-L series of vacuum gripping systems with integrated vacuum generators is a compact solution designed for handling heavy bags of both liquid and solid materials with different shapes and weights
It is fitted with two LARGE ejectors that can be either two or three-stage
Available in the size 245x125 mm and with two heights 70 mm and 90 mm
The body (PA12) is compact and lightweight yet sturdy
The foam, 30 mm thick, is available in an orange version in natural rubber that adapts perfectly to the bag to be handled, and in a black version in EPDM that has excellent wear resistance
Internal metal plate that protects the bag being handled against damage
The additional MFI-A374-A kit can be used for directly fixing to the most common cobots on the market (ISO-9409-1-50-4-M6)

Max suction flow

Weight

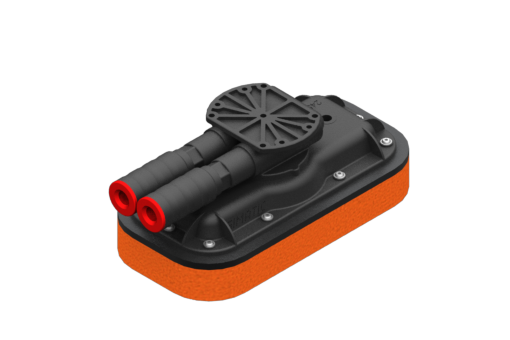

370245003

370245003

Vacuum gripping system for bags, 245x125x70 mm, with integrated two-stage vacuum generator and 30mm thick natural rubber foam

Air Feeding Connection
G1/4'' Femmina
Ejector Characteristics
Elevata aspirazione
Max Flow Rate
6.4 Nl/s
Max Vacuum
-73.0 kPa
Weight
1010.0 Gr

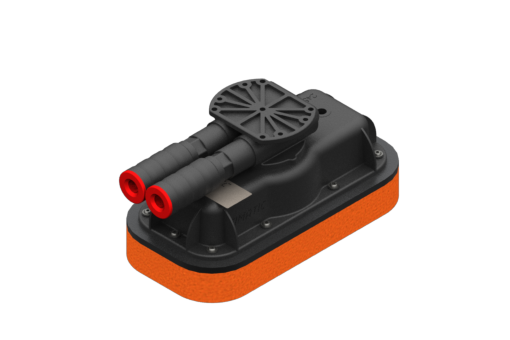

370245004

370245004

Vacuum gripping system for bags, 245x125x90 mm, with integrated two-stage vacuum generator and 30mm thick natural rubber foam

Air Feeding Connection
G1/4'' Femmina
Ejector Characteristics
Elevata aspirazione
Max Flow Rate
6.4 Nl/s
Max Vacuum
-73.0 kPa
Weight
1050.0 Gr

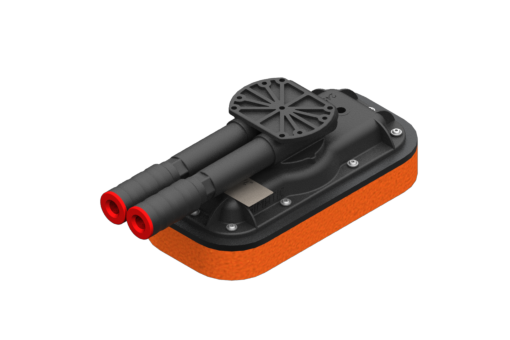

370245007

370245007

Vacuum gripping system for bags, 245x125x70 mm, with integrated three-stage vacuum generator and 30mm thick natural rubber foam

Air Feeding Connection
G1/4'' Femmina
Ejector Characteristics
Elevata aspirazione
Max Flow Rate
11.8 Nl/s
Max Vacuum
-73.0 kPa
Weight
1040.0 Gr

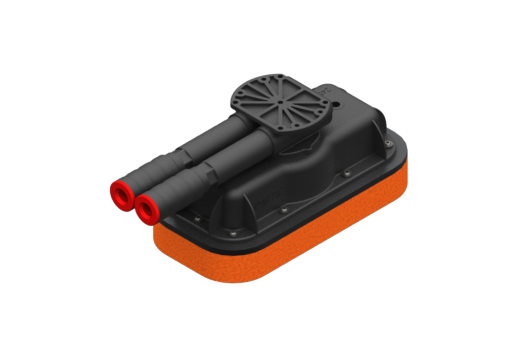

370245008

370245008

Vacuum gripping system for bags, 245x125x90 mm, with integrated three-stage vacuum generator and 30mm thick natural rubber foam

Air Feeding Connection
G1/4'' Femmina
Ejector Characteristics
Elevata aspirazione
Max Flow Rate
11.8 Nl/s
Max Vacuum
-73.0 kPa
Weight
1070.0 Gr

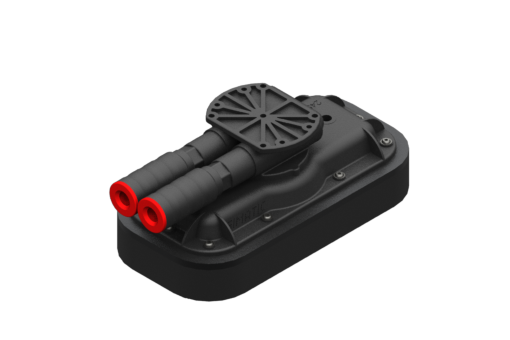

370245013

370245013

Vacuum gripping system for bags, 245x125x70 mm, with integrated two-stage vacuum generator and 30mm thick EPDM foam

Air Feeding Connection
G1/4'' Femmina
Ejector Characteristics
Elevata aspirazione
Max Flow Rate
6.4 Nl/s
Max Vacuum
-73.0 kPa
Weight
948.0 Gr

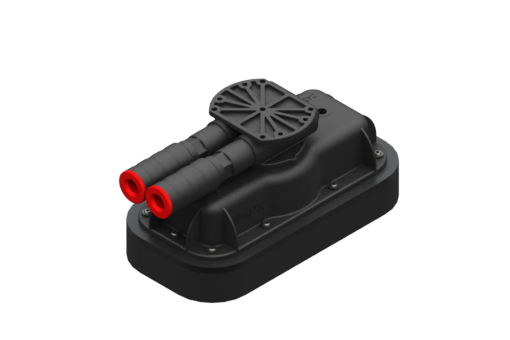

370245014

370245014

Vacuum gripping system for bags, 245x125x90 mm, with integrated two-stage vacuum generator and 30mm thick EPDM foam

Air Feeding Connection
G1/4'' Femmina
Ejector Characteristics
Elevata aspirazione
Max Flow Rate
6.4 Nl/s
Max Vacuum
-73.0 kPa
Weight
985.0 Gr

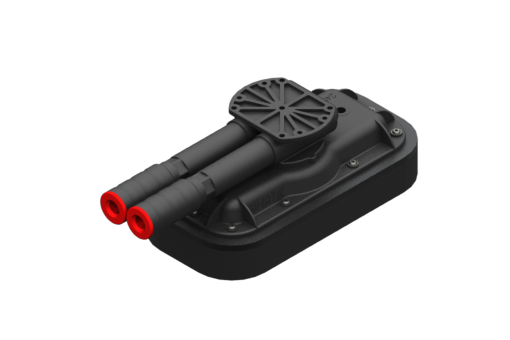

370245017

370245017

Vacuum gripping system for bags, 245x125x70 mm, with integrated three-stage vacuum generator and 30mm thick EPDM foam

Air Feeding Connection
G1/4'' Femmina
Ejector Characteristics
Elevata aspirazione
Max Flow Rate
11.8 Nl/s
Max Vacuum
-73.0 kPa
Weight
975.0 Gr

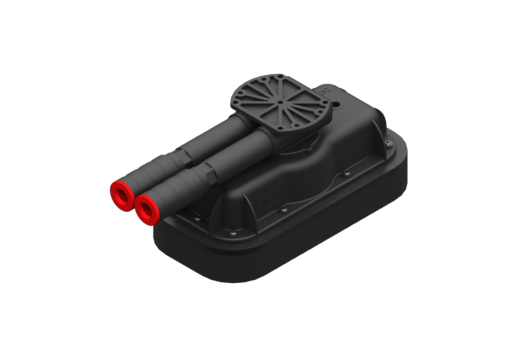

370245018

370245018

Vacuum gripping system for bags, 245x125x90 mm, with integrated three-stage vacuum generator and 30mm thick EPDM foam

Air Feeding Connection
G1/4'' Femmina
Ejector Characteristics
Elevata aspirazione
Max Flow Rate
11.8 Nl/s
Max Vacuum
-73.0 kPa
Weight
1010.0 Gr
