Size 120 vacuum gripping systems with threaded holes for connecting suction cups, with vacuum solenoid valve and blow-off - FGS-120-PSC-BSV
- The FGS-120-PSC-BSV series vacuum gripping systems, in the version that can be fitted with suction cups, is a modular and configurable solution
- Integrated EJ-LARGE-HF-3 multistage cartridges to ensure high suction flow rate and low power consumption
- Wide range of Gimatic suction cups in different shapes and materials for every possible application
- Gimatic fittings with self-closing valve and calibrated hole can be used to handle objects of different sizes / formats, offering the advantages of both technologies and the option of overturning
- With ON/OFF vacuum solenoid valve with manual override control
- With ON/OFF blow-off solenoid valve with manual override control
- Typical applications are palletization and handling in the sectors of packaging, sheet metal, glass and wood
- The FGS-120-PSC-BSV series vacuum gripping systems, in the version that can be fitted with suction cups, is a modular and configurable solution
- Integrated EJ-LARGE-HF-3 multistage cartridges to ensure high suction flow rate and low power consumption
- Wide range of Gimatic suction cups in different shapes and materials for every possible application
- Gimatic fittings with self-closing valve and calibrated hole can be used to handle objects of different sizes / formats, offering the advantages of both technologies and the option of overturning
- With ON/OFF vacuum solenoid valve with manual override control
- With ON/OFF blow-off solenoid valve with manual override control
- Typical applications are palletization and handling in the sectors of packaging, sheet metal, glass and wood
Weight
New 357380202
120x200 mm vacuum gripping system, integrated vacuum generator, G3/8" holes for Ø35 mm suction cup fittings, with solenoid valves
Weight
1780.0 Gr

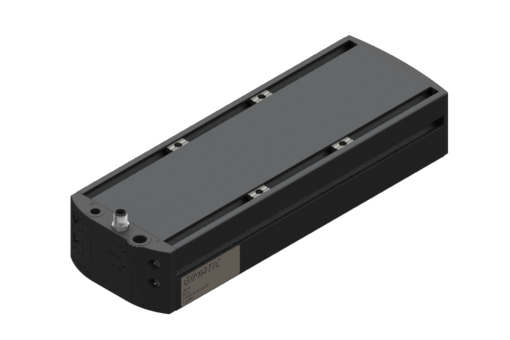

New 357380303
120x300 mm vacuum gripping system, integrated vacuum generator, G3/8" holes for Ø35 mm suction cup fittings, with solenoid valves
Weight
2450.0 Gr

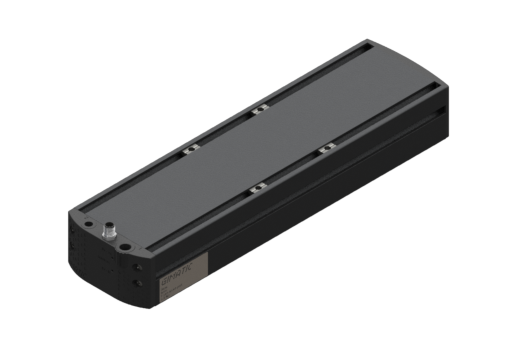

New 357380403
120x400 mm vacuum gripping system, integrated vacuum generator, G3/8" holes for Ø35 mm suction cup fittings, with solenoid valves
Weight
3110.0 Gr
New 357380604
120x600 mm vacuum gripping system, integrated vacuum generator, G3/8" holes for Ø35 mm suction cup fittings, with solenoid valves
Weight
4440.0 Gr
New 357580403
120x400 mm vacuum gripping system, integrated vacuum generator, G3/8" holes for Ø55 mm suction cup fittings, with solenoid valves
Weight
3150.0 Gr

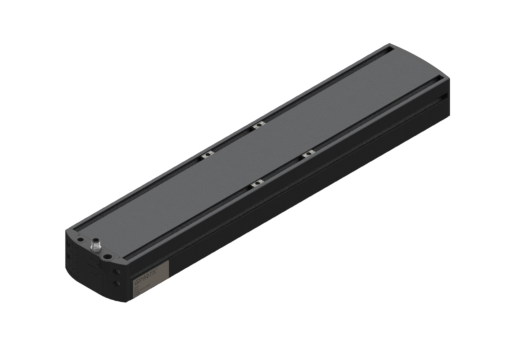

New 357580604
120x600 mm vacuum gripping system, integrated vacuum generator, G3/8" holes for Ø55 mm suction cup fittings, with solenoid valves
Weight
4480.0 Gr

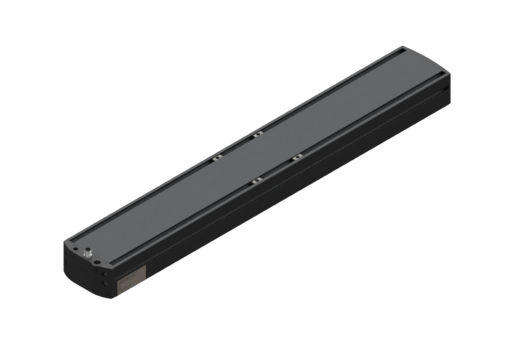

New 357580804
120x800 mm vacuum gripping system, integrated vacuum generator, G3/8" holes for Ø55 mm suction cup fittings, with solenoid valves
Weight
5800.0 Gr

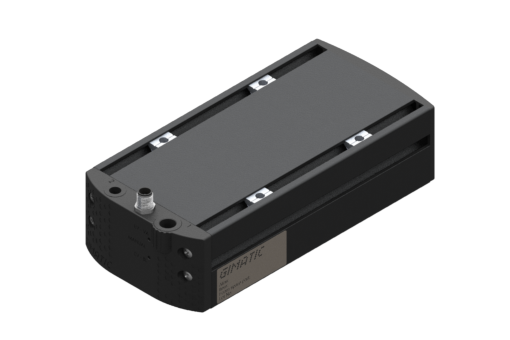

New 358380202
120x200 mm vacuum gripping system, integrated vacuum generator, G3/8" holes for Ø35 mm suction cup fittings, with solenoid valves
Weight
1780.0 Gr
New 358380303
120x300 mm vacuum gripping system, integrated vacuum generator, G3/8" holes for Ø35 mm suction cup fittings, with solenoid valves
Weight
2460.0 Gr
New 358380403
120x400 mm vacuum gripping system, integrated vacuum generator, G3/8" holes for Ø35 mm suction cup fittings, with solenoid valves
Weight
3110.0 Gr
New 358380604
120x600 mm vacuum gripping system, integrated vacuum generator, G3/8" holes for Ø35 mm suction cup fittings, with solenoid valves
Weight
4400.0 Gr
New 358580403
120x400 mm vacuum gripping system, integrated vacuum generator, G3/8" holes for Ø55 mm suction cup fittings, with solenoid valves
Weight
3150.0 Gr
New 358580604
120x600 mm vacuum gripping system, integrated vacuum generator, G3/8" holes for Ø55 mm suction cup fittings, with solenoid valves
Weight
4480.0 Gr
New 358580804
120x800 mm vacuum gripping system, integrated vacuum generator, G3/8" holes for Ø55 mm suction cup fittings, with solenoid valves
Weight
5800.0 Gr
