Bellows suction cups in FDA-compliant silicone - VG.BPG

Suitable for handling bags, pouches and flexible packages for solids and liquids
Version with 1.5 bellows
Suction cups in FDA-compliant silicone
Reinforced bellows for higher grip stability
The lip of the suction cup has been designed to maximise the grip and allow perfect adhesion even on wrinkles without damaging the grip surfaces

Flyer file

Suitable for handling bags, pouches and flexible packages for solids and liquids
Version with 1.5 bellows
Suction cups in FDA-compliant silicone
Reinforced bellows for higher grip stability
The lip of the suction cup has been designed to maximise the grip and allow perfect adhesion even on wrinkles without damaging the grip surfaces

Flyer file

Weight

Suction cup diameter

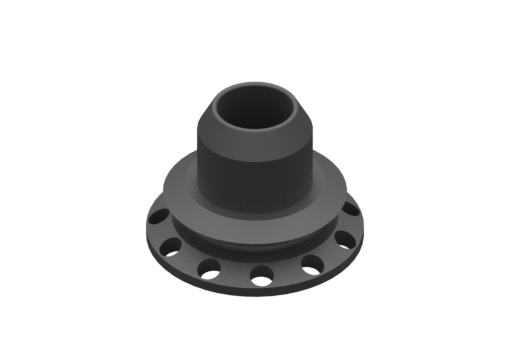

2302147

2302147

Insert for flow pack for VG.BPG, size 30 mm

Weight
0.43 Gr

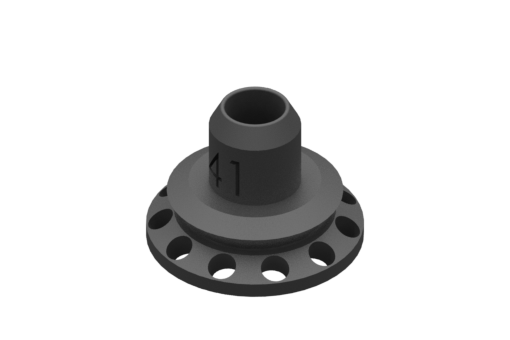

2302148

2302148

Insert for flow pack for VG.BPG, size 41 mm

Weight
1.4 Gr

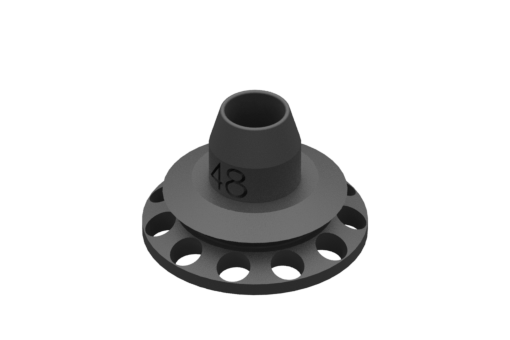

2302149

2302149

Insert for flow pack for VG.BPG, size 48 mm

Weight
2.8 Gr

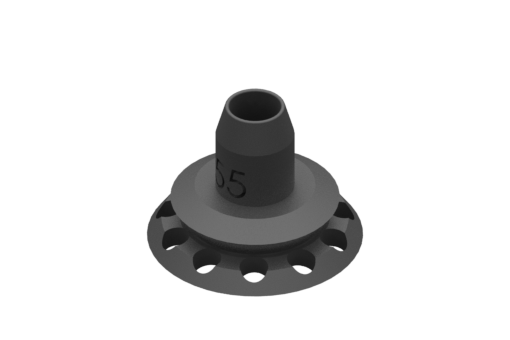

2302150

2302150

Insert for flow pack for VG.BPG, size 55 mm

Weight
2.2 Gr

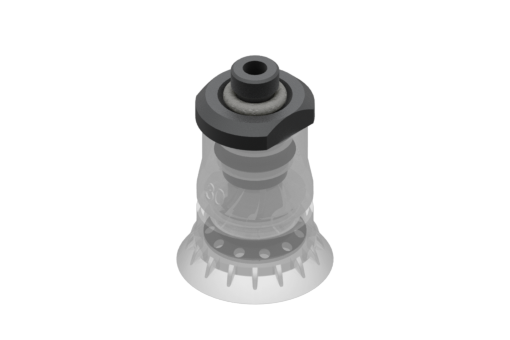

2322085

2322085

BPG.30 suction cup, FDA-compliant silicone, 40 Shore, G1/8″ male, with insert

Air Feeding In
G1/8'' Maschio
Vacuum Cup Diameter
30.0 mm
Vacuum Cup Material
SILICONE ALIMENTARE
Weight
19.0 Gr

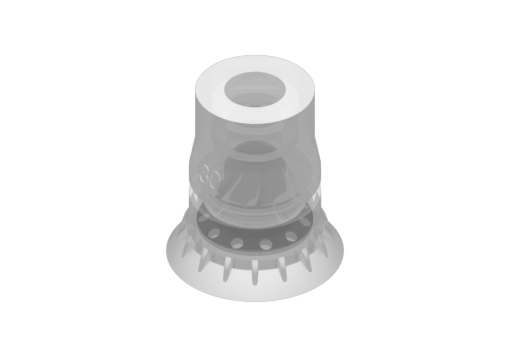

2322086

2322086

VG.BPG30 suction cup, FDA-compliant silicone, 40 °Shore

Vacuum Cup Diameter
30.0 mm
Vacuum Cup Material
SILICONE ALIMENTARE
Weight
7.3 Gr

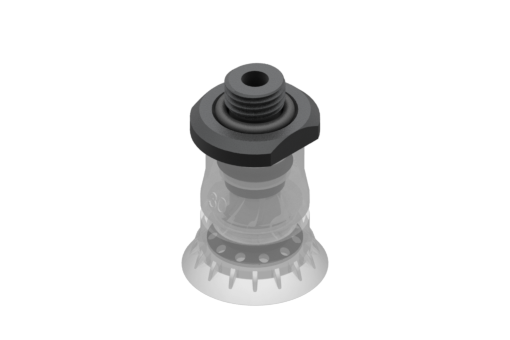

2322087

2322087

BPG.30 suction cup, FDA-compliant silicone, 40 Shore, G1/4″ male, with insert

Air Feeding In
G1/4'' Maschio
Vacuum Cup Diameter
30.0 mm
Vacuum Cup Material
SILICONE ALIMENTARE
Weight
22.0 Gr

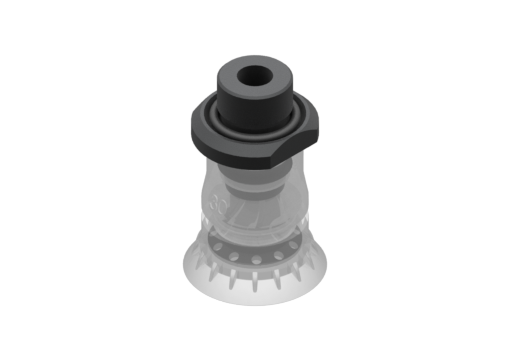

2322088

2322088

BPG.30 suction cup, FDA-compliant silicone, 40 Shore, G3/8″ male, with insert

Air Feeding In
G3/8'' Maschio
Vacuum Cup Diameter
30.0 mm
Vacuum Cup Material
SILICONE ALIMENTARE
Weight
24.0 Gr

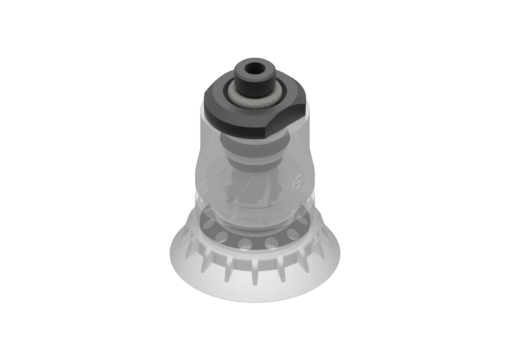

2322089

2322089

BPG.41 suction cup, FDA-compliant silicone, 40 Shore, G1/8″ male, with insert

Air Feeding In
G1/8'' Maschio
Vacuum Cup Diameter
41.0 mm
Vacuum Cup Material
SILICONE ALIMENTARE
Weight
25.0 Gr

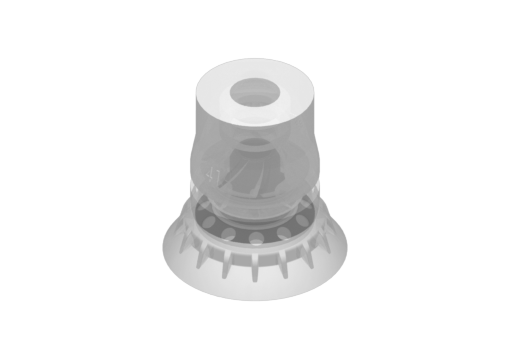

2322090

2322090

VG.BPG41 suction cup, FDA-compliant silicone, 40 Shore, with insert

Vacuum Cup Diameter
41.0 mm
Vacuum Cup Material
SILICONE ALIMENTARE
Weight
13.0 Gr

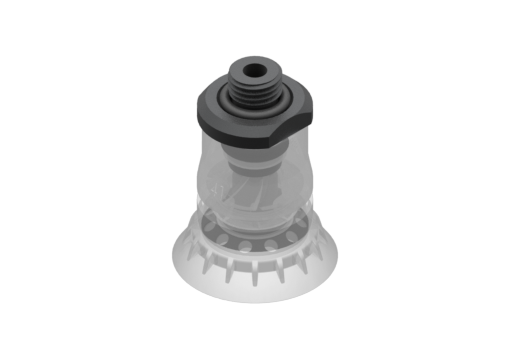

2322091

2322091

BPG.41 suction cup, FDA-compliant silicone, 40 Shore, G1/4″ male, with insert

Air Feeding In
G1/4'' Maschio
Vacuum Cup Diameter
41.0 mm
Vacuum Cup Material
SILICONE ALIMENTARE
Weight
28.0 Gr

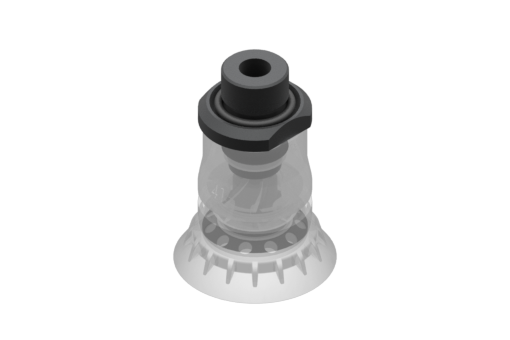

2322092

2322092

BPG.41 suction cup, FDA-compliant silicone, 40 Shore, G3/8″ male, with insert

Air Feeding In
G3/8'' Maschio
Vacuum Cup Diameter
41.0 mm
Vacuum Cup Material
SILICONE ALIMENTARE
Weight
30.0 Gr

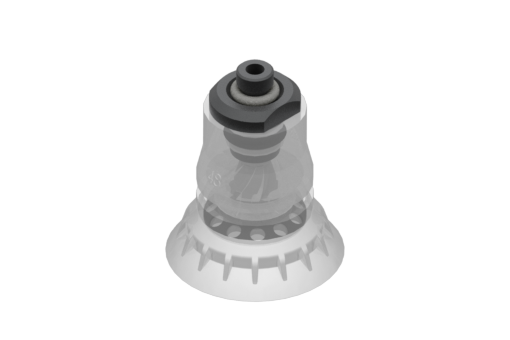

2322093

2322093

BPG.48 suction cup, FDA-compliant silicone, 40 Shore, G1/8″ male, with insert

Air Feeding In
G1/8'' Maschio
Vacuum Cup Diameter
48.0 mm
Vacuum Cup Material
SILICONE ALIMENTARE
Weight
30.0 Gr

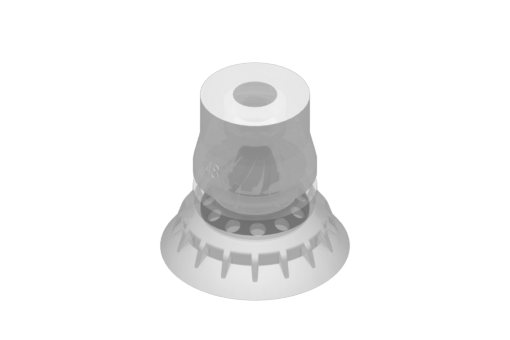

2322094

2322094

VG.BPG48 suction cup, FDA-compliant silicone, 40 Shore, with insert

Vacuum Cup Diameter
48.0 mm
Vacuum Cup Material
SILICONE ALIMENTARE
Weight
18.0 Gr

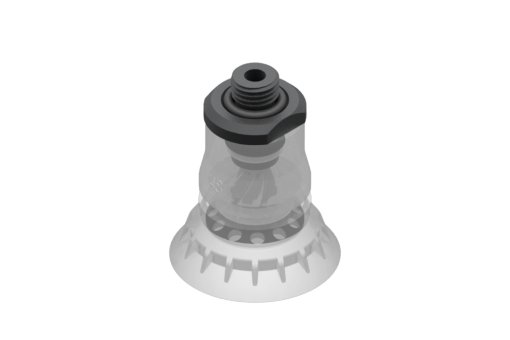

2322095

2322095

BPG.48 suction cup, FDA-compliant silicone, 40 Shore, G1/4″ male, with insert

Air Feeding In
G1/4'' Maschio
Vacuum Cup Diameter
48.0 mm
Vacuum Cup Material
SILICONE ALIMENTARE
Weight
32.0 Gr

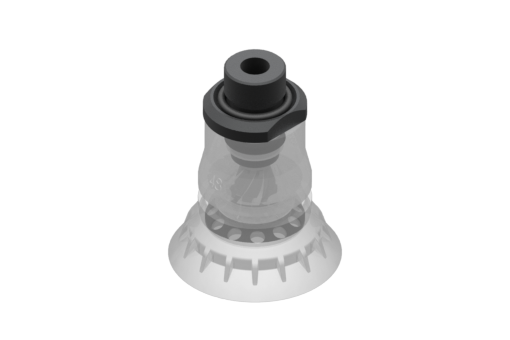

2322096

2322096

BPG.48 suction cup, FDA-compliant silicone, 40 Shore, G3/8″ male, with insert

Air Feeding In
G3/8'' Maschio
Vacuum Cup Diameter
48.0 mm
Vacuum Cup Material
SILICONE ALIMENTARE
Weight
34.0 Gr

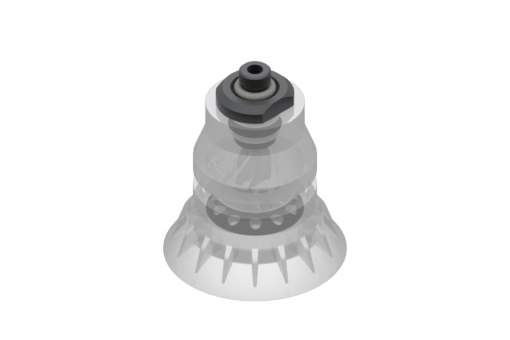

2322097

2322097

BPG.55 suction cup, FDA-compliant silicone, 40 Shore, G1/8″ male, with insert

Air Feeding In
G1/8'' Maschio
Vacuum Cup Diameter
55.0 mm
Vacuum Cup Material
SILICONE ALIMENTARE
Weight
44.0 Gr

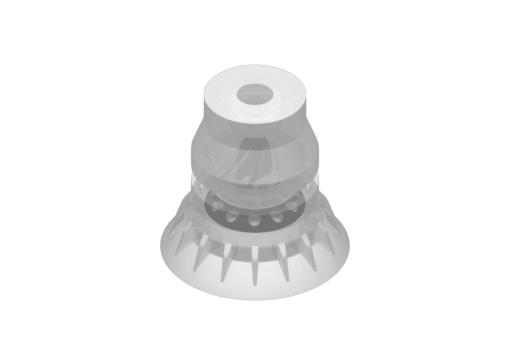

2322098

2322098

VG.BPG55 suction cup, FDA-compliant silicone, 40 Shore, with insert

Vacuum Cup Diameter
55.0 mm
Vacuum Cup Material
SILICONE ALIMENTARE
Weight
32.0 Gr

2322099

2322099

BPG.55 suction cup, FDA-compliant silicone, 40 Shore, G1/4″ male, with insert

Air Feeding In
G1/4'' Maschio
Vacuum Cup Diameter
55.0 mm
Vacuum Cup Material
SILICONE ALIMENTARE
Weight
47.0 Gr

2322100

2322100

BPG.55 suction cup, FDA-compliant silicone, 40 Shore, G3/8″ male, with insert

Air Feeding In
G3/8'' Maschio
Vacuum Cup Diameter
55.0 mm
Vacuum Cup Material
SILICONE ALIMENTARE
Weight
49.0 Gr

2323085

2323085

BPG.30 suction cup, FDA-compliant silicone, 40 Shore, G1/8" male

Air Feeding In
G1/8'' Maschio
Vacuum Cup Diameter
30.0 mm
Vacuum Cup Material
SILICONE
Weight
17.0 Gr

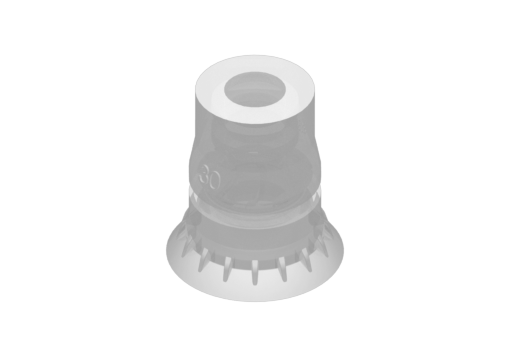

2323086

2323086

VG.BPG30 suction cup, FDA-compliant silicone, 40 Shore

Vacuum Cup Diameter
30.0 mm
Vacuum Cup Material
SILICONE
Weight
6.9 Gr

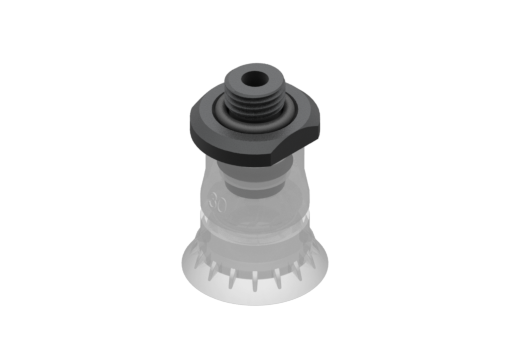

2323087

2323087

BPG.30 suction cup, FDA-compliant silicone, 40 Shore, G1/4" male

Air Feeding In
G1/4'' Maschio
Vacuum Cup Diameter
30.0 mm
Vacuum Cup Material
SILICONE
Weight
20.0 Gr

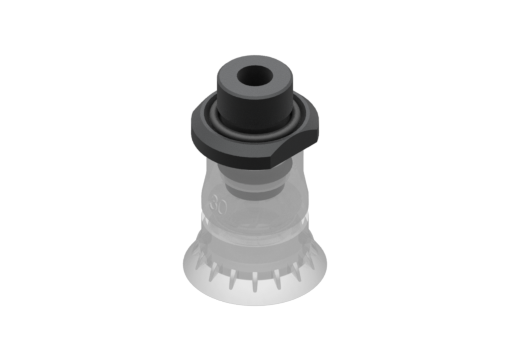

2323088

2323088

BPG.30 suction cup, FDA-compliant silicone, 40 Shore, G3/8" male

Air Feeding In
G3/8'' Maschio
Vacuum Cup Diameter
30.0 mm
Vacuum Cup Material
SILICONE
Weight
21.0 Gr

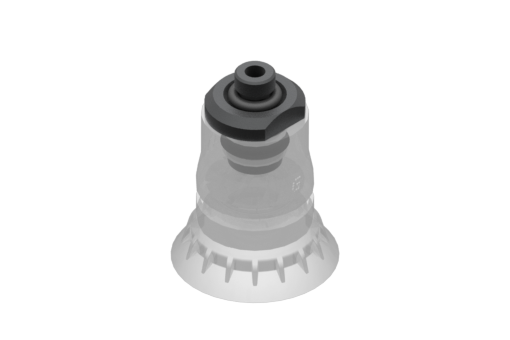

2323089

2323089

BPG.41 suction cup, FDA-compliant silicone, 40 Shore, G1/8" male

Air Feeding In
G1/8'' Maschio
Vacuum Cup Diameter
41.0 mm
Vacuum Cup Material
SILICONE
Weight
22.0 Gr

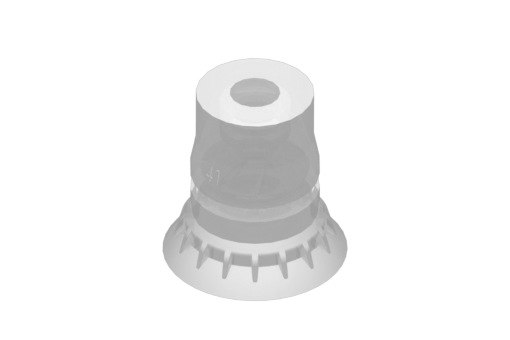

2323090

2323090

VG.BPG41 suction cup, FDA-compliant silicone, 40 Shore

Vacuum Cup Diameter
41.0 mm
Vacuum Cup Material
SILICONE
Weight
12.0 Gr

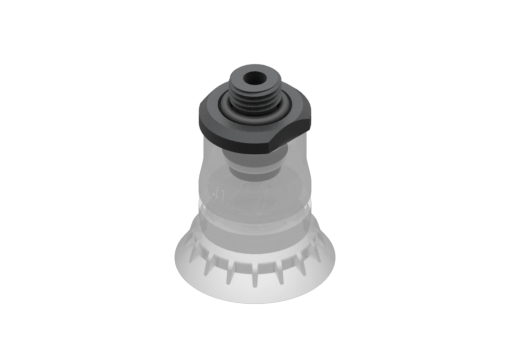

2323091

2323091

BPG.41 suction cup, FDA-compliant silicone, 40 Shore, G1/4" male

Air Feeding In
G1/4'' Maschio
Vacuum Cup Diameter
41.0 mm
Vacuum Cup Material
SILICONE ALIMENTARE
Weight
26.0 Gr

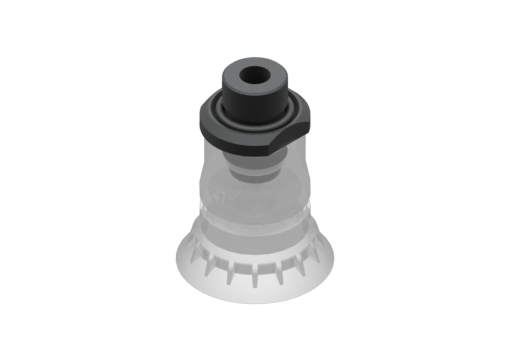

2323092

2323092

BPG.41 suction cup, FDA-compliant silicone, 40 Shore, G3/8" male

Air Feeding In
G3/8'' Maschio
Vacuum Cup Diameter
41.0 mm
Vacuum Cup Material
SILICONE
Weight
27.0 Gr

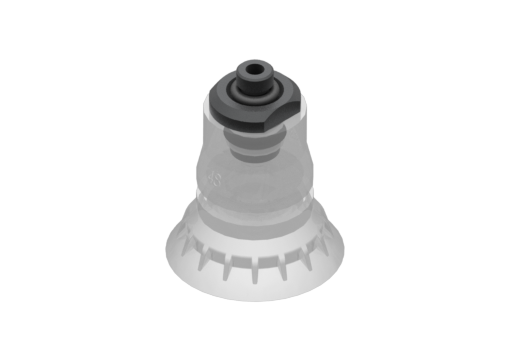

2323093

2323093

BPG.48 suction cup, FDA-compliant silicone, 40 Shore, G1/8" male

Air Feeding In
G1/8'' Maschio
Vacuum Cup Diameter
48.0 mm
Vacuum Cup Material
SILICONE
Weight
27.0 Gr

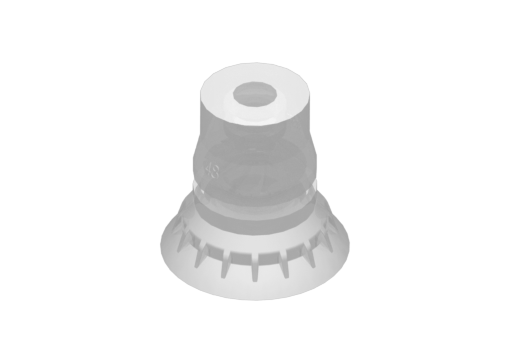

2323094

2323094

VG.BPG48 suction cup, FDA-compliant silicone, 40 Shore

Vacuum Cup Diameter
48.0 mm
Vacuum Cup Material
SILICONE
Weight
16.0 Gr

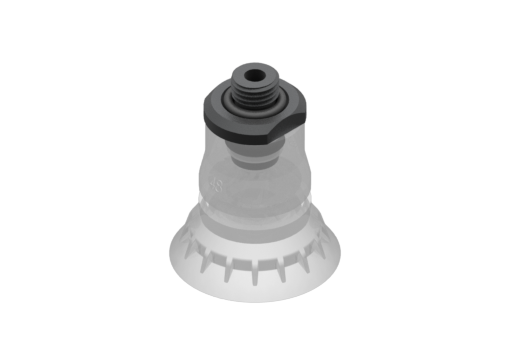

2323095

2323095

BPG.48 suction cup, FDA-compliant silicone, 40 °Shore, G1/4 male

Air Feeding In
G1/4'' Maschio
Vacuum Cup Diameter
48.0 mm
Vacuum Cup Material
SILICONE
Weight
30.0 Gr

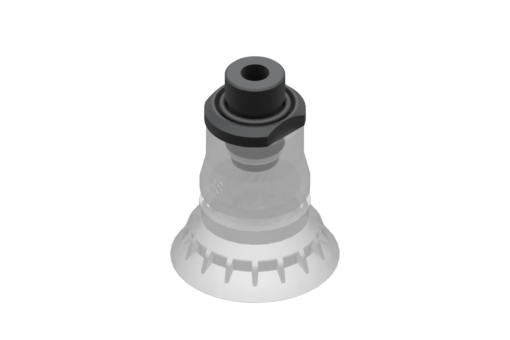

2323096

2323096

BPG.48 suction cup, FDA-compliant silicone, 40 Shore, G3/8" male

Air Feeding In
G3/8'' Maschio
Vacuum Cup Diameter
48.0 mm
Vacuum Cup Material
SILICONE
Weight
31.0 Gr

2323097

2323097

BPG.55 suction cup, FDA-compliant silicone, 40 Shore, G1/8" male, 1.5 bellows

Air Feeding In
G1/8'' Maschio
Vacuum Cup Diameter
55.0 mm
Vacuum Cup Material
SILICONE
Weight
40.0 Gr

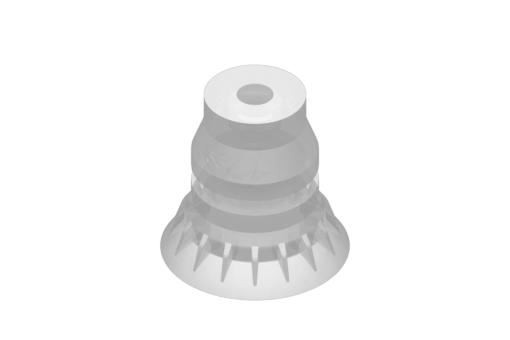

2323098

2323098

VG.BPG55 suction cup, FDA-compliant silicone, 40 Shore

Vacuum Cup Diameter
55.0 mm
Vacuum Cup Material
SILICONE
Weight
30.0 Gr

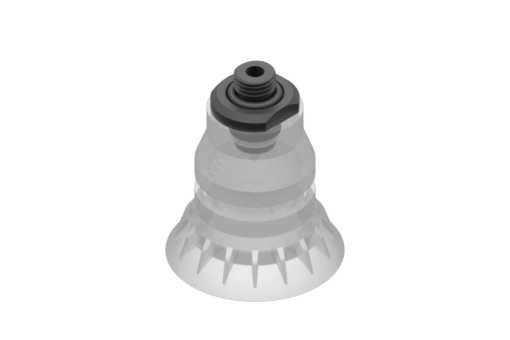

2323099

2323099

BPG.55 suction cup, FDA-compliant silicone, 40 Shore, G1/4" male

Air Feeding In
G1/4'' Maschio
Vacuum Cup Diameter
55.0 mm
Vacuum Cup Material
SILICONE
Weight
43.0 Gr

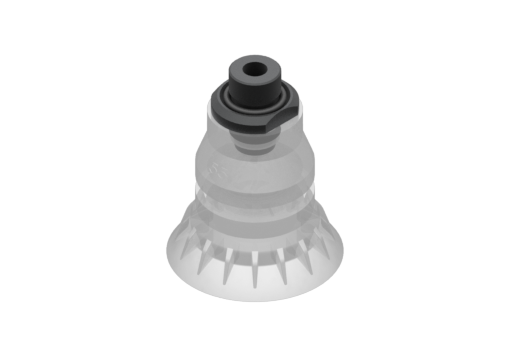

2323100

2323100

BPG.55 suction cup, FDA-compliant silicone, 40 Shore, G3/8" male

Air Feeding In
G3/8'' Maschio
Vacuum Cup Diameter
55.0 mm
Vacuum Cup Material
SILICONE
Weight
44.0 Gr
