Standard bellows suction cups - VG.B

The silicone compound is suitable for high working temperatures
Suitable for objects with flat or slightly curved surfaces
They enable to compensate for differences in height
The HNBR compound is robust and wear resistant, suitable for the removal of hot plastic parts from the relevant moulds
A FDA-compliant silicone version, suitable for handling unpackaged food, is available.

Flyer file

Standard bellows suction cups - VG.B

The silicone compound is suitable for high working temperatures
Suitable for objects with flat or slightly curved surfaces
They enable to compensate for differences in height
The HNBR compound is robust and wear resistant, suitable for the removal of hot plastic parts from the relevant moulds
A FDA-compliant silicone version, suitable for handling unpackaged food, is available.

Flyer file

Weight

Suction cup diameter

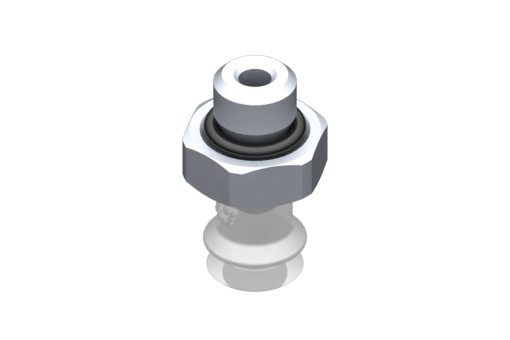

2321038

2321038

Suction cup VG.B6 Silicone FDA 50 Shore, M5 Male, Hex 8mm

Air Feeding In
M5 Maschio
Vacuum Cup Diameter
6.0 mm
Vacuum Cup Material
SILICONE ALIMENTARE
Weight
0.68 Gr

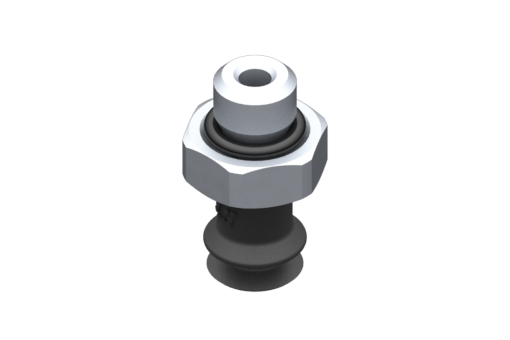

2321076

2321076

Suction cup VG.B6 EPDM 50 Shore, M5 Male, Hex 8mm

Air Feeding In
M5 Maschio
Vacuum Cup Diameter
6.0 mm
Vacuum Cup Material
EPDM
Weight
0.75 Gr

2321078

2321078

Suction cup VG.B6 HNBR 60 Shore, M5 Male, Hex 8mm

Air Feeding In
M5 Maschio
Vacuum Cup Diameter
6.0 mm
Vacuum Cup Material
HNBR
Weight
0.75 Gr

2321095

2321095

Suction cup VG.B6 Silicone 50 Shore, M5 Male, Hex 8mm

Air Feeding In
M5 Maschio
Vacuum Cup Diameter
6.0 mm
Vacuum Cup Material
SILICONE
Weight
0.75 Gr

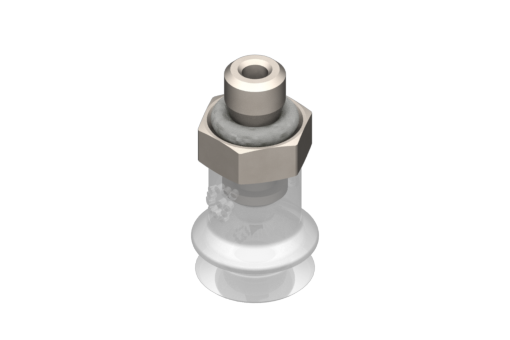

2321538

2321538

VG.B6 suction cup, FDA-compliant silicone, 50 Shore, M3 male, 5 mm hex

Vacuum Cup Diameter
6.0 mm
Vacuum Cup Material
SILICONE ALIMENTARE
Weight
0.55 Gr

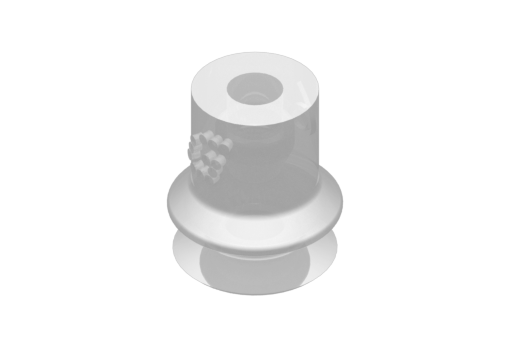

2321539

2321539

VG.B6 suction cup, FDA-compliant silicone, 50 Shore

Vacuum Cup Diameter
6.0 mm
Vacuum Cup Material
SILICONE ALIMENTARE
Weight
0.07 Gr

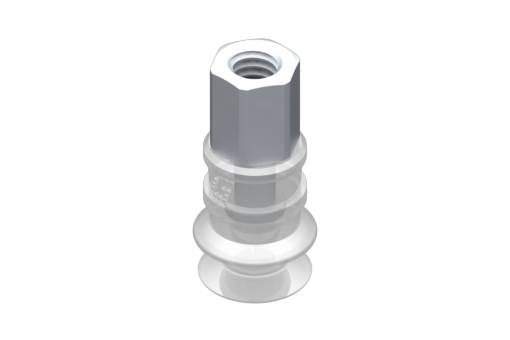

2321540

2321540

VG.B11 suction cup, FDA-compliant silicone, 50 Shore, M5 female, 8 mm hex

Air Feeding In
M5 Femmina
Vacuum Cup Diameter
11.0 mm
Vacuum Cup Material
SILICONE ALIMENTARE
Weight
2.5 Gr

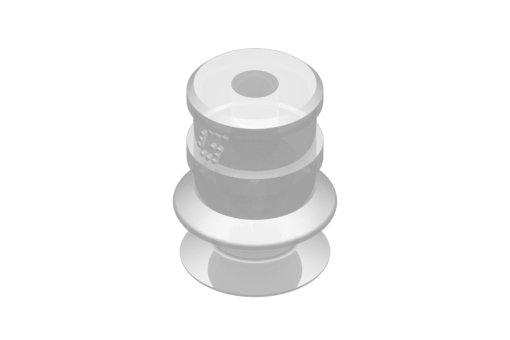

2321541

2321541

VG.B11 suction cup, FDA-compliant silicone, 50 Shore

Vacuum Cup Diameter
11.0 mm
Vacuum Cup Material
SILICONE ALIMENTARE
Weight
1.3 Gr

2321542

2321542

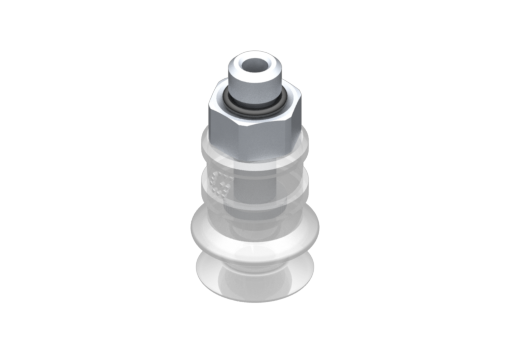

VG.B11 suction cup, FDA-compliant silicone, 50 �Shore, M5 male, 8 mm hex

Air Feeding In
M5 Maschio
Vacuum Cup Diameter
11.0 mm
Vacuum Cup Material
SILICONE ALIMENTARE
Weight
2.2 Gr

2321543

2321543

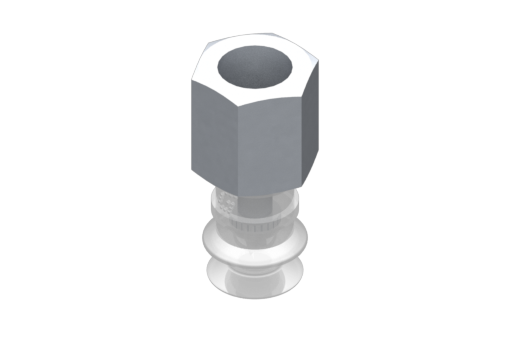

VG.B11 suction cup, FDA-compliant silicone, 50 Shore, G1/8″ Female, 13 mm hex

Air Feeding In
G1/8'' Femmina
Vacuum Cup Diameter
11.0 mm
Vacuum Cup Material
SILICONE ALIMENTARE
Weight
5.1 Gr

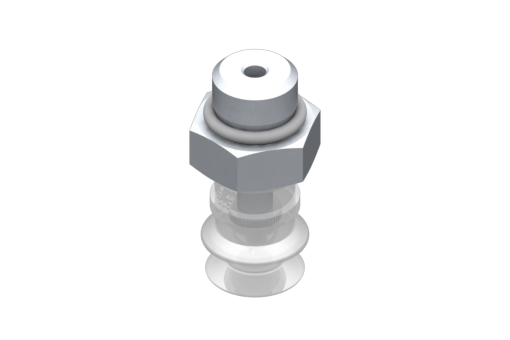

2321544

2321544

VG.B11 suction cup, FDA-compliant silicone, 50 �Shore, G1/8" male, 13 mm hex

Air Feeding In
G1/8'' Maschio
Vacuum Cup Diameter
11.0 mm
Vacuum Cup Material
SILICONE ALIMENTARE
Weight
4.7 Gr

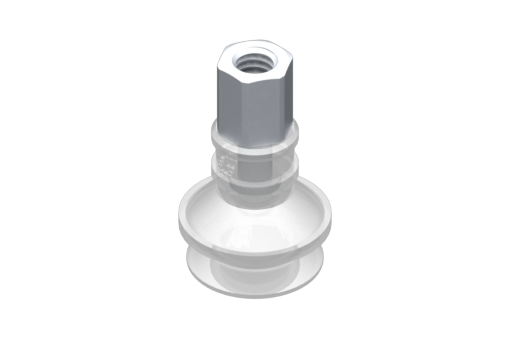

2321545

2321545

VG.B16 suction cup, FDA-compliant silicone, 50 Shore, M5 female, 8 mm hex

Air Feeding In
M5 Femmina
Vacuum Cup Diameter
16.0 mm
Vacuum Cup Material
SILICONE ALIMENTARE
Weight
3.3 Gr

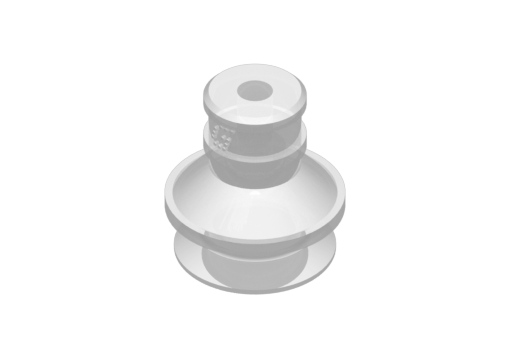

2321546

2321546

VG.B16 suction cup, FDA-compliant silicone, 50 Shore

Vacuum Cup Diameter
16.0 mm
Vacuum Cup Material
SILICONE ALIMENTARE
Weight
2.1 Gr

2321547

2321547

VG.B16 suction cup, FDA-compliant silicone, 50 �Shore, M5 male, 8 mm hex

Air Feeding In
M5 Maschio
Vacuum Cup Diameter
16.0 mm
Vacuum Cup Material
SILICONE ALIMENTARE
Weight
3.0 Gr

2321548

2321548

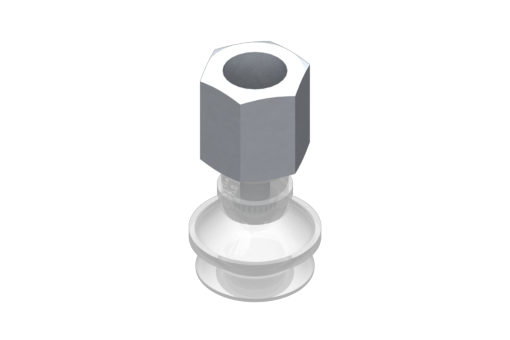

VG.B16 suction cup, FDA-compliant silicone, 50 Shore, G1/8″ female, 13 mm hex

Air Feeding In
G1/8'' Femmina
Vacuum Cup Diameter
16.0 mm
Vacuum Cup Material
SILICONE ALIMENTARE
Weight
5.9 Gr

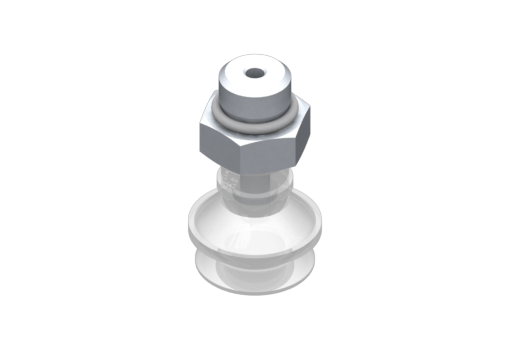

2321549

2321549

VG.B16 suction cup, FDA-compliant silicone, 50 Shore, G1/8″ male, 13 mm hex

Air Feeding In
G1/8'' Maschio
Vacuum Cup Diameter
16.0 mm
Vacuum Cup Material
SILICONE ALIMENTARE
Weight
5.4 Gr

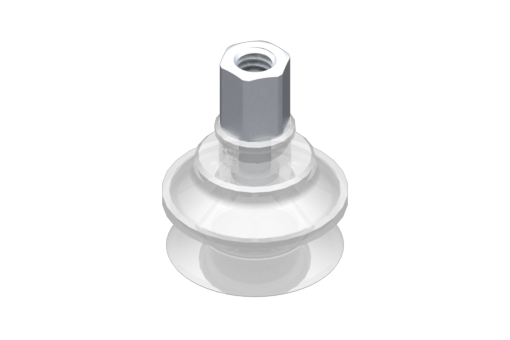

2321550

2321550

VG.B22 suction cup, FDA-compliant silicone, 50 Shore, M5 female, 8 mm hex

Air Feeding In
M5 Femmina
Vacuum Cup Diameter
22.0 mm
Vacuum Cup Material
SILICONE ALIMENTARE
Weight
3.1 Gr

2321551

2321551

VG.B22 suction cup, FDA-compliant silicone, 50 Shore

Vacuum Cup Diameter
22.0 mm
Vacuum Cup Material
SILICONE ALIMENTARE
Weight
1.9 Gr

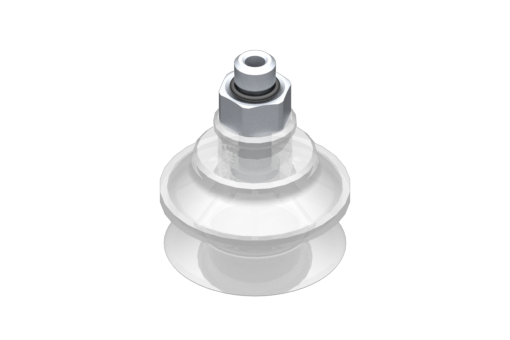

2321552

2321552

VG.B22 suction cup, FDA-compliant silicone, 50 Shore, M5 male, 8 mm hex

Air Feeding In
M5 Maschio
Vacuum Cup Diameter
22.0 mm
Vacuum Cup Material
SILICONE ALIMENTARE
Weight
2.8 Gr

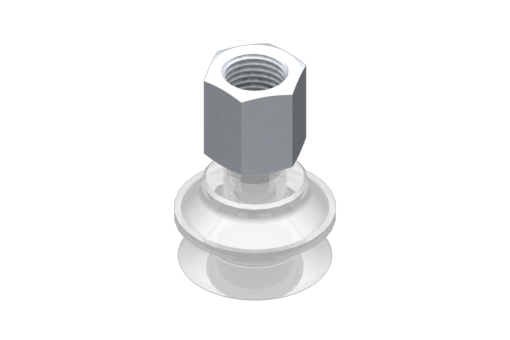

2321553

2321553

VG.B22 suction cup, FDA-compliant silicone, 50 Shore, G1/8″ female, 13 mm hex

Air Feeding In
G1/8'' Femmina
Vacuum Cup Diameter
22.0 mm
Vacuum Cup Material
SILICONE ALIMENTARE
Weight
5.6 Gr

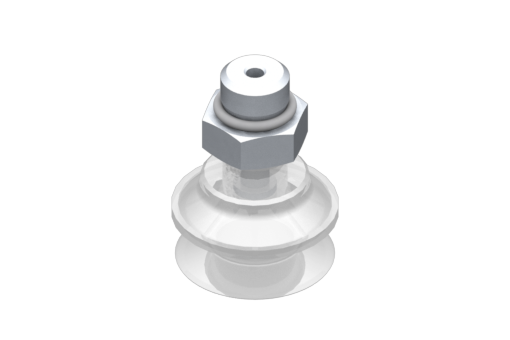

2321554

2321554

VG.B22 suction cup, FDA-compliant silicone, 50 Shore, G1/8″ male, 13 mm hex

Air Feeding In
G1/8'' Maschio
Vacuum Cup Diameter
22.0 mm
Vacuum Cup Material
SILICONE ALIMENTARE
Weight
5.2 Gr

2321555

2321555

VG.B33 suction cup, FDA-compliant silicone, 50 Shore, G1/8″ female, 12 mm hex

Air Feeding In
G1/8'' Femmina
Vacuum Cup Diameter
33.0 mm
Vacuum Cup Material
SILICONE ALIMENTARE
Weight
9.2 Gr

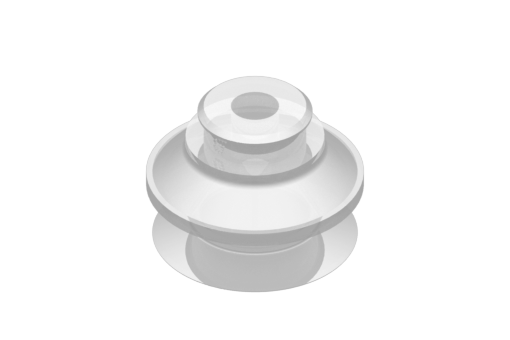

2321556

2321556

VG.B33 suction cup, FDA-compliant silicone, 50 Shore

Vacuum Cup Diameter
33.0 mm
Vacuum Cup Material
SILICONE ALIMENTARE
Weight
5.9 Gr

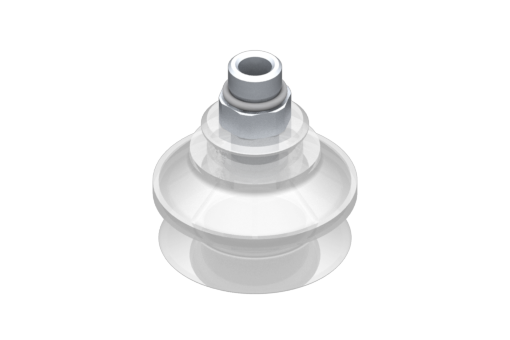

2321557

2321557

VG.B33 suction cup, FDA-compliant silicone, 50 Shore, G1/8″ male, 12 mm hex

Air Feeding In
G1/8'' Maschio
Vacuum Cup Diameter
33.0 mm
Vacuum Cup Material
SILICONE ALIMENTARE
Weight
8.8 Gr

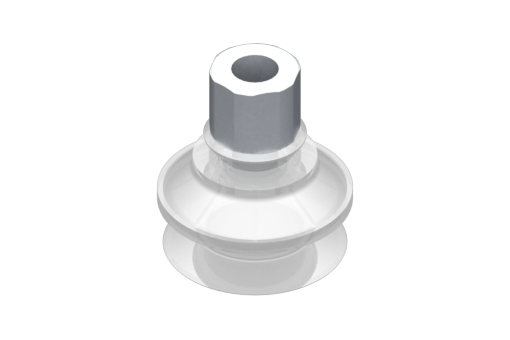

2321558

2321558

VG.B33 suction cup, FDA-compliant silicone, 50 Shore, G1/8″ female, 16 mm hex

Air Feeding In
G1/8'' Femmina
Vacuum Cup Diameter
33.0 mm
Vacuum Cup Material
SILICONE ALIMENTARE
Weight
12.0 Gr

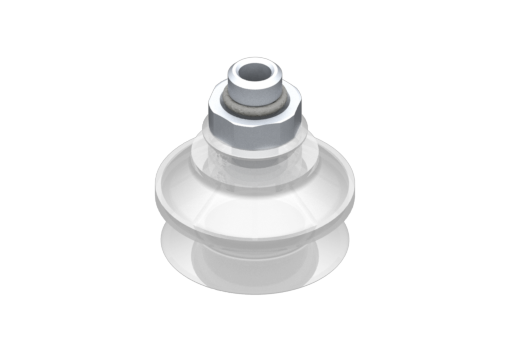

2321559

2321559

VG.B33 suction cup, FDA-compliant silicone, 50 Shore, G1/8″ male, 16 mm hex

Air Feeding In
G1/8'' Maschio
Vacuum Cup Diameter
33.0 mm
Vacuum Cup Material
SILICONE ALIMENTARE
Weight
10.0 Gr

2321560

2321560

VG.B33 suction cup, FDA-compliant silicone, 50 Shore, G1/4″ female, 16 mm hex

Air Feeding In
G1/4'' Femmina
Vacuum Cup Diameter
33.0 mm
Vacuum Cup Material
SILICONE ALIMENTARE
Weight
11.0 Gr

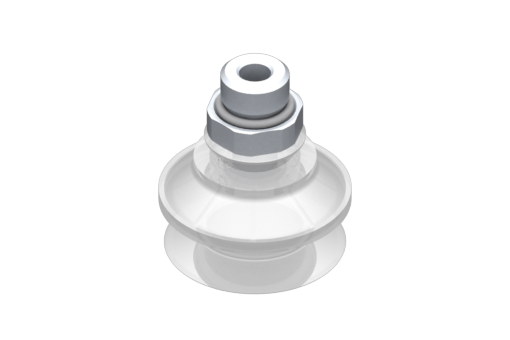

2321561

2321561

VG.B33 suction cup, FDA-compliant silicone, 50 Shore, G1/4″ male, 17 mm hex

Air Feeding In
G1/4'' Maschio
Vacuum Cup Diameter
33.0 mm
Vacuum Cup Material
SILICONE ALIMENTARE
Weight
12.0 Gr

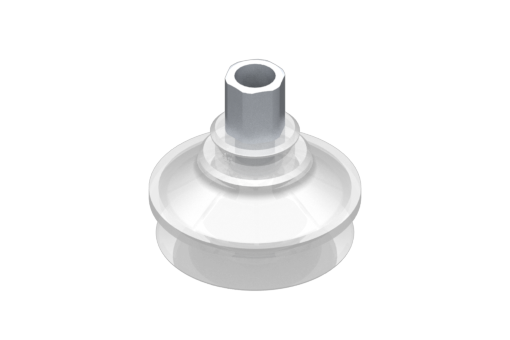

2321562

2321562

VG.B42 suction cup, FDA-compliant silicone, 50 Shore, G1/8″ female, 12 mm hex

Air Feeding In
G1/8'' Femmina
Vacuum Cup Diameter
42.0 mm
Vacuum Cup Material
SILICONE ALIMENTARE
Weight
12.0 Gr

2321563

2321563

VG.B42 suction cup, FDA-compliant silicone, 50 Shore

Vacuum Cup Diameter
42.0 mm
Vacuum Cup Material
SILICONE ALIMENTARE
Weight
8.8 Gr

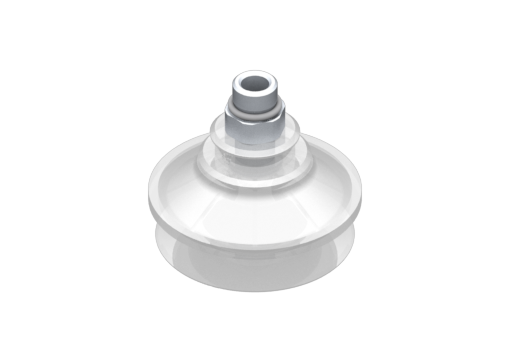

2321564

2321564

VG.B42 suction cup, FDA-compliant silicone, 50 Shore, G1/8″ male, 12 mm hex

Air Feeding In
G1/8'' Maschio
Vacuum Cup Diameter
42.0 mm
Vacuum Cup Material
SILICONE ALIMENTARE
Weight
12.0 Gr

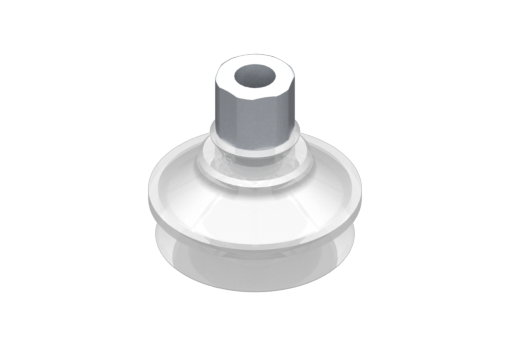

2321565

2321565

VG.B42 suction cup, FDA-compliant silicone, 50 Shore, G1/8″ female, 16 mm hex

Air Feeding In
G1/8'' Femmina
Vacuum Cup Diameter
42.0 mm
Vacuum Cup Material
SILICONE ALIMENTARE
Weight
15.0 Gr

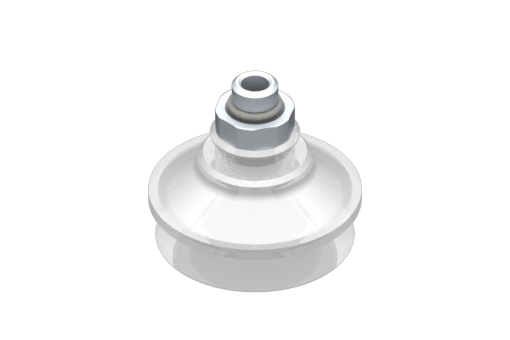

2321566

2321566

VG.B42 suction cup, FDA-compliant silicone, 50 Shore, G1/8″ male, 16 mm hex

Air Feeding In
G1/8'' Maschio
Vacuum Cup Diameter
42.0 mm
Vacuum Cup Material
SILICONE ALIMENTARE
Weight
13.0 Gr

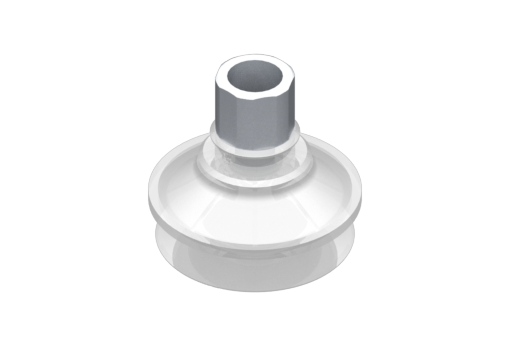

2321567

2321567

VG.B42 suction cup, FDA-compliant silicone, 50 Shore, G1/4″ female, 16 mm hex

Air Feeding In
G1/4'' Femmina
Vacuum Cup Diameter
42.0 mm
Vacuum Cup Material
SILICONE ALIMENTARE
Weight
14.0 Gr

2321568

2321568

VG.B42 suction cup, silicone, 50 Shore, G1/4″ male, 17 mm hex

Air Feeding In
G1/4'' Maschio
Vacuum Cup Diameter
42.0 mm
Vacuum Cup Material
SILICONE ALIMENTARE
Weight
15.0 Gr

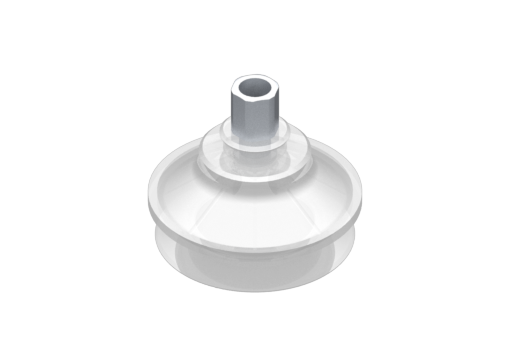

2321569

2321569

VG.B53 suction cup, FDA-compliant silicone, 50 Shore, G1/8″ female, 12 mm hex

Air Feeding In
G1/8'' Femmina
Vacuum Cup Diameter
53.0 mm
Vacuum Cup Material
SILICONE ALIMENTARE
Weight
19.0 Gr

2321570

2321570

VG.B53 suction cup, FDA-compliant silicone, 50 Shore

Vacuum Cup Diameter
53.0 mm
Vacuum Cup Material
SILICONE ALIMENTARE
Weight
16.0 Gr

2321571

2321571

VG.B53 suction cup, FDA-compliant silicone, 50 Shore, G1/8″ male, 12 mm hex

Air Feeding In
G1/8'' Maschio
Vacuum Cup Diameter
53.0 mm
Vacuum Cup Material
SILICONE ALIMENTARE
Weight
19.0 Gr

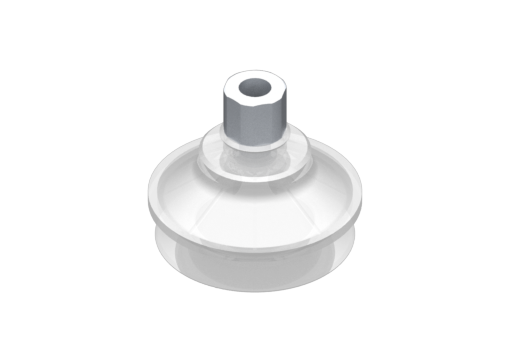

2321572

2321572

VG.B53 suction cup, FDA-compliant silicone, 50 Shore, G1/8″ female, 16 mm hex

Air Feeding In
G1/8'' Femmina
Vacuum Cup Diameter
53.0 mm
Vacuum Cup Material
SILICONE ALIMENTARE
Weight
22.0 Gr

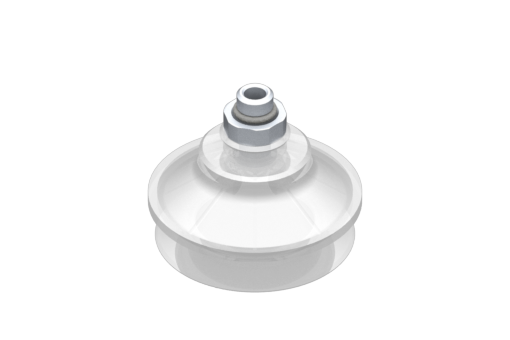

2321573

2321573

VG.B53 suction cup, FDA-compliant silicone, 50 Shore, G1/8″ male, 16 mm hex

Air Feeding In
G1/8'' Maschio
Vacuum Cup Diameter
53.0 mm
Vacuum Cup Material
SILICONE ALIMENTARE
Weight
20.0 Gr

2321574

2321574

VG.B53 suction cup, FDA-compliant silicone, 50 Shore, G1/4″ female, 16 mm hex

Air Feeding In
G1/4'' Femmina
Vacuum Cup Diameter
53.0 mm
Vacuum Cup Material
SILICONE ALIMENTARE
Weight
21.0 Gr

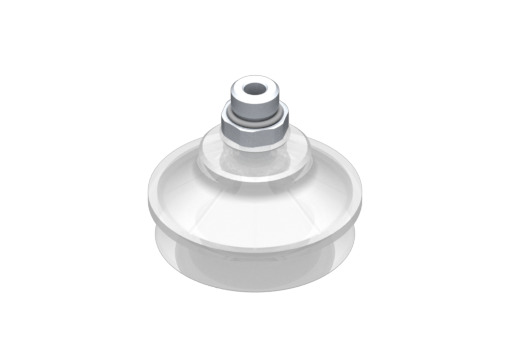

2321575

2321575

VG.B53 suction cup, FDA-compliant silicone, 50 Shore, G1/4″ male, 17 mm hex

Air Feeding In
G1/4'' Maschio
Vacuum Cup Diameter
53.0 mm
Vacuum Cup Material
SILICONE ALIMENTARE
Weight
22.0 Gr

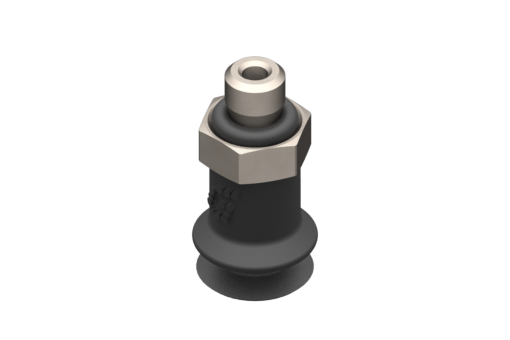

2321576

2321576

VG.B6 suction cup, EPDM, 50 Shore, M3 male, 5 mm hex

Vacuum Cup Diameter
6.0 mm
Vacuum Cup Material
EPDM
Weight
0.63 Gr

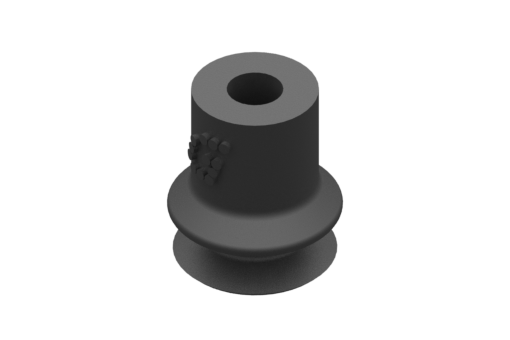

2321577

2321577

VG.B6 suction cup, EPDM, 50 Shore

Vacuum Cup Diameter
6.0 mm
Vacuum Cup Material
EPDM
Weight
0.15 Gr

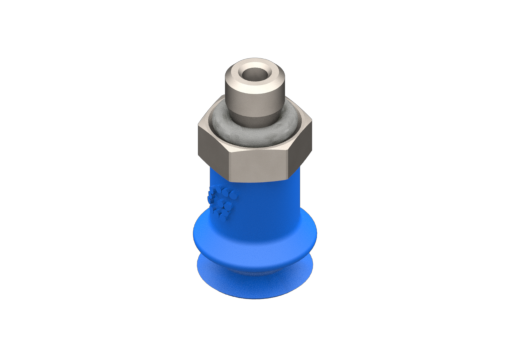

2321578

2321578

VG.B6 suction cup, HNBR, 60 Shore, M3 male, 5 mm hex

Vacuum Cup Diameter
6.0 mm
Vacuum Cup Material
HNBR
Weight
0.63 Gr

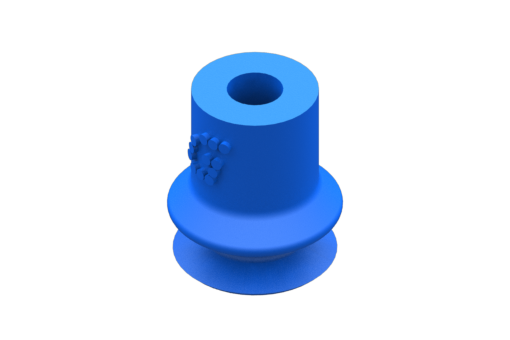

2321579

2321579

VG.B6 suction cup, HNBR, 60 Shore

Vacuum Cup Diameter
6.0 mm
Vacuum Cup Material
HNBR
Weight
0.15 Gr

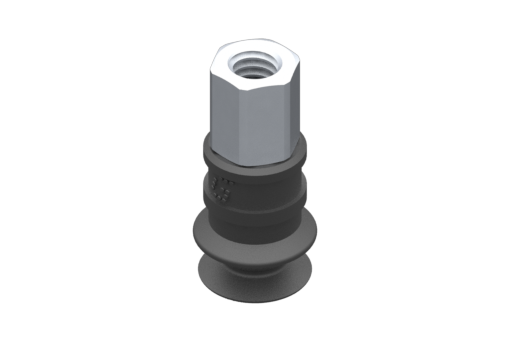

2321580

2321580

VG.B11 suction cup, EPDM, 50 °Shore, M5 female, 8 mm hex

Air Feeding In
M5 Femmina
Vacuum Cup Diameter
11.0 mm
Vacuum Cup Material
EPDM
Weight
1.9 Gr

2321581

2321581

VG.B11 suction cup, EPDM, 50 Shore

Vacuum Cup Diameter
11.0 mm
Vacuum Cup Material
EPDM
Weight
0.65 Gr

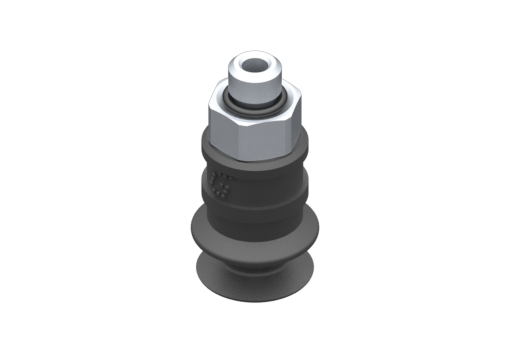

2321582

2321582

VG.B11 suction cup, EPDM, 50 Shore, M5 male, 8 mm hex

Air Feeding In
M5 Maschio
Vacuum Cup Diameter
11.0 mm
Vacuum Cup Material
EPDM
Weight
1.6 Gr

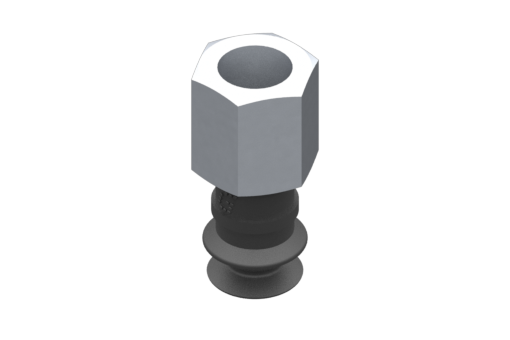

2321583

2321583

VG.B11 suction cup, EPDM, 50 Shore, G1/8″ female, 13 mm hex

Air Feeding In
G1/8'' Femmina
Vacuum Cup Diameter
11.0 mm
Vacuum Cup Material
EPDM
Weight
4.4 Gr

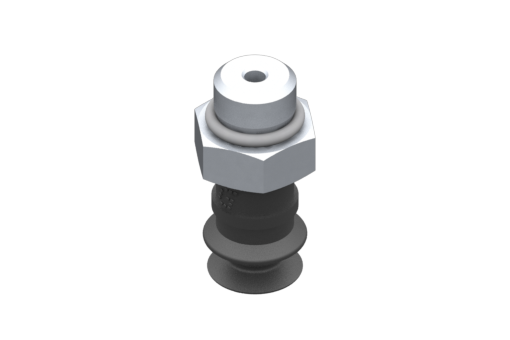

2321584

2321584

VG.B11 suction cup, EPDM, 50 Shore, G1/8″ male, 13 mm hex

Air Feeding In
G1/8'' Maschio
Vacuum Cup Diameter
11.0 mm
Vacuum Cup Material
EPDM
Weight
4.0 Gr

2321585

2321585

VG.B11 suction cup, HNBR, 60 Shore, M5 female, 8 mm hex

Air Feeding In
M5 Femmina
Vacuum Cup Diameter
11.0 mm
Vacuum Cup Material
HNBR
Weight
1.9 Gr

2321586

2321586

VG.B11 suction cup, HNBR, 60 Shore

Vacuum Cup Diameter
11.0 mm
Vacuum Cup Material
HNBR
Weight
0.65 Gr

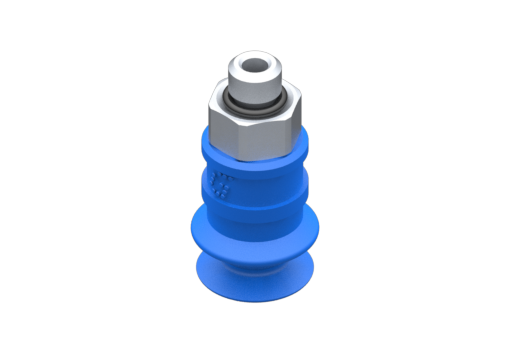

2321587

2321587

VG.B11 suction cup, HNBR, 60 Shore, M5 male, 8 mm hex

Air Feeding In
M5 Maschio
Vacuum Cup Diameter
11.0 mm
Vacuum Cup Material
HNBR
Weight
1.6 Gr

2321588

2321588

VG.B11 suction cup, HNBR, 60 Shore, G1/8″ female, 13 mm hex

Air Feeding In
G1/8'' Femmina
Vacuum Cup Diameter
11.0 mm
Vacuum Cup Material
HNBR
Weight
4.4 Gr

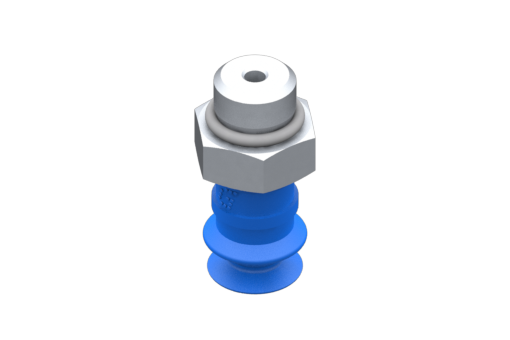

2321589

2321589

VG.B11 suction cup, HNBR, 60 Shore, G1/8″ male, 13 mm hex

Air Feeding In
G1/8'' Maschio
Vacuum Cup Diameter
11.0 mm
Vacuum Cup Material
HNBR
Weight
4.0 Gr

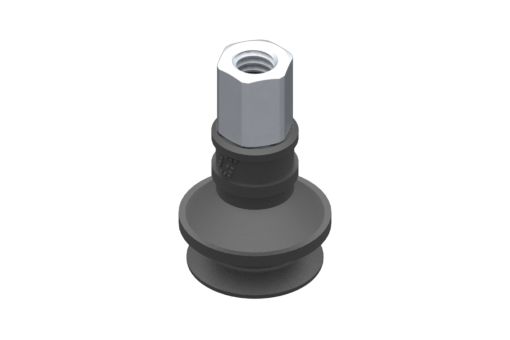

2321590

2321590

VG.B16 suction cup, EPDM, 50 Shore, M5 female, 8 mm hex

Air Feeding In
M5 Femmina
Vacuum Cup Diameter
16.0 mm
Vacuum Cup Material
EPDM
Weight
3.3 Gr

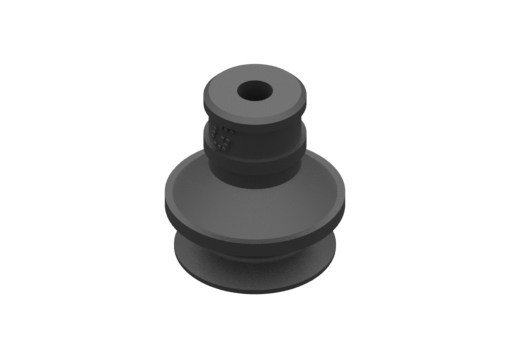

2321591

2321591

VG.B16 suction cup, EPDM, 50 Shore

Vacuum Cup Diameter
16.0 mm
Vacuum Cup Material
EPDM
Weight
2.1 Gr

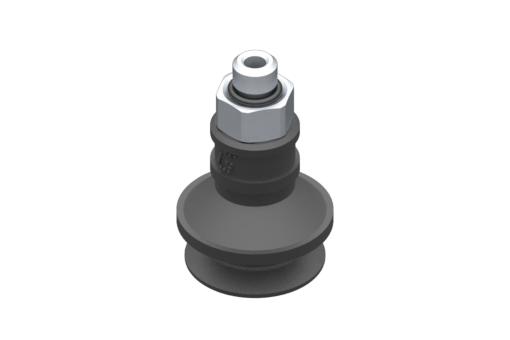

2321592

2321592

VG.B16 suction cup, EPDM, 50 °Shore, M5 male, 8 mm hex

Air Feeding In
M5 Maschio
Vacuum Cup Diameter
16.0 mm
Vacuum Cup Material
EPDM
Weight
3.0 Gr

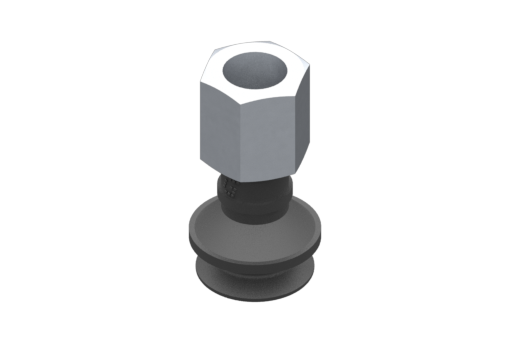

2321593

2321593

VG.B16 suction cup, EPDM, 50 °Shore, G1/8 female, 13 mm hex

Air Feeding In
G1/8'' Femmina
Vacuum Cup Diameter
16.0 mm
Vacuum Cup Material
EPDM
Weight
5.9 Gr

2321594

2321594

VG.B16 suction cup, EPDM, 50 Shore, G1/8″ male, 13 mm hex

Air Feeding In
G1/8'' Maschio
Vacuum Cup Diameter
16.0 mm
Vacuum Cup Material
EPDM
Weight
5.4 Gr

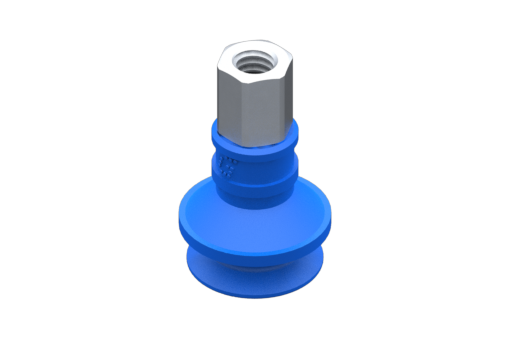

2321595

2321595

VG.B16 suction cup, HNBR, 60 Shore, M5 female, 8 mm hex

Air Feeding In
M5 Femmina
Vacuum Cup Diameter
16.0 mm
Vacuum Cup Material
HNBR
Weight
3.3 Gr

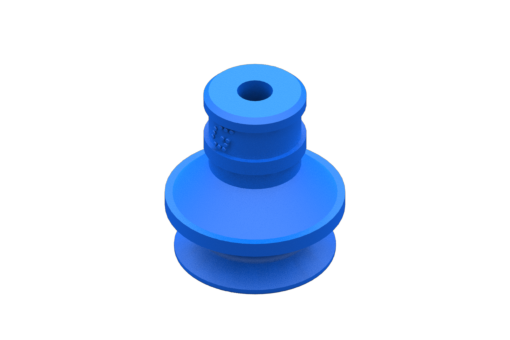

2321596

2321596

VG.B16 suction cup, HNBR, 60 Shore

Vacuum Cup Diameter
16.0 mm
Vacuum Cup Material
HNBR
Weight
2.1 Gr

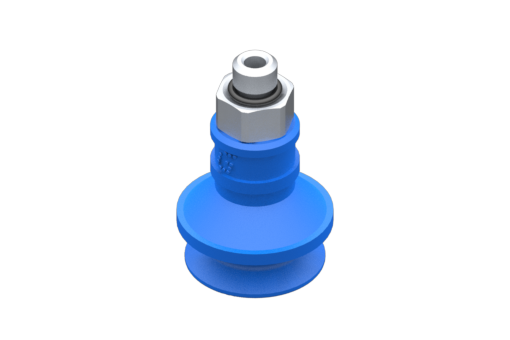

2321597

2321597

VG.B16 suction cup, HNBR, 60 Shore, M5 male, 8 mm hex

Air Feeding In
M5 Maschio
Vacuum Cup Diameter
16.0 mm
Vacuum Cup Material
HNBR
Weight
3.0 Gr

2321598

2321598

VG.B16 suction cup, HNBR, 60 Shore, G1/8″ female, 13 mm hex

Air Feeding In
G1/8'' Femmina
Vacuum Cup Diameter
16.0 mm
Vacuum Cup Material
HNBR
Weight
5.9 Gr

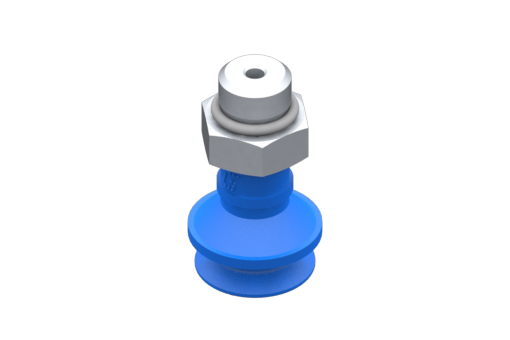

2321599

2321599

VG.B16 suction cup, HNBR, 60 Shore, G1/8″ male, 13 mm hex

Air Feeding In
G1/8'' Maschio
Vacuum Cup Diameter
16.0 mm
Vacuum Cup Material
HNBR
Weight
5.4 Gr

2321600

2321600

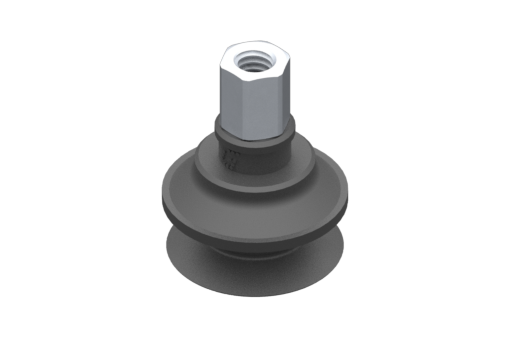

VG.B22 suction cup, EPDM, 50 Shore, M5 female, 8 mm hex

Air Feeding In
M5 Femmina
Vacuum Cup Diameter
22.0 mm
Vacuum Cup Material
EPDM
Weight
3.0 Gr

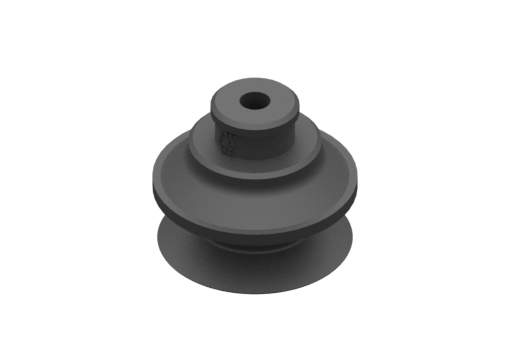

2321601

2321601

VG.B22 suction cup, EPDM, 50 Shore

Vacuum Cup Diameter
22.0 mm
Vacuum Cup Material
EPDM
Weight
1.8 Gr

2321602

2321602

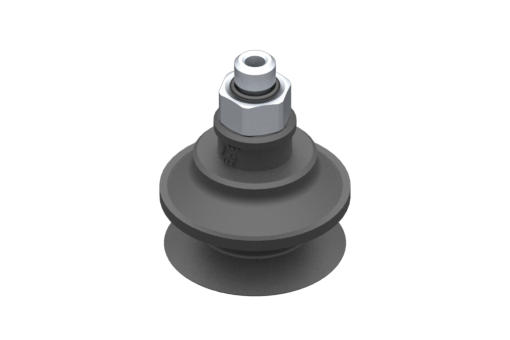

VG.B22 suction cup, EPDM, 50 Shore, M5 male, 8 mm hex

Air Feeding In
M5 Maschio
Vacuum Cup Diameter
22.0 mm
Vacuum Cup Material
EPDM
Weight
2.7 Gr

2321603

2321603

VG.B22 suction cup, EPDM, 50 Shore, G1/8″ female, 13 mm hex

Air Feeding In
G1/8'' Femmina
Vacuum Cup Diameter
22.0 mm
Vacuum Cup Material
EPDM
Weight
5.6 Gr

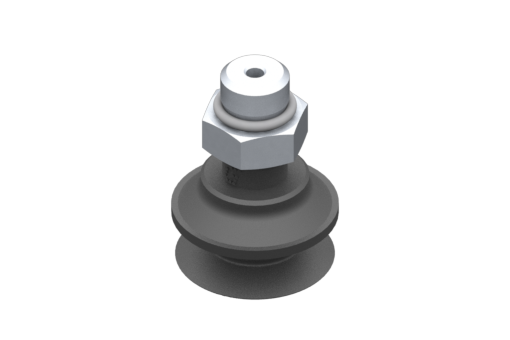

2321604

2321604

VG.B22 suction cup, EPDM, 50 Shore, G1/8″ male, 13 mm hex

Air Feeding In
G1/8'' Maschio
Vacuum Cup Diameter
22.0 mm
Vacuum Cup Material
EPDM
Weight
5.2 Gr

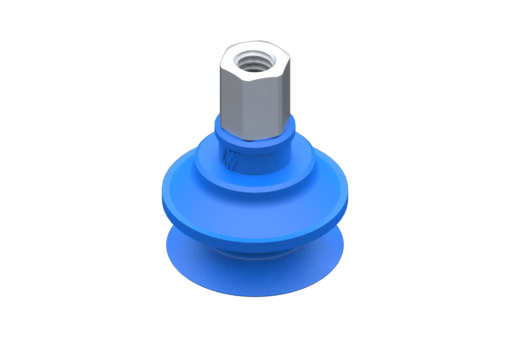

2321605

2321605

VG.B22 suction cup, HNBR, 60 °Shore, M5 female, 8 mm hex

Air Feeding In
M5 Femmina
Vacuum Cup Diameter
22.0 mm
Vacuum Cup Material
HNBR
Weight
3.0 Gr

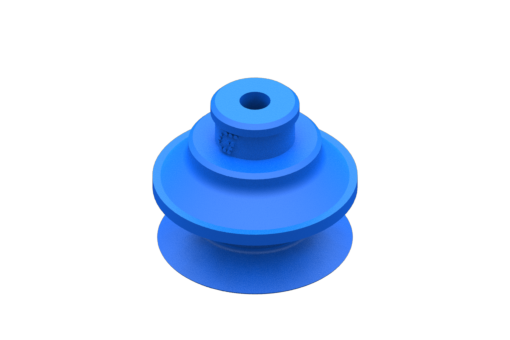

2321606

2321606

VG.B22 suction cup, HNBR, 60 Shore

Vacuum Cup Diameter
22.0 mm
Vacuum Cup Material
HNBR
Weight
1.8 Gr

2321607

2321607

VG.B22 suction cup, HNBR, 60 Shore, M5 male, 8 mm hex

Air Feeding In
M5 Maschio
Vacuum Cup Diameter
22.0 mm
Vacuum Cup Material
HNBR
Weight
2.7 Gr

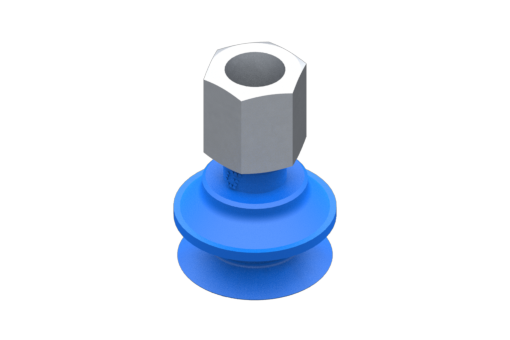

2321608

2321608

VG.B22 suction cup, HNBR, 60 Shore, G1/8″ female, 13 mm hex

Air Feeding In
G1/8'' Femmina
Vacuum Cup Diameter
22.0 mm
Vacuum Cup Material
HNBR
Weight
5.6 Gr

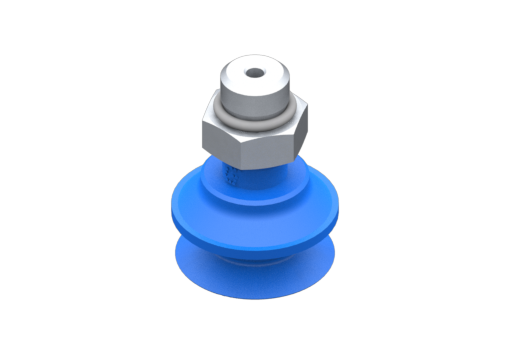

2321609

2321609

VG.B22 suction cup, HNBR, 60 °Shore, G1/8 male, 13 mm hex

Air Feeding In
G1/8'' Maschio
Vacuum Cup Diameter
22.0 mm
Vacuum Cup Material
HNBR
Weight
5.2 Gr

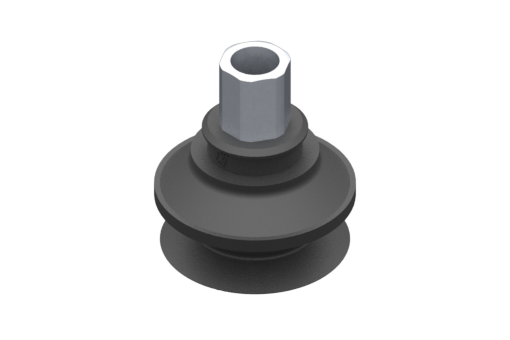

2321610

2321610

VG.B33 suction cup, EPDM, 50 Shore, G1/8″ female, 12 mm hex

Air Feeding In
G1/8'' Femmina
Vacuum Cup Diameter
33.0 mm
Vacuum Cup Material
EPDM
Weight
9.1 Gr

2321611

2321611

VG.B33 suction cup, EPDM, 50 Shore

Vacuum Cup Diameter
33.0 mm
Vacuum Cup Material
EPDM
Weight
5.8 Gr

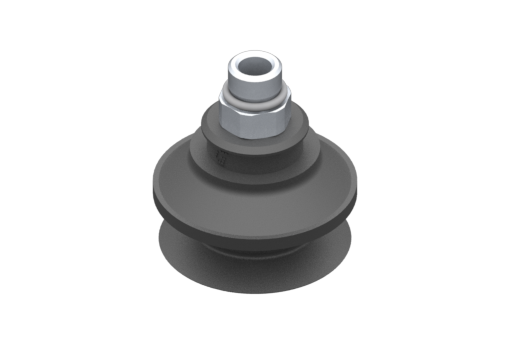

2321612

2321612

VG.B33 suction cup, EPDM, 50 °Shore, G1/8 male, 12 mm hex

Air Feeding In
G1/8'' Maschio
Vacuum Cup Diameter
33.0 mm
Vacuum Cup Material
EPDM
Weight
8.7 Gr

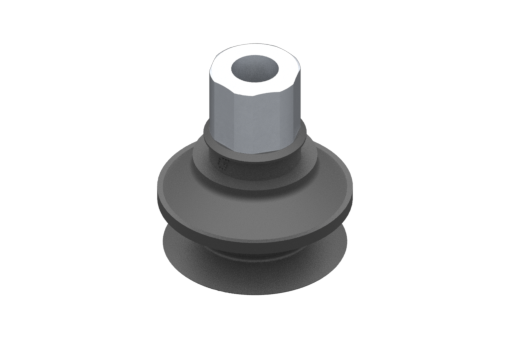

2321613

2321613

VG.B33 suction cup, EPDM, 50 Shore, G1/8″ female, 16 mm hex

Air Feeding In
G1/8'' Femmina
Vacuum Cup Diameter
33.0 mm
Vacuum Cup Material
EPDM
Weight
12.0 Gr

2321614

2321614

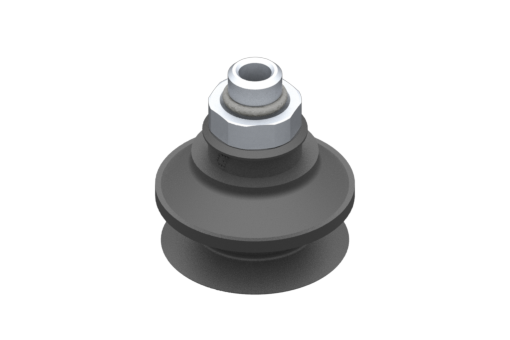

VG.B33 suction cup, EPDM, 50 Shore, G1/8″ male, 16 mm hex

Air Feeding In
G1/8'' Maschio
Vacuum Cup Diameter
33.0 mm
Vacuum Cup Material
EPDM
Weight
10.0 Gr

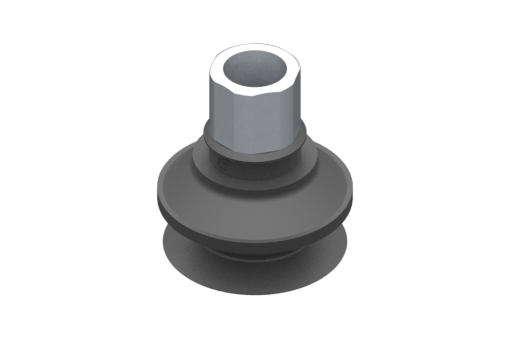

2321615

2321615

VG.B33 suction cup, EPDM, 50 Shore, G1/4″ female, 16 mm hex

Air Feeding In
G1/4'' Femmina
Vacuum Cup Diameter
33.0 mm
Vacuum Cup Material
EPDM
Weight
11.0 Gr

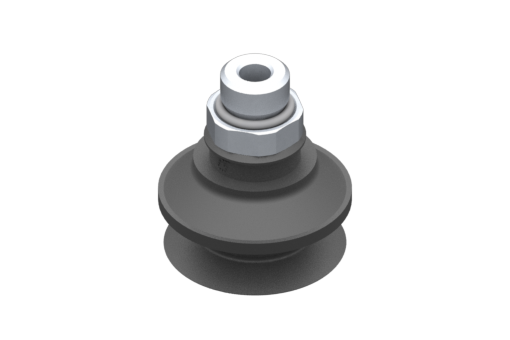

2321616

2321616

VG.B33 suction cup, EPDM, 50 Shore, G1/4″ male, 17 mm hex

Air Feeding In
G1/4'' Maschio
Vacuum Cup Diameter
33.0 mm
Vacuum Cup Material
EPDM
Weight
12.0 Gr

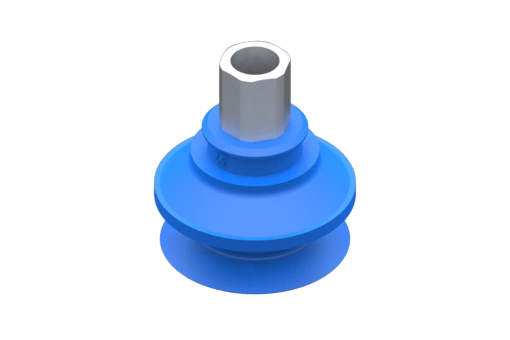

2321617

2321617

VG.B33 suction cup, HNBR, 60 Shore, G1/8″ female, 12 mm hex

Air Feeding In
G1/8'' Femmina
Vacuum Cup Diameter
33.0 mm
Vacuum Cup Material
HNBR
Weight
9.1 Gr

2321618

2321618

VG.B33 suction cup, HNBR, 60 Shore

Vacuum Cup Diameter
33.0 mm
Vacuum Cup Material
HNBR
Weight
5.8 Gr

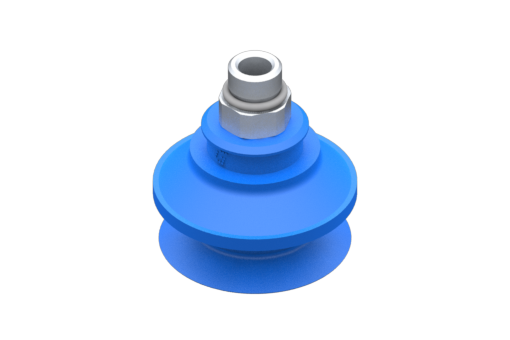

2321619

2321619

VG.B33 suction cup, HNBR, 60 Shore, G1/8″ male, 12 mm hex

Air Feeding In
G1/8'' Maschio
Vacuum Cup Diameter
33.0 mm
Vacuum Cup Material
HNBR
Weight
8.7 Gr

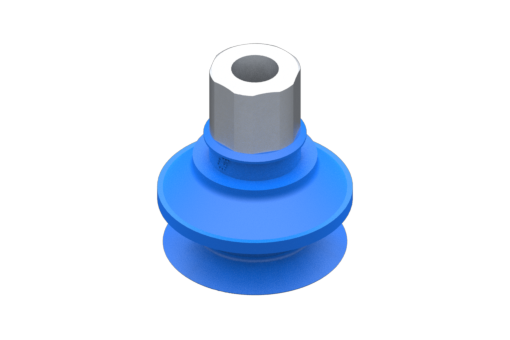

2321620

2321620

VG.B33 suction cup, HNBR, 60 Shore, G1/8″ female, 16 mm hex

Air Feeding In
G1/8'' Femmina
Vacuum Cup Diameter
33.0 mm
Vacuum Cup Material
HNBR
Weight
12.0 Gr

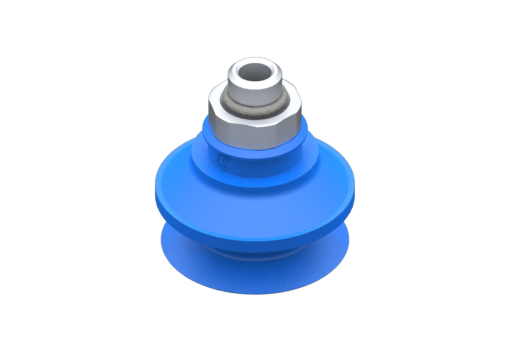

2321621

2321621

VG.B33 suction cup, HNBR, 60 Shore, G1/8″ male, 16 mm hex

Air Feeding In
G1/8'' Maschio
Vacuum Cup Diameter
33.0 mm
Vacuum Cup Material
HNBR
Weight
10.0 Gr

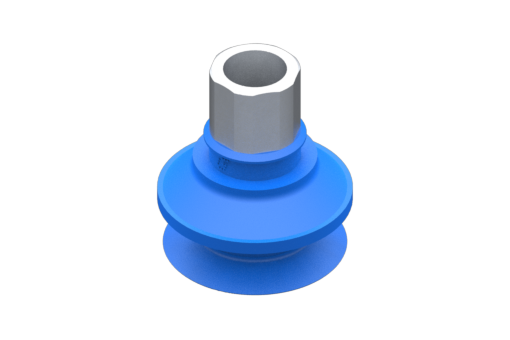

2321622

2321622

VG.B33 suction cup, HNBR, 60 Shore, G1/4″ female, 16 mm hex

Air Feeding In
G1/4'' Femmina
Vacuum Cup Diameter
33.0 mm
Vacuum Cup Material
HNBR
Weight
11.0 Gr

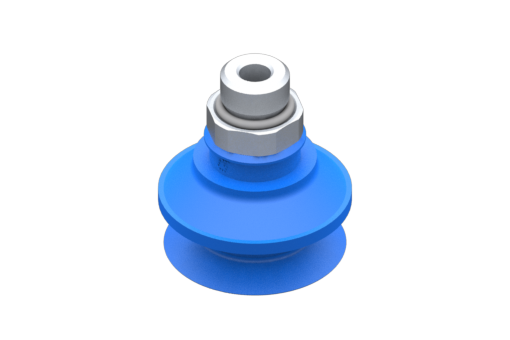

2321623

2321623

VG.B33 suction cup, HNBR, 60 Shore, G1/4″ male, 17 mm hex

Air Feeding In
G1/4'' Maschio
Vacuum Cup Diameter
33.0 mm
Vacuum Cup Material
HNBR
Weight
12.0 Gr

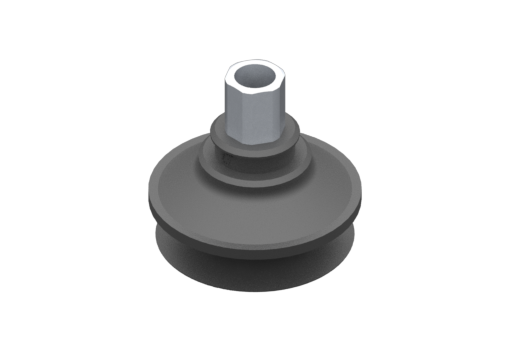

2321624

2321624

VG.B42 suction cup, EPDM, 50 Shore, G1/8″ female, 12 mm hex

Air Feeding In
G1/8'' Femmina
Vacuum Cup Diameter
42.0 mm
Vacuum Cup Material
EPDM
Weight
12.0 Gr

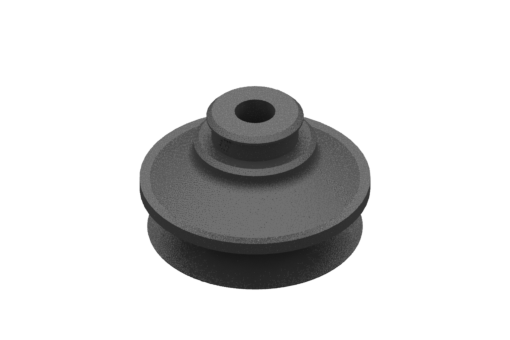

2321625

2321625

VG.B42 suction cup, EPDM, 50 Shore

Vacuum Cup Diameter
42.0 mm
Vacuum Cup Material
EPDM
Weight
8.6 Gr

2321626

2321626

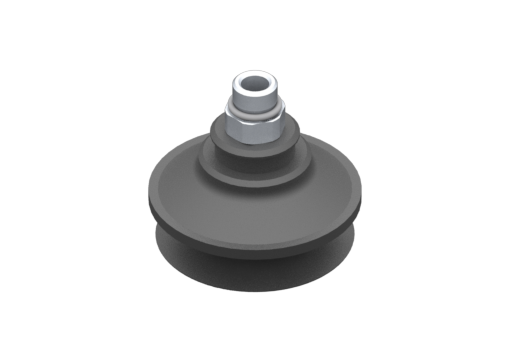

VG.B42 suction cup, EPDM, 50 Shore, G1/8″ male, 12 mm hex

Air Feeding In
G1/8'' Maschio
Vacuum Cup Diameter
42.0 mm
Vacuum Cup Material
EPDM
Weight
12.0 Gr

2321627

2321627

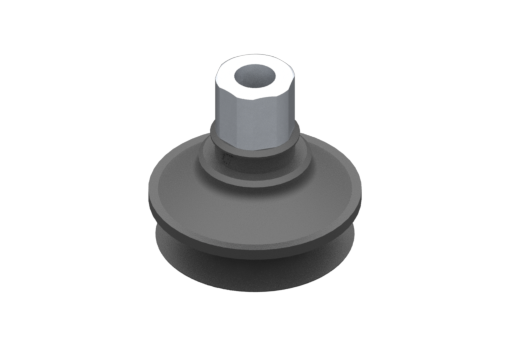

VG.B42 suction cup, EPDM, 50 Shore, G1/8″ female, 16 mm hex

Air Feeding In
G1/8'' Femmina
Vacuum Cup Diameter
42.0 mm
Vacuum Cup Material
EPDM
Weight
15.0 Gr

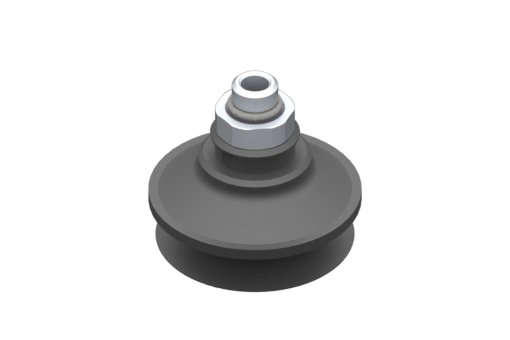

2321628

2321628

VG.B42 suction cup, EPDM, 50 Shore, G1/8″ male, 16 mm hex

Air Feeding In
G1/8'' Maschio
Vacuum Cup Diameter
42.0 mm
Vacuum Cup Material
EPDM
Weight
13.0 Gr

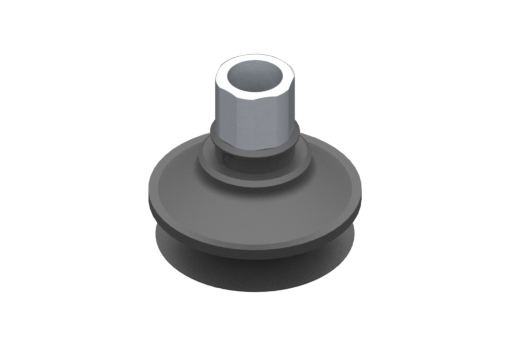

2321629

2321629

VG.B42 suction cup, EPDM, 50 Shore, G1/4″ female, 16 mm hex

Air Feeding In
G1/4'' Femmina
Vacuum Cup Diameter
42.0 mm
Vacuum Cup Material
EPDM
Weight
14.0 Gr

2321630

2321630

VG.B42 suction cup, EPDM, 50 Shore, G1/4″ male, 17 mm hex

Air Feeding In
G1/4'' Maschio
Vacuum Cup Diameter
42.0 mm
Vacuum Cup Material
EPDM
Weight
15.0 Gr

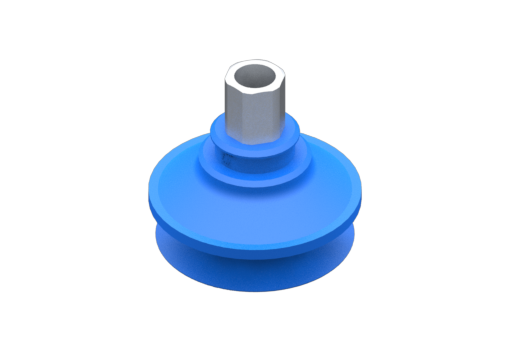

2321631

2321631

VG.B42 suction cup, HNBR, 60 Shore, G1/8″ female, 12 mm hex

Air Feeding In
G1/8'' Femmina
Vacuum Cup Diameter
42.0 mm
Vacuum Cup Material
EPDM
Weight
12.0 Gr

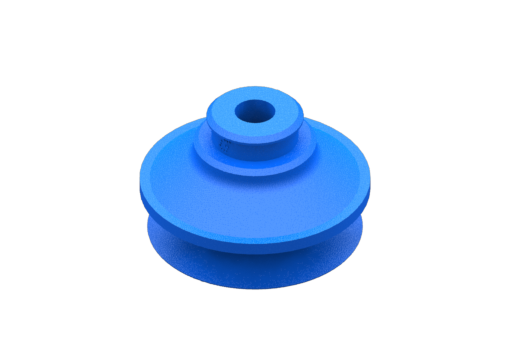

2321632

2321632

VG.B42 suction cup, HNBR, 60 Shore

Vacuum Cup Diameter
42.0 mm
Vacuum Cup Material
HNBR
Weight
8.6 Gr

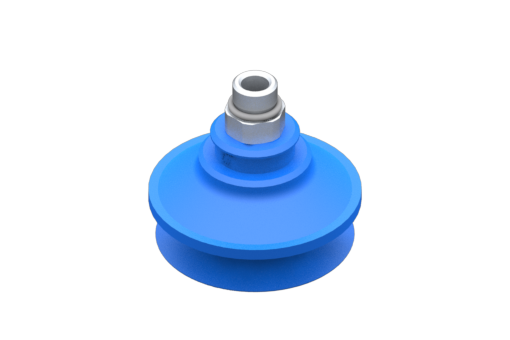

2321633

2321633

VG.B42 suction cup, HNBR, 60 Shore, G1/8″ male, 12 mm hex

Air Feeding In
G1/8'' Maschio
Vacuum Cup Diameter
42.0 mm
Vacuum Cup Material
HNBR
Weight
12.0 Gr

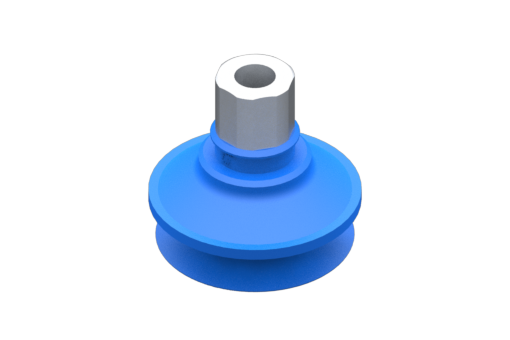

2321635

2321635

VG.B42 suction cup, HNBR, 60 Shore, G1/8″ female, 16 mm hex

Air Feeding In
G1/8'' Femmina
Vacuum Cup Diameter
42.0 mm
Vacuum Cup Material
HNBR
Weight
15.0 Gr

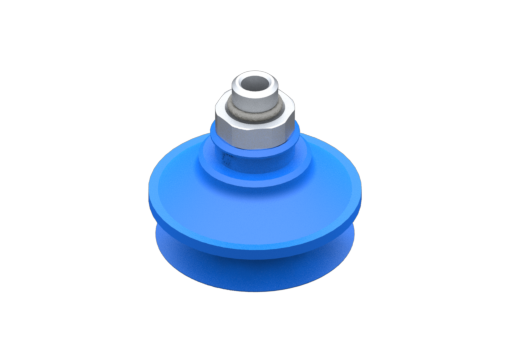

2321636

2321636

VG.B42 suction cup, HNBR, 60 Shore, G1/8″ male, 16 mm hex

Air Feeding In
G1/8'' Maschio
Vacuum Cup Diameter
42.0 mm
Vacuum Cup Material
HNBR
Weight
13.0 Gr

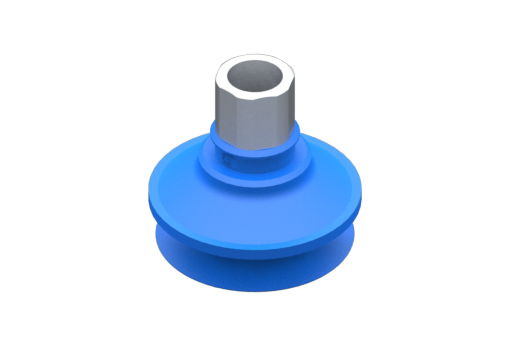

2321637

2321637

VG.B42 suction cup, HNBR, 60 Shore, G1/4″ female, 16 mm hex

Air Feeding In
G1/4'' Femmina
Vacuum Cup Diameter
42.0 mm
Vacuum Cup Material
HNBR
Weight
14.0 Gr

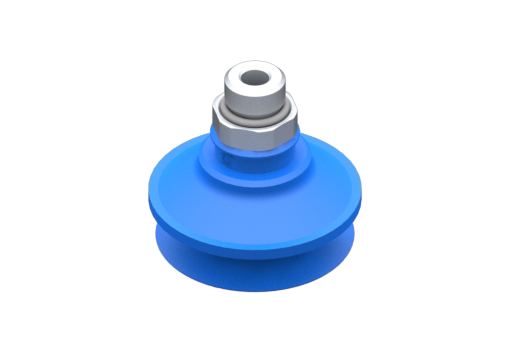

2321638

2321638

VG.B42 suction cup, HNBR, 60 Shore, G1/4″ male, 17 mm hex

Air Feeding In
G1/4'' Maschio
Vacuum Cup Diameter
42.0 mm
Vacuum Cup Material
HNBR
Weight
15.0 Gr

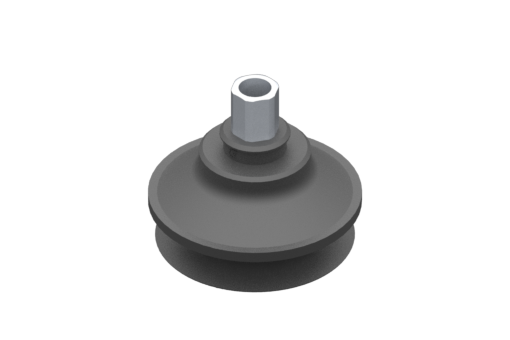

2321639

2321639

VG.B53 suction cup, EPDM, 50 Shore, G1/8″ female, 12 mm hex

Air Feeding In
G1/8'' Femmina
Vacuum Cup Diameter
53.0 mm
Vacuum Cup Material
EPDM
Weight
19.0 Gr

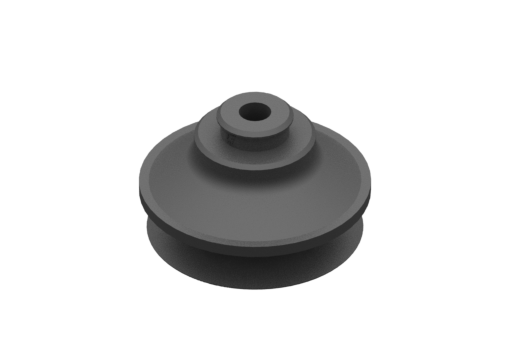

2321640

2321640

VG.B53 suction cup, EPDM, 50 Shore

Vacuum Cup Diameter
53.0 mm
Vacuum Cup Material
EPDM
Weight
15.0 Gr

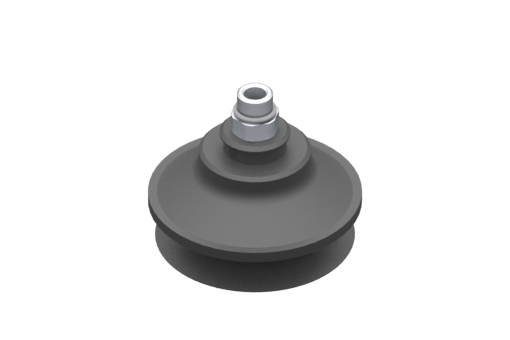

2321641

2321641

VG.B53 suction cup, EPDM, 50 Shore, G1/8″ male, 12 mm hex

Air Feeding In
G1/8'' Maschio
Vacuum Cup Diameter
53.0 mm
Vacuum Cup Material
EPDM
Weight
18.0 Gr

2321642

2321642

VG.B53 suction cup, EPDM, 50 Shore, G1/8″ female, 16 mm hex

Air Feeding In
G1/8'' Femmina
Vacuum Cup Diameter
53.0 mm
Vacuum Cup Material
EPDM
Weight
22.0 Gr

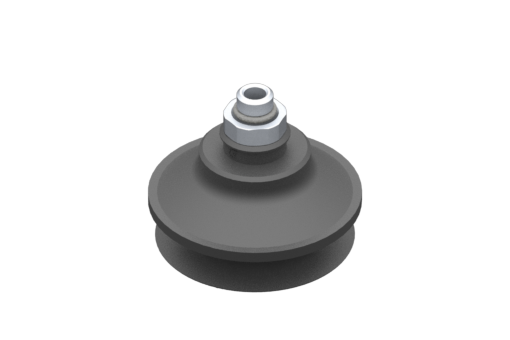

2321643

2321643

VG.B53 suction cup, EPDM, 50 °Shore, G1/8 male, 16 mm hex

Air Feeding In
G1/8'' Maschio
Vacuum Cup Diameter
53.0 mm
Vacuum Cup Material
EPDM
Weight
20.0 Gr

2321644

2321644

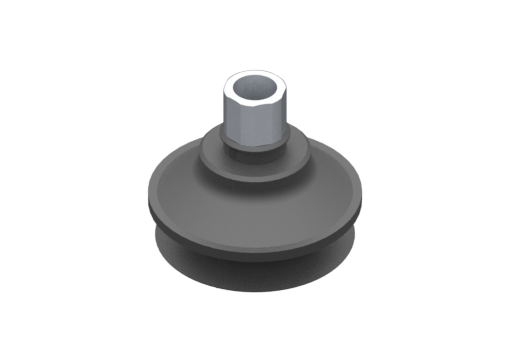

VG.B53 suction cup, EPDM, 50 Shore, G1/4″ female, 16 mm hex

Air Feeding In
G1/4'' Femmina
Vacuum Cup Diameter
53.0 mm
Vacuum Cup Material
EPDM
Weight
21.0 Gr

2321645

2321645

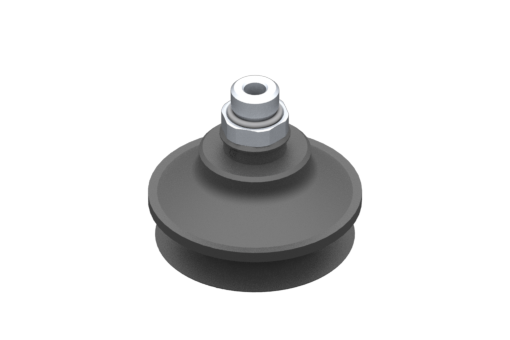

VG.B53 suction cup, EPDM, 50 Shore, G1/4″ male, 17 mm hex

Air Feeding In
G1/4'' Maschio
Vacuum Cup Diameter
53.0 mm
Vacuum Cup Material
EPDM
Weight
21.0 Gr

2321646

2321646

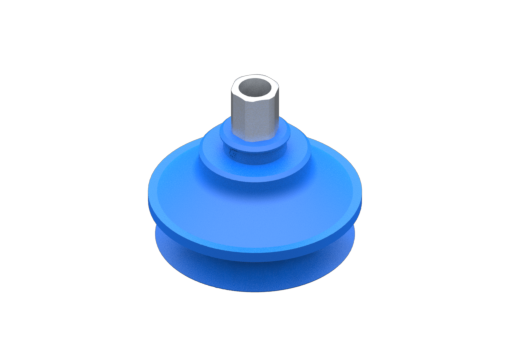

VG.B53 suction cup, HNBR, 60 Shore, G1/8″ female, 12 mm hex

Air Feeding In
G1/8'' Femmina
Vacuum Cup Diameter
53.0 mm
Vacuum Cup Material
HNBR
Weight
19.0 Gr

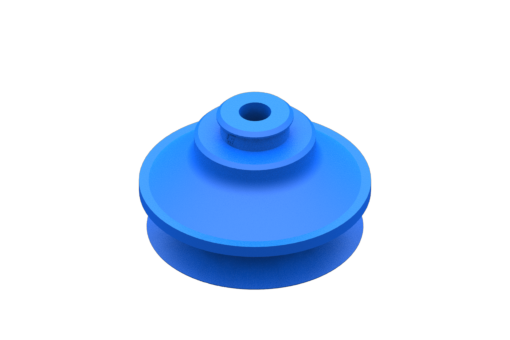

2321647

2321647

VG.B53 suction cup, HNBR, 60 Shore

Vacuum Cup Diameter
53.0 mm
Vacuum Cup Material
HNBR
Weight
15.0 Gr

2321648

2321648

VG.B53 suction cup, HNBR, 60 Shore, G1/8″ male, 12 mm hex

Air Feeding In
G1/8'' Maschio
Vacuum Cup Diameter
53.0 mm
Vacuum Cup Material
HNBR
Weight
18.0 Gr

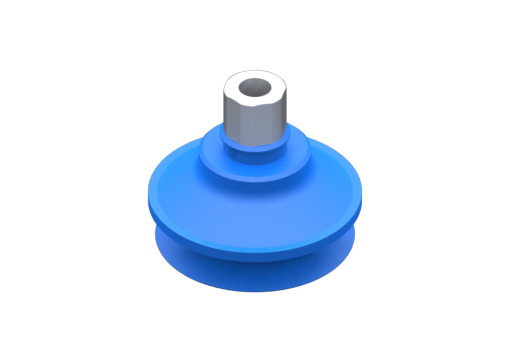

2321649

2321649

VG.B53 suction cup, HNBR, 60 Shore, G1/8″ female, 16 mm hex

Air Feeding In
G1/8'' Femmina
Vacuum Cup Diameter
53.0 mm
Vacuum Cup Material
HNBR
Weight
22.0 Gr

2321650

2321650

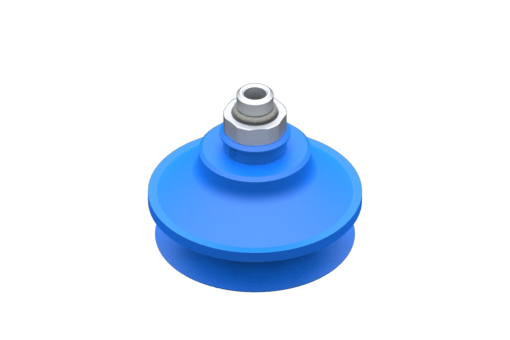

VG.B53 suction cup, HNBR, 60 Shore, G1/8″ male, 16 mm hex

Air Feeding In
G1/8'' Maschio
Vacuum Cup Diameter
53.0 mm
Vacuum Cup Material
HNBR
Weight
20.0 Gr

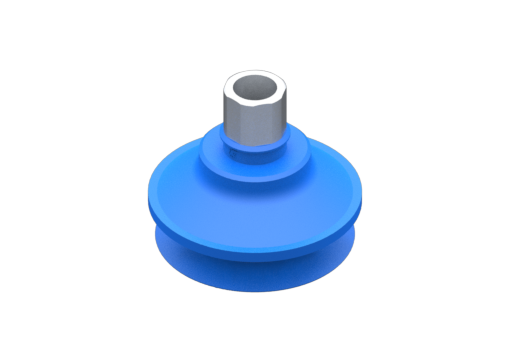

2321651

2321651

VG.B53 suction cup, HNBR, 60 Shore, G1/4″ female, 16 mm hex

Air Feeding In
G1/4'' Femmina
Vacuum Cup Diameter
53.0 mm
Vacuum Cup Material
HNBR
Weight
21.0 Gr

2321652

2321652

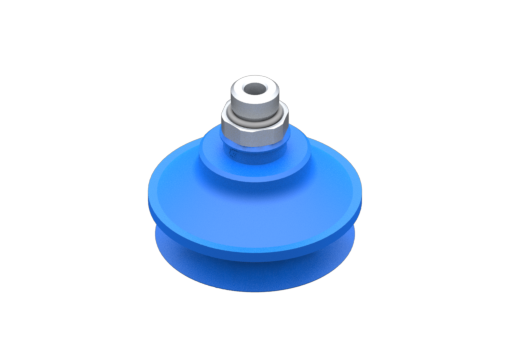

VG.B53 suction cup, HNBR, 60 °Shore, G1/4 male, 17 mm hex

Air Feeding In
G1/4'' Maschio
Vacuum Cup Diameter
53.0 mm
Vacuum Cup Material
HNBR
Weight
21.0 Gr

2321695

2321695

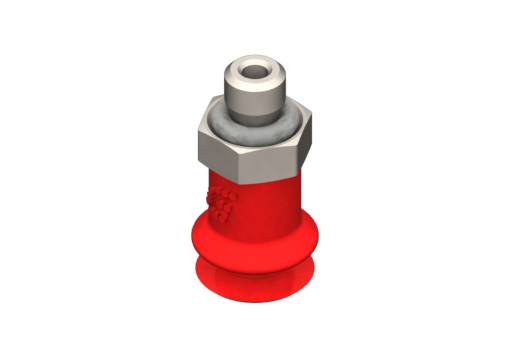

VG.B6 suction cup, silicone, 50 Shore, M3 male, 5 mm hex

Vacuum Cup Diameter
6.0 mm
Vacuum Cup Material
SILICONE
Weight
0.63 Gr

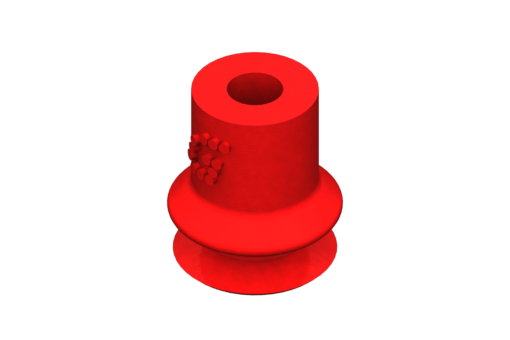

2321696

2321696

VG.B6 suction cup, silicone, 50 Shore

Vacuum Cup Diameter
6.0 mm
Vacuum Cup Material
SILICONE
Weight
0.15 Gr

2321697

2321697

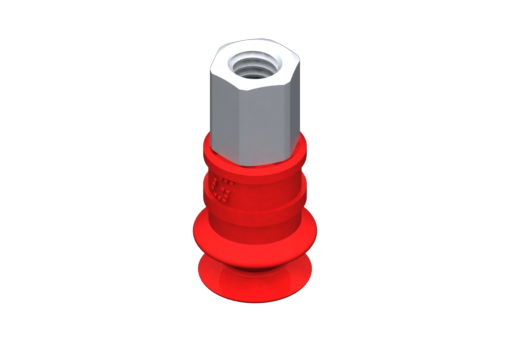

VG.B11 suction cup, silicone, 50 Shore, M5 female, 8 mm hex

Air Feeding In
M5 Femmina
Vacuum Cup Diameter
11.0 mm
Vacuum Cup Material
SILICONE
Weight
1.9 Gr

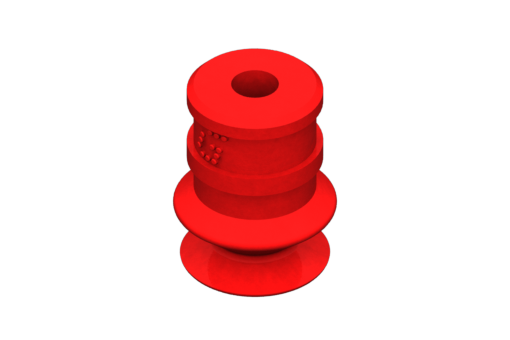

2321698

2321698

VG.B11 suction cup, silicone, 50 Shore

Vacuum Cup Diameter
11.0 mm
Vacuum Cup Material
SILICONE
Weight
0.65 Gr

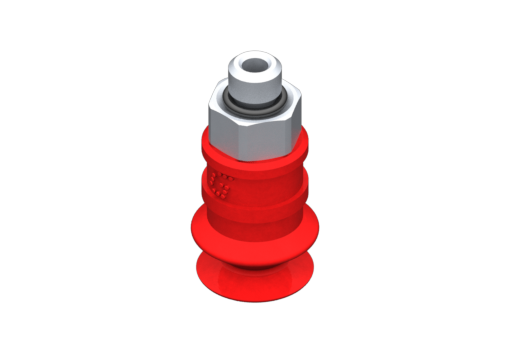

2321699

2321699

VG.B11 suction cup, silicone, 50 Shore, M5 male, 8 mm hex

Air Feeding In
M5 Maschio
Vacuum Cup Diameter
11.0 mm
Vacuum Cup Material
SILICONE
Weight
1.6 Gr

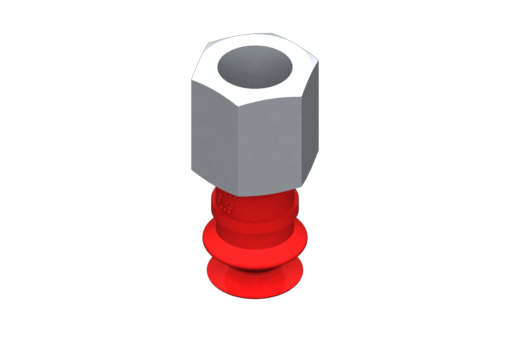

2321700

2321700

VG.B11 suction cup, silicone, 50 °Shore, G1/8 female, 13 mm hex

Air Feeding In
G1/8'' Femmina
Vacuum Cup Diameter
11.0 mm
Vacuum Cup Material
SILICONE
Weight
4.4 Gr

2321701

2321701

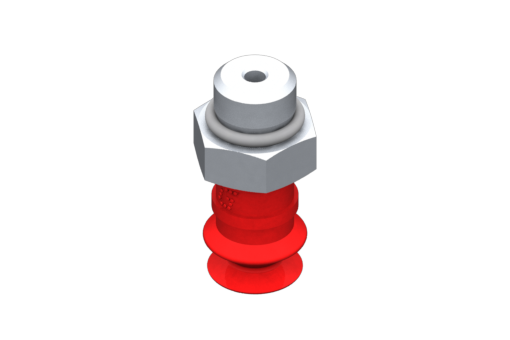

VG.B11 suction cup, silicone, 50 Shore, G1/8″ male, 13 mm hex

Air Feeding In
G1/8'' Maschio
Vacuum Cup Diameter
11.0 mm
Vacuum Cup Material
SILICONE
Weight
4.0 Gr

2321702

2321702

VG.B16 suction cup, silicone, 50 Shore, M5 female, 8 mm hex

Air Feeding In
M5 Femmina
Vacuum Cup Diameter
16.0 mm
Vacuum Cup Material
SILICONE
Weight
3.3 Gr

2321703

2321703

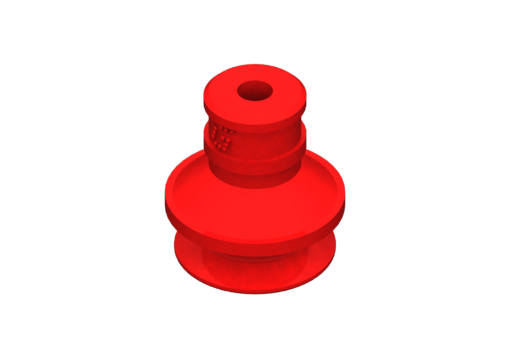

VG.B16 suction cup, silicone, 50 Shore

Vacuum Cup Diameter
16.0 mm
Vacuum Cup Material
SILICONE
Weight
2.1 Gr

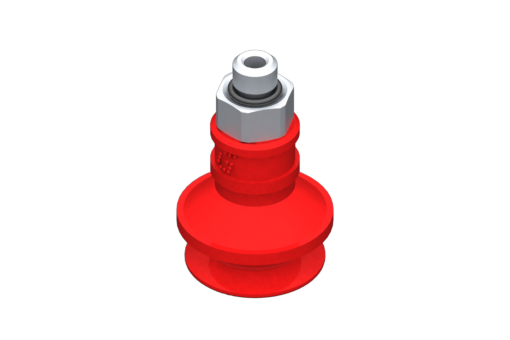

2321704

2321704

VG.B16 suction cup, silicone, 50 Shore, M5 male, 8 mm hex

Air Feeding In
M5 Maschio
Vacuum Cup Diameter
16.0 mm
Vacuum Cup Material
SILICONE
Weight
3.0 Gr

2321705

2321705

VG.B16 suction cup, silicone, 50 Shore, G1/8″ female, 13 mm hex

Air Feeding In
G1/8'' Femmina
Vacuum Cup Diameter
16.0 mm
Vacuum Cup Material
SILICONE
Weight
5.9 Gr

2321706

2321706

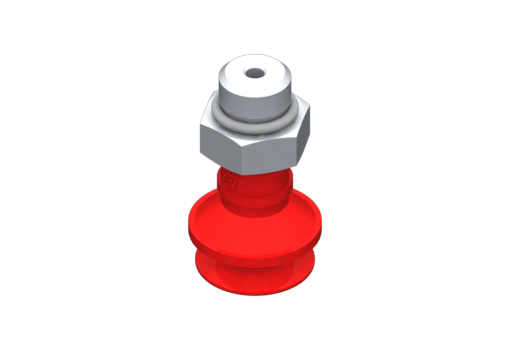

VG.B16 suction cup, silicone, 50 Shore, G1/8″ male, 13 mm hex

Air Feeding In
G1/8'' Maschio
Vacuum Cup Diameter
16.0 mm
Vacuum Cup Material
SILICONE
Weight
5.4 Gr

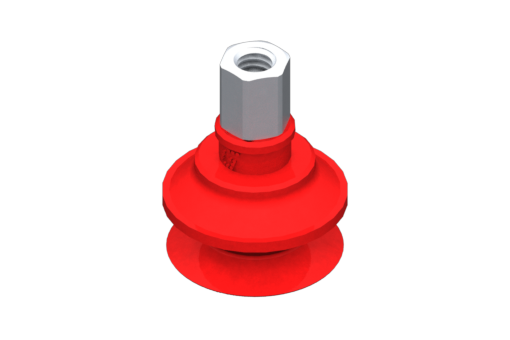

2321707

2321707

VG.B22 suction cup, silicone, 50 Shore, M5 female, 8 mm hex

Air Feeding In
M5 Femmina
Vacuum Cup Diameter
22.0 mm
Vacuum Cup Material
SILICONE
Weight
3.0 Gr

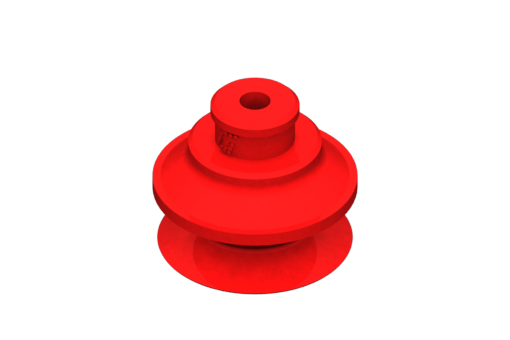

2321708

2321708

VG.B22 suction cup, silicone, 50 Shore

Vacuum Cup Diameter
22.0 mm
Vacuum Cup Material
SILICONE
Weight
1.8 Gr

2321709

2321709

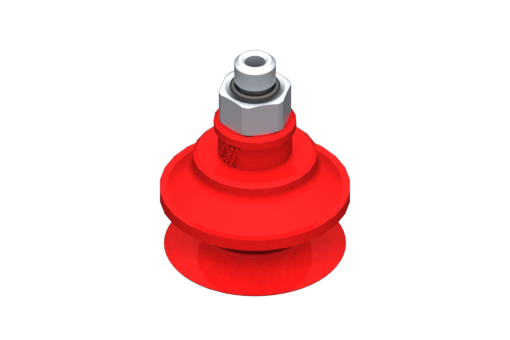

VG.B22 suction cup, silicone, 50 °Shore, M5 male, 8 mm hex

Air Feeding In
M5 Maschio
Vacuum Cup Diameter
22.0 mm
Vacuum Cup Material
SILICONE
Weight
2.7 Gr

2321710

2321710

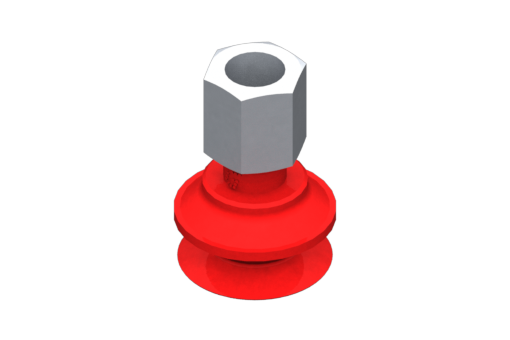

VG.B22 suction cup, silicone, 50 Shore, G1/8″ female, 13 mm hex

Air Feeding In
G1/8'' Femmina
Vacuum Cup Diameter
22.0 mm
Vacuum Cup Material
SILICONE
Weight
5.6 Gr

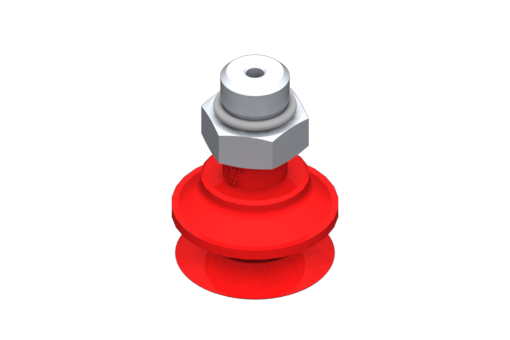

2321711

2321711

Suction cup VG.B22 Silicone 50 °Shore, G1/8 Male, Hex 13 mm

Air Feeding In
G1/8'' Maschio
Vacuum Cup Diameter
22.0 mm
Vacuum Cup Material
SILICONE
Weight
5.2 Gr

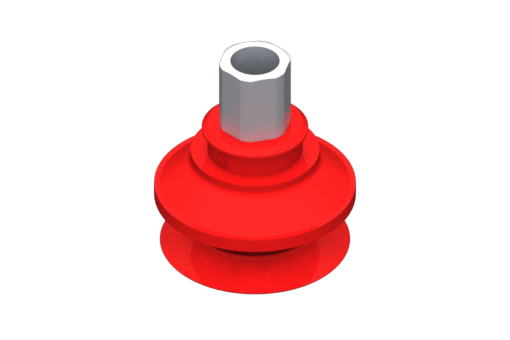

2321712

2321712

VG.B33 suction cup, silicone, 50 �Shore, G1/8" female, 12 mm hex

Air Feeding In
G1/8'' Femmina
Vacuum Cup Diameter
33.0 mm
Vacuum Cup Material
SILICONE
Weight
9.1 Gr

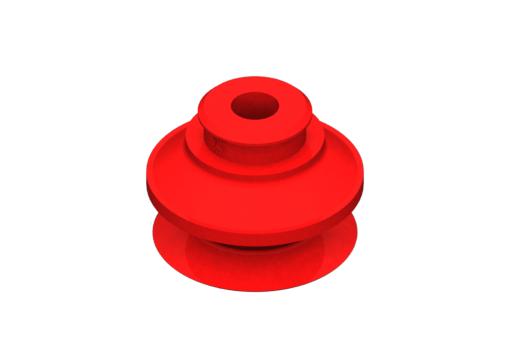

2321713

2321713

VG.B33 suction cup, silicone, 50 Shore

Vacuum Cup Diameter
33.0 mm
Vacuum Cup Material
SILICONE
Weight
5.8 Gr

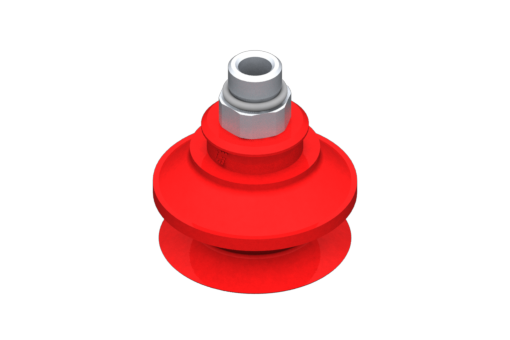

2321714

2321714

VG.B33 suction cup, silicone, 50 Shore, G1/8″ male, 12 mm hex

Air Feeding In
G1/8'' Maschio
Vacuum Cup Diameter
33.0 mm
Vacuum Cup Material
SILICONE
Weight
8.7 Gr

2321715

2321715

VG.B33 suction cup, silicone, 50 °Shore, G1/8 female, 16 mm hex

Air Feeding In
G1/8'' Femmina
Vacuum Cup Diameter
33.0 mm
Vacuum Cup Material
SILICONE
Weight
12.0 Gr

2321716

2321716

VG.B33 suction cup, silicone, 50 Shore, G1/8″ male, 16 mm hex

Air Feeding In
G1/8'' Maschio
Vacuum Cup Diameter
33.0 mm
Vacuum Cup Material
SILICONE
Weight
10.0 Gr

2321717

2321717

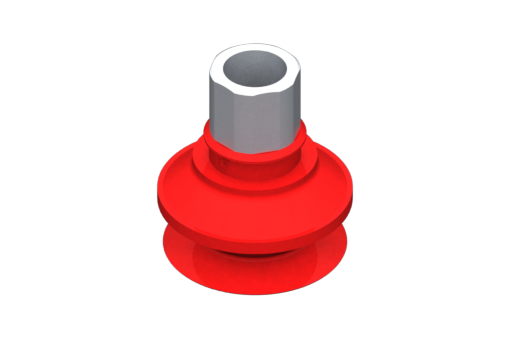

VG.B33 suction cup, silicone, 50 Shore, G1/4″ female, 16 mm hex

Air Feeding In
G1/4'' Femmina
Vacuum Cup Diameter
33.0 mm
Vacuum Cup Material
SILICONE
Weight
11.0 Gr

2321718

2321718

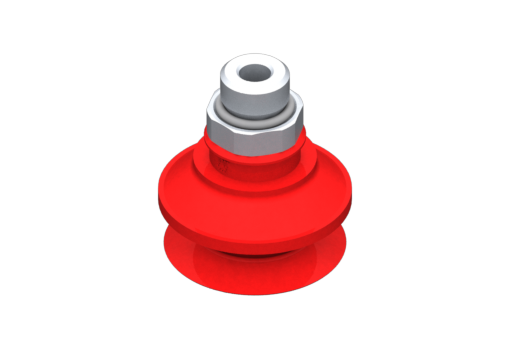

VG.B33 suction cup, silicone, 50 Shore, G1/4″ male, 17 mm hex

Air Feeding In
G1/4'' Maschio
Vacuum Cup Diameter
33.0 mm
Vacuum Cup Material
SILICONE
Weight
12.0 Gr

2321719

2321719

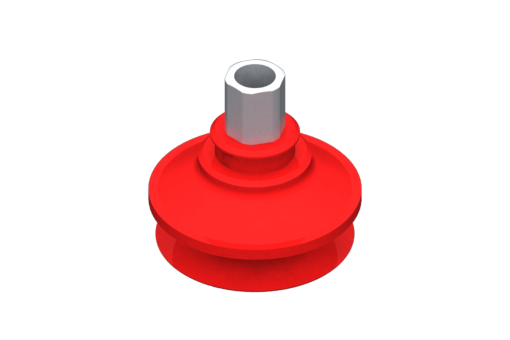

VG.B42 suction cup, silicone, 50 Shore, G1/8″ female, 12 mm hex

Air Feeding In
G1/8'' Femmina
Vacuum Cup Diameter
42.0 mm
Vacuum Cup Material
SILICONE
Weight
12.0 Gr

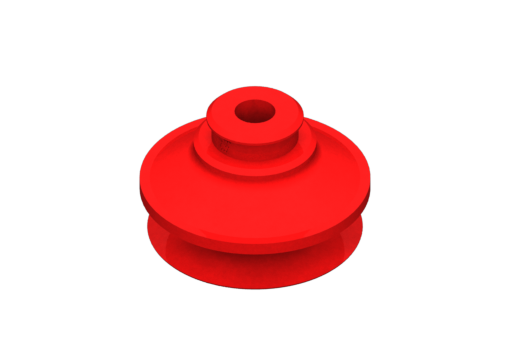

2321720

2321720

VG.B42 suction cup, silicone, 50 Shore

Vacuum Cup Diameter
42.0 mm
Vacuum Cup Material
SILICONE
Weight
8.6 Gr

2321721

2321721

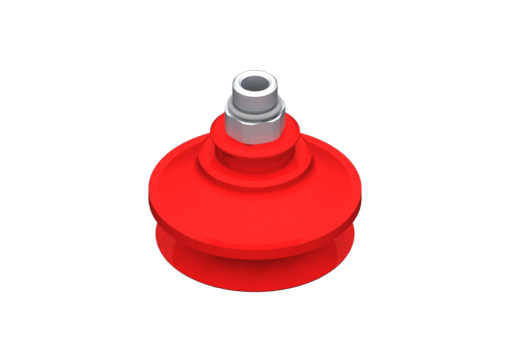

VG.B42 suction cup, silicone, 50 Shore, G1/8″ male, 12 mm hex

Air Feeding In
G1/8'' Maschio
Vacuum Cup Diameter
42.0 mm
Vacuum Cup Material
SILICONE
Weight
12.0 Gr

2321722

2321722

VG.B42 suction cup, silicone, 50 Shore, G1/8″ female, 16 mm hex

Air Feeding In
G1/8'' Femmina
Vacuum Cup Diameter
42.0 mm
Vacuum Cup Material
SILICONE
Weight
15.0 Gr

2321723

2321723

VG.B42 suction cup, silicone, 50 Shore, G1/8″ male, 16 mm hex

Air Feeding In
G1/8'' Maschio
Vacuum Cup Diameter
42.0 mm
Vacuum Cup Material
SILICONE
Weight
13.0 Gr

2321724

2321724

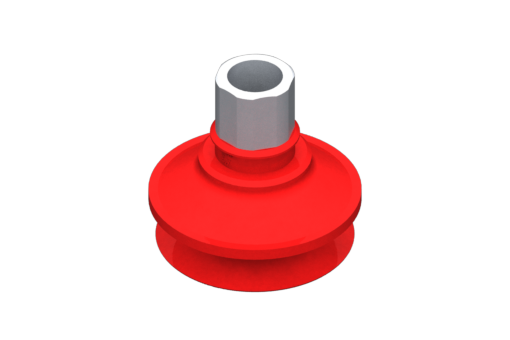

VG.B42 suction cup, silicone, 50 Shore, G1/4″ female, 16 mm hex

Air Feeding In
G1/4'' Femmina
Vacuum Cup Diameter
42.0 mm
Vacuum Cup Material
SILICONE
Weight
14.0 Gr

2321725

2321725

VG.B42 suction cup, silicone, 50 Shore, G1/4″ male, 17 mm hex

Air Feeding In
G1/4'' Maschio
Vacuum Cup Diameter
42.0 mm
Vacuum Cup Material
SILICONE
Weight
14.0 Gr

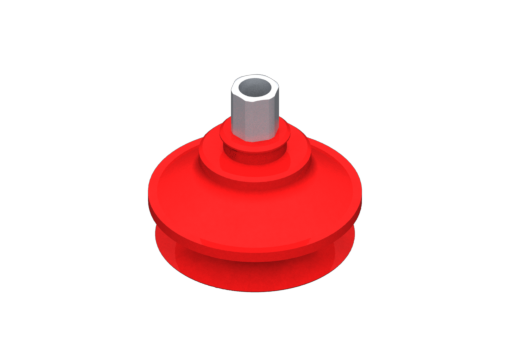

2321726

2321726

VG.B53 suction cup, silicone, 50 Shore, G1/8″ female, 12 mm hex

Air Feeding In
G1/8'' Femmina
Vacuum Cup Diameter
53.0 mm
Vacuum Cup Material
SILICONE
Weight
19.0 Gr

2321727

2321727

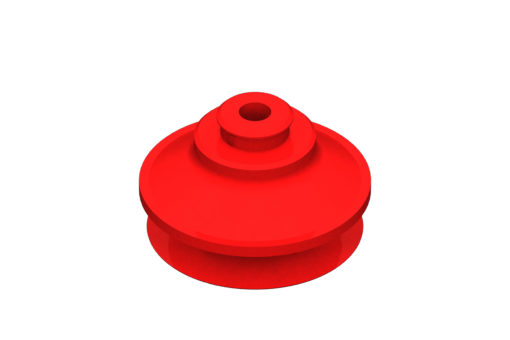

VG.B53 suction cup, silicone, 50 Shore

Vacuum Cup Diameter
53.0 mm
Vacuum Cup Material
SILICONE
Weight
15.0 Gr

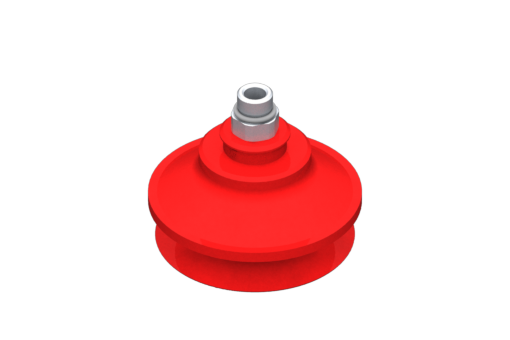

2321728

2321728

VG.B53 suction cup, silicone, 50 Shore, G1/8″ male, 12 mm hex

Air Feeding In
G1/8'' Maschio
Vacuum Cup Diameter
53.0 mm
Vacuum Cup Material
SILICONE
Weight
18.0 Gr

2321729

2321729

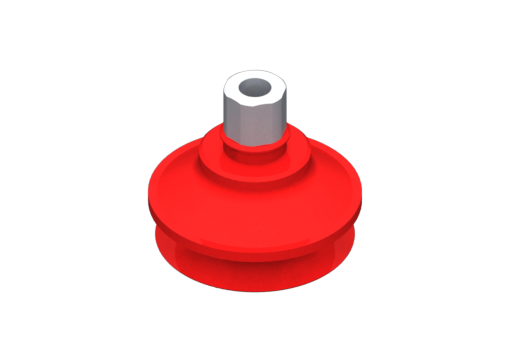

VG.B53 suction cup, silicone, 50 Shore, G1/8″ female, 16 mm hex

Air Feeding In
G1/8'' Femmina
Vacuum Cup Diameter
53.0 mm
Vacuum Cup Material
SILICONE
Weight
22.0 Gr

2321730

2321730

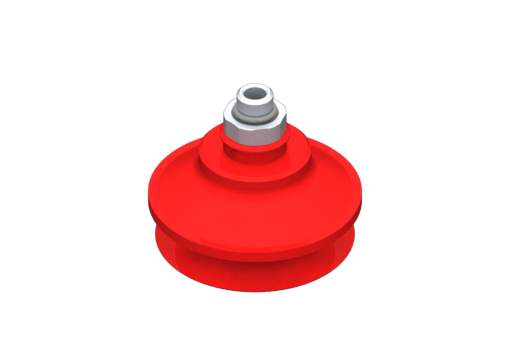

VG.B53 suction cup, silicone, 50 Shore, G1/8″ male, 16 mm hex

Air Feeding In
G1/8'' Maschio
Vacuum Cup Diameter
53.0 mm
Vacuum Cup Material
SILICONE
Weight
20.0 Gr

2321731

2321731

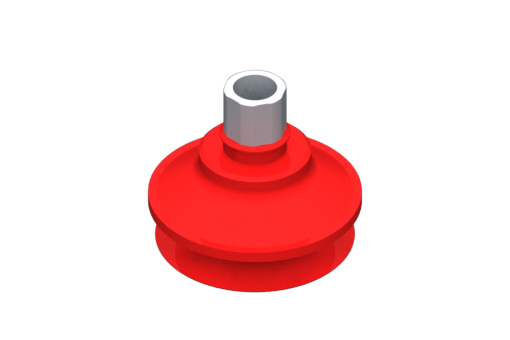

VG.B53 suction cup, silicone, 50 °Shore, G1/4 female, 16 mm hex

Air Feeding In
G1/4'' Femmina
Vacuum Cup Diameter
53.0 mm
Vacuum Cup Material
SILICONE
Weight
21.0 Gr

2321732

2321732

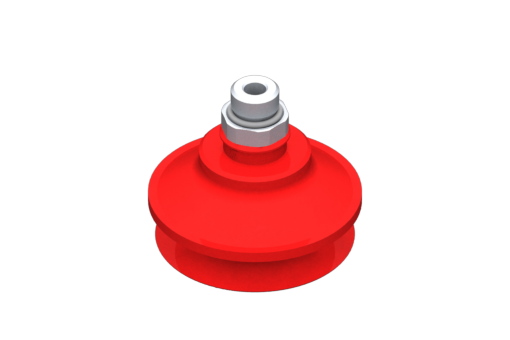

VG.B53 suction cup, silicone, 50 Shore, G1/4″ male, 17 mm hex

Air Feeding In
G1/4'' Maschio
Vacuum Cup Diameter
53.0 mm
Vacuum Cup Material
SILICONE
Weight
21.0 Gr

2321918

2321918

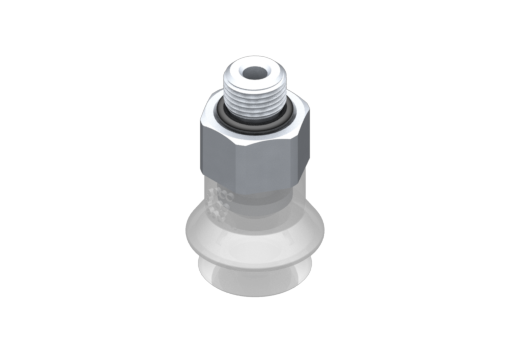

VG.B9 suction cup, FDA-compliant silicone, 50 Shore, M5 male, 8 mm hex

Air Feeding In
M5 Maschio
Vacuum Cup Diameter
9.0 mm
Vacuum Cup Material
SILICONE ALIMENTARE
Weight
1.3 Gr

2321919

2321919

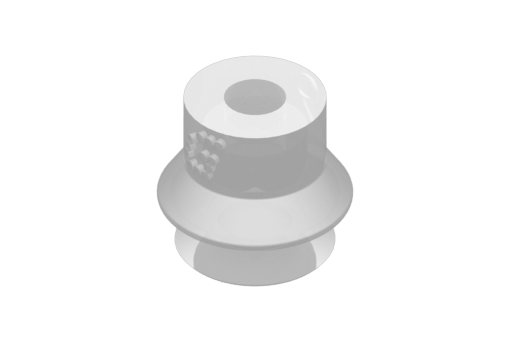

VG.B9 suction cup, FDA-compliant silicone, 50 Shore

Vacuum Cup Diameter
9.0 mm
Vacuum Cup Material
SILICONE ALIMENTARE
Weight
0.27 Gr

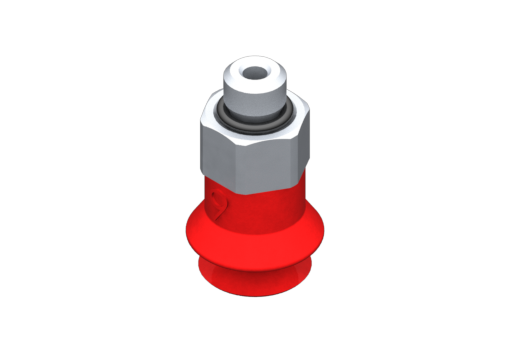

2321920

2321920

VG.B9 suction cup, silicone, 50 Shore, M5 male, 8 mm hex

Air Feeding In
M5 Maschio
Vacuum Cup Diameter
9.0 mm
Vacuum Cup Material
SILICONE
Weight
1.3 Gr

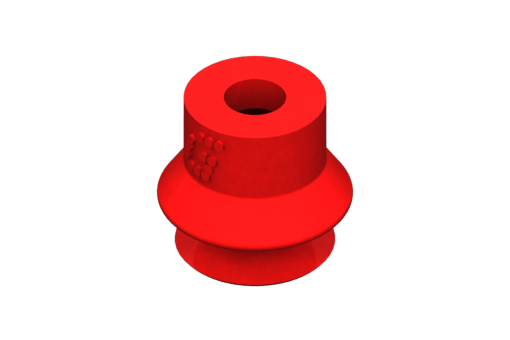

2321921

2321921

VG.B9 suction cup, silicone, 50 Shore

Vacuum Cup Diameter
9.0 mm
Vacuum Cup Material
SILICONE
Weight
0.26 Gr

2321922

2321922

VG.B9 suction cup, EPDM, 50 Shore, M5 male, 8 mm hex

Air Feeding In
M5 Maschio
Vacuum Cup Diameter
9.0 mm
Vacuum Cup Material
EPDM
Weight
1.3 Gr

2321923

2321923

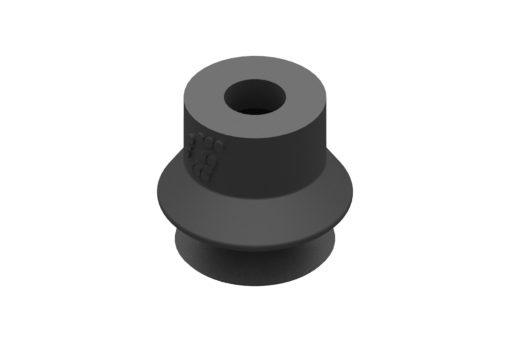

VG.B9 suction cup, EPDM, 50 Shore

Vacuum Cup Diameter
9.0 mm
Vacuum Cup Material
EPDM
Weight
0.26 Gr

2321924

2321924

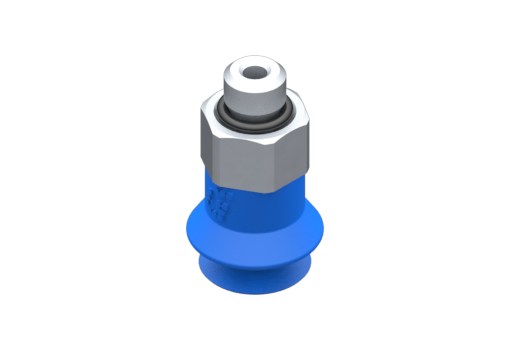

VG.B9 suction cup, HNBR, 60 Shore, M5 male, 8 mm hex

Air Feeding In
M5 Maschio
Vacuum Cup Diameter
9.0 mm
Vacuum Cup Material
HNBR
Weight
1.3 Gr

2321925

2321925

VG.B9 suction cup, HNBR, 60 Shore

Vacuum Cup Diameter
9.0 mm
Vacuum Cup Material
HNBR
Weight
0.26 Gr

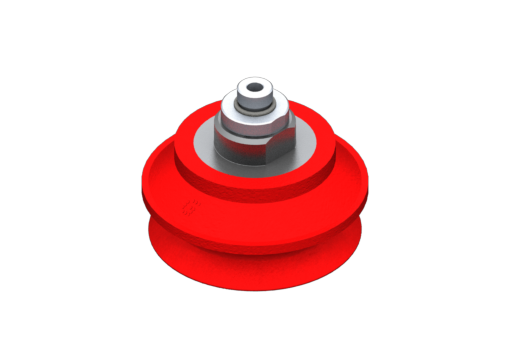

2322177

2322177

VG.B77 suction cup, silicone, 50 Shore, G1/4" male

Air Feeding In
G1/4'' Maschio
Vacuum Cup Diameter
77.0 mm
Vacuum Cup Material
SILICONE
Weight
66.0 Gr

2322178

2322178

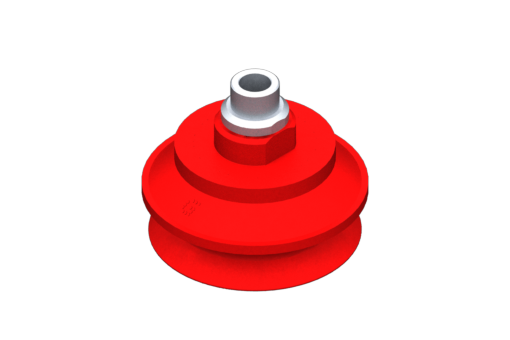

VG.B77 suction cup, silicone, 50 Shore, G1/4" female

Air Feeding In
G1/4'' Femmina
Vacuum Cup Diameter
77.0 mm
Vacuum Cup Material
SILICONE
Weight
67.0 Gr

2322179

2322179

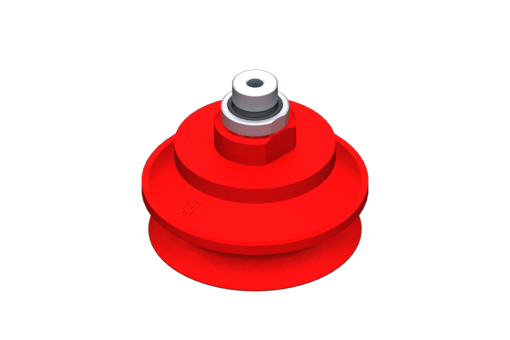

VG.B77 suction cup, silicone, 50 Shore, G3/8" male

Vacuum Cup Diameter
77.0 mm
Vacuum Cup Material
SILICONE
Weight
69.0 Gr

2322180

2322180

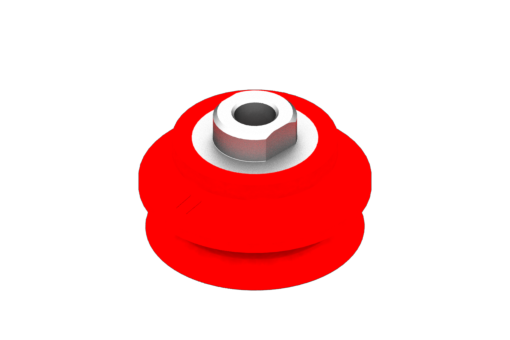

VG.B77 suction cup, silicone, 50 Shore, G3/8" female

Vacuum Cup Diameter
77.0 mm
Vacuum Cup Material
SILICONE
Weight
52.0 Gr

2322189

2322189

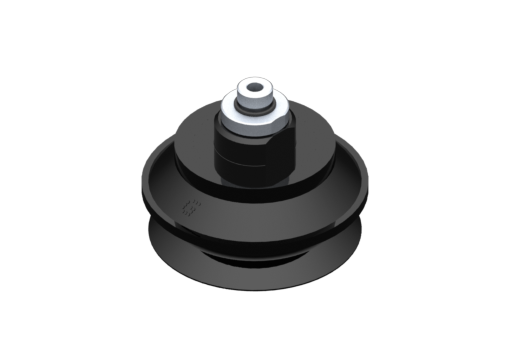

VG.B77 suction cup, NBR, 60 Shore, G1/4" male

Air Feeding In
G1/4'' Maschio
Vacuum Cup Diameter
77.0 mm
Vacuum Cup Material
NBR
Weight
79.0 Gr

2322190

2322190

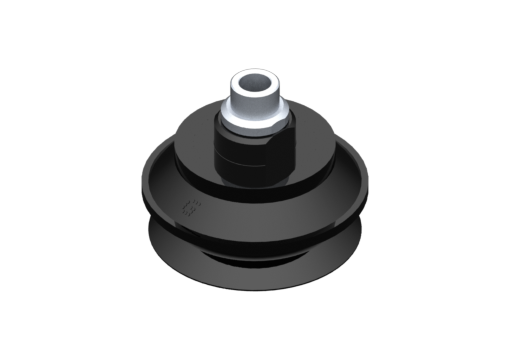

VG.B77 suction cup, NBR, 60 Shore, G1/4" female

Air Feeding In
G1/4'' Femmina
Vacuum Cup Diameter
77.0 mm
Vacuum Cup Material
NBR
Weight
80.0 Gr

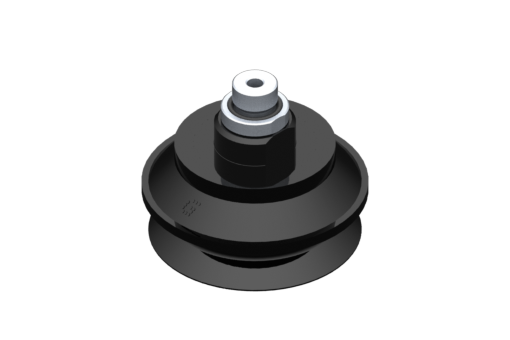

2322191

2322191

Suction cup VG.B77 NBR 60 °Shore, G3/8 Male

Vacuum Cup Diameter
77.0 mm
Vacuum Cup Material
NBR
Weight
81.0 Gr

2322192

2322192

Suction cup VG.B77 NBR 60 �Shore, G3/8" Female

Vacuum Cup Diameter
77.0 mm
Vacuum Cup Material
NBR
Weight
65.0 Gr

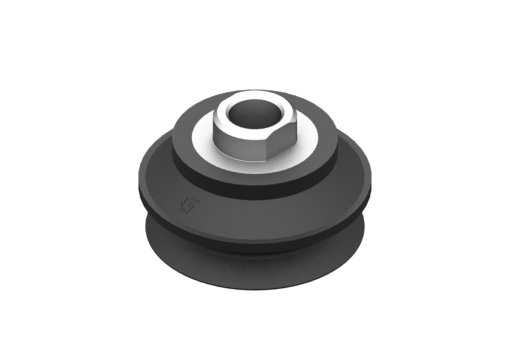

2322205

2322205

VG.B77 suction cup, NBR, 60 Shore, G1/2" female

Air Feeding In
G1/2'' Femmina
Vacuum Cup Diameter
77.0 mm
Vacuum Cup Material
NBR
Weight
83.0 Gr

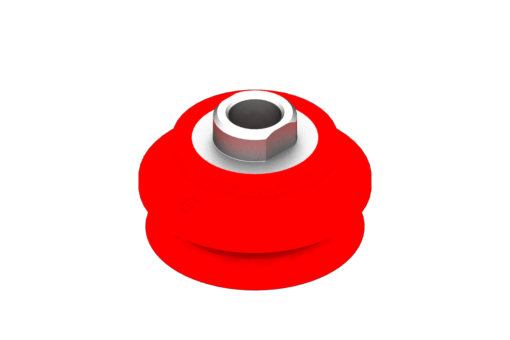

2322206

2322206

VG.B77 suction cup, silicone, 50 Shore, G1/2" female

Air Feeding In
G1/2'' Femmina
Vacuum Cup Diameter
77.0 mm
Vacuum Cup Material
SILICONE
Weight
82.0 Gr

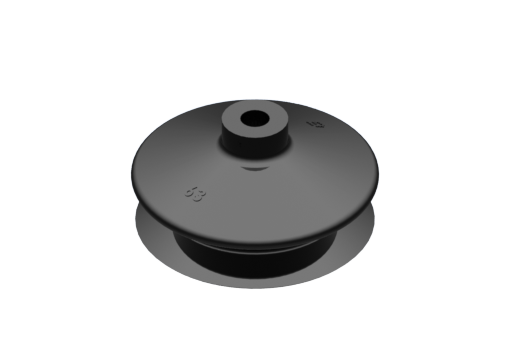

2322225

2322225

VG.B63 suction cup, NBR, 60 Shore

Vacuum Cup Diameter
63.0 mm
Vacuum Cup Material
NBR
Weight
27.0 Gr

2322226

2322226

VG.B63suction cup, NBR, 60 Shore, G1/4'' male, 17 mm hex

Air Feeding In
G1/4'' Maschio
Vacuum Cup Diameter
63.0 mm
Vacuum Cup Material
NBR
Weight
34.0 Gr

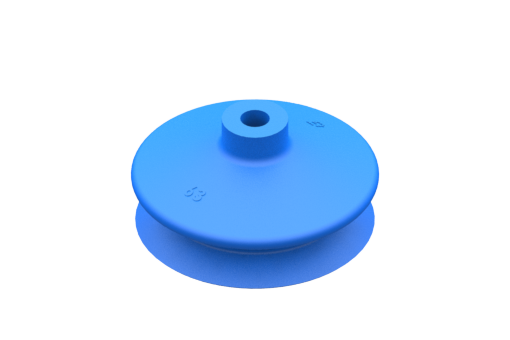

2322227

2322227

VG.B63 suction cup, HNBR, 60 Shore

Vacuum Cup Diameter
63.0 mm
Vacuum Cup Material
HNBR
Weight
22.0 Gr

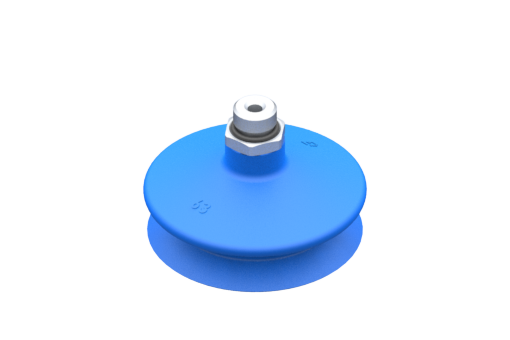

2322228

2322228

VG.B63 suction cup, HNBR, 60 Shore, G1/4'' male, 17 mm hex

Air Feeding In
G1/4'' Maschio
Vacuum Cup Diameter
63.0 mm
Vacuum Cup Material
HNBR
Weight
30.0 Gr

2322229

2322229

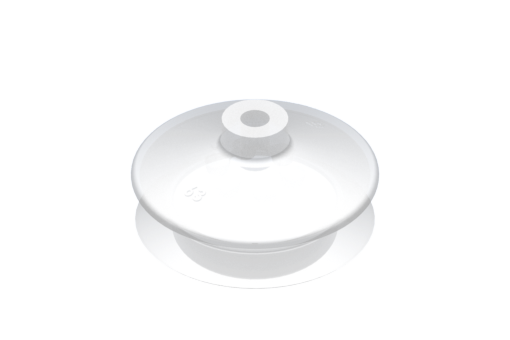

VG.B63 suction cup, FDA-compliant silicone, 50 Shore

Vacuum Cup Diameter
63.0 mm
Vacuum Cup Material
SILICONE ALIMENTARE
Weight
23.0 Gr

2322230

2322230

VG.B63 suction cup, FDA-compliant silicone, 50 Shore, G1/4'' male, 17 mm hex

Air Feeding In
G1/4'' Maschio
Vacuum Cup Diameter
63.0 mm
Vacuum Cup Material
SILICONE ALIMENTARE
Weight
30.0 Gr

2322262

2322262

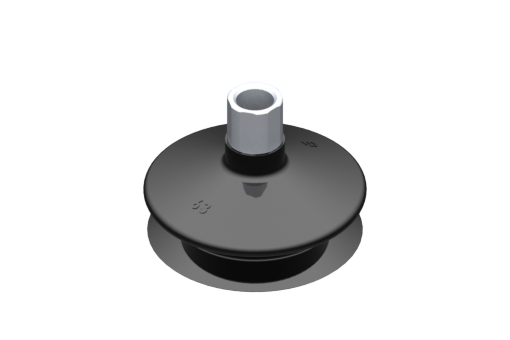

VG.B63 suction cup, NBR, 60 Shore, G1/4'' Female, 17 mm hex

Air Feeding In
G1/4'' Femmina
Vacuum Cup Diameter
63.0 mm
Vacuum Cup Material
NBR
Weight
34.0 Gr

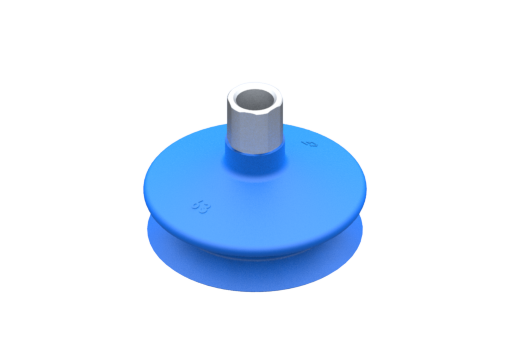

2322263

2322263

VG.B63 suction cup, HNBR, 60 Shore, G1/4'' Female, 17 mm hex

Air Feeding In
G1/4'' Femmina
Vacuum Cup Diameter
63.0 mm
Vacuum Cup Material
HNBR
Weight
30.0 Gr

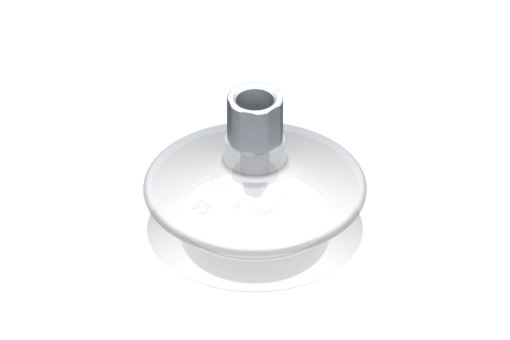

2322264

2322264

VG.B63 suction cup, FDA-compliant silicone, 50 Shore, G1/4'' Female, 17 mm hex

Air Feeding In
G1/4'' Femmina
Vacuum Cup Diameter
63.0 mm
Vacuum Cup Material
SILICONE ALIMENTARE
Weight
30.0 Gr

Join our newsletter

Stay up to date with our news and products
