Threaded-body non-rotative telescopic suspensions - VSC
- Body and rod in anodised aluminium.
- Anti-friction treatment on the rod.
- Polymer bearing for smoother movement.
- Non-rotating rod with reduced play.
- Telescopic movement: fittings and pipes do not move.
- Unidirectional gaskets: only usable with vacuum.
- Operating pressure: -1 to 0 bar.
- FDA-H1 food-grade grease.
- Body and rod in anodised aluminium.
- Anti-friction treatment on the rod.
- Polymer bearing for smoother movement.
- Non-rotating rod with reduced play.
- Telescopic movement: fittings and pipes do not move.
- Unidirectional gaskets: only usable with vacuum.
- Operating pressure: -1 to 0 bar.
- FDA-H1 food-grade grease.
Suspension stroke
Weight
VSC1620
Non-rotative telescopic suspension and M16x1 threaded body, stroke 20 mm, M5 thread, 2 nuts, for vacuum
Male Thread Fastening
M16x1
Suspension Stroke
20.0 mm
Weight
39.0 Gr

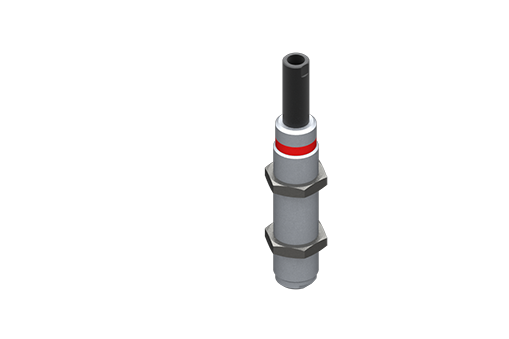

VSC2230
Non-rotative telescopic suspension and M22x1.5 threaded body, stroke 30 mm, G1/8 thread, 2 nuts, for vacuum
Male Thread Fastening
M22x1.5
Suspension Stroke
30.0 mm
Weight
87.0 Gr
VSC2530
Non-rotative telescopic suspension and M25x1.5 threaded body, stroke 30 mm, G1/4 thread, 2 nuts, for vacuum
Male Thread Fastening
M25x1.5
Suspension Stroke
30.0 mm
Weight
127.0 Gr
