Smooth-body non-rotative telescopic suspensions - VSL
- Body and rod in anodised aluminium.
- Anti-friction treatment on the rod.
- Polymer bearing for smoother movement.
- Non-rotating rod with reduced play.
- Telescopic movement: fittings and pipes do not move.
- Unidirectional gaskets: only usable with vacuum.
- Operating pressure: -1 to 0 bar.
- FDA-H1 food-grade grease.
- Body and rod in anodised aluminium.
- Anti-friction treatment on the rod.
- Polymer bearing for smoother movement.
- Non-rotating rod with reduced play.
- Telescopic movement: fittings and pipes do not move.
- Unidirectional gaskets: only usable with vacuum.
- Operating pressure: -1 to 0 bar.
- FDA-H1 food-grade grease.
Male fitting shank
Suspension stroke
Weight

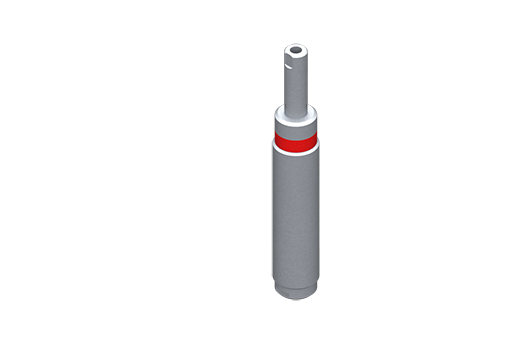

VSL1620
Non-rotative telescopic suspension with smooth body, diameter 16 mm, stroke 20 mm, M5, for vacuum
Air Feeding In
G1/8''
Air Feeding Out
G1/8''
Fixing Shank Male
16.0 mm
Suspension Stroke
20.0 mm
Weight
28.0 Gr

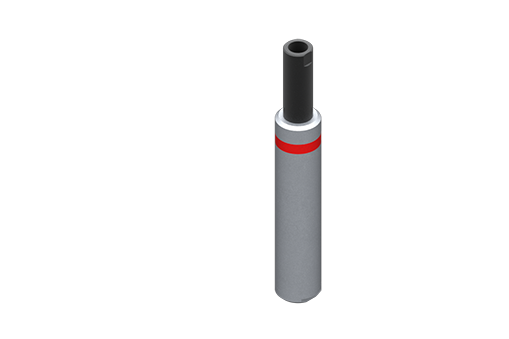

VSL2030
Non-rotative telescopic suspension with smooth body, diameter 20 mm, stroke 30 mm, G1/8, for vacuum
Air Feeding In
G1/8''
Air Feeding Out
G1/8''
Fixing Shank Male
20.0 mm
Suspension Stroke
30.0 mm
Weight
50.0 Gr
VSL2430
Non-rotative telescopic suspension with smooth body, diameter 24 mm, stroke 30 mm, G1/4, for vacuum
Air Feeding In
G1/8''
Air Feeding Out
G1/8''
Fixing Shank Male
24.0 mm
Suspension Stroke
30.0 mm
Weight
69.0 Gr
VSL1620
Air Feeding In
G1/8''
Air Feeding Out
G1/8''
Fixing Shank Male
16.0 mm
Suspension Stroke
20.0 mm
Weight
28.0 Gr
VSL2030
Air Feeding In
G1/8''
Air Feeding Out
G1/8''
Fixing Shank Male
20.0 mm
Suspension Stroke
30.0 mm
Weight
50.0 Gr
VSL2430
Air Feeding In
G1/8''
Air Feeding Out
G1/8''
Fixing Shank Male
24.0 mm
Suspension Stroke
30.0 mm
Weight
69.0 Gr
