Rotative suspensions with threaded body - VSRT
- Body and rod in anodised aluminium.
- Swivelling rod.
- Operating pressure: -1 to 8 bar.
- FDA-H1 food-grade grease.
- Body and rod in anodised aluminium.
- Swivelling rod.
- Operating pressure: -1 to 8 bar.
- FDA-H1 food-grade grease.
Suspension stroke
Weight

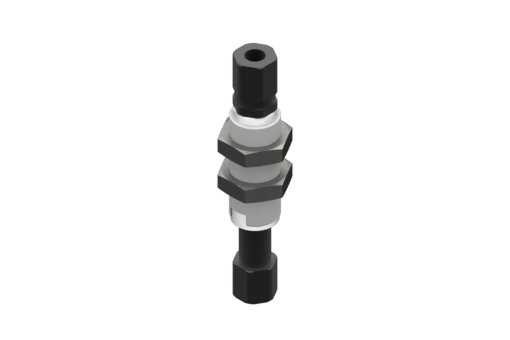

9900001
Rotative suspension with M10x1 threaded body, stroke 10 mm, M5, with 2 nuts
Air Feeding In
M5 Femmina
Air Feeding Out
M5 Femmina
Male Thread Fastening
M10x1
Suspension Stroke
10.0 mm
Weight
12.0 Gr

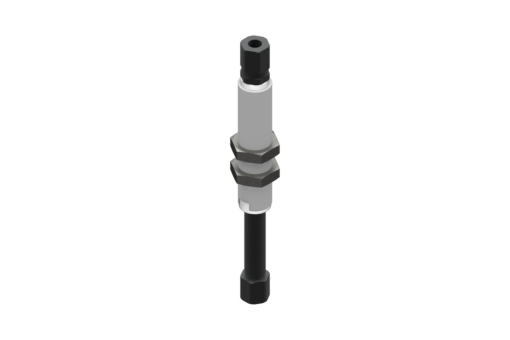

9900002
Rotative suspension with M10x1 threaded body, stroke 25 mm, M5, with 2 nuts
Air Feeding In
M5 Femmina
Air Feeding Out
M5 Femmina
Male Thread Fastening
M10x1
Suspension Stroke
25.0 mm
Weight
16.0 Gr

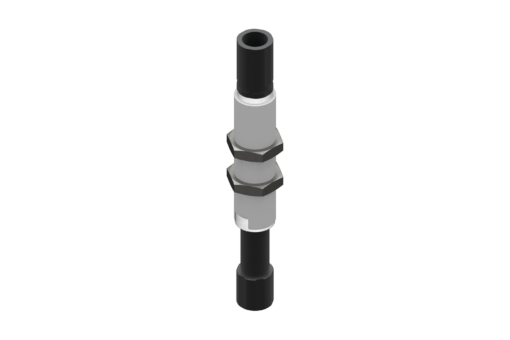

9900003
Rotative suspension with M14x1.5 threaded body, stroke 20 mm, G1/8", with 2 nuts
Air Feeding In
G1/8'' Femmina
Air Feeding Out
G1/8'' Femmina
Male Thread Fastening
M14x1.5
Suspension Stroke
20.0 mm
Weight
36.0 Gr

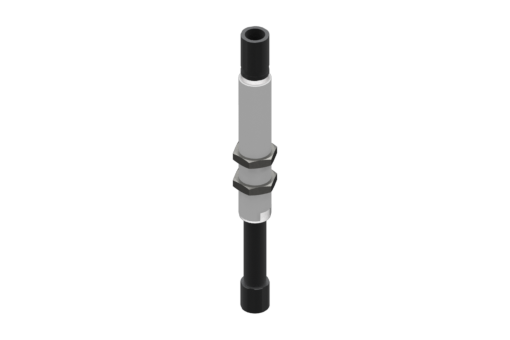

9900004
Rotative suspension with M14x1.5 threaded body, stroke 35 mm, G1/8, with 2 nuts
Air Feeding In
G1/8'' Femmina
Air Feeding Out
G1/8'' Femmina
Male Thread Fastening
M14x1.5
Suspension Stroke
35.0 mm
Weight
45.0 Gr

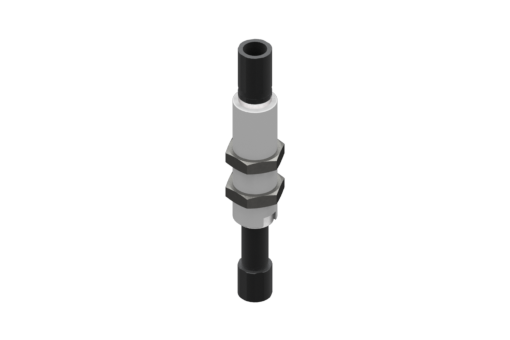

9900005
Rotative suspension with M16x1 threaded body, stroke 20 mm, G1/8, with 2 nuts
Air Feeding In
G1/8'' Femmina
Air Feeding Out
G1/8'' Femmina
Male Thread Fastening
M16x1
Suspension Stroke
20.0 mm
Weight
45.0 Gr

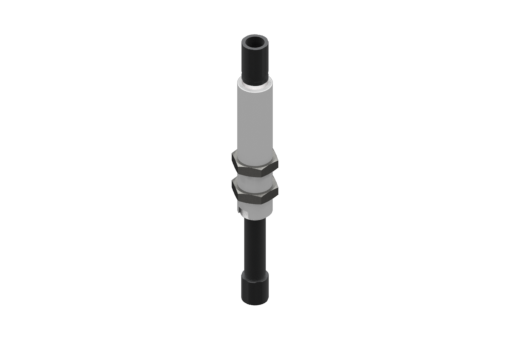

9900006
Rotative suspension with M16x1 threaded body, stroke 35 mm, G1/8", with 2 nuts
Air Feeding In
G1/8'' Femmina
Air Feeding Out
G1/8'' Femmina
Male Thread Fastening
M16x1
Suspension Stroke
35.0 mm
Weight
56.0 Gr

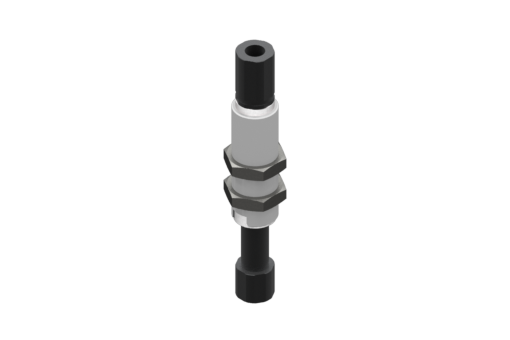

9900007
Rotative suspension with M20x1.5 threaded body, stroke 25 mm, G1/8, with 2 nuts
Air Feeding In
G1/8'' Femmina
Air Feeding Out
G1/8'' Femmina
Male Thread Fastening
M20x1.5
Suspension Stroke
25.0 mm
Weight
87.0 Gr

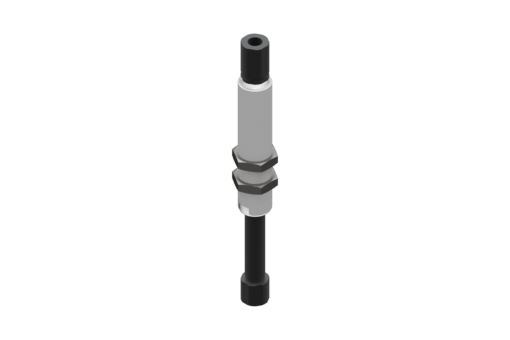

9900008
Rotative suspension with M20x1.5 threaded body, stroke 50 mm, G1/8, with 2 nuts
Air Feeding In
G1/8'' Femmina
Air Feeding Out
G1/8'' Femmina
Male Thread Fastening
M20x1.5
Suspension Stroke
50.0 mm
Weight
116.0 Gr

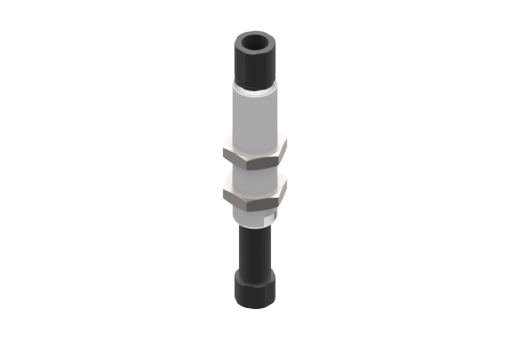

New 9900047
Suspension with M25x1.5 threaded body, stroke 40 mm, G3/8", with 2 nuts
Air Feeding In
G3/8'' Femmina
Air Feeding Out
G3/8'' Femmina
Male Thread Fastening
M25x1.5
Suspension Stroke
40.0 mm
Weight
200.0 Gr

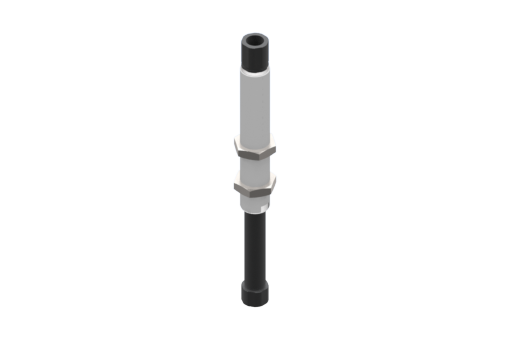

New 9900048
Suspension with M25x1.5 threaded body, stroke 80 mm, G3/8", with 2 nuts
Air Feeding In
G3/8'' Femmina
Air Feeding Out
G3/8'' Femmina
Male Thread Fastening
M12x1
Suspension Stroke
80.0 mm
Weight
275.0 Gr

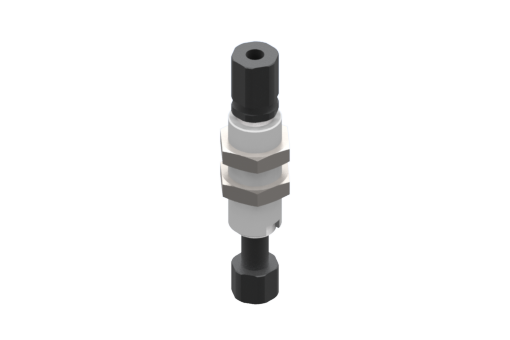

New 9900049
Suspension with M12x1 threaded body, stroke 10 mm, M5, with 2 nuts
Air Feeding In
M5 Femmina
Air Feeding Out
M5 Femmina
Male Thread Fastening
M12x1
Suspension Stroke
10.0 mm
Weight
19.5 Gr

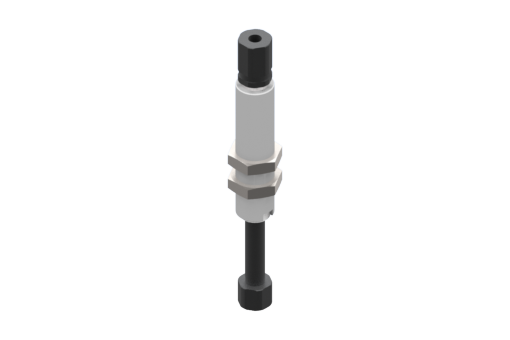

New 9900050
Suspension with M12x1 threaded body, stroke 25 mm, M5, with 2 nuts
Air Feeding In
M5 Femmina
Air Feeding Out
M5 Femmina
Male Thread Fastening
M12x1
Suspension Stroke
25.0 mm
Weight
25.0 Gr

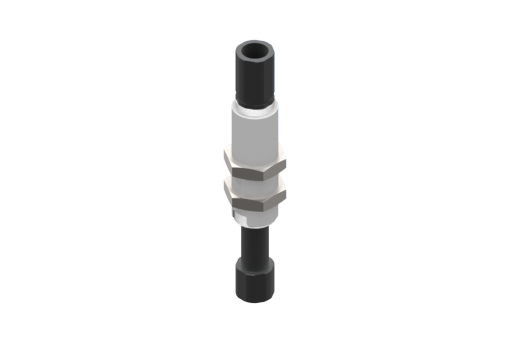

New 9900051
Rotative suspension with M20x1.5 threaded body, stroke 25 mm, G1/4, with 2 nuts
Air Feeding In
G1/4'' Femmina
Air Feeding Out
G1/4'' Femmina
Male Thread Fastening
M20x1.5
Suspension Stroke
25.0 mm
Weight
85.0 Gr

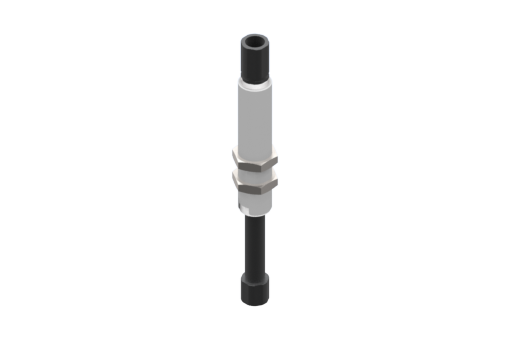

New 9900052
Rotative suspension with M20x1.5 threaded body, stroke 50 mm, G1/4", with 2 nuts
Air Feeding In
G1/4'' Femmina
Air Feeding Out
G1/4'' Femmina
Male Thread Fastening
M20x1.5
Suspension Stroke
50.0 mm
Weight
115.0 Gr
New 9900085
Rotative suspension with M14x1 threaded body, stroke 20 mm, G1/8", with 2 nuts
Weight
37.0 Gr
New 9900087
Rotative suspension with M14x1 threaded body, stroke 35 mm, G1/8", with 2 nuts
Weight
46.0 Gr
