Rotative heavy-duty suspensions with threaded body - VSHT
- Brass body with sliding bearings for heavy-duty applications with high dynamic stresses
- Rod and spring in stainless steel
- Rotating rod
- Sixe M20x1
- Available stroke: 25, 50 and 75 mm
- Suitable for use under rough conditions
- Easy maintenance
- Brass body with sliding bearings for heavy-duty applications with high dynamic stresses
- Rod and spring in stainless steel
- Rotating rod
- Sixe M20x1
- Available stroke: 25, 50 and 75 mm
- Suitable for use under rough conditions
- Easy maintenance
Suspension stroke
Weight

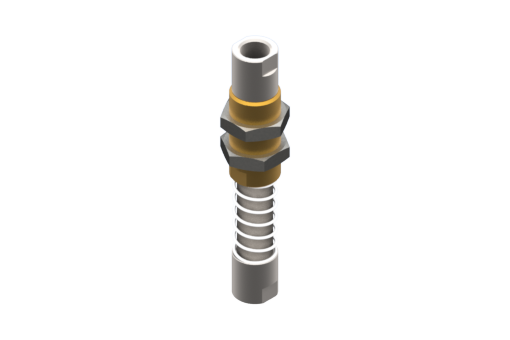

New 9900060
Vacuum suspension heavy duty threaded M20x1.5 stroke max 25mm, fitting G1/4'' female G1/4'' female
Air Feeding In
G1/4'' Femmina
Air Feeding Out
G1/4'' Femmina
Male Thread Fastening
M20x1.5
Suspension Stroke
25.0 mm
Weight
200.0 Gr

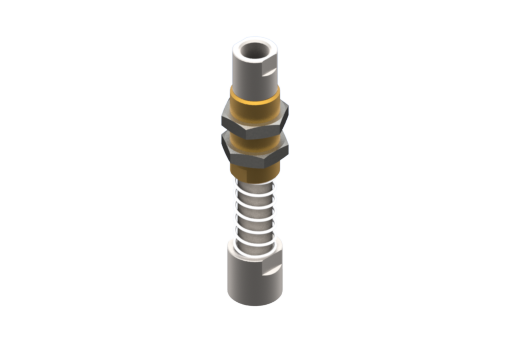

New 9900061
M20x1.5 suspension for heavy loads, G3/8" female, max stroke 25mm
Air Feeding In
G1/4'' Femmina
Air Feeding Out
G3/8'' Femmina
Male Thread Fastening
M20x1.5
Suspension Stroke
25.0 mm
Weight
215.0 Gr

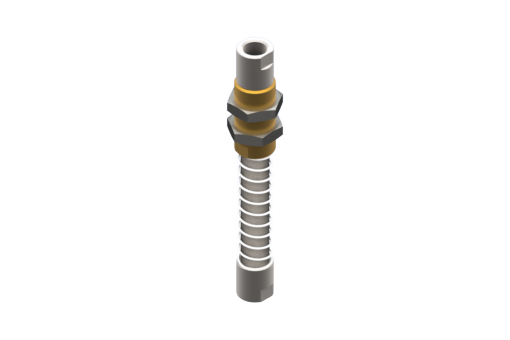

New 9900062
M20x1.5 suspension for heavy loads, G1/4" female, max stroke 50mm
Air Feeding In
G1/4'' Femmina
Air Feeding Out
G1/4'' Femmina
Male Thread Fastening
M20x1.5
Suspension Stroke
50.0 mm
Weight
225.0 Gr

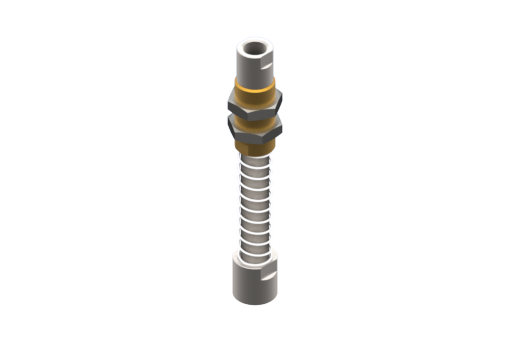

New 9900063
M20x1.5 suspension for heavy loads, G3/8" female, max stroke 50mm
Air Feeding In
G1/4'' Femmina
Air Feeding Out
G3/8'' Femmina
Male Thread Fastening
M20x1.5
Suspension Stroke
50.0 mm
Weight
240.0 Gr

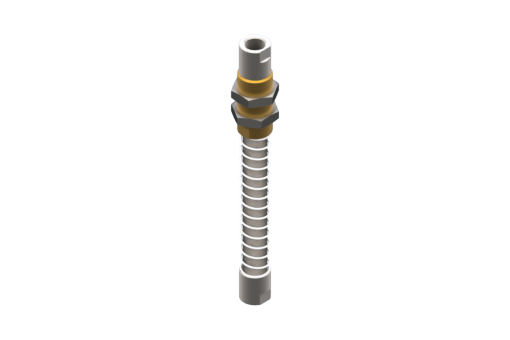

New 9900064
Vacuum suspension heavy duty threaded M20x1.5 stroke max 75mm, fitting G1/4'' female G1/4'' female
Air Feeding In
G1/4'' Femmina
Air Feeding Out
G1/4'' Femmina
Male Thread Fastening
M20x1.5
Suspension Stroke
75.0 mm
Weight
255.0 Gr

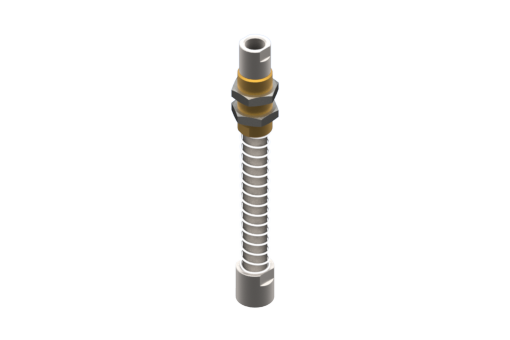

New 9900065
M20x1.5 suspension for heavy loads, G3/8" female, max stroke 75mm
Air Feeding In
G1/4'' Femmina
Air Feeding Out
G3/8'' Femmina
Male Thread Fastening
M20x1.5
Suspension Stroke
75.0 mm
Weight
270.0 Gr
9900060 New
Air Feeding In
G1/4'' Femmina
Air Feeding Out
G1/4'' Femmina
Male Thread Fastening
M20x1.5
Suspension Stroke
25.0 mm
Weight
200.0 Gr
9900061 New
Air Feeding In
G1/4'' Femmina
Air Feeding Out
G3/8'' Femmina
Male Thread Fastening
M20x1.5
Suspension Stroke
25.0 mm
Weight
215.0 Gr
9900062 New
Air Feeding In
G1/4'' Femmina
Air Feeding Out
G1/4'' Femmina
Male Thread Fastening
M20x1.5
Suspension Stroke
50.0 mm
Weight
225.0 Gr
9900063 New
Air Feeding In
G1/4'' Femmina
Air Feeding Out
G3/8'' Femmina
Male Thread Fastening
M20x1.5
Suspension Stroke
50.0 mm
Weight
240.0 Gr
9900064 New
Air Feeding In
G1/4'' Femmina
Air Feeding Out
G1/4'' Femmina
Male Thread Fastening
M20x1.5
Suspension Stroke
75.0 mm
Weight
255.0 Gr
9900065 New
Air Feeding In
G1/4'' Femmina
Air Feeding Out
G3/8'' Femmina
Male Thread Fastening
M20x1.5
Suspension Stroke
75.0 mm
Weight
270.0 Gr
