Non-rotative suspensions with integrated elbow arm - VSE
- The angle is continuously adjustable between 0° and +/-90°.
- External power supply.
- Body and rod in anodised aluminium.
- Non-rotating rod with high load capacity.
- Operating pressure: -1 to 8 bar.
- FDA-H1 food-grade grease.
- The angle is continuously adjustable between 0° and +/-90°.
- External power supply.
- Body and rod in anodised aluminium.
- Non-rotating rod with high load capacity.
- Operating pressure: -1 to 8 bar.
- FDA-H1 food-grade grease.
Male fitting shank
Suspension stroke
Weight

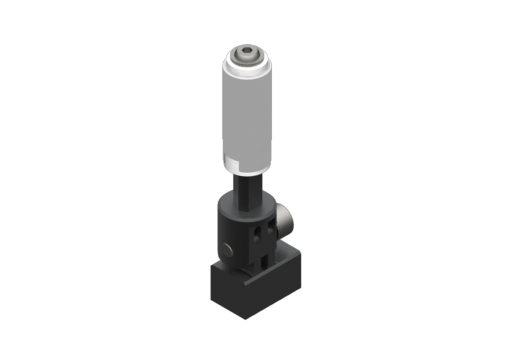

VSE1010F05
Non-rotative suspension with angular coupling and smooth body, diameter 10 mm, stroke 10 mm, M5
Fixing Shank Male
10.0 mm
Suspension Stroke
10.0 mm
Weight
14.0 Gr

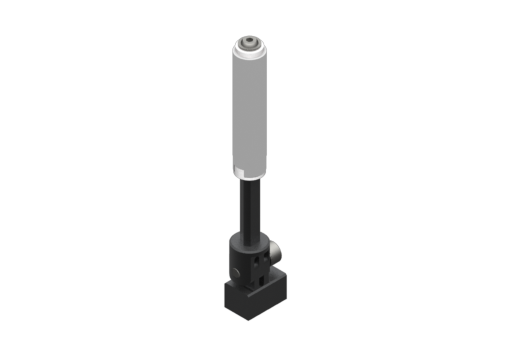

VSE1025F05
Non-rotative suspension with angular coupling and smooth body, diameter 10 mm, stroke 25 mm, M5
Fixing Shank Male
10.0 mm
Suspension Stroke
25.0 mm
Weight
19.0 Gr

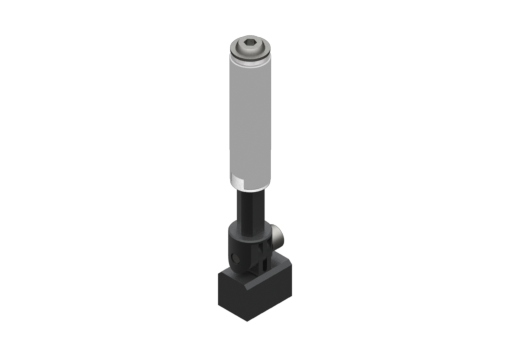

VSE1420F18
Non-rotative suspension with angular coupling and smooth body, diameter 14 mm, stroke 20 mm, G1/8
Fixing Shank Male
14.0 mm
Suspension Stroke
20.0 mm
Weight
43.0 Gr
VSE1435F18
Non-rotative suspension with angular coupling and smooth body, diameter 14 mm, stroke 35 mm, G1/8
Fixing Shank Male
14.0 mm
Suspension Stroke
35.0 mm
Weight
52.0 Gr

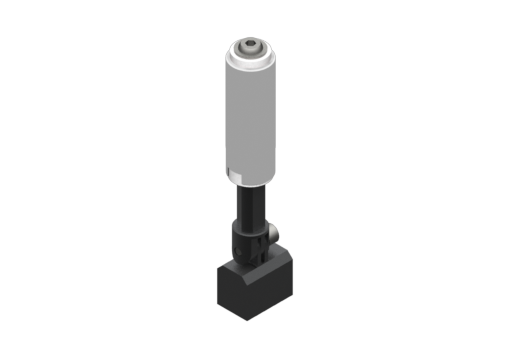

VSE2025F14
Non-rotative suspension with angular coupling and smooth body, diameter 20 mm, stroke 25 mm, G1/4
Fixing Shank Male
20.0 mm
Suspension Stroke
25.0 mm
Weight
79.0 Gr

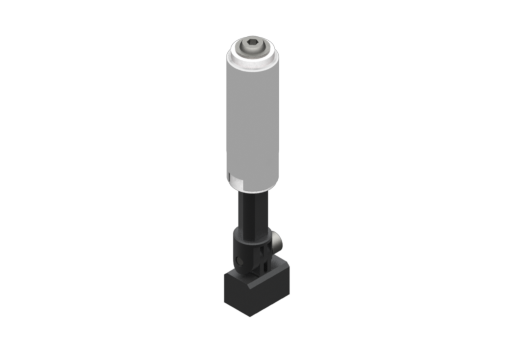

VSE2025F18
Non-rotative suspension with angular coupling and smooth body, diameter 20 mm, stroke 25 mm, G1/8
Fixing Shank Male
20.0 mm
Suspension Stroke
25.0 mm
Weight
71.0 Gr

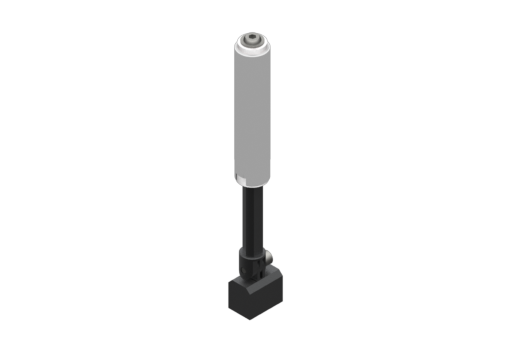

VSE2050F14
Non-rotative suspension with angular coupling and smooth body, diameter 20 mm, stroke 50 mm, G1/4
Fixing Shank Male
20.0 mm
Suspension Stroke
50.0 mm
Weight
110.0 Gr

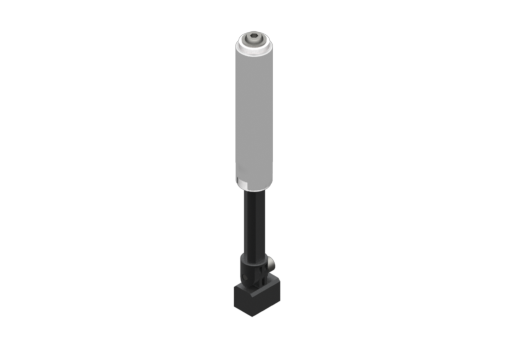

VSE2050F18
Non-rotative suspension with angular coupling and smooth body, diameter 20 mm, stroke 50 mm, G1/8
Fixing Shank Male
20.0 mm
Suspension Stroke
50.0 mm
Weight
103.0 Gr
