non-rotative suspensions with smooth body and adjustable clamp - VSD
- The angle is continuously adjustable between 0° and +/-90°.
- External power supply.
- Body and rod in anodised aluminium.
- Non-rotating rod.
- FDA-H1 food-grade grease.
- The angle is continuously adjustable between 0° and +/-90°.
- External power supply.
- Body and rod in anodised aluminium.
- Non-rotating rod.
- FDA-H1 food-grade grease.
Male fitting shank
Female fitting shank
Suspension stroke
Weight

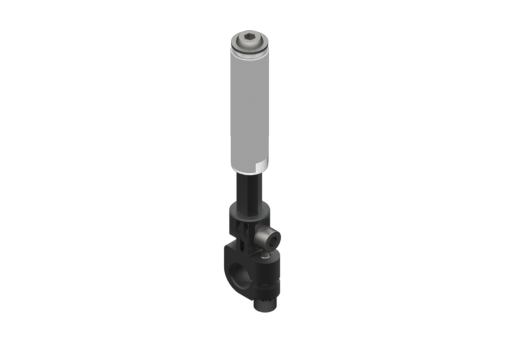

VSD1420D10
Non-rotative suspensions with adjustable clamp, shank diameter 14 mm, clamp diameter 10 mm, stroke 20 mm
Fixing Shank Female
10.0 mm
Fixing Shank Male
10.0 mm
Suspension Stroke
20.0 mm
Weight
46.0 Gr

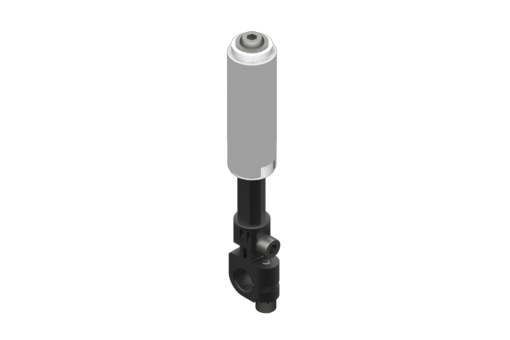

VSD2025D10
Non-rotative suspensions with adjustable clamp, shank diameter 20 mm, clamp diameter 10 mm, stroke 25 mm
Fixing Shank Female
10.0 mm
Fixing Shank Male
10.0 mm
Suspension Stroke
25.0 mm
Weight
75.0 Gr

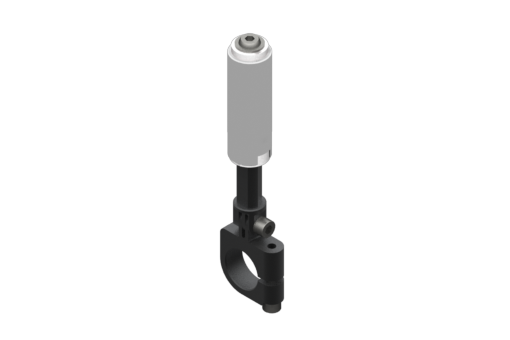

VSD2025D20
Non-rotative suspensions with adjustable clamp, shank diameter 20 mm, clamp diameter 20 mm, stroke 25 mm
Fixing Shank Female
20.0 mm
Fixing Shank Male
20.0 mm
Suspension Stroke
25.0 mm
Weight
81.0 Gr
