New ⁽²⁾

Threaded-body non rotative telescopic suspensions - VSNTG

Body and rod in anodised aluminium.
Stainless steel spring.
Non-rotating rod with high load capacity.
Operating pressure: -1 to 8 bar.
FDA-H1 food-grade grease.

Body and rod in anodised aluminium.
Stainless steel spring.
Non-rotating rod with high load capacity.
Operating pressure: -1 to 8 bar.
FDA-H1 food-grade grease.

Suspension stroke

Weight

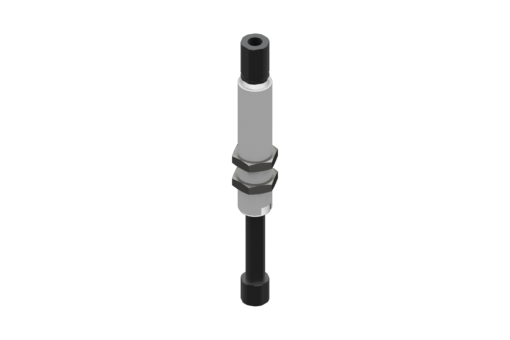

9900017

9900017

Non-rotative suspension with M20x1.5 threaded body, stroke 50 mm, G1/8", with 2 nuts

Air Feeding In
G1/8'' Femmina
Air Feeding Out
G1/8'' Femmina
Male Thread Fastening
M20x1.5
Suspension Stroke
50.0 mm
Weight
114.0 Gr

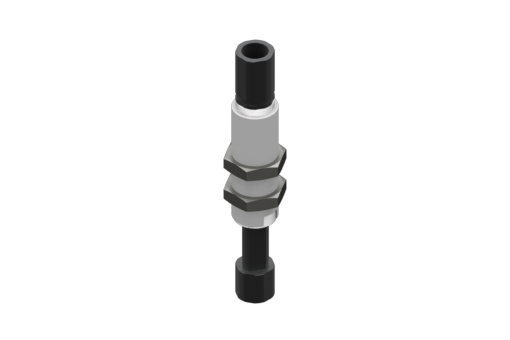

9900018

9900018

Non-rotative suspension with M20x1.5 threaded body, stroke 25 mm, G1/4", with 2 nuts

Air Feeding In
G1/4'' Femmina
Air Feeding Out
G1/4'' Femmina
Male Thread Fastening
M20x1.5
Suspension Stroke
25.0 mm
Weight
77.0 Gr

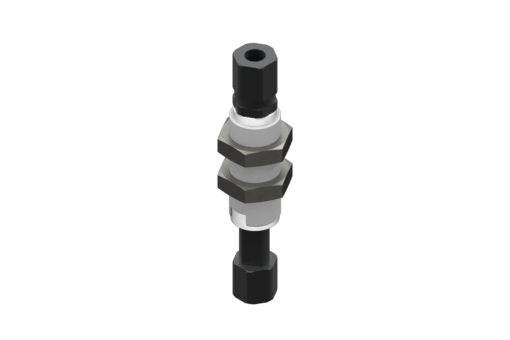

9900019

9900019

Non-rotative suspension with M10x1 threaded body, stroke 10 mm, M5, with 2 nuts

Air Feeding In
M5 Femmina
Air Feeding Out
M5 Femmina
Male Thread Fastening
M10x1
Suspension Stroke
10.0 mm
Weight
12.0 Gr

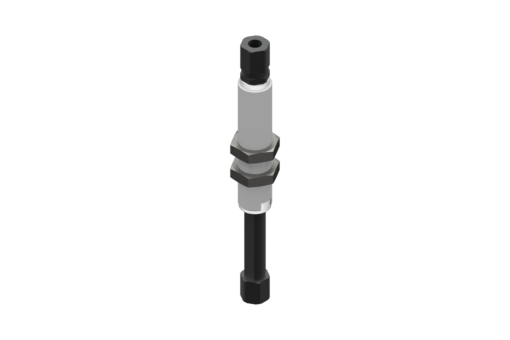

9900020

9900020

Non-rotative suspension with M10x1 threaded body, stroke 25 mm, M5, with 2 nuts

Air Feeding In
M5 Femmina
Air Feeding Out
M5 Femmina
Male Thread Fastening
M10x1
Suspension Stroke
25.0 mm
Weight
16.0 Gr

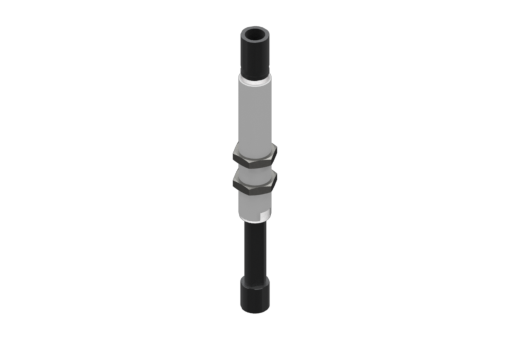

9900021

9900021

Non-rotative suspension with M14x1.5 threaded body, stroke 35 mm, G1/8, with 2 nuts

Air Feeding In
G1/8'' Femmina
Air Feeding Out
G1/8'' Femmina
Male Thread Fastening
M14x1.5
Suspension Stroke
35.0 mm
Weight
44.0 Gr

9900022

9900022

Non-rotative suspension with M20x1.5 threaded body, stroke 25 mm, G1/8, with 2 nuts

Air Feeding In
G1/8'' Femmina
Air Feeding Out
G1/8'' Femmina
Male Thread Fastening
M20x1.5
Suspension Stroke
25.0 mm
Weight
86.0 Gr

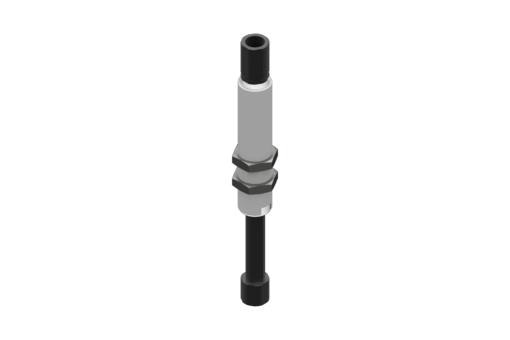

9900023

9900023

Non-rotative suspension with M20x1.5 threaded body, stroke 50 mm, G1/4, with 2 nuts

Air Feeding In
G1/4'' Femmina
Air Feeding Out
G1/4'' Femmina
Male Thread Fastening
M20x1.5
Suspension Stroke
50.0 mm
Weight
110.0 Gr

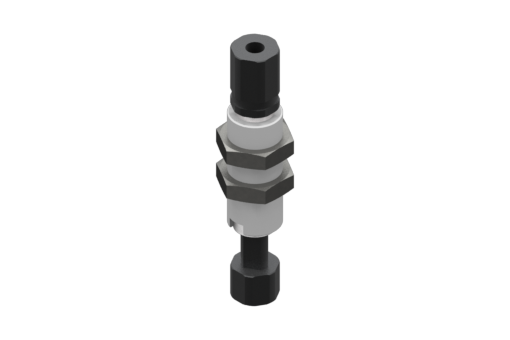

9900024

9900024

Non-rotative suspension with M12x1 threaded body, stroke 10 mm, M5, with 2 nuts

Air Feeding In
M5 Femmina
Air Feeding Out
M5 Femmina
Male Thread Fastening
M12x1
Suspension Stroke
10.0 mm
Weight
19.0 Gr

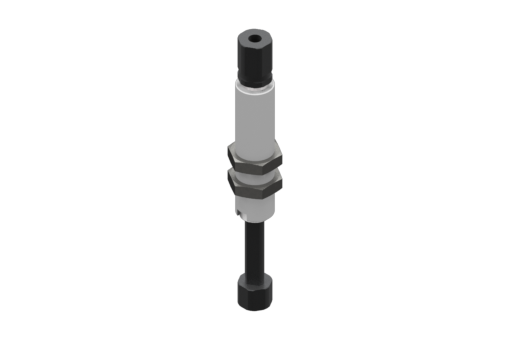

9900025

9900025

Non-rotative suspension with M12x1 threaded body, stroke 25 mm, M5, with 2 nuts

Air Feeding In
M5 Femmina
Air Feeding Out
M5 Femmina
Male Thread Fastening
M12x1
Suspension Stroke
25.0 mm
Weight
25.0 Gr

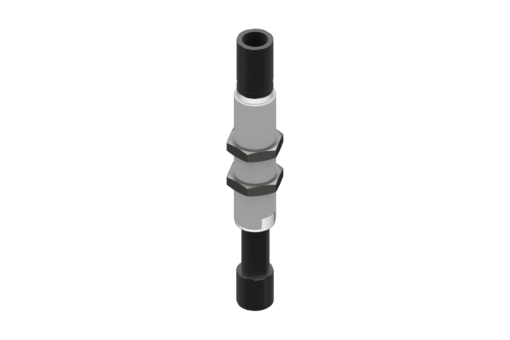

9900026

9900026

Non-rotative suspension with M14x1.5 threaded body, stroke 20 mm, G1/8", with 2 nuts

Air Feeding In
G1/8'' Femmina
Air Feeding Out
G1/8'' Femmina
Male Thread Fastening
M14x1.5
Suspension Stroke
20.0 mm
Weight
35.0 Gr

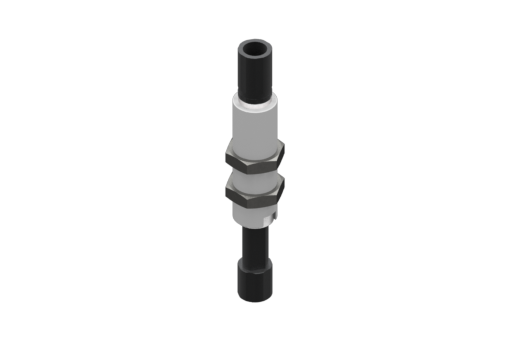

9900027

9900027

Non-rotative suspension with M16x1 threaded body, stroke 20 mm, G1/8, with 2 nuts

Air Feeding In
G1/8'' Femmina
Air Feeding Out
G1/8'' Femmina
Male Thread Fastening
M16x1
Suspension Stroke
20.0 mm
Weight
44.0 Gr

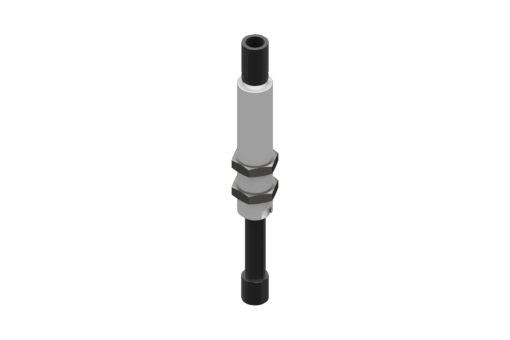

9900028

9900028

Non-rotative suspension with M16x1 threaded body, stroke 35 mm, G1/8, with 2 nuts

Air Feeding In
G1/8'' Femmina
Air Feeding Out
G1/8'' Femmina
Male Thread Fastening
M16x1
Suspension Stroke
35.0 mm
Weight
56.0 Gr

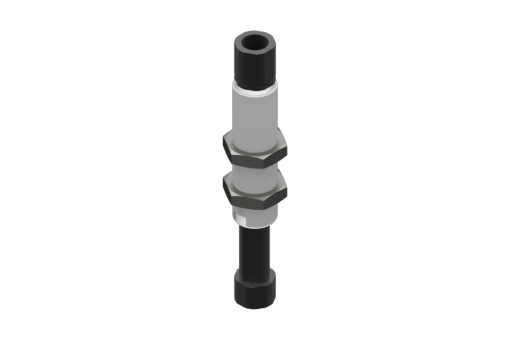

9900029

9900029

Non-rotative suspension with M25x1.5 threaded body, stroke 80 mm, G3/8", with 2 nuts

Air Feeding In
G3/8'' Femmina
Air Feeding Out
G3/8'' Femmina
Male Thread Fastening
M25x1.5
Suspension Stroke
40.0 mm
Weight
199.0 Gr

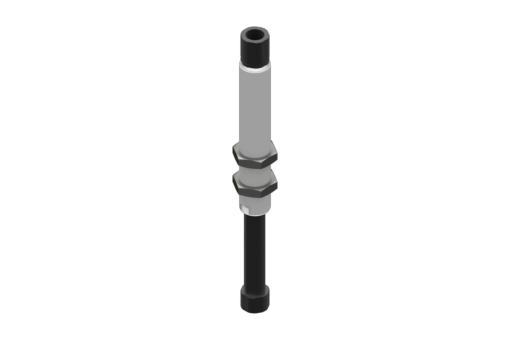

9900030

9900030

Non-rotative suspension with M25x1.5 threaded body, stroke 80 mm, G3/8", with 2 nuts

Air Feeding In
G3/8'' Femmina
Air Feeding Out
G3/8'' Femmina
Male Thread Fastening
M25x1.5
Suspension Stroke
80.0 mm
Weight
268.0 Gr

9900084

9900084

Non-rotative suspension with M14x1 threaded body, stroke 20 mm, G1/8", with 2 nuts

Weight
36.0 Gr

9900086

9900086

Non-rotative suspension with M14x1 threaded body, stroke 35 mm, G1/8", with 2 nuts

Weight
45.0 Gr
