Non-rotative suspensions with angular connector and threaded body - VSET

The angle is continuously adjustable between 0° and +/-90°.
External power supply.
Body and rod in anodised aluminium.
Non-rotating rod with high load capacity.
Operating pressure: -1 to 8 bar.
FDA-H1 food-grade grease.

Non-rotative suspensions with angular connector and threaded body - VSET

The angle is continuously adjustable between 0° and +/-90°.
External power supply.
Body and rod in anodised aluminium.
Non-rotating rod with high load capacity.
Operating pressure: -1 to 8 bar.
FDA-H1 food-grade grease.

Suspension stroke

Weight

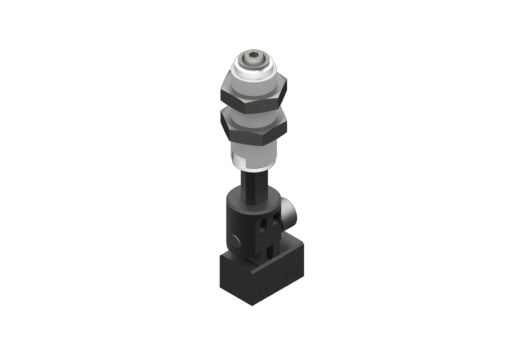

9900009

9900009

Non-rotative suspension with angular coupling and M10x1 threaded body, stroke 10 mm, M5, with 2 nuts

Air Feeding In
M5 Femmina
Air Feeding Out
M5 Femmina
Male Thread Fastening
M10x1
Suspension Stroke
10.0 mm
Weight
19.0 Gr

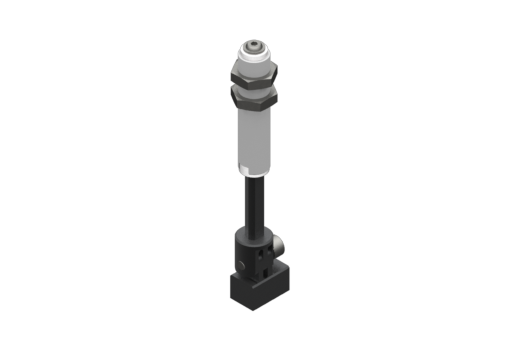

9900010

9900010

Non-rotative suspension with angular coupling and M10x1 threaded body, stroke 25 mm, M5, with 2 nuts

Air Feeding In
M5 Femmina
Air Feeding Out
M5 Femmina
Male Thread Fastening
M10x1
Suspension Stroke
25.0 mm
Weight
23.0 Gr

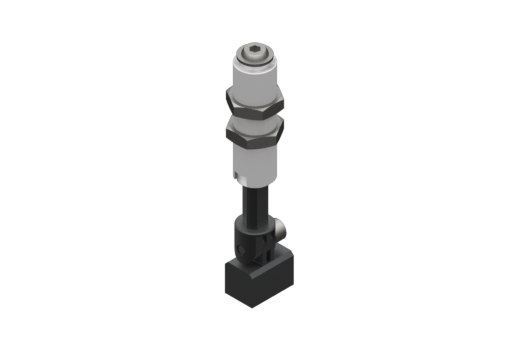

9900011

9900011

Non-rotative suspension with angular coupling and M16x1 threaded body, stroke 20 mm, G1/8, with 2 nuts

Air Feeding In
G1/8'' Femmina
Air Feeding Out
G1/8'' Femmina
Male Thread Fastening
M16x1
Suspension Stroke
20.0 mm
Weight
60.0 Gr

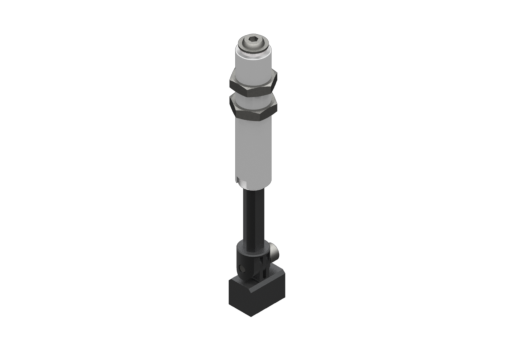

9900012

9900012

Non-rotative suspension with angular coupling and M16x1 threaded body, stroke 35 mm, G1/8, with 2 nuts

Air Feeding In
G1/8'' Femmina
Air Feeding Out
G1/8'' Femmina
Male Thread Fastening
M16x1
Suspension Stroke
35.0 mm
Weight
72.0 Gr

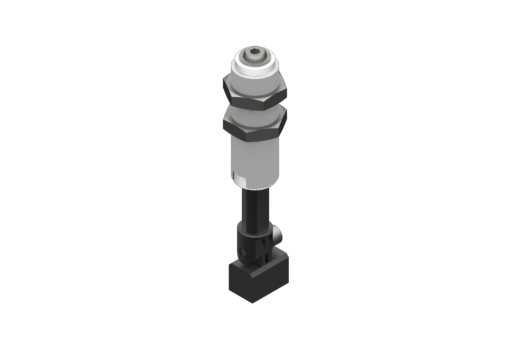

9900013

9900013

Non-rotative suspension with angular coupling and M20x1.5 threaded body, stroke 25 mm, G1/8, with 2 nuts

Air Feeding In
G1/8'' Femmina
Air Feeding Out
G1/8'' Femmina
Male Thread Fastening
M20x1.5
Suspension Stroke
25.0 mm
Weight
93.0 Gr

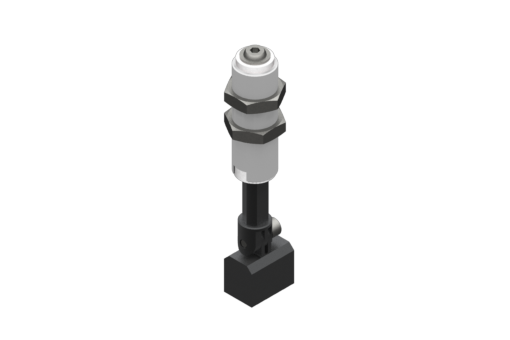

9900014

9900014

Non-rotative suspension with angular coupling and M20x1.5 threaded body, stroke 25 mm, G1/4, with 2 nuts

Air Feeding In
G1/4'' Femmina
Air Feeding Out
G1/4'' Femmina
Male Thread Fastening
M20x1.5
Suspension Stroke
25.0 mm
Weight
101.0 Gr

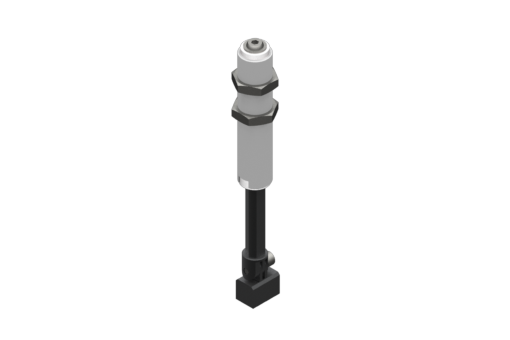

9900015

9900015

Non-rotative suspension with angular coupling and M20x1.5 threaded body, stroke 50 mm, G1/8, with 2 nuts

Air Feeding In
G1/4'' Femmina
Air Feeding Out
G1/4'' Femmina
Male Thread Fastening
M20x1.5
Suspension Stroke
50.0 mm
Weight
124.0 Gr

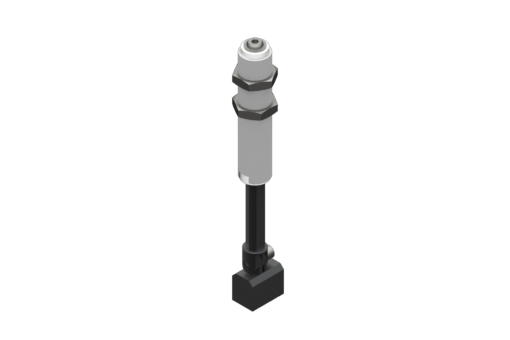

9900016

9900016

Non-rotative suspension with angular coupling and M20x1.5 threaded body, stroke 50 mm, G1/4", with 2 nuts

Air Feeding In
G1/4'' Femmina
Air Feeding Out
G1/4'' Femmina
Male Thread Fastening
M20x1.5
Suspension Stroke
50.0 mm
Weight
132.0 Gr
