Smooth-body rotative suspensions - VSR

  • Body and rod in anodised aluminium.
  • Swivelling rod.
  • Operating pressure: -1 to 8 bar.
  • FDA-H1 food-grade grease.
  • Body and rod in anodised aluminium.
  • Swivelling rod.
  • Operating pressure: -1 to 8 bar.
  • FDA-H1 food-grade grease.

Weight

Suspension stroke

Male fitting shank

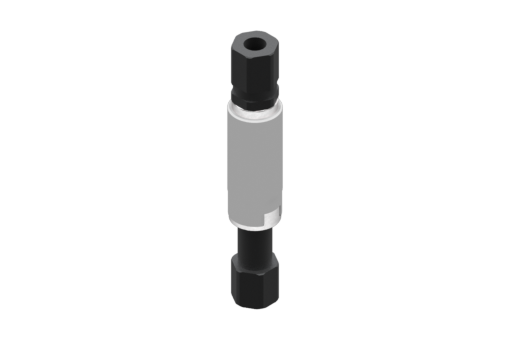

VSR1010

VSR1010

Rotative suspension with smooth body, diameter 10 mm, stroke 10 mm, M5

  • Air Feeding In

    M5

  • Air Feeding Out

    M5

  • Fixing Shank Male

    10.0 mm

  • Suspension Stroke

    10.0 mm

  • Weight

    7.1 Gr

VSR1010H

VSR1010H

  • Weight

    7.0 Gr

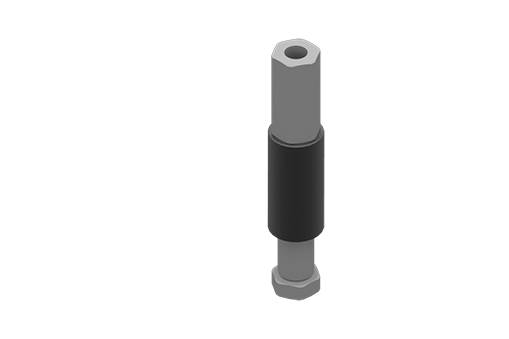

VSR1010S

VSR1010S

  • Air Feeding In

    M5

  • Air Feeding Out

    M5

  • Fixing Shank Male

    10.0 mm

  • Suspension Stroke

    10.0 mm

  • Weight

    7.0 Gr

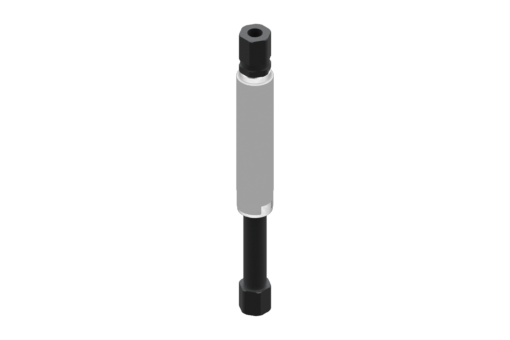

VSR1025

VSR1025

Rotative suspension with smooth body, diameter 10 mm, stroke 25 mm, M5

  • Air Feeding In

    M5

  • Air Feeding Out

    M5

  • Fixing Shank Male

    10.0 mm

  • Suspension Stroke

    25.0 mm

  • Weight

    11.0 Gr

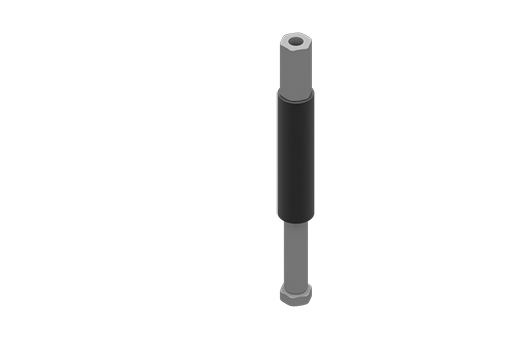

VSR1025H

VSR1025H

  • Weight

    11.0 Gr

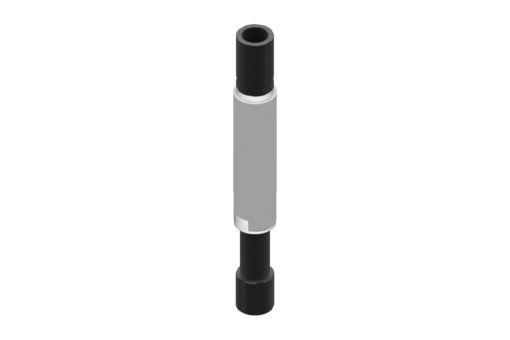

VSR1420

VSR1420

Rotative suspension with smooth body, diameter 14 mm, stroke 20 mm, G1/8

  • Air Feeding In

    G1/8''

  • Air Feeding Out

    G1/8''

  • Fixing Shank Male

    14.0 mm

  • Suspension Stroke

    20.0 mm

  • Weight

    28.0 Gr

VSR1420H

VSR1420H

  • Weight

    28.0 Gr

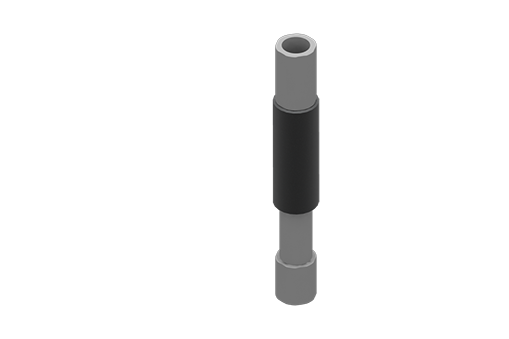

VSR1420S

VSR1420S

  • Weight

    27.0 Gr

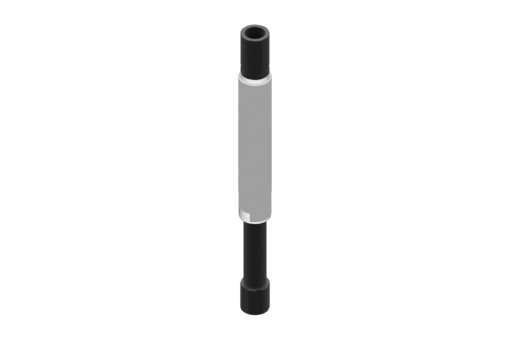

VSR1435

VSR1435

Rotative suspension with smooth body, diameter 14 mm, stroke 35 mm, G1/8

  • Air Feeding In

    G1/8''

  • Air Feeding Out

    G1/8''

  • Fixing Shank Male

    14.0 mm

  • Suspension Stroke

    35.0 mm

  • Weight

    37.0 Gr

VSR1435S

VSR1435S

  • Weight

    36.0 Gr

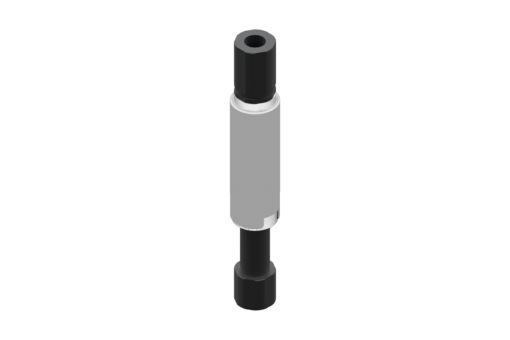

VSR2025

VSR2025

Rotative suspension with smooth body, diameter 20 mm, stroke 25 mm, G1/8

  • Air Feeding In

    G1/8''

  • Air Feeding Out

    G1/8''

  • Fixing Shank Male

    20.0 mm

  • Suspension Stroke

    25.0 mm

  • Weight

    64.0 Gr

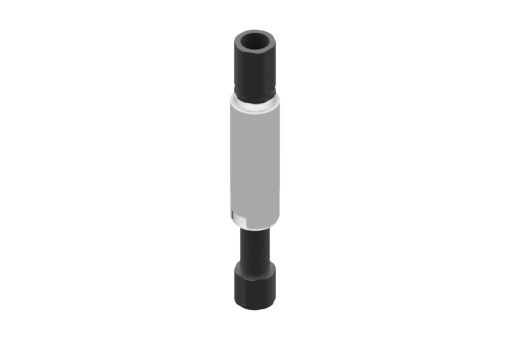

VSR2025F14 New

VSR2025F14

Suspension with smooth body, diameter 20 mm, stroke 25 mm, G1/4

  • Air Feeding In

    G1/4''

  • Air Feeding Out

    G1/4''

  • Fixing Shank Male

    20.0 mm

  • Suspension Stroke

    25.0 mm

  • Weight

    62.0 Gr

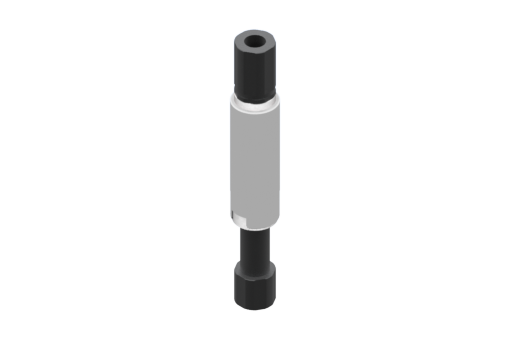

VSR2025F18 New

VSR2025F18

Rotative suspension with smooth body, diameter 20 mm, stroke 25 mm, G1/8

  • Air Feeding In

    G1/8''

  • Air Feeding Out

    G1/8''

  • Fixing Shank Male

    20.0 mm

  • Suspension Stroke

    25.0 mm

  • Weight

    65.0 Gr

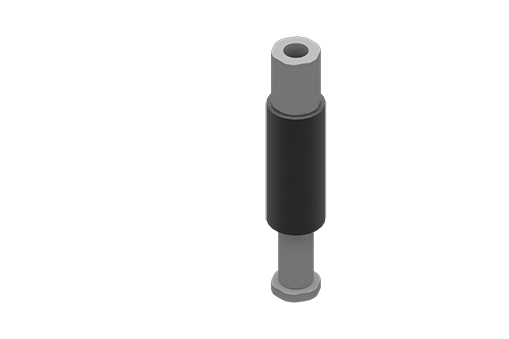

VSR2025H

VSR2025H

Rotative suspension with smooth body, diameter 20 mm, stroke 25 mm, G1/8

  • Weight

    64.0 Gr

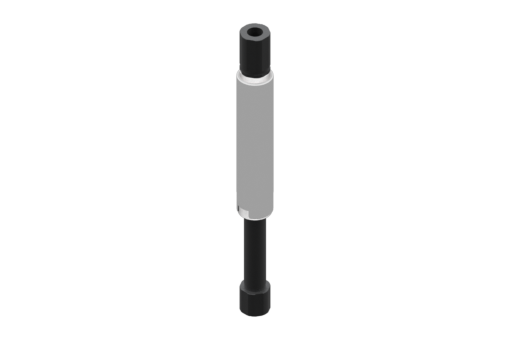

VSR2050

VSR2050

Rotative suspension with smooth body, diameter 20 mm, stroke 50 mm, G1/8

  • Air Feeding In

    G1/8''

  • Air Feeding Out

    G1/8''

  • Fixing Shank Male

    20.0 mm

  • Suspension Stroke

    50.0 mm

  • Weight

    93.0 Gr

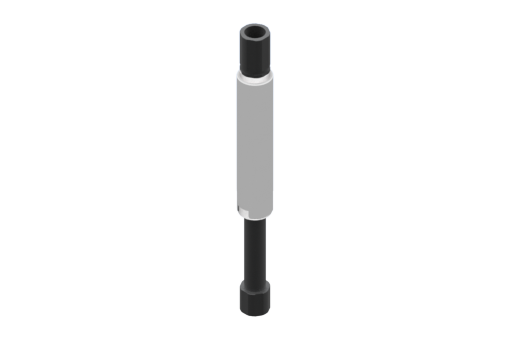

VSR2050F14 New

VSR2050F14

Suspension with smooth body, diameter 20 mm, stroke 50 mm, G1/4

  • Air Feeding In

    G1/4''

  • Air Feeding Out

    G1/4''

  • Fixing Shank Male

    20.0 mm

  • Suspension Stroke

    50.0 mm

  • Weight

    90.0 Gr

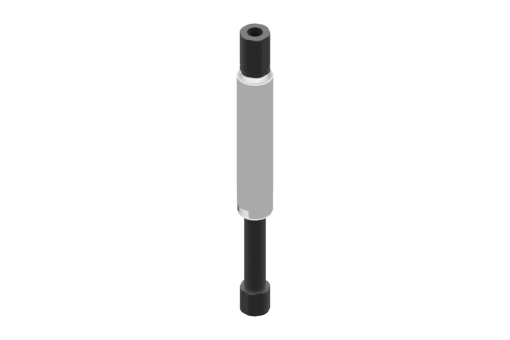

VSR2050F18 New

VSR2050F18

Rotative suspension with smooth body, diameter 20 mm, stroke 50 mm, G1/8

  • Air Feeding In

    G1/8''

  • Air Feeding Out

    G1/8''

  • Fixing Shank Male

    20.0 mm

  • Suspension Stroke

    50.0 mm

  • Weight

    95.0 Gr

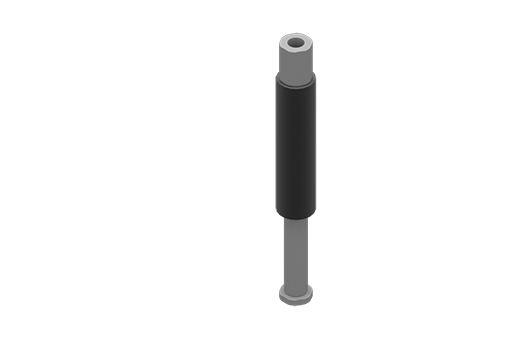

VSR2050S

VSR2050S

Rotative suspension with smooth body, diameter 20 mm, stroke 50 mm, G1/8

  • Weight

    92.0 Gr
