Non-rotative heavy duty stainless suspensions - VVX

Body, rod, bearing and spring are in stainless steel.
Ball bearing for very high load capacity.
Zero backlash.
FDA-H1 food-grade grease.
Operating pressure: -1 to 8 bar.

Body, rod, bearing and spring are in stainless steel.
Ball bearing for very high load capacity.
Zero backlash.
FDA-H1 food-grade grease.
Operating pressure: -1 to 8 bar.

Suspension stroke

Male fitting shank

Weight

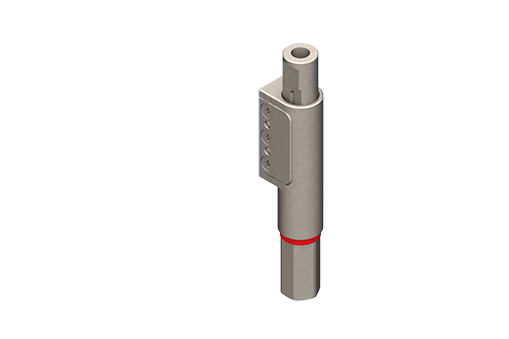

VVX1010F

VVX1010F

Heavy-duty stainless steel non-rotative suspension, body diameter 10 mm, stroke 10 mm, M5 thread

Air Feeding In
M5
Air Feeding Out
M5
Fixing Shank Male
10.0 mm
Suspension Stroke
10.0 mm
Weight
33.0 Gr

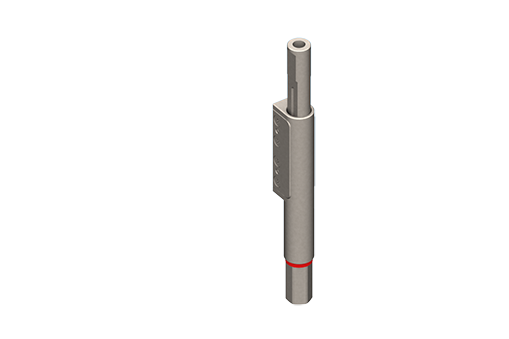

VVX1025F

VVX1025F

Heavy-duty stainless steel non-rotative suspension, body diameter 10 mm, stroke 25 mm, M5 thread

Air Feeding In
M5
Air Feeding Out
M5
Fixing Shank Male
10.0 mm
Suspension Stroke
25.0 mm
Weight
49.0 Gr

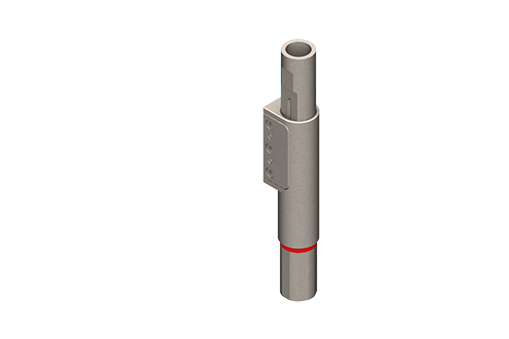

VVX1420F

VVX1420F

Heavy-duty stainless steel non-rotative suspension, body diameter 14 mm, stroke 20 mm, thread G1/8

Air Feeding In
G1/8''
Air Feeding Out
G1/8''
Fixing Shank Male
14.0 mm
Suspension Stroke
20.0 mm
Weight
86.0 Gr

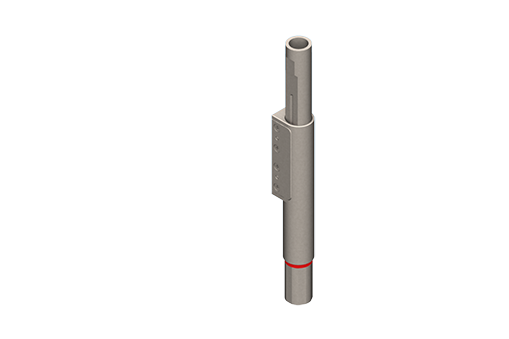

VVX1435F

VVX1435F

Heavy-duty stainless steel non-rotative suspension, body diameter 14 mm, stroke 35 mm, thread G1/8

Air Feeding In
G1/8''
Air Feeding Out
G1/8''
Fixing Shank Male
14.0 mm
Suspension Stroke
35.0 mm
Weight
118.0 Gr

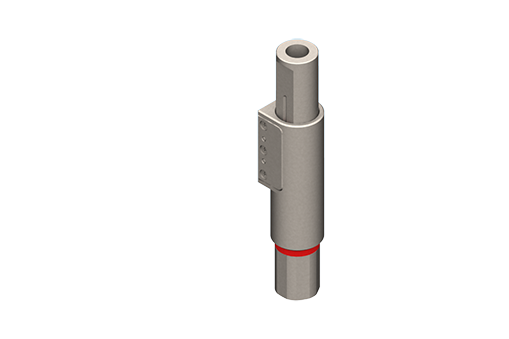

VVX2025F

VVX2025F

Heavy-duty stainless steel non-rotative suspension, body diameter 20 mm, stroke 25 mm, thread G1/8

Air Feeding In
G1/8''
Air Feeding Out
G1/8''
Fixing Shank Male
20.0 mm
Suspension Stroke
25.0 mm
Weight
161.0 Gr

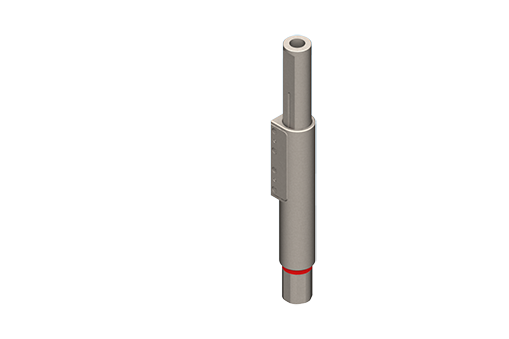

VVX2050F

VVX2050F

Heavy-duty stainless steel non-rotative suspension, body diameter 20 mm, stroke 50 mm, G1/8 thread

Air Feeding In
G1/8''
Air Feeding Out
G1/8''
Fixing Shank Male
20.0 mm
Suspension Stroke
50.0 mm
Weight
247.0 Gr
