Angular grippers
Angular grippers are used for gripping an off-centred object or for creating a wider opening with their angular stroke.
2-jaw self-centering angular pneumatic sprue gripper series AA - AA
Double-acting or with normally open spring (-NO). | Very high gripping force in relation to weight and dimensions. | Various fastening options. | Optional magnetic sensors. | FDA-H1 food-grade grease..

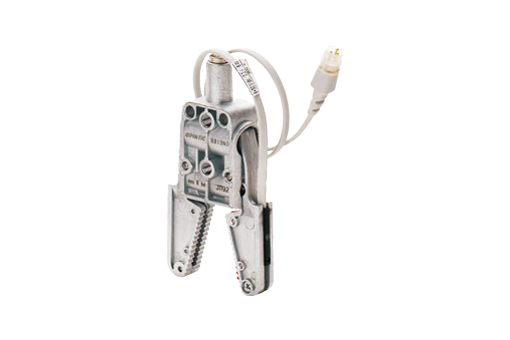

2-jaw non-selfcentering angular pneumatic sprue gripper series BB - BB
BB-12-00, double-acting. | BB-12-NO, normally open. | BB-13-NO, normally open with sensor. | Body and jaws made of cast zinc alloy (zamak). | Slim profile. | Gripper mounting possible on two sides. | FDA-H1 food-grade grease..

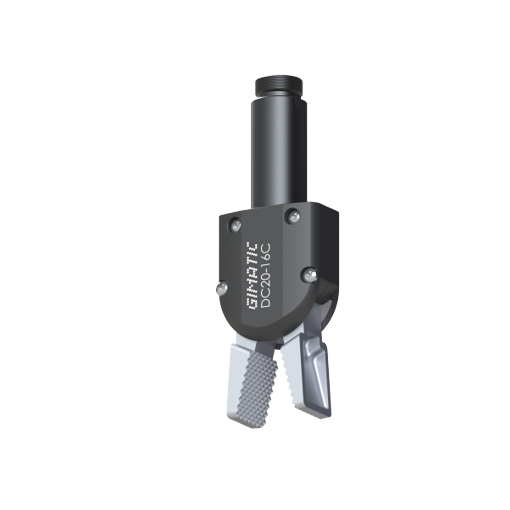

2-jaw self-centering angular pneumatic sprue gripper (series DC) - DC
Single acting with spring opening. | Several mounting accessories. | Steel jaws. | Plastic-steel-aluminium composite body. | FDA-H1 food-grade grease. | Optional sensors and clamps..

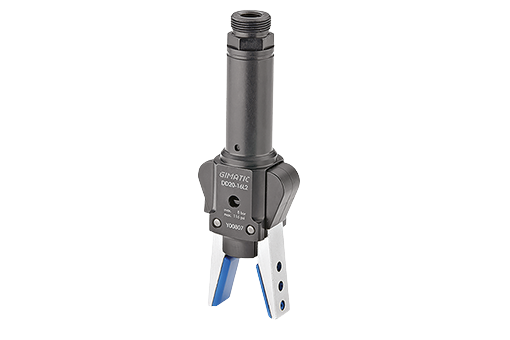

2-jaw self-centering angular pneumatic sprue gripper series DD - DD
New (2)New concept with sensor placed in rear position and reduced footprint in the gripping area. | Optional magnetic sensors. | The sensor is switched on only when an item is gripped | Single-acting drive with spring opening | High gripping force. | Various mounting accessories available. | Steel jaws. | FDA-H1 food-grade grease. | Protection against the entry of small foreign bodies. | Heavy-duty end-strokes..New (2)

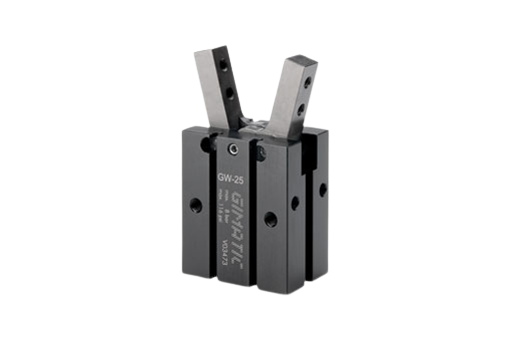

2-jaw self centering angular pneumatic gripper series GW - GW
Double-acting drive. | Maintenance-free long life and reliability. | Various options for fastening. | Optional magnetic sensors. | Also available with normally closed spring (-NC) | or with normally opened spring (-NO). | FDA-H1 food-grade grease..

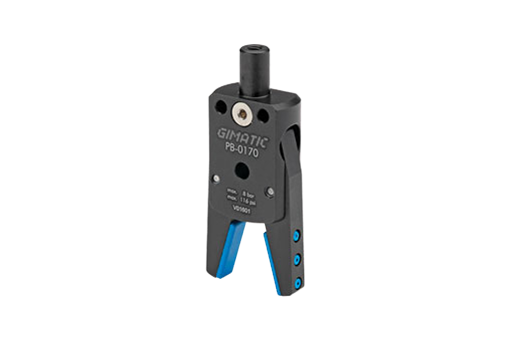

2-jaw non-selfcentering angular pneumatic sprue gripper series PB - PB
New (3)Non-self-centering double-acting drive. | Jaws with double connection, for applications with simultaneous loading/unloading. | Low weight. | Flat profile. | Simple and reliable. | Corrosion-resistant. | FDA-H1 food-grade grease..New (3)

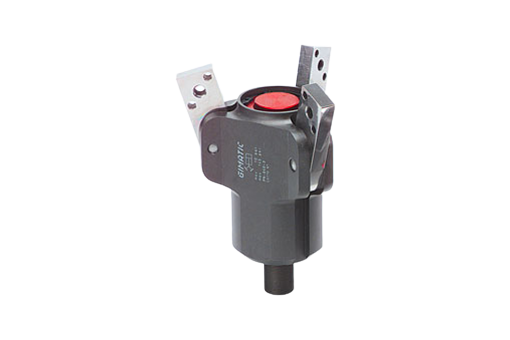

Self-centering angular pneumatic grippers - PN
Double-acting drive. | High efficiency and reliability due to the lack of driving parts. | Choice: 2 or 3 jaws. | Optional magnetic sensors. | FDA-H1 food-grade grease..

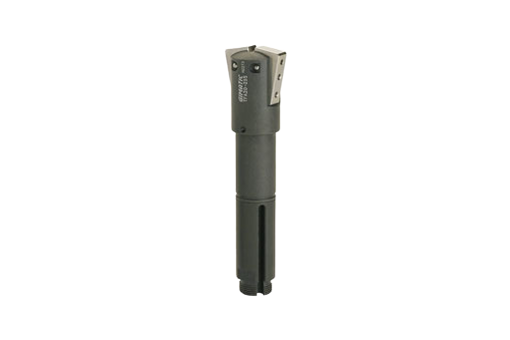

2-jaw self-centering angular mini gripper series TFA - TFA
Single-acting drive with spring opening | Various mounting accessories available. | Optional suspension kit. | FDA-H1 food-grade grease..

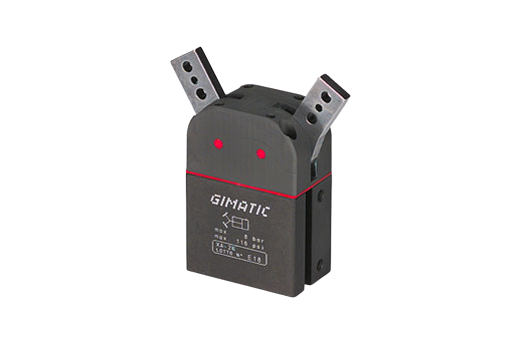

2-jaw angular grippers - XA
Double-acting drive. | Very high performance/price ratio. | Lightweight, as light alloy and plastic resin had been utilized. | Gripper mounting possible on two sides. | Optional magnetic sensors. | FDA-H1 food-grade grease..
