2-jaw self-centering angular mini gripper series TFA - TFA
- Single-acting drive with spring opening
- Various mounting accessories available.
- Optional suspension kit.
- FDA-H1 food-grade grease.
- Single-acting drive with spring opening
- Various mounting accessories available.
- Optional suspension kit.
- FDA-H1 food-grade grease.
Weight
Closing force
Opening force

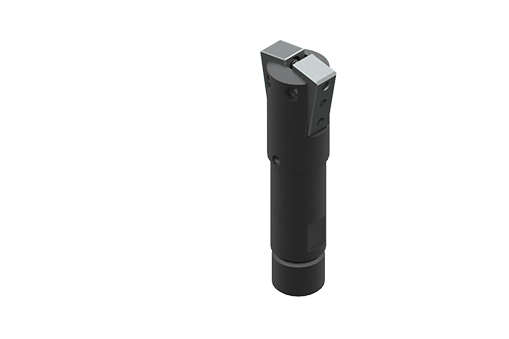

TFA10-25
Self-centring angular mini gripper, 2 jaws, 2.5÷8 bar, M5
Actuation
Pneumatic
Closing Force
34.0 N
Finger Linear Stroke
6.25 mm
Opening Force
34.0 N
Torque
34.0 N*cm
Weight
12.0 Gr

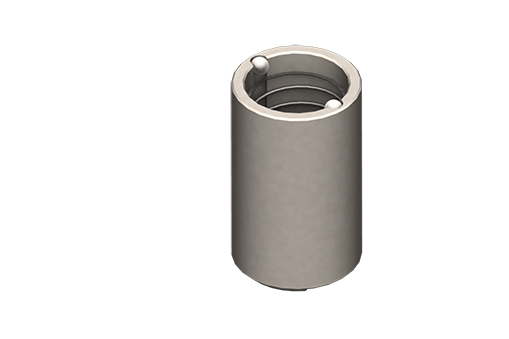

TFA10SP05
Suspension for TFA10 gripper, stroke 5 mm
Weight
10.0 Gr

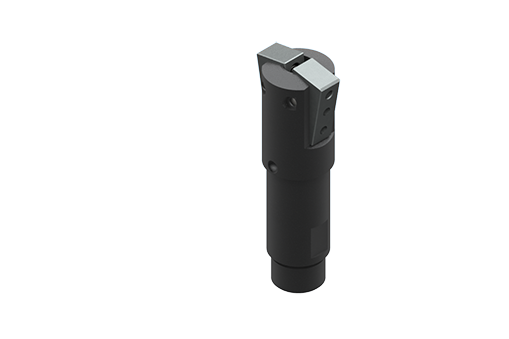

TFA14-25
Self-centring angular mini gripper, 2 jaws, 2.5/8 bar, M5
Actuation
Pneumatic
Closing Force
96.0 N
Finger Linear Stroke
6.25 mm
Opening Force
96.0 N
Torque
96.0 N*cm
Weight
30.0 Gr

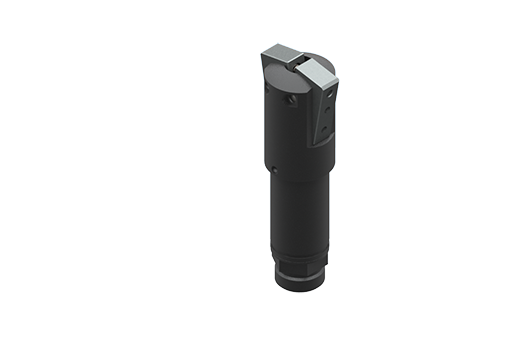

TFA20-25
Self-centring angular mini gripper, 2 jaws, 2.5/8 bar, M5
Actuation
Pneumatic
Closing Force
430.0 N
Finger Linear Stroke
6.25 mm
Opening Force
430.0 N
Torque
430.0 N*cm
Weight
95.0 Gr
TFA10-25
Actuation
Pneumatic
Closing Force
34.0 N
Finger Linear Stroke
6.25 mm
Opening Force
34.0 N
Torque
34.0 N*cm
Weight
12.0 Gr
TFA10SP05
Weight
10.0 Gr
TFA14-25
Actuation
Pneumatic
Closing Force
96.0 N
Finger Linear Stroke
6.25 mm
Opening Force
96.0 N
Torque
96.0 N*cm
Weight
30.0 Gr
TFA20-25
Actuation
Pneumatic
Closing Force
430.0 N
Finger Linear Stroke
6.25 mm
Opening Force
430.0 N
Torque
430.0 N*cm
Weight
95.0 Gr
