2-jaw angular grippers - XA

Double-acting drive.
Very high performance/price ratio.
Lightweight, as light alloy and plastic resin had been utilized.
Gripper mounting possible on two sides.
Optional magnetic sensors.
FDA-H1 food-grade grease.

Double-acting drive.
Very high performance/price ratio.
Lightweight, as light alloy and plastic resin had been utilized.
Gripper mounting possible on two sides.
Optional magnetic sensors.
FDA-H1 food-grade grease.

Jaw angular stroke

Closing torque

Opening torque

Weight

XA-20

XA-20

Angular self-centring pneumatic gripper, 2 jaws, 2/8 bar, M5

Actuation
Pneumatic
Closing Torque
92.0 N*CM
Finger Angular Stroke
30.0 GRADI
Ip
40.0
Opening Torque
100.0 N*CM
Torque
92-100 N*cm
Weight
140.0 Gr

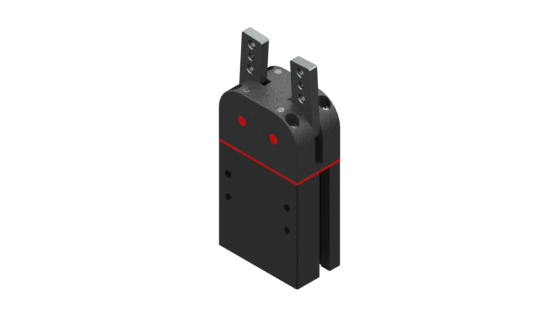

XA-20-NC

XA-20-NC

Self-centring angular pneumatic gripper, 2 jaws, normally closed, 4/8 bar, M5

Actuation
Pneumatic
Closing Torque
112.0 N*CM
Finger Angular Stroke
30.0 GRADI
Ip
40.0
Opening Torque
80.0 N*CM
Weight
140.0 Gr

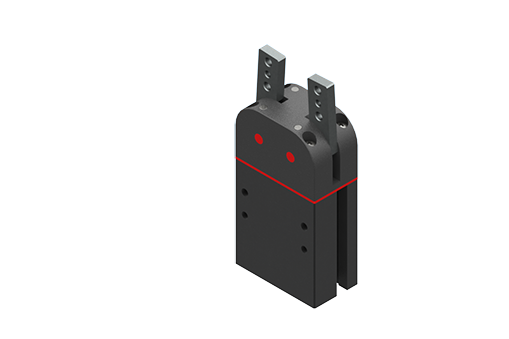

XA-20-NO

XA-20-NO

Angular self-centring pneumatic gripper, 2 jaws, normally open, 4/8 bar, M5

Actuation
Pneumatic
Closing Torque
68.0 N*CM
Finger Angular Stroke
30.0 GRADI
Ip
40.0
Opening Torque
124.0 N*CM
Torque
68-124 N*cm
Weight
140.0 Gr

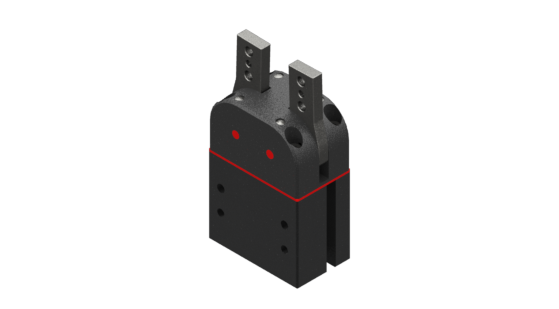

XA-26

XA-26

Angular self-centring pneumatic gripper, 2 jaws, 2/8 bar, M5

Actuation
Pneumatic
Closing Torque
158.0 N*CM
Finger Angular Stroke
32.0 GRADI
Ip
40.0
Opening Torque
170.0 N*CM
Torque
158-170 N*cm
Weight
250.0 Gr

XA-26-NC

XA-26-NC

Angular self-centring pneumatic gripper, 2 jaws, normally closed, 4/8 bar, M5

Actuation
Pneumatic
Closing Torque
204.0 N*CM
Finger Angular Stroke
32.0 GRADI
Ip
40.0
Opening Torque
124.0 N*CM
Torque
204-124 N*cm
Weight
250.0 Gr

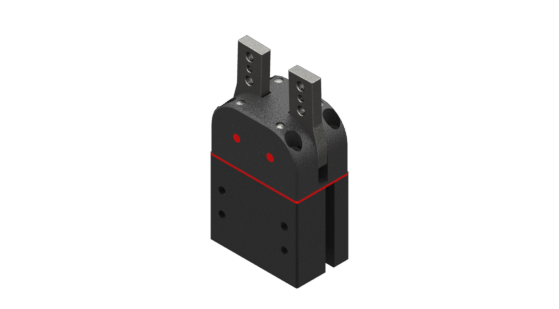

XA-26-NO

XA-26-NO

Angular self-centring pneumatic gripper, 2 jaws, normally open, 4/8 bar, M5

Actuation
Pneumatic
Closing Torque
100.0 N*CM
Finger Angular Stroke
32.0 GRADI
Ip
40.0
Opening Torque
228.0 N*CM
Torque
100-228 N*cm
Weight
250.0 Gr
