2-jaw non-selfcentering angular pneumatic sprue gripper series BB - BB
- BB-12-00, double-acting.
- BB-12-NO, normally open.
- BB-13-NO, normally open with sensor.
- Body and jaws made of cast zinc alloy (zamak).
- Slim profile.
- Gripper mounting possible on two sides.
- FDA-H1 food-grade grease.
- BB-12-00, double-acting.
- BB-12-NO, normally open.
- BB-13-NO, normally open with sensor.
- Body and jaws made of cast zinc alloy (zamak).
- Slim profile.
- Gripper mounting possible on two sides.
- FDA-H1 food-grade grease.
Weight

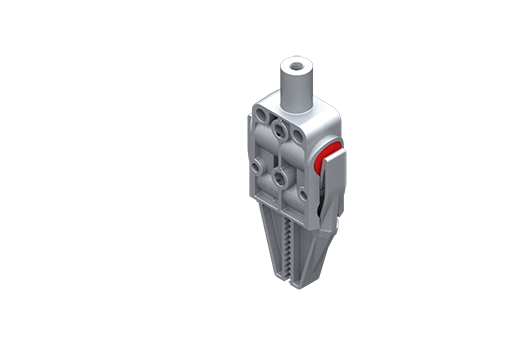

BB-12-00
Angular non-self-centring pneumatic gripper, 2.5/8 bar, M5
Torque
65.0 N*cm
Weight
76.0 Gr

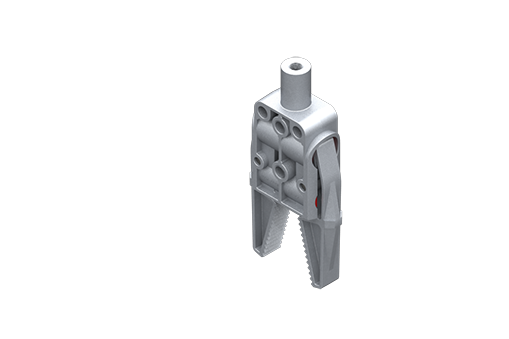

BB-12-NO
Angular non-self-centring pneumatic gripper, normally open, 2.5/8 bar, M5
Torque
60.0 N*cm
Weight
77.0 Gr

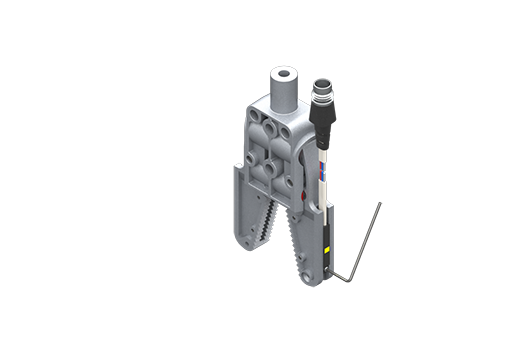

BB-13-NO
Angular non-self-centring pneumatic gripper, normally open, 2.5/8 bar, M5, sensor SS3N203Y-1, 0.9mm key
Torque
60.0 N*cm
Weight
91.0 Gr
