Radial grippers
Radial grippers feature a 90-degree movement on each finger, and can achieve a 180-degree opening-closing movement. They can be used in applications involving rotary/linear indexing tables for preventing finger crushes when turning/moving the stations.

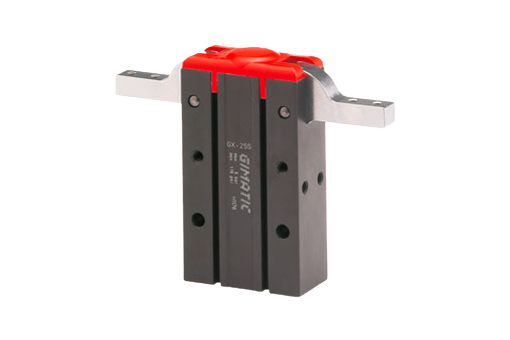

2-jaw self centering radial pneumatic gripper series GX-S - GX-S
Double-acting drive. | Very high gripping force at the end of the closing stroke. | Maintenance-free long life and reliability. | Various options for fastening. | Optional magnetic sensors. | FDA-H1 food-grade grease..

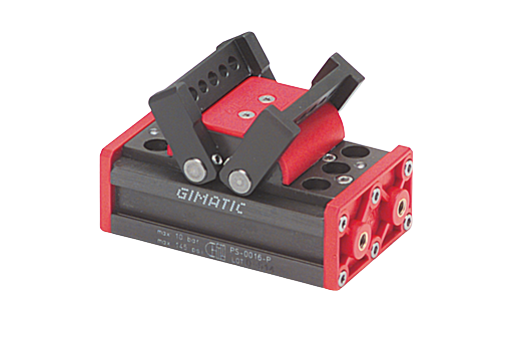

2-jaw self-centering radial pneumatic gripper series PS - PS
Double acting radial drive. | The gripping force is totally available on the entire stroke (from 0° to 90° both on opening and on closing). | Light weight, due to its alloy construction. | Rugged construction. | Well protected against dusty environment. | FDA-H1 food-grade grease..

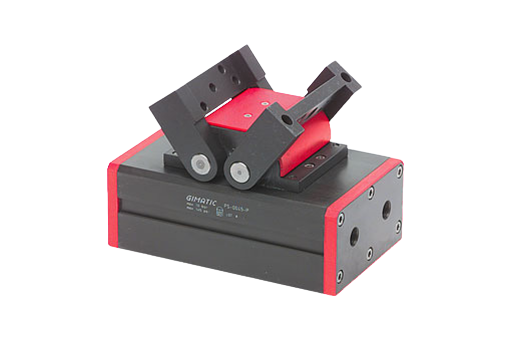

2-jaw self-centering radial pneumatic gripper series PS-P - PS-P
Double acting radial drive. | The gripping force is totally available on the entire stroke (from 0° to 90° both on opening and on closing). | Light weight; due to its alloy construction. | Flat profile. | Well protected against dusty environment. | As more than two sensors can be mounted, versatile operating is possible. | FDA-H1 food-grade grease..

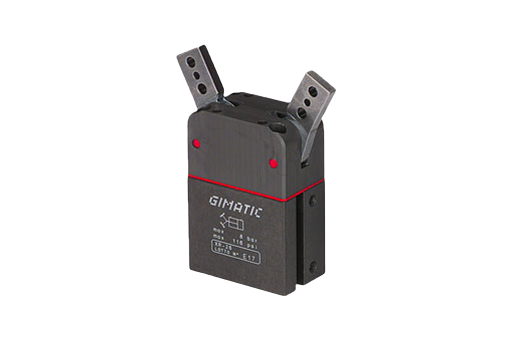

2-jaw radial grippers - XR
Double-acting drive. | Very high performance/price ratio. | Lightweight, as light alloy and plastic resin had been utilized. | Gripper mounting possible on two sides. | Optional magnetic sensors. | FDA-H1 food-grade grease..
