2-jaw non-selfcentering angular pneumatic sprue gripper series PB - PB
- Non-self-centering double-acting drive.
- Jaws with double connection, for applications with simultaneous loading/unloading.
- Low weight.
- Flat profile.
- Simple and reliable.
- Corrosion-resistant.
- FDA-H1 food-grade grease.
- Non-self-centering double-acting drive.
- Jaws with double connection, for applications with simultaneous loading/unloading.
- Low weight.
- Flat profile.
- Simple and reliable.
- Corrosion-resistant.
- FDA-H1 food-grade grease.
Weight
Jaw angular stroke
Closing torque

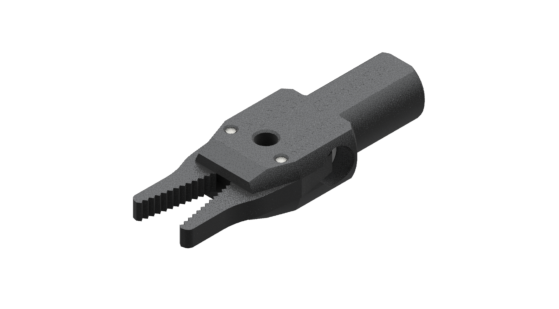

PB-0002
Angular non-self-centring pneumatic gripper, 2.5/8 bar, M5
Closing Torque
10.0 N*CM
Finger Angular Stroke
10.0 GRADI
Torque
10.0 N*cm
Weight
7.0 Gr

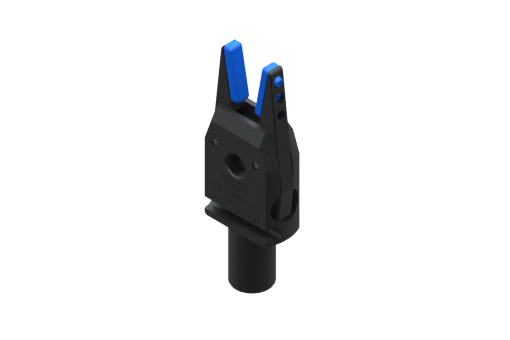

PB-0007-S3
Angular non-self-centring pneumatic gripper, Ø8, M5, 2.5/8 bar, HNBR pad, with sensor slot
Closing Torque
24.0 N*CM
Finger Angular Stroke
10.0 GRADI
Torque
24.0 N*cm
Weight
15.0 Gr

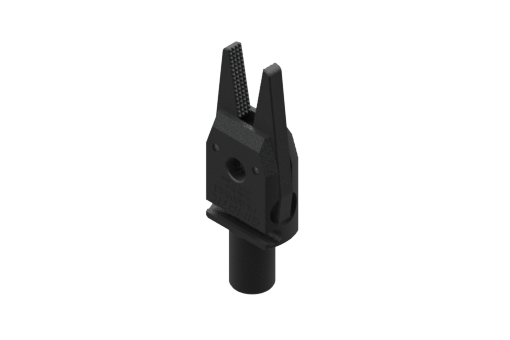

PB-0008-S3
PINZA PNEUMATICA ANGOLARE NON AUTOCENTRANTE Ø8, M5, 2.5/8 bar, CON CAVA SENSORE
Closing Torque
24.0 N*CM
Finger Angular Stroke
10.0 GRADI
Torque
24.0 N*cm
Weight
15.0 Gr

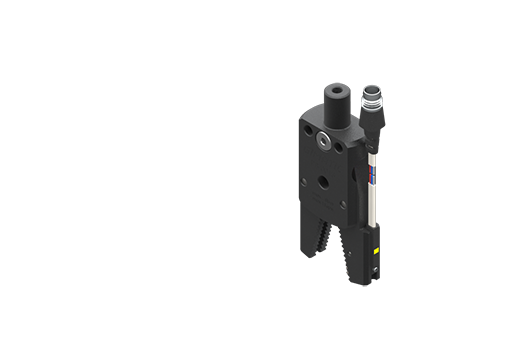

PB-0013
Angular non-self-centring pneumatic gripper, 2.5/8 bar, M5, sensor SS3N203-G, 0.9 mm key
Closing Torque
80.0 N*CM
Finger Angular Stroke
15.0 GRADI
Torque
80.0 N*cm
Weight
55.0 Gr

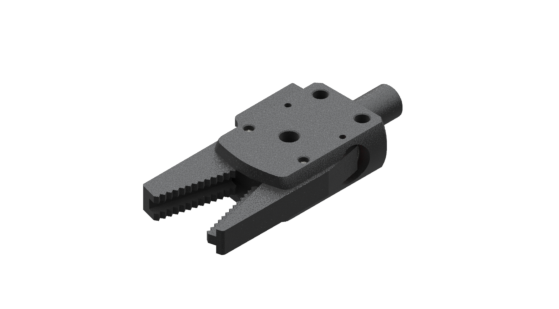

PB-0013-S2
Pneumatic angular gripper with optional sensor, 4/8 bar, M5
Closing Torque
80.0 N*CM
Finger Angular Stroke
15.0 GRADI
Torque
80.0 N*cm
Weight
50.0 Gr

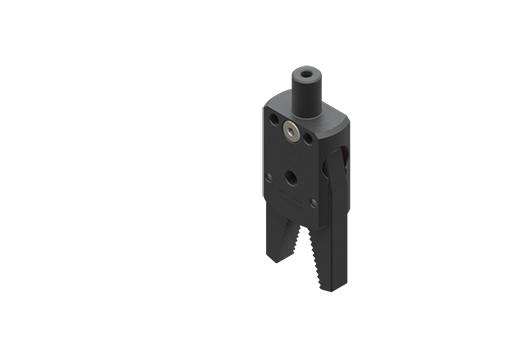

PB-0014
Angular non-self-centring pneumatic gripper, 2.5/8 bar, M5
Closing Torque
80.0 N*CM
Finger Angular Stroke
15.0 GRADI
Torque
80.0 N*cm
Weight
50.0 Gr

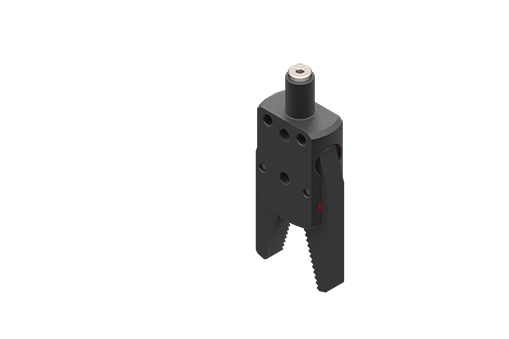

PB-0015
Angular non-self-centring pneumatic gripper, 2.5/8 bar, M5
Closing Torque
80.0 N*CM
Finger Angular Stroke
15.0 GRADI
Torque
60-25 N*cm
Weight
50.0 Gr

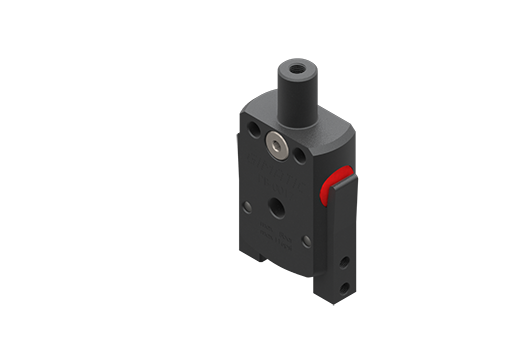

PB-0017
Angular non-self-centring pneumatic gripper, 2.5/8 bar, M5, customisable jaws
Closing Torque
80.0 N*CM
Finger Angular Stroke
15.0 GRADI
Torque
80.0 N*cm
Weight
45.0 Gr

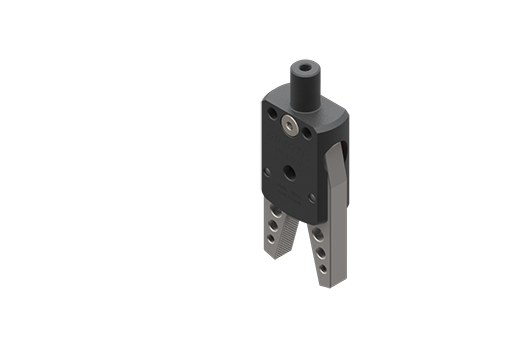

PB-0140
Angular non-self-centring pneumatic gripper, 2.5/8 bar, M5
Closing Torque
60.0 N*CM
Finger Angular Stroke
15.0 GRADI
Opening Torque
25.0 N*CM
Torque
80.0 N*cm
Weight
75.0 Gr

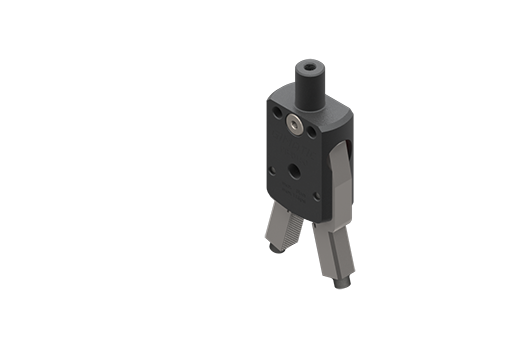

PB-0150
Angular non-self-centring pneumatic gripper, 2.5/8 bar, M5, swivelling jaws
Closing Torque
80.0 N*CM
Finger Angular Stroke
15.0 GRADI
Torque
80.0 N*cm
Weight
75.0 Gr

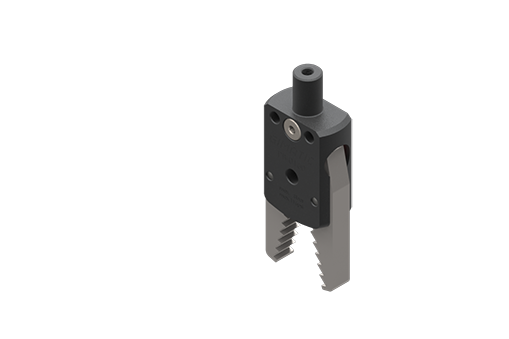

PB-0160
Angular non-self-centring pneumatic gripper, 2.5/8 bar, M5
Closing Torque
80.0 N*CM
Finger Angular Stroke
15.0 GRADI
Torque
80.0 N*cm
Weight
75.0 Gr

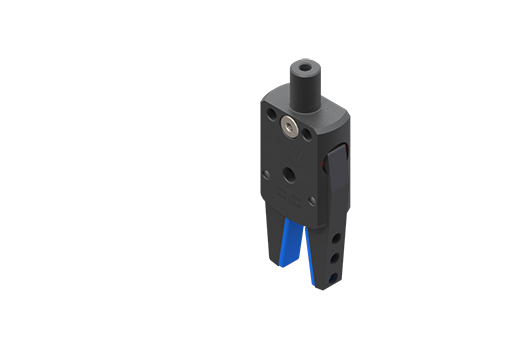

PB-0170
Angular non-self-centring pneumatic gripper, 2.5/8 bar, M5, HNBR pad
Closing Torque
80.0 N*CM
Finger Angular Stroke
15.0 GRADI
Torque
80.0 N*cm
Weight
50.0 Gr

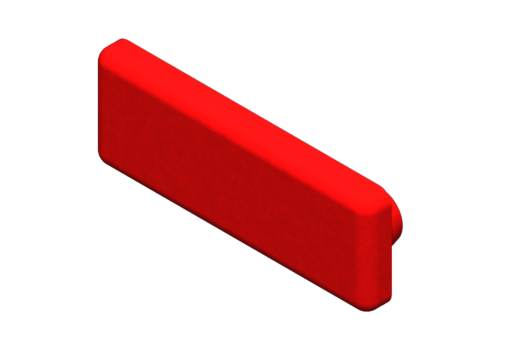

New PB-0170-08
Silicone pad, 70 Sh.A
Closing Torque
80.0 N*CM
Finger Angular Stroke
15.0 GRADI
Weight
0.49 Gr

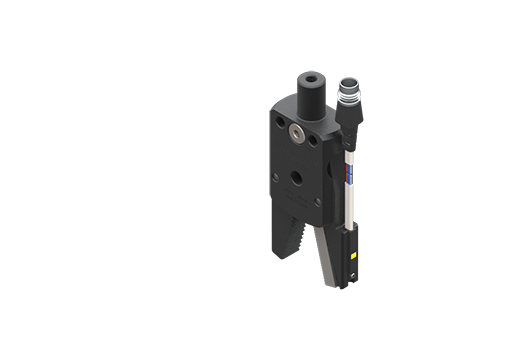

PB-0180
Angular non-self-centring pneumatic gripper, 2.5/8 bar, M5, sensor SS3N203-G, 0.9mm key, steel probe
Closing Torque
80.0 N*CM
Finger Angular Stroke
15.0 GRADI
Torque
80.0 N*cm
Weight
60.0 Gr
PB-0180-S2
Pneumatic angular gripper with optional sensor, 4/8 bar, M5
Closing Torque
80.0 N*CM
Finger Angular Stroke
15.0 GRADI
Torque
80.0 N*cm
Weight
60.0 Gr
New PB-0180-SV
Pneumatic angular gripper for vacuum sensor, 4/8 bar, M5
Closing Torque
80.0 N*CM
Finger Angular Stroke
15.0 GRADI
Torque
80.0 N*cm
Weight
74.0 Gr

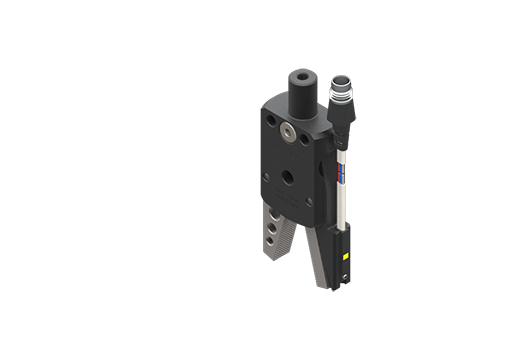

PB-0181
Angular non-self-centring pneumatic gripper, 2.5/8 bar, M5, sensor SS3N203Y-1, 0.9mm key, steel probe
Closing Torque
80.0 N*CM
Finger Angular Stroke
15.0 GRADI
Torque
80.0 N*cm
Weight
75.0 Gr

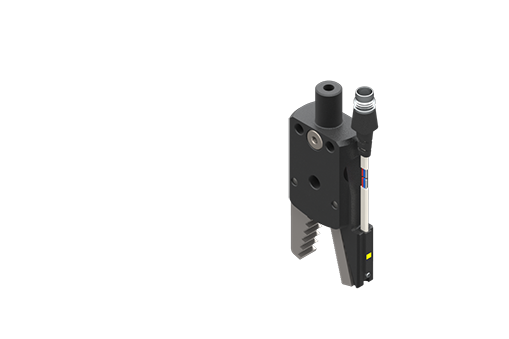

PB-0182
Angular non-self-centring pneumatic gripper, 2.5/8 bar, M5, sensor SS3N203Y-1, 0.9mm key, steel probe
Closing Torque
80.0 N*CM
Finger Angular Stroke
15.0 GRADI
Torque
80.0 N*cm
Weight
75.0 Gr

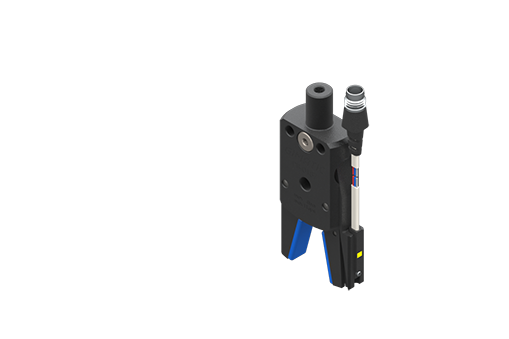

PB-0187
Angular non-self-centring pneumatic gripper, 2.5/8 bar, M5, sensor SS3N203Y-1, 0.9mm key, probe, HNBR pad
Closing Torque
80.0 N*CM
Finger Angular Stroke
15.0 GRADI
Torque
80.0 N*cm
Weight
57.0 Gr
PB-0187-S2
Pneumatic angular gripper with optional sensor, 4/8 bar, M5, HNBR pad
Closing Torque
80.0 N*CM
Finger Angular Stroke
15.0 GRADI
Torque
80.0 N*cm
Weight
58.0 Gr

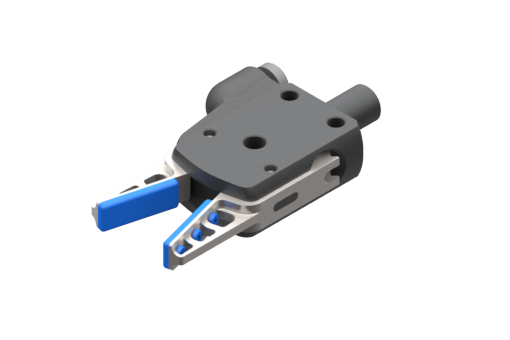

New PB-0187-SV
Angular pneumatic gripper
Closing Torque
80.0 N*CM
Finger Angular Stroke
15.0 GRADI
Torque
80.0 N*cm
Weight
65.0 Gr
