Self-centering angular pneumatic grippers - PN
- Double-acting drive.
- High efficiency and reliability due to the lack of driving parts.
- Choice: 2 or 3 jaws.
- Optional magnetic sensors.
- FDA-H1 food-grade grease.
- Double-acting drive.
- High efficiency and reliability due to the lack of driving parts.
- Choice: 2 or 3 jaws.
- Optional magnetic sensors.
- FDA-H1 food-grade grease.
Closing torque
Opening torque
Weight

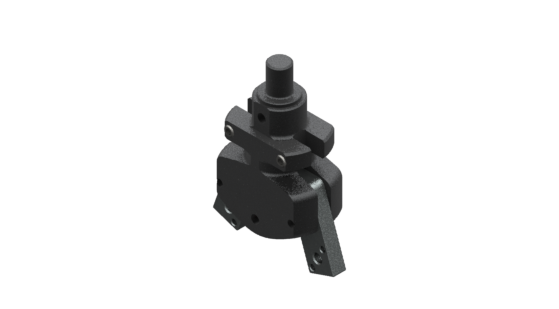

PN-010-2
Rocking self-centring pneumatic gripper, 2 jaws, 2/8 bar, M3
Actuation
Pneumatic
Closing Torque
30.0 N*CM
Finger Angular Stroke
19.0 GRADI
Ip
40.0
Opening Torque
30.0 N*CM
Torque
30.0 N*cm
Weight
36.0 Gr

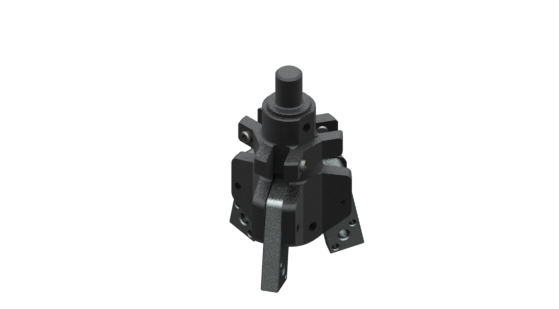

PN-010-3
Rocking self-centring pneumatic gripper, 3 jaws, 2/8 bar, M3
Actuation
Pneumatic
Closing Torque
30.0 N*CM
Finger Angular Stroke
19.0 GRADI
Ip
40.0
Opening Torque
30.0 N*CM
Torque
30.0 N*cm
Weight
32.0 Gr

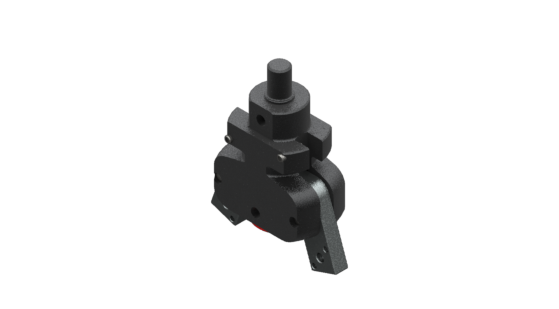

PN-016-2
Rocking self-centring pneumatic gripper, 2 jaws, 2/8 bar, M5
Actuation
Pneumatic
Closing Torque
114.0 N*CM
Finger Angular Stroke
19.0 GRADI
Ip
40.0
Opening Torque
114.0 N*CM
Torque
114.0 N*cm
Weight
115.0 Gr

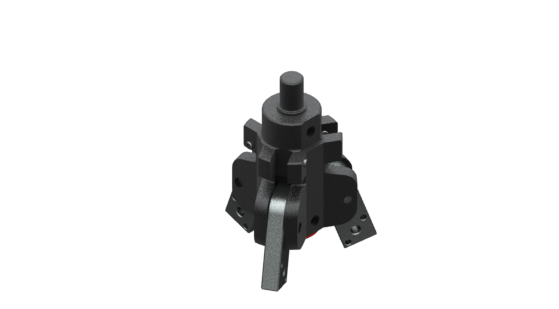

PN-016-3
Rocking self-centring pneumatic gripper, 3 jaws, 2/8 bar, M5
Actuation
Pneumatic
Closing Torque
114.0 N*CM
Finger Angular Stroke
19.0 GRADI
Ip
40.0
Opening Torque
114.0 N*CM
Torque
114.0 N*cm
Weight
105.0 Gr
PN-025-2
Rocking self-centring pneumatic gripper, 2 jaws, 2/8 bar, M5
Actuation
Pneumatic
Closing Torque
498.0 N*CM
Finger Angular Stroke
19.0 GRADI
Ip
40.0
Opening Torque
498.0 N*CM
Torque
498.0 N*cm
Weight
400.0 Gr

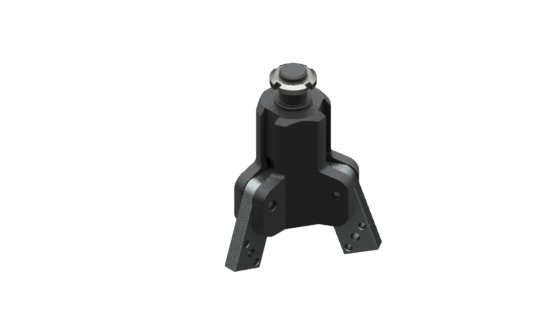

PN-025-3
Rocking self-centring pneumatic gripper, 3 jaws, 2/8 bar, M5
Actuation
Pneumatic
Closing Torque
498.0 N*CM
Finger Angular Stroke
19.0 GRADI
Ip
40.0
Opening Torque
498.0 N*CM
Torque
498.0 N*cm
Weight
340.0 Gr

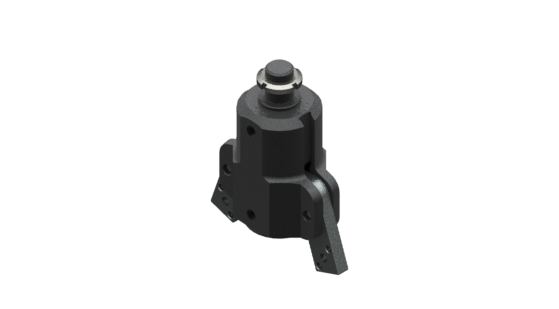

PN-040-2
Rocking self-centring pneumatic gripper, 2 jaws, 2/8 bar, G1/8
Actuation
Pneumatic
Closing Torque
1302.0 N*CM
Finger Angular Stroke
19.0 GRADI
Ip
40.0
Opening Torque
1302.0 N*CM
Torque
1302.0 N*cm
Weight
1040.0 Gr

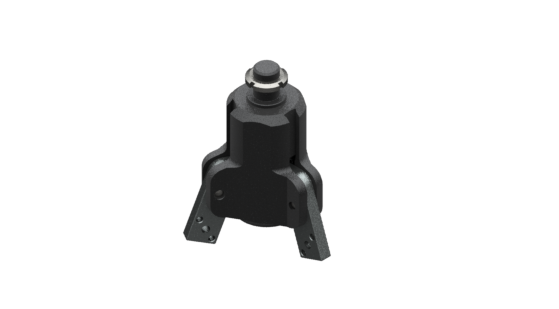

PN-040-3
Rocking self-centring pneumatic gripper, 3 jaws, 2/8 bar, G1/8
Actuation
Pneumatic
Closing Torque
1302.0 N*CM
Finger Angular Stroke
19.0 GRADI
Ip
40.0
Opening Torque
1302.0 N*CM
Torque
1302.0 N*cm
Weight
910.0 Gr
