2-jaw self-centering angular pneumatic sprue gripper series AA - AA
- Double-acting or with normally open spring (-NO).
- Very high gripping force in relation to weight and dimensions.
- Various fastening options.
- Optional magnetic sensors.
- FDA-H1 food-grade grease.
- Double-acting or with normally open spring (-NO).
- Very high gripping force in relation to weight and dimensions.
- Various fastening options.
- Optional magnetic sensors.
- FDA-H1 food-grade grease.
Weight

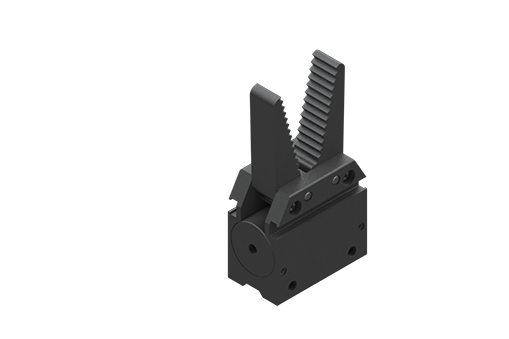

AA-22
Angular self-centring pneumatic gripper, 2.5/8 bar, M5
Actuation
Pneumatic
Torque
300-300 N*cm
Weight
115.0 Gr

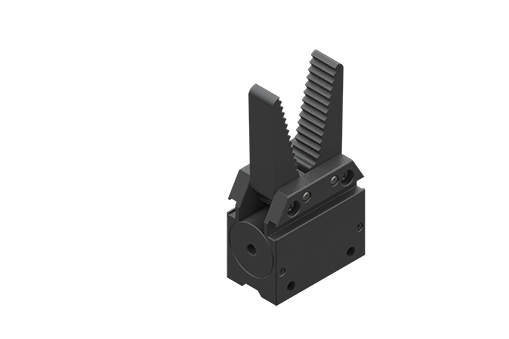

AA-22-NO
Angular self-centring pneumatic gripper, normally open, 2.5/8 bar, M5
Actuation
Pneumatic
Torque
250-350 N*cm
Weight
115.0 Gr

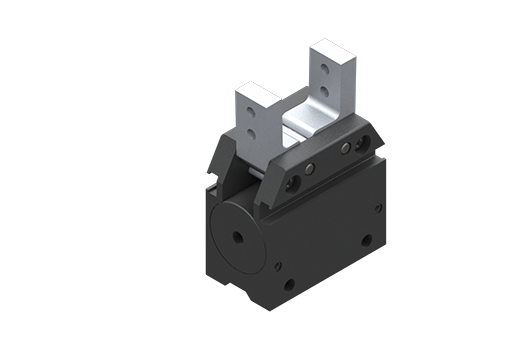

AA-23
Angular self-centring pneumatic gripper, 2.5/8 bar, M5
Actuation
Pneumatic
Torque
300-300 N*cm
Weight
100.0 Gr
AA-23-NO
Angular self-centring pneumatic gripper, normally open, 2.5/8 bar, M5
Actuation
Pneumatic
Torque
250-350 N*cm
Weight
100.0 Gr

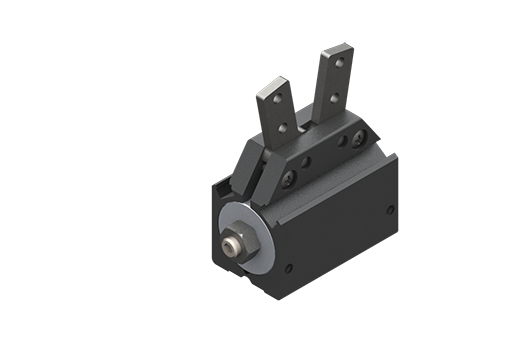

AA-25-NO
Angular self-centring pneumatic gripper, normally open, 2.5/8 bar, M5
Actuation
Pneumatic
Closing Torque
250.0 N*CM
Finger Angular Stroke
14.0 GRADI
Ip
30.0
Opening Torque
350.0 N*CM
Torque
250-50 N*cm
Weight
105.0 Gr

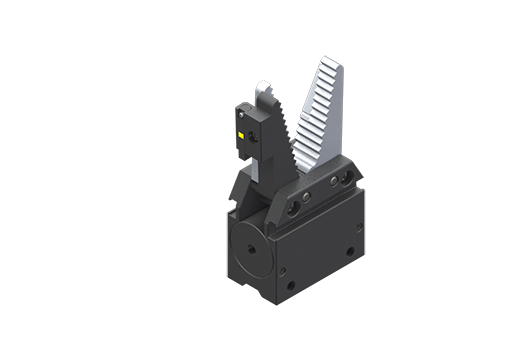

AA-26
Angular self-centring pneumatic gripper, 2.5/8 bar, M5, sensor SS3N203-G, 0.9mm key
Actuation
Pneumatic
Torque
300-300 N*cm
Weight
120.0 Gr

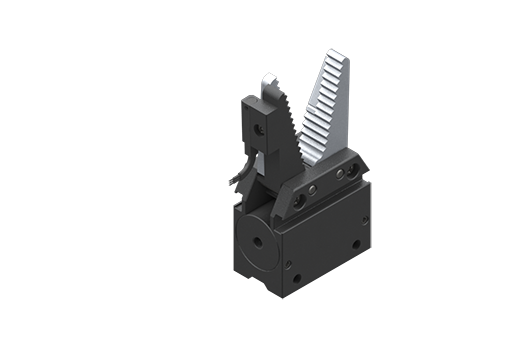

AA-26-NO
Angular self-centring pneumatic gripper, N.O., 2.5/8 bar, M5, sen SS3N203-G, 0.9mm key
Actuation
Pneumatic
Torque
250-350 N*cm
Weight
120.0 Gr

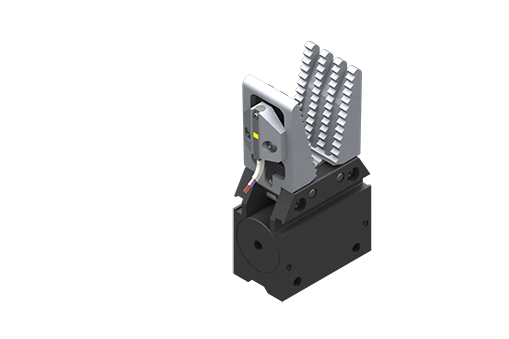

AA-35
Angular self-centring pneumatic gripper, , M5, sensor SS3N203-G, 0.9mm key
Actuation
Pneumatic
Torque
300-300 N*cm
Weight
140.0 Gr

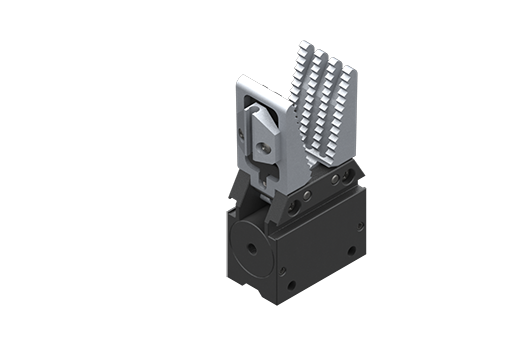

AA-35-NO
Angular self-centring pneumatic gripper, normally open, 2.5/8 bar, M5, sensor SS3N203-G, 0.9mm key
Actuation
Pneumatic
Torque
250-350 N*cm
Weight
140.0 Gr
AA-22
Actuation
Pneumatic
Torque
300-300 N*cm
Weight
115.0 Gr
AA-22-NO
Actuation
Pneumatic
Torque
250-350 N*cm
Weight
115.0 Gr
AA-23
Actuation
Pneumatic
Torque
300-300 N*cm
Weight
100.0 Gr
AA-23-NO
Actuation
Pneumatic
Torque
250-350 N*cm
Weight
100.0 Gr
AA-25-NO
Actuation
Pneumatic
Closing Torque
250.0 N*CM
Finger Angular Stroke
14.0 GRADI
Ip
30.0
Opening Torque
350.0 N*CM
Torque
250-50 N*cm
Weight
105.0 Gr
AA-26
Actuation
Pneumatic
Torque
300-300 N*cm
Weight
120.0 Gr
AA-26-NO
Actuation
Pneumatic
Torque
250-350 N*cm
Weight
120.0 Gr
AA-35
Actuation
Pneumatic
Torque
300-300 N*cm
Weight
140.0 Gr
AA-35-NO
Actuation
Pneumatic
Torque
250-350 N*cm
Weight
140.0 Gr
