Pneumatic rotary units
Gimatic offers a wide range of pneumatic rotary units: tilt units, pneumatic indexers and rotary actuators with intermediate stop.

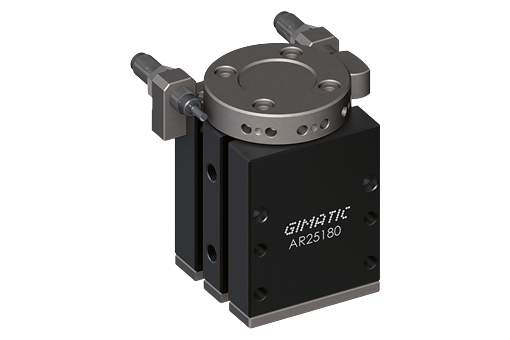

AR
New (1)New (1)

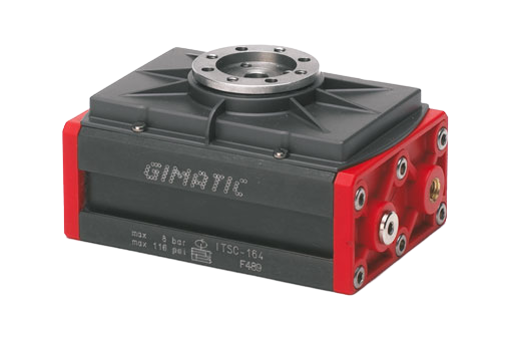

Pneumatic indexing tables series ITSC - ITSC
Available in two sizes with 4, 6 or 8 positions. | Clockwise or anticlockwise (A suffix) direction of rotation. | High torque. | Suitable for heavy loads. | Through hole for cables and hoses. | Reduced weight and overall dimensions..

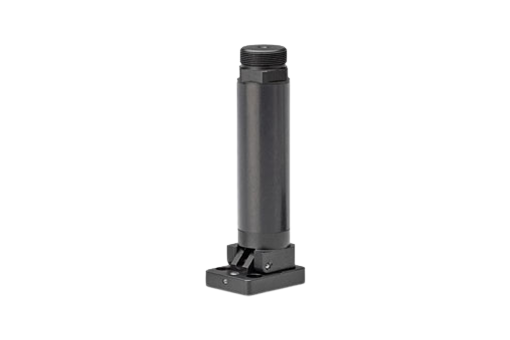

Pneumatic tilt unit for small EOATs series OFN - OFN
90° rotation. | Single-acting or double-acting operation (SD). | Various mounting accessories available. | Optional magnetic sensors to be mounted with external clamp SWP, or directly in the slot (SD)..

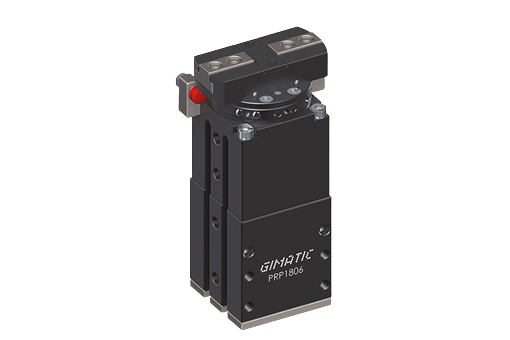

Rotary actuator - PRP
New (1)Suitable for 45°/90°/135°/180° rotation angles. | Gripper with integrated rotator: the four sensors and the four hoses do not rotate. | Optional magnetic sensors. | Spring closed (-NC) or spring open (-NO) option available upon request..New (1)

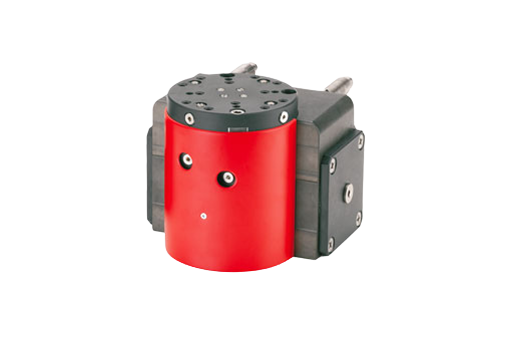

2 position pneumatic swivelling units series R - R
Hannover IF Design Award 1999 winner. | Modular with Gimapick system. | Suitable for 90° or 180° rotation angles. | Shock-absorbers. | Ball bearings. | Integrated rotating distributor of compressed air. | Air feeding possible directly from the fixing plate. | Optional magnetic sensors..

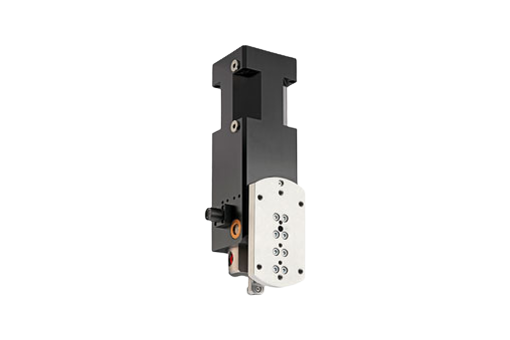

Pneumatic tilt units for EOATs series RBT - RBT
90° rotation. | Two adjustable rubber stroke end stops. | High lifting torque. | Safety lock, except RBT30. | Optional magnetic sensors..

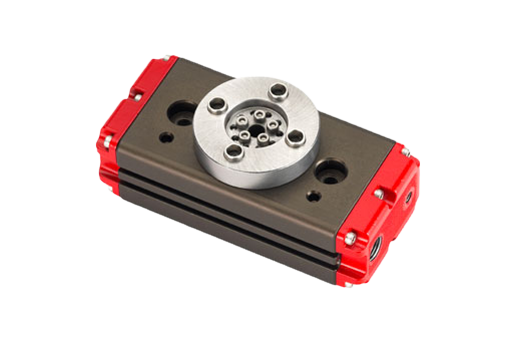

Pneumatic swivelling units series RT - RT
Rack and pinion movement. | Continuously adjustable stroke. | Large ball bearings on the shaft. | Through hole in the pinion. | Optional rubber bumpers (FGD) or hydraulic shock-absorber. | Optional intermediate stopper (RTD). | Optional proximity magnetic sensors..
