Vacuum pump with embedded electronics - EJ-XPRO

  • Vacuum pump with advanced control functions, available with two-stage EJ-LARGE cartridges with non-return valve (EJ-HF, EJ-HV, EJ-LP)
  • Energy saving system (ES), with manual and automatic modes, that saves up to 95% of compressed air in sealed applications
  • Blow-off mechanism electrically controllable by pin or automatically at each cycle
  • Large TFT colour display with intuitive and easy-to-read menu and pump status indications
  • Electrical connection via M12 8-pin connector
  • It can be installed in series (max 4 units)
  • Vacuum pump with advanced control functions, available with two-stage EJ-LARGE cartridges with non-return valve (EJ-HF, EJ-HV, EJ-LP)
  • Energy saving system (ES), with manual and automatic modes, that saves up to 95% of compressed air in sealed applications
  • Blow-off mechanism electrically controllable by pin or automatically at each cycle
  • Large TFT colour display with intuitive and easy-to-read menu and pump status indications
  • Electrical connection via M12 8-pin connector
  • It can be installed in series (max 4 units)

Max vacuum

Max suction flow

Weight

3400100

3400100

X-PRO series vacuum pump, with energy saving, LCD display, EJ-L-HF-2-NR ejector, normally open version

  • Air Feeding Connection

    G1/4'' Femmina

  • Air Feeding Out

    G1/2'' Femmina

  • Ejector Characteristics

    Elevata aspirazione

  • Ejector Number Of Stages

    2.0

  • Ejector Size

    LARGE

  • Max Flow Rate

    3.2 Nl/s

  • Max Vacuum

    -73.0 kPa

  • Weight

    716.0 Gr

3400101

3400101

X-PRO series vacuum pump, with energy saving, LCD display, EJ-L-HV-2-NR ejector, normally open version

  • Air Feeding Connection

    G1/4'' Femmina

  • Air Feeding Out

    G1/2'' Femmina

  • Ejector Characteristics

    Alto grado di vuoto

  • Ejector Number Of Stages

    2.0

  • Ejector Size

    LARGE

  • Max Flow Rate

    2.6 Nl/s

  • Max Vacuum

    -94.0 kPa

  • Weight

    700.0 Gr

3400102

3400102

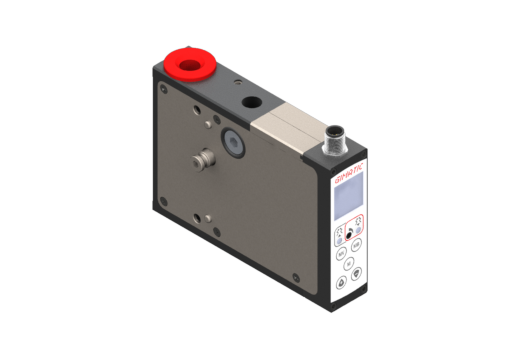

X-PRO series vacuum pump, with energy saving, LCD display, EJ-L-LP-2-NR ejector, normally open version

  • Air Feeding Connection

    G1/4'' Femmina

  • Air Feeding Out

    G1/2'' Femmina

  • Ejector Characteristics

    Bassa pressione di alimentazione

  • Ejector Number Of Stages

    2.0

  • Ejector Size

    LARGE

  • Max Flow Rate

    2.9 Nl/s

  • Max Vacuum

    -90.0 kPa

  • Weight

    716.0 Gr

3400103

3400103

X-PRO series vacuum pump, with energy saving, LCD display, EJ-L-HF-2-NR ejector, normally closed version

  • Air Feeding Connection

    G1/4'' Femmina

  • Air Feeding Out

    G1/2'' Femmina

  • Ejector Characteristics

    Elevata aspirazione

  • Ejector Number Of Stages

    2.0

  • Ejector Size

    LARGE

  • Max Flow Rate

    3.2 Nl/s

  • Max Vacuum

    -73.0 kPa

  • Weight

    716.0 Gr

3400104

3400104

X-PRO series vacuum pump, with energy saving, LCD display, EJ-L-HV-2-NR ejector, normally closed version

  • Air Feeding Connection

    G1/4'' Femmina

  • Air Feeding Out

    G1/2'' Femmina

  • Ejector Characteristics

    Alto grado di vuoto

  • Ejector Number Of Stages

    2.0

  • Ejector Size

    LARGE

  • Max Flow Rate

    2.6 Nl/s

  • Max Vacuum

    -94.0 kPa

  • Weight

    700.0 Gr

3400105

3400105

X-PRO series vacuum pump, with energy saving, LCD display, EJ-L-LP-2-NR ejector, normally closed version

  • Air Feeding Connection

    G1/4'' Femmina

  • Air Feeding Out

    G1/2'' Femmina

  • Ejector Characteristics

    Bassa pressione di alimentazione

  • Ejector Number Of Stages

    2.0

  • Ejector Size

    LARGE

  • Max Flow Rate

    2.9 Nl/s

  • Max Vacuum

    -90.0 kPa

  • Weight

    716.0 Gr
