Cartridges, EJ-SMALL size - EJ-SMALL
- Two-stage cartridges with extremely compact dimensions
- Can be integrated near the gripping point, lightweight
- Available in the cartridge-only or cartridge with holder versions
- Two-stage cartridges with extremely compact dimensions
- Can be integrated near the gripping point, lightweight
- Available in the cartridge-only or cartridge with holder versions
Max vacuum
Max suction flow
Weight
3300001

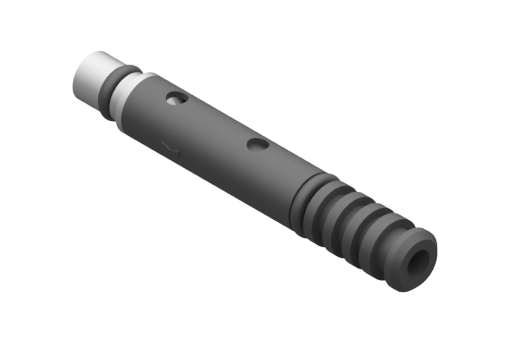

EJ-SMALL-LP-2 ejector without holder
Ejector Characteristics
Bassa pressione di alimentazione
Ejector Size
SMALL
Max Flow Rate
0.25 Nl/s
Max Vacuum
-82.0 kPa
Weight
0.64 Gr
3300002

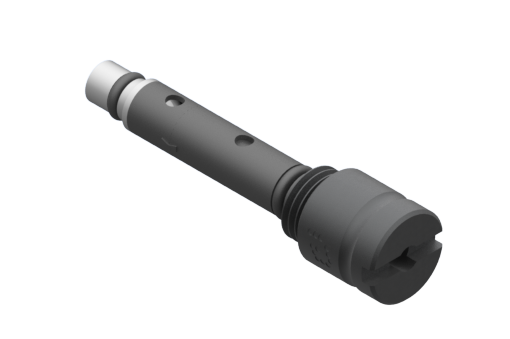

EJ-SMALL-LP-2 ejector with holder
Ejector Characteristics
Bassa pressione di alimentazione
Ejector Number Of Stages
2.0
Ejector Size
SMALL
Max Flow Rate
0.25 Nl/s
Max Vacuum
-82.0 kPa
Weight
1.9 Gr
3300003

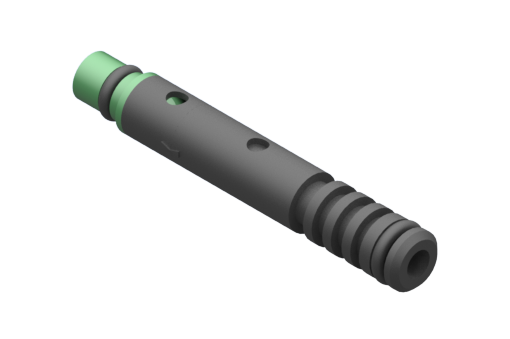

EJ-SMALL-HF-2 ejector without holder
Ejector Characteristics
Elevata aspirazione
Ejector Size
SMALL
Max Flow Rate
0.29 Nl/s
Max Vacuum
-78.0 kPa
Weight
0.63 Gr
3300004

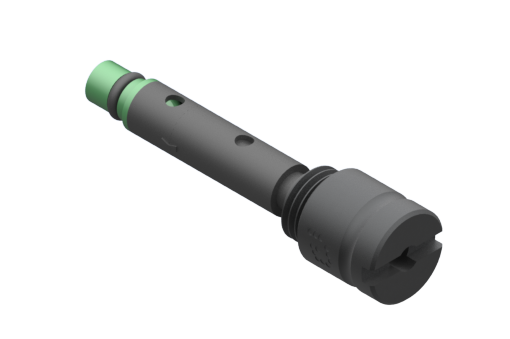

EJ-SMALL-HF-2 ejector with holder
Ejector Characteristics
Elevata aspirazione
Ejector Number Of Stages
2.0
Ejector Size
SMALL
Max Flow Rate
0.29 Nl/s
Max Vacuum
-78.0 kPa
Weight
1.9 Gr
3300005

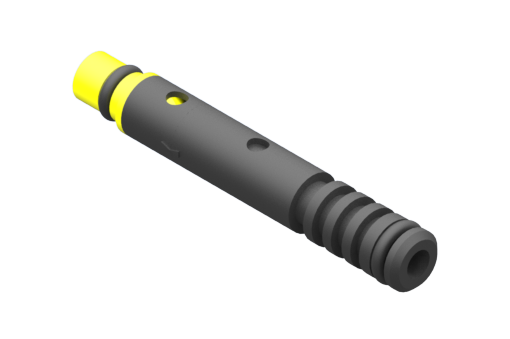

EJ-SMALL-HV-2 ejector without holder
Ejector Characteristics
Alto grado di vuoto
Ejector Size
SMALL
Max Flow Rate
0.22 Nl/s
Max Vacuum
-92.0 kPa
Weight
0.63 Gr
3300006

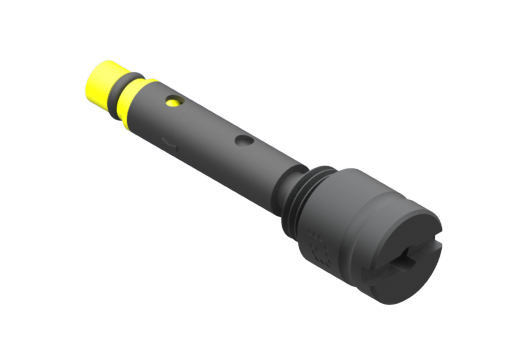

Ejector EJ-SMALL-HV-2 with holder
Ejector Characteristics
Alto grado di vuoto
Ejector Number Of Stages
2.0
Ejector Size
SMALL
Max Flow Rate
0.22 Nl/s
Max Vacuum
-92.0 kPa
Weight
1.9 Gr
3300001
Ejector Characteristics
Bassa pressione di alimentazione
Ejector Size
SMALL
Max Flow Rate
0.25 Nl/s
Max Vacuum
-82.0 kPa
Weight
0.64 Gr
3300002
Ejector Characteristics
Bassa pressione di alimentazione
Ejector Number Of Stages
2.0
Ejector Size
SMALL
Max Flow Rate
0.25 Nl/s
Max Vacuum
-82.0 kPa
Weight
1.9 Gr
3300003
Ejector Characteristics
Elevata aspirazione
Ejector Size
SMALL
Max Flow Rate
0.29 Nl/s
Max Vacuum
-78.0 kPa
Weight
0.63 Gr
3300004
Ejector Characteristics
Elevata aspirazione
Ejector Number Of Stages
2.0
Ejector Size
SMALL
Max Flow Rate
0.29 Nl/s
Max Vacuum
-78.0 kPa
Weight
1.9 Gr
3300005
Ejector Characteristics
Alto grado di vuoto
Ejector Size
SMALL
Max Flow Rate
0.22 Nl/s
Max Vacuum
-92.0 kPa
Weight
0.63 Gr
3300006
Ejector Characteristics
Alto grado di vuoto
Ejector Number Of Stages
2.0
Ejector Size
SMALL
Max Flow Rate
0.22 Nl/s
Max Vacuum
-92.0 kPa
Weight
1.9 Gr
