EJ-LINE vacuum pump - EJ-LINE

  • "EJ-LINE pumps have superior vacuum characteristics even at low or fluctuating mains pressure. In-line design to optimise overall dimensions.The aluminium body provides high strength, the thread in the vacuum port allows direct fixing of the sunction cup, avoiding the need of additional pipes or fittings.
  • Can be integrated near the gripping point, lightweight
  • Clampable in-line design, to optimise overall dimensions
  • No reduction of suction flow rate
  • Flexible, enables the use of in-line or elbow fittings
  • G1/8" and G1/4" vacuum ports
  • "EJ-LINE pumps have superior vacuum characteristics even at low or fluctuating mains pressure. In-line design to optimise overall dimensions.The aluminium body provides high strength, the thread in the vacuum port allows direct fixing of the sunction cup, avoiding the need of additional pipes or fittings.
  • Can be integrated near the gripping point, lightweight
  • Clampable in-line design, to optimise overall dimensions
  • No reduction of suction flow rate
  • Flexible, enables the use of in-line or elbow fittings
  • G1/8" and G1/4" vacuum ports

Max vacuum

Max suction flow

Weight

3330084

3330084

EJ-LINE-SMALL-LP-2 vacuum pump G1/8''

  • Air Feeding Connection

    G1/8'' Femmina

  • Air Feeding Out

    G1/8'' Femmina

  • Ejector Characteristics

    Bassa pressione di alimentazione

  • Ejector Number Of Stages

    2.0

  • Ejector Size

    SMALL

  • Max Flow Rate

    0.25 Nl/s

  • Max Vacuum

    -82.0 kPa

  • Weight

    17.0 Gr

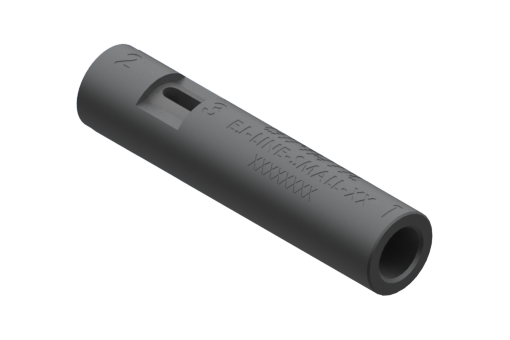

3330085

3330085

EJ-LINE-SMALL-HF-2 vacuum pump G1/8''

  • Air Feeding Connection

    G1/8'' Femmina

  • Air Feeding Out

    G1/8'' Femmina

  • Ejector Characteristics

    Elevata aspirazione

  • Ejector Number Of Stages

    2.0

  • Ejector Size

    SMALL

  • Max Flow Rate

    0.29 Nl/s

  • Max Vacuum

    -78.0 kPa

  • Weight

    17.0 Gr

3330086

3330086

EJ-LINE-SMALL-HV-2 vacuum pump G1/8''

  • Air Feeding Connection

    G1/8'' Femmina

  • Air Feeding Out

    G1/8'' Femmina

  • Ejector Characteristics

    Alto grado di vuoto

  • Ejector Number Of Stages

    2.0

  • Ejector Size

    SMALL

  • Max Flow Rate

    0.22 Nl/s

  • Max Vacuum

    -92.0 kPa

  • Weight

    16.0 Gr

3330087

3330087

EJ-LINE-MEDIUM-LP-2 vacuum pump G1/4''

  • Air Feeding Connection

    G1/4'' Femmina

  • Air Feeding Out

    G1/4'' Femmina

  • Ejector Characteristics

    Bassa pressione di alimentazione

  • Ejector Number Of Stages

    2.0

  • Ejector Size

    MEDIUM

  • Max Flow Rate

    0.68 Nl/s

  • Max Vacuum

    -90.0 kPa

  • Weight

    27.0 Gr

3330088

3330088

EJ-LINE-MEDIUM-HF-2 vacuum pump G1/4''

  • Air Feeding Connection

    G1/4'' Femmina

  • Air Feeding Out

    G1/4'' Femmina

  • Ejector Characteristics

    Elevata aspirazione

  • Ejector Number Of Stages

    2.0

  • Ejector Size

    MEDIUM

  • Max Flow Rate

    0.78 Nl/s

  • Max Vacuum

    -73.0 kPa

  • Weight

    27.0 Gr

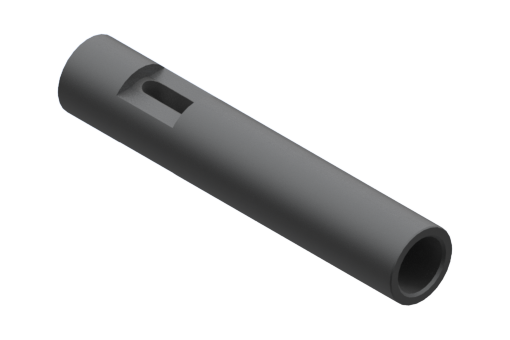

3330089

3330089

EJ-LINE-MEDIUM-HV-2 vacuum pump G1/4" " "1

  • Air Feeding Connection

    G1/4'' Femmina

  • Air Feeding Out

    G1/4'' Femmina

  • Ejector Characteristics

    Alto grado di vuoto

  • Ejector Number Of Stages

    2.0

  • Ejector Size

    MEDIUM

  • Max Flow Rate

    0.76 Nl/s

  • Max Vacuum

    -94.0 kPa

  • Weight

    27.0 Gr
