Configurable, light and modular vacuum pump - EJ-CLS
- Exceptional performance and capacity for high speed pick and places
- Multiple connections for four different configurations: optional vacuum port and silencer either in line or T-shaped
- Available with three-stage EJ-LARGE cartridge (EJ-HF and EJ-HV)
- Analogue vacuum gauge and silencer included
- Light (body in POM), sturdy threads (aluminium fittings)
- G3/4" vacuum ports
- Exceptional performance and capacity for high speed pick and places
- Multiple connections for four different configurations: optional vacuum port and silencer either in line or T-shaped
- Available with three-stage EJ-LARGE cartridge (EJ-HF and EJ-HV)
- Analogue vacuum gauge and silencer included
- Light (body in POM), sturdy threads (aluminium fittings)
- G3/4" vacuum ports
Max vacuum
Max suction flow
Weight
New 3330172

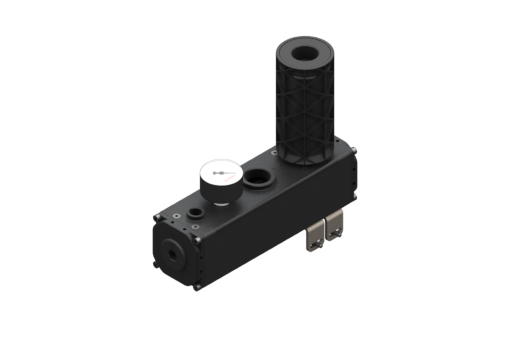

EJ-CLS-LX3-HF-3 vacuum pump with analogue vacuum gauge, fixing plate and silencer, G3/4" vacuum port
Air Feeding Connection
G1/4'' Femmina
Air Feeding Out
G3/4'' Femmina
Ejector Characteristics
Elevata aspirazione
Ejector Number Of Stages
3.0
Max Flow Rate
17.7 Nl/s
Max Vacuum
-73.0 kPa
Weight
860.0 Gr
New 3330173
Vacuum pump EJ-CLS-LX4-HF-3, G3/4'' vacuum port, with analogue vacuum gauge and mounting plate
Air Feeding Connection
G1/4'' Femmina
Air Feeding Out
G3/4'' Femmina
Ejector Characteristics
Elevata aspirazione
Ejector Number Of Stages
3.0
Max Flow Rate
23.6 Nl/s
Max Vacuum
-73.0 kPa
Weight
877.0 Gr
New 3330176
EJ-CLS-LX3-HV-3 vacuum pump with analogue vacuum gauge, fixing plate and silencer, G3/4" vacuum port
Air Feeding Connection
G1/4'' Femmina
Air Feeding Out
G3/4'' Femmina
Ejector Characteristics
Alto grado di vuoto
Ejector Number Of Stages
3.0
Max Flow Rate
18.0 Nl/s
Max Vacuum
-94.0 kPa
Weight
860.0 Gr
New 3330177
EJ-CLS-LX4-HV-3 vacuum pump with analogue vacuum gauge, fixing plate and silencer, G3/4" vacuum port
Air Feeding Connection
G1/4'' Femmina
Air Feeding Out
G3/4'' Femmina
Ejector Characteristics
Alto grado di vuoto
Ejector Number Of Stages
3.0
Max Flow Rate
24.0 Nl/s
Max Vacuum
-94.0 kPa
Weight
877.0 Gr
New EJ-CLS-SIL
Silencer sub-assembly
Weight
54.0 Gr
3330172 New
Air Feeding Connection
G1/4'' Femmina
Air Feeding Out
G3/4'' Femmina
Ejector Characteristics
Elevata aspirazione
Ejector Number Of Stages
3.0
Max Flow Rate
17.7 Nl/s
Max Vacuum
-73.0 kPa
Weight
860.0 Gr
3330173 New
Air Feeding Connection
G1/4'' Femmina
Air Feeding Out
G3/4'' Femmina
Ejector Characteristics
Elevata aspirazione
Ejector Number Of Stages
3.0
Max Flow Rate
23.6 Nl/s
Max Vacuum
-73.0 kPa
Weight
877.0 Gr
3330176 New
Air Feeding Connection
G1/4'' Femmina
Air Feeding Out
G3/4'' Femmina
Ejector Characteristics
Alto grado di vuoto
Ejector Number Of Stages
3.0
Max Flow Rate
18.0 Nl/s
Max Vacuum
-94.0 kPa
Weight
860.0 Gr
3330177 New
Air Feeding Connection
G1/4'' Femmina
Air Feeding Out
G3/4'' Femmina
Ejector Characteristics
Alto grado di vuoto
Ejector Number Of Stages
3.0
Max Flow Rate
24.0 Nl/s
Max Vacuum
-94.0 kPa
Weight
877.0 Gr
EJ-CLS-SIL New
Weight
54.0 Gr
