ISO 15407-1 vacuum pump with blow-off and solenoid valve - EJ-BSVLG-L
- Ideal for centralized and decentralized applications
- Excellent ratio between suction flow rate and compressed air consumption
- Available with ON/OFF vacuum valve, blow-off, and integrated manual override control
- POM manifold prepared for mounting ISO 15407-1 (18 mm) valve of type 2x 3/2 NC or 5/3 with closed centre
- Available with two- and three-stage EJ-LARGE cartridges (EJ-HF and EJ-HV)
- Additional vacuum ports for mounting a vacuum switch
- In-line design for greater dirt tolerance
- Installable in series
- Ideal for centralized and decentralized applications
- Excellent ratio between suction flow rate and compressed air consumption
- Available with ON/OFF vacuum valve, blow-off, and integrated manual override control
- POM manifold prepared for mounting ISO 15407-1 (18 mm) valve of type 2x 3/2 NC or 5/3 with closed centre
- Available with two- and three-stage EJ-LARGE cartridges (EJ-HF and EJ-HV)
- Additional vacuum ports for mounting a vacuum switch
- In-line design for greater dirt tolerance
- Installable in series
Max vacuum
Ejector stages number
Max suction flow
Weight

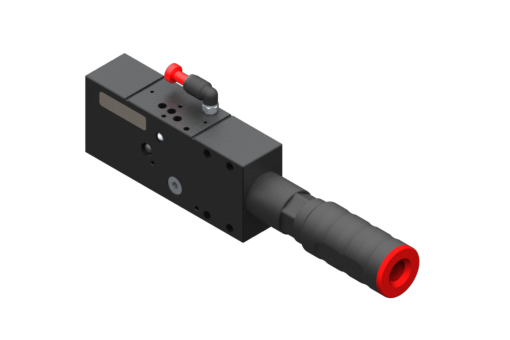

New 3030219
3030219
Air Feeding Connection
G1/4'' Femmina
Air Feeding Out
G1/2'' Femmina
Ejector Characteristics
Elevata aspirazione
Ejector Number Of Stages
2.0
Ejector Size
LARGE
Max Flow Rate
3.2 Nl/s
Max Vacuum
-73.0 kPa
Weight
260.0 Gr

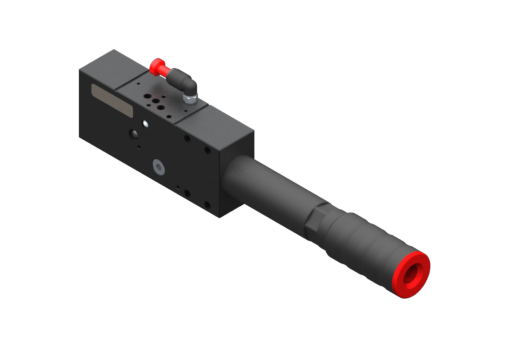

New 3030220
3030220
Air Feeding Connection
G1/4'' Femmina
Air Feeding Out
G1/2'' Femmina
Ejector Characteristics
Elevata aspirazione
Ejector Number Of Stages
3.0
Ejector Size
LARGE
Max Flow Rate
5.9 Nl/s
Max Vacuum
-73.0 kPa
Weight
280.0 Gr
New 3030221
3030221
Air Feeding Connection
G1/4'' Femmina
Air Feeding Out
G1/2'' Femmina
Ejector Characteristics
Alto grado di vuoto
Ejector Number Of Stages
2.0
Ejector Size
LARGE
Max Flow Rate
2.6 Nl/s
Max Vacuum
-94.0 kPa
Weight
260.0 Gr
New 3030222
3030222
Air Feeding Connection
G1/4'' Femmina
Air Feeding Out
G1/2'' Femmina
Ejector Characteristics
Alto grado di vuoto
Ejector Number Of Stages
3.0
Ejector Size
LARGE
Max Flow Rate
6.0 Nl/s
Max Vacuum
-94.0 kPa
Weight
280.0 Gr
New 3030227
Vacuum pump EJ-BSVLG-LARGE-HF-2-ISO with integrated holder and silencer, vacuum and blowoff NC Solenoid Valve 3/2 x2, 24Vdc, 2.5W, M12 4-pin, IP54, G1/2'' vacuum port
Air Feeding Connection
G1/4'' Femmina
Air Feeding Out
G1/2'' Femmina
Ejector Characteristics
Elevata aspirazione
Ejector Number Of Stages
2.0
Ejector Size
LARGE
Max Flow Rate
3.2 Nl/s
Max Vacuum
-73.0 kPa
Weight
332.0 Gr

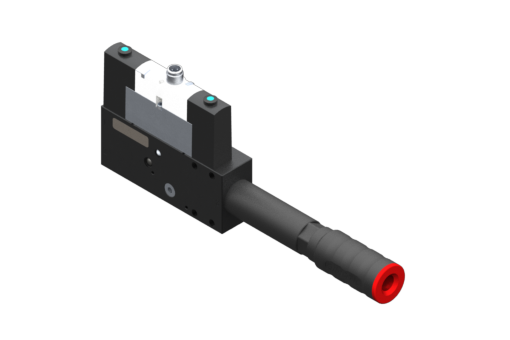

New 3030228
Vacuum pump EJ-BSVLG-LARGE-HF-3-ISO with integrated holder and silencer, vacuum and blowoff NC Solenoid Valve 3/2 x2, 24Vdc, 2.5W, M12x1 4-pin, IP54, G1/2'' vacuum port
Air Feeding Connection
G1/4'' Femmina
Air Feeding Out
G1/2'' Femmina
Ejector Characteristics
Elevata aspirazione
Ejector Number Of Stages
3.0
Ejector Size
LARGE
Max Flow Rate
5.9 Nl/s
Max Vacuum
-73.0 kPa
Weight
346.0 Gr
New 3030229
Vacuum pump EJ-BSVLG-LARGE-HV-2-ISO with integrated holder and silencer, vacuum and blowoff NC Solenoid Valve 3/2 x2, 24Vdc, 2.5W, M12 4-pin, IP54, G1/2'' vacuum port
Air Feeding Connection
G1/4'' Femmina
Air Feeding Out
G1/2'' Femmina
Ejector Characteristics
Alto grado di vuoto
Ejector Number Of Stages
2.0
Ejector Size
LARGE
Max Flow Rate
2.6 Nl/s
Max Vacuum
-94.0 kPa
Weight
332.0 Gr
New 3030230
Vacuum pump EJ-BSVLG-LARGE-HV-3-ISO with integrated holder and silencer, vacuum and blowoff NC Solenoid Valve 3/2 x2, 24Vdc, 2.5W, M12 4-pin, IP54, G1/2'' vacuum port
Air Feeding Connection
G1/4'' Femmina
Air Feeding Out
G1/2'' Femmina
Ejector Characteristics
Alto grado di vuoto
Ejector Number Of Stages
3.0
Ejector Size
LARGE
Max Flow Rate
6.0 Nl/s
Max Vacuum
-94.0 kPa
Weight
346.0 Gr

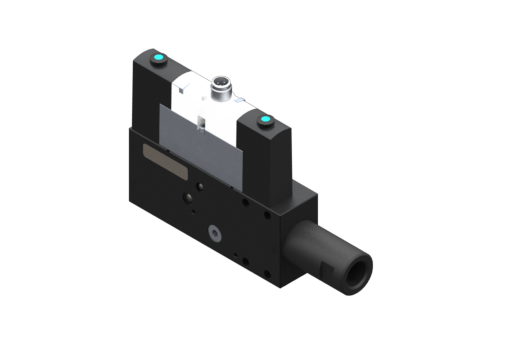

New 3030260
Vacuum pump EJ-BSVLG-LARGE-HV-2-ISO with integrated holder, vacuum and blowoff NC Solenoid Valve 3/2 x2, 24Vdc, 2.5W, M12 4-pin, IP54, G1/2'' vacuum port
Air Feeding Connection
G1/4'' Femmina
Air Feeding Out
G1/2'' Femmina
Ejector Characteristics
Tolleranza alla sporco
Ejector Number Of Stages
2.0
Ejector Size
LARGE
Weight
400.0 Gr
New 3030270
Vacuum pump EJ-BSVLG-LARGE-HF-2-ISO with integrated holder and silencer, vacuum NO and blowoff NC Solenoid Valve 3/2, 24Vdc, 2.5W, M12 4-pin, IP54, G1/2'' vacuum port
Weight
386.0 Gr
New 3030271
Vacuum pump EJ-BSVLG-LARGE-HF-3-ISO with integrated holder and silencer, vacuum NO and blowoff NC Solenoid Valve 3/2, 24Vdc, 2.5W, M12x1 4-pin, IP54, G1/2'' vacuum port
Weight
399.0 Gr
New 3030272
Vacuum pump EJ-BSVLG-LARGE-HV-2-ISO with integrated holder and silencer, vacuum NO and blowoff NC Solenoid Valve 3/2, 24Vdc, 2.5W, M12 4-pin, IP54, G1/2'' vacuum port
Weight
386.0 Gr
New 3030273
Vacuum pump EJ-BSVLG-LARGE-HV-3-ISO with integrated holder and silencer, vacuum NO and blowoff NC Solenoid Valve 3/2, 24Vdc, 2.5W, M12 4-pin, IP54, G1/2'' vacuum port
Weight
399.0 Gr
New 3031227
Vacuum pump EJ-BSVLG-LARGE-HF-2-ISO with holder, vacuum and blowoff NC Solenoid Valve 3/2 x2, 24Vdc, 2.5W, M12 4-pin, IP54, G1/2'' vacuum port
Weight
371.0 Gr
New 3031228
Vacuum pump EJ-BSVLG-LARGE-HF-3-ISO with holder, vacuum and blowoff NC Solenoid Valve 3/2 x2, 24Vdc, 2.5W, M12x1 4-pin, IP54, G1/2'' vacuum port
Weight
387.0 Gr
New 3031229
Vacuum pump EJ-BSVLG-LARGE-HV-2-ISO with integrated holder, vacuum and blowoff NC Solenoid Valve 3/2 x2, 24Vdc, 2.5W, M12 4-pin, IP54, G1/2'' vacuum port
Weight
330.0 Gr
New 3031230
Vacuum pump EJ-BSVLG-LARGE-HV-3-ISO with holder, vacuum and blowoff NC Solenoid Valve 3/2 x2, 24Vdc, 2.5W, M12 4-pin, IP54, G1/2'' vacuum port
Weight
387.0 Gr
New 3031270
Vacuum pump EJ-BSVLG-LARGE-HF-2-ISO with holder, vacuum NO and blowoff NC Solenoid Valve 3/2, 24Vdc, 2.5W, M12 4-pin, IP54, G1/2'' vacuum port
Weight
371.0 Gr
New 3031271
Vacuum pump EJ-BSVLG-LARGE-HF-3-ISO with holder, vacuum NO and blowoff NC Solenoid Valve 3/2, 24Vdc, 2.5W, M12x1 4-pin, IP54, G1/2'' vacuum port
Weight
387.0 Gr
New 3031272
Vacuum pump EJ-BSVLG-LARGE-HV-2-ISO with integrated holder, vacuum NO and blowoff NC Solenoid Valve 3/2 x2, 24Vdc, 2.5W, M12 4-pin, IP54, G1/2'' vacuum port
Weight
370.0 Gr
New 3031273
Vacuum pump EJ-BSVLG-LARGE-HV-3-ISO with holder, vacuum NO and blowoff NC Solenoid Valve 3/2, 24Vdc, 2.5W, M12 4-pin, IP54, G1/2'' vacuum port
Weight
387.0 Gr
New 3032227
Vacuum pump EJ-BSVLG-LARGE-HF-2-NR-ISO with integrated holder and silencer, vacuum and blowoff NC Solenoid Valve 3/2 x2, 24Vdc, 2.5W, M12 4-pin, IP54, G1/2'' vacuum port
Weight
386.0 Gr
New 3032228
Vacuum pump EJ-BSVLG-LARGE-HF-3-NR-ISO with integrated holder and silencer, vacuum and blowoff NC Solenoid Valve 3/2 x2, 24Vdc, 2.5W, M12x1 4-pin, IP54, G1/2'' vacuum port
Weight
400.0 Gr

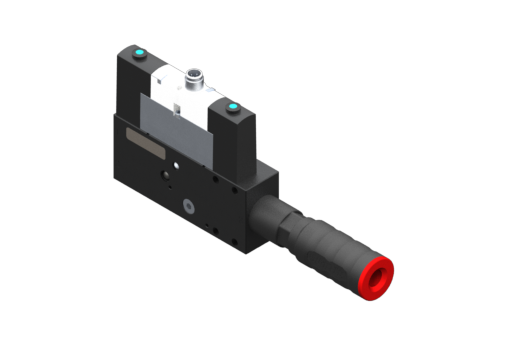

New 3032229
Vacuum pump EJ-BSVLG-LARGE-HV-2-ISO-NR with integrated holder and silencer, vacuum and blowoff NC Solenoid Valve 3/2 x2, 24Vdc, 2.5W, M12 4-pin, IP54, G1/2'' vacuum port
Weight
369.0 Gr
New 3032230
Vacuum pump EJ-BSVLG-LARGE-HV-3-NR-ISO with integrated holder and silencer, vacuum and blowoff NC Solenoid Valve 3/2 x2, 24Vdc, 2.5W, M12 4-pin, IP54, G1/2'' vacuum port
Weight
400.0 Gr
New 3032270
Vacuum pump EJ-BSVLG-LARGE-HF-2-NR-ISO with integrated holder and silencer, vacuum NO and blowoff NC Solenoid Valve 3/2, 24Vdc, 2.5W, M12 4-pin, IP54, G1/2'' vacuum port
Weight
386.0 Gr
New 3032271
Vacuum pump EJ-BSVLG-LARGE-HF-3-NR-ISO with integrated holder and silencer, vacuum NO and blowoff NC Solenoid Valve 3/2, 24Vdc, 2.5W, M12x1 4-pin, IP54, G1/2'' vacuum port
Weight
400.0 Gr
New 3032272
Vacuum pump EJ-BSVLG-LARGE-HV-2-ISO-NR with integrated holder and silencer, vacuum NO and blowoff NC Solenoid Valve 3/2, 24Vdc, 2.5W, M12 4-pin, IP54, G1/2'' vacuum port
Weight
386.0 Gr
New 3032273
Vacuum pump EJ-BSVLG-LARGE-HV-3-NR-ISO with integrated holder and silencer, vacuum NO and blowoff NC Solenoid Valve 3/2, 24Vdc, 2.5W, M12 4-pin, IP54, G1/2'' vacuum port
Weight
400.0 Gr
3030219 New
Air Feeding Connection
G1/4'' Femmina
Air Feeding Out
G1/2'' Femmina
Ejector Characteristics
Elevata aspirazione
Ejector Number Of Stages
2.0
Ejector Size
LARGE
Max Flow Rate
3.2 Nl/s
Max Vacuum
-73.0 kPa
Weight
260.0 Gr
3030220 New
Air Feeding Connection
G1/4'' Femmina
Air Feeding Out
G1/2'' Femmina
Ejector Characteristics
Elevata aspirazione
Ejector Number Of Stages
3.0
Ejector Size
LARGE
Max Flow Rate
5.9 Nl/s
Max Vacuum
-73.0 kPa
Weight
280.0 Gr
3030221 New
Air Feeding Connection
G1/4'' Femmina
Air Feeding Out
G1/2'' Femmina
Ejector Characteristics
Alto grado di vuoto
Ejector Number Of Stages
2.0
Ejector Size
LARGE
Max Flow Rate
2.6 Nl/s
Max Vacuum
-94.0 kPa
Weight
260.0 Gr
3030222 New
Air Feeding Connection
G1/4'' Femmina
Air Feeding Out
G1/2'' Femmina
Ejector Characteristics
Alto grado di vuoto
Ejector Number Of Stages
3.0
Ejector Size
LARGE
Max Flow Rate
6.0 Nl/s
Max Vacuum
-94.0 kPa
Weight
280.0 Gr
3030227 New
Air Feeding Connection
G1/4'' Femmina
Air Feeding Out
G1/2'' Femmina
Ejector Characteristics
Elevata aspirazione
Ejector Number Of Stages
2.0
Ejector Size
LARGE
Max Flow Rate
3.2 Nl/s
Max Vacuum
-73.0 kPa
Weight
332.0 Gr
3030228 New
Air Feeding Connection
G1/4'' Femmina
Air Feeding Out
G1/2'' Femmina
Ejector Characteristics
Elevata aspirazione
Ejector Number Of Stages
3.0
Ejector Size
LARGE
Max Flow Rate
5.9 Nl/s
Max Vacuum
-73.0 kPa
Weight
346.0 Gr
3030229 New
Air Feeding Connection
G1/4'' Femmina
Air Feeding Out
G1/2'' Femmina
Ejector Characteristics
Alto grado di vuoto
Ejector Number Of Stages
2.0
Ejector Size
LARGE
Max Flow Rate
2.6 Nl/s
Max Vacuum
-94.0 kPa
Weight
332.0 Gr
3030230 New
Air Feeding Connection
G1/4'' Femmina
Air Feeding Out
G1/2'' Femmina
Ejector Characteristics
Alto grado di vuoto
Ejector Number Of Stages
3.0
Ejector Size
LARGE
Max Flow Rate
6.0 Nl/s
Max Vacuum
-94.0 kPa
Weight
346.0 Gr
3030260 New
Air Feeding Connection
G1/4'' Femmina
Air Feeding Out
G1/2'' Femmina
Ejector Characteristics
Tolleranza alla sporco
Ejector Number Of Stages
2.0
Ejector Size
LARGE
Weight
400.0 Gr
3030270 New
Weight
386.0 Gr
3030271 New
Weight
399.0 Gr
3030272 New
Weight
386.0 Gr
3030273 New
Weight
399.0 Gr
3031227 New
Weight
371.0 Gr
3031228 New
Weight
387.0 Gr
3031229 New
Weight
330.0 Gr
3031230 New
Weight
387.0 Gr
3031270 New
Weight
371.0 Gr
3031271 New
Weight
387.0 Gr
3031272 New
Weight
370.0 Gr
3031273 New
Weight
387.0 Gr
3032227 New
Weight
386.0 Gr
3032228 New
Weight
400.0 Gr
3032229 New
Weight
369.0 Gr
3032230 New
Weight
400.0 Gr
3032270 New
Weight
386.0 Gr
3032271 New
Weight
400.0 Gr
3032272 New
Weight
386.0 Gr
3032273 New
Weight
400.0 Gr
