Vacuum pump with blow-off and solenoid valve - EJ-BSV
- Ideal for applications in dusty environments
- Adjustable blow-off for quick release and cleaning of the EJ cartridge
- Tank capacity 10 cm³
- Available with Gimatic’s integrated vacuum switch, pre-set (-30, -50 and -70 kPa), in the PNP and NPN versions
- The 3/2 valve (NC, NO) feeds the vacuum pump and the blow-off function
- Integrated silencer
- Anodised aluminium manifold
- Available with one two-stage EJ-MEDIUM cartridge (EJ-HF, EJ-HV), high suction flow rate and low energy consumption
- Ideal for applications in dusty environments
- Adjustable blow-off for quick release and cleaning of the EJ cartridge
- Tank capacity 10 cm³
- Available with Gimatic’s integrated vacuum switch, pre-set (-30, -50 and -70 kPa), in the PNP and NPN versions
- The 3/2 valve (NC, NO) feeds the vacuum pump and the blow-off function
- Integrated silencer
- Anodised aluminium manifold
- Available with one two-stage EJ-MEDIUM cartridge (EJ-HF, EJ-HV), high suction flow rate and low energy consumption
Max vacuum
Max suction flow
Weight
New 3030170
EJ-BSV-MEDIUM-HV-2 vacuum pump with holder, integrated silencer and NC on/off vacuum SV, 24Vdc, 1.2W, M8 3-pin, IP54, G3/8" vacuum port
Air Feeding Connection
G1/8'' Femmina
Air Feeding Out
G3/8'' Femmina
Ejector Characteristics
Alto grado di vuoto
Ejector Number Of Stages
2.0
Ejector Size
MEDIUM
Max Flow Rate
0.76 Nl/s
Max Vacuum
-94.0 kPa
Weight
255.0 Gr
New 3030171
EJ-BSV-MEDIUM-HV-2 vacuum pump with holder and integrated silencer, NC on/off vacuum SV, 24Vdc, 1.2W, M8 3-pin, IP54, G3/8" vacuum port and pre-set vacuum switch PNP -30 kPa
Air Feeding Connection
G1/8'' Femmina
Air Feeding Out
G3/8'' Femmina
Ejector Characteristics
Alto grado di vuoto
Ejector Number Of Stages
2.0
Ejector Size
MEDIUM
Max Flow Rate
0.76 Nl/s
Max Vacuum
-94.0 kPa
Weight
300.0 Gr

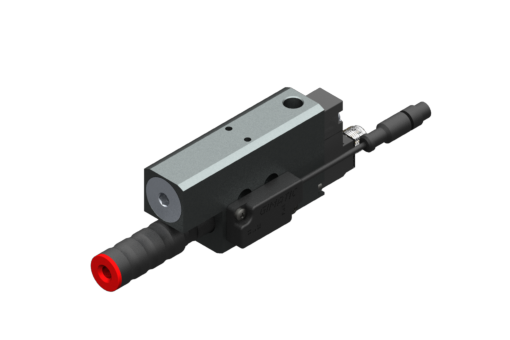

New 3030172
EJ-BSV-MEDIUM-HV-2 vacuum pump with holder and integrated silencer, NC on/off vacuum SV, 24Vdc, 1.2W, M8 3-pin, IP54, G3/8" vacuum port and pre-set vacuum switch PNP -50 kPa
Air Feeding Connection
G1/8'' Femmina
Air Feeding Out
G3/8'' Femmina
Ejector Characteristics
Alto grado di vuoto
Ejector Number Of Stages
2.0
Ejector Size
MEDIUM
Max Flow Rate
0.76 Nl/s
Max Vacuum
-94.0 kPa
Weight
300.0 Gr
New 3030173
EJ-BSV-MEDIUM-HV-2 vacuum pump with holder and integrated silencer, NC on/off vacuum SV, 24Vdc, 1.2W, M8 3-pin, IP54, G3/8" vacuum port and pre-set vacuum switch PNP -70 kPa
Air Feeding Connection
G1/8'' Femmina
Air Feeding Out
G3/8'' Femmina
Ejector Characteristics
Alto grado di vuoto
Ejector Number Of Stages
2.0
Ejector Size
MEDIUM
Max Flow Rate
0.76 Nl/s
Max Vacuum
-94.0 kPa
Weight
300.0 Gr
New 3030174
EJ-BSV-MEDIUM-HV-2 vacuum pump with holder and integrated silencer, NC on/off vacuum SV, 24Vdc, 1.2W, M8 3-pin, IP54, G3/8" vacuum port and pre-set vacuum switch NPN -30 kPa
Air Feeding Connection
G1/8'' Femmina
Air Feeding Out
G3/8'' Femmina
Ejector Characteristics
Alto grado di vuoto
Ejector Number Of Stages
2.0
Ejector Size
MEDIUM
Max Flow Rate
0.76 Nl/s
Max Vacuum
-94.0 kPa
Weight
300.0 Gr
New 3030175
EJ-BSV-MEDIUM-HV-2 vacuum pump with holder and integrated silencer, NC on/off vacuum SV, 24Vdc, 1.2W, M8 3-pin, IP54, G3/8" vacuum port and pre-set vacuum switch NPN -50 kPa
Air Feeding Connection
G1/8'' Femmina
Air Feeding Out
G3/8'' Femmina
Ejector Characteristics
Alto grado di vuoto
Ejector Number Of Stages
2.0
Ejector Size
MEDIUM
Max Flow Rate
0.76 Nl/s
Max Vacuum
-94.0 kPa
Weight
300.0 Gr
New 3030176
EJ-BSV-MEDIUM-HV-2 vacuum pump with holder and integrated silencer, NC on/off vacuum SV, 24Vdc, 1.2W, M8 3-pin, IP54, G3/8" vacuum port and pre-set vacuum switch NPN -70 kPa
Air Feeding Connection
G1/8'' Femmina
Air Feeding Out
G3/8'' Femmina
Ejector Characteristics
Alto grado di vuoto
Ejector Number Of Stages
2.0
Ejector Size
MEDIUM
Max Flow Rate
0.76 Nl/s
Max Vacuum
-94.0 kPa
Weight
300.0 Gr

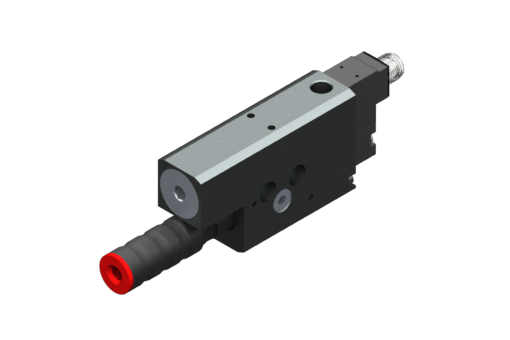

New 3030184
EJ-BSV-MEDIUM-HV-2 vacuum pump with holder, integrated silencer and NO on/off vacuum SV, 24Vdc, 1.2W, M8 3-pin, IP54, G3/8" vacuum port
Air Feeding Connection
G1/8'' Femmina
Air Feeding Out
G3/8'' Femmina
Ejector Characteristics
Alto grado di vuoto
Ejector Number Of Stages
2.0
Ejector Size
MEDIUM
Max Flow Rate
0.76 Nl/s
Max Vacuum
-94.0 kPa
Weight
255.0 Gr
New 3030185
Vacuum pump EJ-BSV-MEDIUM-HV-2 with integrated holder and silencer, on/off vacuum SV NO, 24Vdc, 1.2W, M8 3 poli, IP54, G3/8'' vacuum port and PNP pre-set valve -30 kPa
Air Feeding Connection
G1/8'' Femmina
Air Feeding Out
G3/8'' Femmina
Ejector Characteristics
Alto grado di vuoto
Ejector Number Of Stages
2.0
Ejector Size
MEDIUM
Max Flow Rate
0.76 Nl/s
Max Vacuum
-94.0 kPa
Weight
300.0 Gr
New 3030186
Vacuum pump EJ-BSV-MEDIUM-HV-2 with integrated holder and silencer, on/off vacuum SV NO, 24Vdc, 1.2W, M8 3 poli, IP54, G3/8'' vacuum port and PNP pre-set valve -50 kPa
Air Feeding Connection
G1/8'' Femmina
Air Feeding Out
G3/8'' Femmina
Ejector Characteristics
Alto grado di vuoto
Ejector Number Of Stages
2.0
Ejector Size
MEDIUM
Max Flow Rate
0.76 Nl/s
Max Vacuum
-94.0 kPa
Weight
300.0 Gr
New 3030187
Vacuum pump EJ-BSV-MEDIUM-HV-2 with integrated holder and silencer, on/off vacuum SV NO, 24Vdc, 1.2W, M8 3 poli, IP54, G3/8'' vacuum port and PNP pre-set valve -70 kPa
Air Feeding Connection
G1/8'' Femmina
Air Feeding Out
G3/8'' Femmina
Ejector Characteristics
Alto grado di vuoto
Ejector Number Of Stages
2.0
Ejector Size
MEDIUM
Max Flow Rate
0.76 Nl/s
Max Vacuum
-94.0 kPa
Weight
300.0 Gr
New 3030188
Vacuum pump EJ-BSV-MEDIUM-HV-2 with integrated holder and silencer, on/off vacuum SV NO, 24Vdc, 1.2W, M8 3 poli, IP54, G3/8'' vacuum port and NPN pre-set valve -30 kPa
Air Feeding Connection
G1/8'' Femmina
Air Feeding Out
G3/8'' Femmina
Ejector Characteristics
Alto grado di vuoto
Ejector Number Of Stages
2.0
Ejector Size
MEDIUM
Max Flow Rate
0.76 Nl/s
Max Vacuum
-94.0 kPa
Weight
300.0 Gr
New 3030189
Vacuum pump EJ-BSV-MEDIUM-HV-2 with integrated holder and silencer, on/off vacuum SV NO, 24Vdc, 1.2W, M8 3 poli, IP54, G3/8'' vacuum port and NPN pre-set valve -50 kPa
Air Feeding Connection
G1/8'' Femmina
Air Feeding Out
G3/8'' Femmina
Ejector Characteristics
Alto grado di vuoto
Ejector Number Of Stages
2.0
Ejector Size
MEDIUM
Max Flow Rate
0.76 Nl/s
Max Vacuum
-94.0 kPa
Weight
300.0 Gr
New 3030190
Vacuum pump EJ-BSV-MEDIUM-HV-2 with integrated holder and silencer, on/off vacuum SV NO, 24Vdc, 1.2W, M8 3 poli, IP54, G3/8'' vacuum port and NPN pre-set valve -70 kPa
Air Feeding Connection
G1/8'' Femmina
Air Feeding Out
G3/8'' Femmina
Ejector Characteristics
Alto grado di vuoto
Ejector Number Of Stages
2.0
Ejector Size
MEDIUM
Max Flow Rate
0.76 Nl/s
Max Vacuum
-94.0 kPa
Weight
300.0 Gr

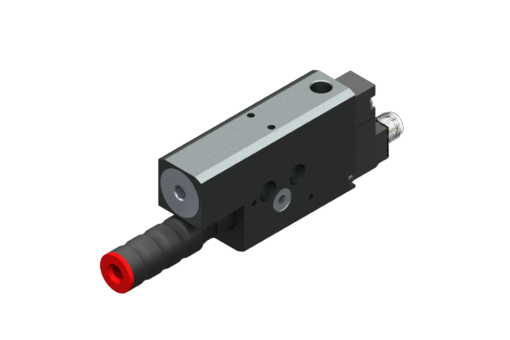

New 3030198
EJ-BSV-MEDIUM-HF-2 vacuum pump with holder, integrated silencer and NC on/off vacuum SV, 24Vdc, 1.2W, M8 3-pin, IP54, G3/8" vacuum port
Air Feeding Connection
G1/8'' Femmina
Air Feeding Out
G3/8'' Femmina
Ejector Characteristics
Elevata aspirazione
Ejector Number Of Stages
2.0
Ejector Size
MEDIUM
Max Flow Rate
0.78 Nl/s
Max Vacuum
-73.0 kPa
Weight
255.0 Gr
New 3030199
EJ-BSV-MEDIUM-HF-2 vacuum pump with holder and integrated silencer, NC on/off vacuum SV, 24Vdc, 1.2W, M8 3-pin, IP54, G3/8" vacuum port and pre-set vacuum switch PNP -30 kPa
Air Feeding Connection
G1/8'' Femmina
Air Feeding Out
G3/8'' Femmina
Ejector Characteristics
Elevata aspirazione
Ejector Number Of Stages
2.0
Ejector Size
MEDIUM
Max Flow Rate
0.78 Nl/s
Max Vacuum
-73.0 kPa
Weight
300.0 Gr
New 3030200
EJ-BSV-MEDIUM-HF-2 vacuum pump with holder and integrated silencer, NC on/off vacuum SV, 24Vdc, 1.2W, M8 3-pin, IP54, G3/8" vacuum port and pre-set vacuum switch PNP -50 kPa
Air Feeding Connection
G1/8'' Femmina
Air Feeding Out
G3/8'' Femmina
Ejector Characteristics
Elevata aspirazione
Ejector Number Of Stages
2.0
Ejector Size
MEDIUM
Max Flow Rate
0.78 Nl/s
Max Vacuum
-73.0 kPa
Weight
300.0 Gr
New 3030201
EJ-BSV-MEDIUM-HF-2 vacuum pump with holder and integrated silencer, NC on/off vacuum SV, 24Vdc, 1.2W, M8 3-pin, IP54, G3/8" vacuum port and pre-set vacuum switch PNP -70 kPa
Air Feeding Connection
G1/8'' Femmina
Air Feeding Out
G3/8'' Femmina
Ejector Characteristics
Elevata aspirazione
Ejector Number Of Stages
2.0
Ejector Size
MEDIUM
Max Flow Rate
0.78 Nl/s
Max Vacuum
-73.0 kPa
Weight
300.0 Gr
New 3030202
EJ-BSV-MEDIUM-HF-2 vacuum pump with holder and integrated silencer, NC on/off vacuum SV, 24Vdc, 1.2W, M8 3-pin, IP54, G3/8" vacuum port and pre-set vacuum switch NPN -30 kPa
Air Feeding Connection
G1/8'' Femmina
Air Feeding Out
G3/8'' Femmina
Ejector Characteristics
Elevata aspirazione
Ejector Number Of Stages
2.0
Ejector Size
MEDIUM
Max Flow Rate
0.78 Nl/s
Max Vacuum
-73.0 kPa
Weight
300.0 Gr
New 3030203
EJ-BSV-MEDIUM-HF-2 vacuum pump with holder and integrated silencer, NC on/off vacuum SV, 24Vdc, 1.2W, M8 3-pin, IP54, G3/8" vacuum port and pre-set vacuum switch NPN -50 kPa
Air Feeding Connection
G1/8'' Femmina
Air Feeding Out
G3/8'' Femmina
Ejector Characteristics
Elevata aspirazione
Ejector Number Of Stages
2.0
Ejector Size
MEDIUM
Max Flow Rate
0.78 Nl/s
Max Vacuum
-73.0 kPa
Weight
300.0 Gr
New 3030204
EJ-BSV-MEDIUM-HF-2 vacuum pump with holder and integrated silencer, NC on/off vacuum SV, 24Vdc, 1.2W, M8 3-pin, IP54, G3/8" vacuum port and pre-set vacuum switch NPN -70 kPa
Air Feeding Connection
G1/8'' Femmina
Air Feeding Out
G3/8'' Femmina
Ejector Characteristics
Elevata aspirazione
Ejector Number Of Stages
2.0
Ejector Size
MEDIUM
Max Flow Rate
0.78 Nl/s
Max Vacuum
-73.0 kPa
Weight
300.0 Gr
New 3030212
Vacuum pump EJ-BSV-MEDIUM-HV-2 with holder integrated silencer and on/off vacuum SV NO, 24Vdc, 1.2W, M8 3 poli, IP54, G3/8'' vacuum port
Air Feeding Connection
G1/8'' Femmina
Air Feeding Out
G3/8'' Femmina
Ejector Characteristics
Elevata aspirazione
Ejector Number Of Stages
2.0
Ejector Size
MEDIUM
Max Flow Rate
0.78 Nl/s
Max Vacuum
-73.0 kPa
Weight
255.0 Gr
New 3030213
Vacuum pump EJ-BSV-MEDIUM-HV-2 with integrated holder and silencer, on/off vacuum SV NO, 24Vdc, 1.2W, M8 3 poli, IP54, G3/8'' vacuum port and PNP pre-set valve -30 kPa
Air Feeding Connection
G1/8'' Femmina
Air Feeding Out
G3/8'' Femmina
Ejector Characteristics
Elevata aspirazione
Ejector Number Of Stages
2.0
Ejector Size
MEDIUM
Max Flow Rate
0.78 Nl/s
Max Vacuum
-73.0 kPa
Weight
300.0 Gr
New 3030214
Vacuum pump EJ-BSV-MEDIUM-HV-2 with integrated holder and silencer, on/off vacuum SV NO, 24Vdc, 1.2W, M8 3 poli, IP54, G3/8'' vacuum port and PNP pre-set valve -50 kPa
Air Feeding Connection
G1/8'' Femmina
Air Feeding Out
G3/8'' Femmina
Ejector Characteristics
Elevata aspirazione
Ejector Number Of Stages
2.0
Ejector Size
MEDIUM
Max Flow Rate
0.78 Nl/s
Max Vacuum
-73.0 kPa
Weight
300.0 Gr

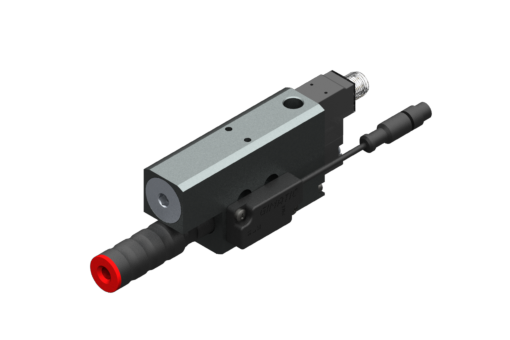

New 3030215
Vacuum pump EJ-BSV-MEDIUM-HV-2 with integrated holder and silencer, on/off vacuum SV NO, 24Vdc, 1.2W, M8 3 poli, IP54, G3/8'' vacuum port and PNP pre-set valve -70 kPa
Air Feeding Connection
G1/8'' Femmina
Air Feeding Out
G3/8'' Femmina
Ejector Characteristics
Elevata aspirazione
Ejector Number Of Stages
2.0
Ejector Size
MEDIUM
Max Flow Rate
0.78 Nl/s
Max Vacuum
-73.0 kPa
Weight
300.0 Gr

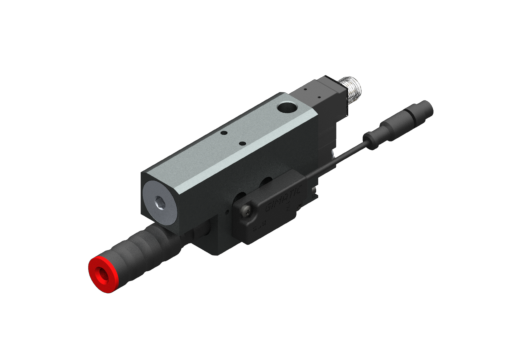

New 3030216
Vacuum pump EJ-BSV-MEDIUM-HV-2 with integrated holder and silencer, on/off vacuum SV NO, 24Vdc, 1.2W, M8 3 poli, IP54, G3/8'' vacuum port and NPN pre-set valve -30 kPa
Air Feeding Connection
G1/8'' Femmina
Air Feeding Out
G3/8'' Femmina
Ejector Characteristics
Elevata aspirazione
Ejector Number Of Stages
2.0
Ejector Size
MEDIUM
Max Flow Rate
0.78 Nl/s
Max Vacuum
-73.0 kPa
Weight
300.0 Gr

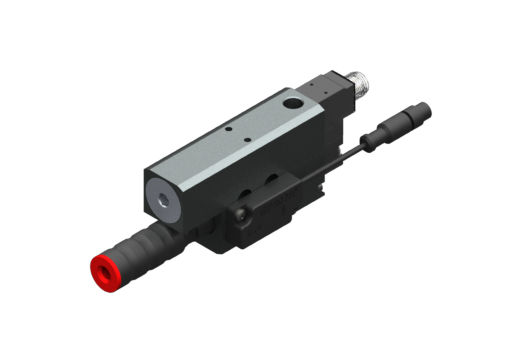

New 3030217
Vacuum pump EJ-BSV-MEDIUM-HV-2 with integrated holder and silencer, on/off vacuum SV NO, 24Vdc, 1.2W, M8 3 poli, IP54, G3/8'' vacuum port and NPN pre-set valve -50 kPa
Air Feeding Connection
G1/8'' Femmina
Air Feeding Out
G3/8'' Femmina
Ejector Characteristics
Elevata aspirazione
Ejector Number Of Stages
2.0
Ejector Size
MEDIUM
Max Flow Rate
0.78 Nl/s
Max Vacuum
-73.0 kPa
Weight
300.0 Gr
New 3030218
Vacuum pump EJ-BSV-MEDIUM-HV-2 with integrated holder and silencer, on/off vacuum SV NO, 24Vdc, 1.2W, M8 3 poli, IP54, G3/8'' vacuum port and NPN pre-set valve -70 kPa
Air Feeding Connection
G1/8'' Femmina
Air Feeding Out
G3/8'' Femmina
Ejector Characteristics
Elevata aspirazione
Ejector Number Of Stages
2.0
Ejector Size
MEDIUM
Max Flow Rate
0.78 Nl/s
Max Vacuum
-73.0 kPa
Weight
300.0 Gr
3030170 New
Air Feeding Connection
G1/8'' Femmina
Air Feeding Out
G3/8'' Femmina
Ejector Characteristics
Alto grado di vuoto
Ejector Number Of Stages
2.0
Ejector Size
MEDIUM
Max Flow Rate
0.76 Nl/s
Max Vacuum
-94.0 kPa
Weight
255.0 Gr
3030171 New
Air Feeding Connection
G1/8'' Femmina
Air Feeding Out
G3/8'' Femmina
Ejector Characteristics
Alto grado di vuoto
Ejector Number Of Stages
2.0
Ejector Size
MEDIUM
Max Flow Rate
0.76 Nl/s
Max Vacuum
-94.0 kPa
Weight
300.0 Gr
3030172 New
Air Feeding Connection
G1/8'' Femmina
Air Feeding Out
G3/8'' Femmina
Ejector Characteristics
Alto grado di vuoto
Ejector Number Of Stages
2.0
Ejector Size
MEDIUM
Max Flow Rate
0.76 Nl/s
Max Vacuum
-94.0 kPa
Weight
300.0 Gr
3030173 New
Air Feeding Connection
G1/8'' Femmina
Air Feeding Out
G3/8'' Femmina
Ejector Characteristics
Alto grado di vuoto
Ejector Number Of Stages
2.0
Ejector Size
MEDIUM
Max Flow Rate
0.76 Nl/s
Max Vacuum
-94.0 kPa
Weight
300.0 Gr
3030174 New
Air Feeding Connection
G1/8'' Femmina
Air Feeding Out
G3/8'' Femmina
Ejector Characteristics
Alto grado di vuoto
Ejector Number Of Stages
2.0
Ejector Size
MEDIUM
Max Flow Rate
0.76 Nl/s
Max Vacuum
-94.0 kPa
Weight
300.0 Gr
3030175 New
Air Feeding Connection
G1/8'' Femmina
Air Feeding Out
G3/8'' Femmina
Ejector Characteristics
Alto grado di vuoto
Ejector Number Of Stages
2.0
Ejector Size
MEDIUM
Max Flow Rate
0.76 Nl/s
Max Vacuum
-94.0 kPa
Weight
300.0 Gr
3030176 New
Air Feeding Connection
G1/8'' Femmina
Air Feeding Out
G3/8'' Femmina
Ejector Characteristics
Alto grado di vuoto
Ejector Number Of Stages
2.0
Ejector Size
MEDIUM
Max Flow Rate
0.76 Nl/s
Max Vacuum
-94.0 kPa
Weight
300.0 Gr
3030184 New
Air Feeding Connection
G1/8'' Femmina
Air Feeding Out
G3/8'' Femmina
Ejector Characteristics
Alto grado di vuoto
Ejector Number Of Stages
2.0
Ejector Size
MEDIUM
Max Flow Rate
0.76 Nl/s
Max Vacuum
-94.0 kPa
Weight
255.0 Gr
3030185 New
Air Feeding Connection
G1/8'' Femmina
Air Feeding Out
G3/8'' Femmina
Ejector Characteristics
Alto grado di vuoto
Ejector Number Of Stages
2.0
Ejector Size
MEDIUM
Max Flow Rate
0.76 Nl/s
Max Vacuum
-94.0 kPa
Weight
300.0 Gr
3030186 New
Air Feeding Connection
G1/8'' Femmina
Air Feeding Out
G3/8'' Femmina
Ejector Characteristics
Alto grado di vuoto
Ejector Number Of Stages
2.0
Ejector Size
MEDIUM
Max Flow Rate
0.76 Nl/s
Max Vacuum
-94.0 kPa
Weight
300.0 Gr
3030187 New
Air Feeding Connection
G1/8'' Femmina
Air Feeding Out
G3/8'' Femmina
Ejector Characteristics
Alto grado di vuoto
Ejector Number Of Stages
2.0
Ejector Size
MEDIUM
Max Flow Rate
0.76 Nl/s
Max Vacuum
-94.0 kPa
Weight
300.0 Gr
3030188 New
Air Feeding Connection
G1/8'' Femmina
Air Feeding Out
G3/8'' Femmina
Ejector Characteristics
Alto grado di vuoto
Ejector Number Of Stages
2.0
Ejector Size
MEDIUM
Max Flow Rate
0.76 Nl/s
Max Vacuum
-94.0 kPa
Weight
300.0 Gr
3030189 New
Air Feeding Connection
G1/8'' Femmina
Air Feeding Out
G3/8'' Femmina
Ejector Characteristics
Alto grado di vuoto
Ejector Number Of Stages
2.0
Ejector Size
MEDIUM
Max Flow Rate
0.76 Nl/s
Max Vacuum
-94.0 kPa
Weight
300.0 Gr
3030190 New
Air Feeding Connection
G1/8'' Femmina
Air Feeding Out
G3/8'' Femmina
Ejector Characteristics
Alto grado di vuoto
Ejector Number Of Stages
2.0
Ejector Size
MEDIUM
Max Flow Rate
0.76 Nl/s
Max Vacuum
-94.0 kPa
Weight
300.0 Gr
3030198 New
Air Feeding Connection
G1/8'' Femmina
Air Feeding Out
G3/8'' Femmina
Ejector Characteristics
Elevata aspirazione
Ejector Number Of Stages
2.0
Ejector Size
MEDIUM
Max Flow Rate
0.78 Nl/s
Max Vacuum
-73.0 kPa
Weight
255.0 Gr
3030199 New
Air Feeding Connection
G1/8'' Femmina
Air Feeding Out
G3/8'' Femmina
Ejector Characteristics
Elevata aspirazione
Ejector Number Of Stages
2.0
Ejector Size
MEDIUM
Max Flow Rate
0.78 Nl/s
Max Vacuum
-73.0 kPa
Weight
300.0 Gr
3030200 New
Air Feeding Connection
G1/8'' Femmina
Air Feeding Out
G3/8'' Femmina
Ejector Characteristics
Elevata aspirazione
Ejector Number Of Stages
2.0
Ejector Size
MEDIUM
Max Flow Rate
0.78 Nl/s
Max Vacuum
-73.0 kPa
Weight
300.0 Gr
3030201 New
Air Feeding Connection
G1/8'' Femmina
Air Feeding Out
G3/8'' Femmina
Ejector Characteristics
Elevata aspirazione
Ejector Number Of Stages
2.0
Ejector Size
MEDIUM
Max Flow Rate
0.78 Nl/s
Max Vacuum
-73.0 kPa
Weight
300.0 Gr
3030202 New
Air Feeding Connection
G1/8'' Femmina
Air Feeding Out
G3/8'' Femmina
Ejector Characteristics
Elevata aspirazione
Ejector Number Of Stages
2.0
Ejector Size
MEDIUM
Max Flow Rate
0.78 Nl/s
Max Vacuum
-73.0 kPa
Weight
300.0 Gr
3030203 New
Air Feeding Connection
G1/8'' Femmina
Air Feeding Out
G3/8'' Femmina
Ejector Characteristics
Elevata aspirazione
Ejector Number Of Stages
2.0
Ejector Size
MEDIUM
Max Flow Rate
0.78 Nl/s
Max Vacuum
-73.0 kPa
Weight
300.0 Gr
3030204 New
Air Feeding Connection
G1/8'' Femmina
Air Feeding Out
G3/8'' Femmina
Ejector Characteristics
Elevata aspirazione
Ejector Number Of Stages
2.0
Ejector Size
MEDIUM
Max Flow Rate
0.78 Nl/s
Max Vacuum
-73.0 kPa
Weight
300.0 Gr
3030212 New
Air Feeding Connection
G1/8'' Femmina
Air Feeding Out
G3/8'' Femmina
Ejector Characteristics
Elevata aspirazione
Ejector Number Of Stages
2.0
Ejector Size
MEDIUM
Max Flow Rate
0.78 Nl/s
Max Vacuum
-73.0 kPa
Weight
255.0 Gr
3030213 New
Air Feeding Connection
G1/8'' Femmina
Air Feeding Out
G3/8'' Femmina
Ejector Characteristics
Elevata aspirazione
Ejector Number Of Stages
2.0
Ejector Size
MEDIUM
Max Flow Rate
0.78 Nl/s
Max Vacuum
-73.0 kPa
Weight
300.0 Gr
3030214 New
Air Feeding Connection
G1/8'' Femmina
Air Feeding Out
G3/8'' Femmina
Ejector Characteristics
Elevata aspirazione
Ejector Number Of Stages
2.0
Ejector Size
MEDIUM
Max Flow Rate
0.78 Nl/s
Max Vacuum
-73.0 kPa
Weight
300.0 Gr
3030215 New
Air Feeding Connection
G1/8'' Femmina
Air Feeding Out
G3/8'' Femmina
Ejector Characteristics
Elevata aspirazione
Ejector Number Of Stages
2.0
Ejector Size
MEDIUM
Max Flow Rate
0.78 Nl/s
Max Vacuum
-73.0 kPa
Weight
300.0 Gr
3030216 New
Air Feeding Connection
G1/8'' Femmina
Air Feeding Out
G3/8'' Femmina
Ejector Characteristics
Elevata aspirazione
Ejector Number Of Stages
2.0
Ejector Size
MEDIUM
Max Flow Rate
0.78 Nl/s
Max Vacuum
-73.0 kPa
Weight
300.0 Gr
3030217 New
Air Feeding Connection
G1/8'' Femmina
Air Feeding Out
G3/8'' Femmina
Ejector Characteristics
Elevata aspirazione
Ejector Number Of Stages
2.0
Ejector Size
MEDIUM
Max Flow Rate
0.78 Nl/s
Max Vacuum
-73.0 kPa
Weight
300.0 Gr
3030218 New
Air Feeding Connection
G1/8'' Femmina
Air Feeding Out
G3/8'' Femmina
Ejector Characteristics
Elevata aspirazione
Ejector Number Of Stages
2.0
Ejector Size
MEDIUM
Max Flow Rate
0.78 Nl/s
Max Vacuum
-73.0 kPa
Weight
300.0 Gr
