Vacuum pump with atmospheric quick release valve - EJ-ATM
- Vacuum pump developed for sealed applications where, due to the high vacuum reached, an atmospheric release is required, in order to reduce the time of detachment of the handled item and to speed up the movement of the gripping tool. The key features are low wreight, low energy consumption and easy installation.
- Restores the atmospheric pressure inside the gripping device to enable the quick release of the product
- Suitable for sealed applications to reduce cycle time
- Available with Gimatic’s integrated vacuum switch, pre-set (-30, -50 and -70 kPa), in the PNP and NPN versions
- Vacuum ports, in-line or L-shaped
- A single 3/2 valve controls the vacuum pump and the ATM release device
- Available with two EJ-SMALL cartridges (EJ-LP) and with one EJ-MEDIUM cartridge (EJ-HV)
- Vacuum pump developed for sealed applications where, due to the high vacuum reached, an atmospheric release is required, in order to reduce the time of detachment of the handled item and to speed up the movement of the gripping tool. The key features are low wreight, low energy consumption and easy installation.
- Restores the atmospheric pressure inside the gripping device to enable the quick release of the product
- Suitable for sealed applications to reduce cycle time
- Available with Gimatic’s integrated vacuum switch, pre-set (-30, -50 and -70 kPa), in the PNP and NPN versions
- Vacuum ports, in-line or L-shaped
- A single 3/2 valve controls the vacuum pump and the ATM release device
- Available with two EJ-SMALL cartridges (EJ-LP) and with one EJ-MEDIUM cartridge (EJ-HV)
Max vacuum
Max suction flow
Weight
3030125
Vacuum pump EJ-ATM-LINE-SMALLX2-LP-2 with holder, G1/8'' vacuum port
Air Feeding Connection
G1/8''
Air Feeding Out
G1/8''
Ejector Characteristics
Bassa pressione di alimentazione
Ejector Number Of Stages
2.0
Ejector Size
SMALL
Max Flow Rate
0.5 Nl/s
Max Vacuum
-82.0 kPa
Weight
66.0 Gr
3030126
EJ-ATM-LINE-SMALLX2-LP-2 vacuum pump with holder, G1/8" vacuum port, pre-set vacuum switch PNP -30 kPa
Air Feeding Connection
G1/8''
Air Feeding Out
G1/8''
Ejector Characteristics
Bassa pressione di alimentazione
Ejector Number Of Stages
2.0
Ejector Size
SMALL
Max Flow Rate
0.5 Nl/s
Max Vacuum
-82.0 kPa
Weight
73.0 Gr
3030127
EJ-ATM-LINE-SMALLX2-LP-2 vacuum pump with holder, G1/8" vacuum port, pre-set vacuum switch PNP -50 kPa
Air Feeding Connection
G1/8''
Air Feeding Out
G1/8''
Ejector Characteristics
Bassa pressione di alimentazione
Ejector Number Of Stages
2.0
Ejector Size
SMALL
Max Flow Rate
0.5 Nl/s
Max Vacuum
-82.0 kPa
Weight
73.0 Gr
3030128
EJ-ATM-LINE-SMALLX2-LP-2 vacuum pump with holder, G1/8" vacuum port, pre-set vacuum switch PNP -70 kPa
Air Feeding Connection
G1/8''
Air Feeding Out
G1/8''
Ejector Characteristics
Bassa pressione di alimentazione
Ejector Number Of Stages
2.0
Ejector Size
SMALL
Max Flow Rate
0.5 Nl/s
Max Vacuum
-82.0 kPa
Weight
73.0 Gr

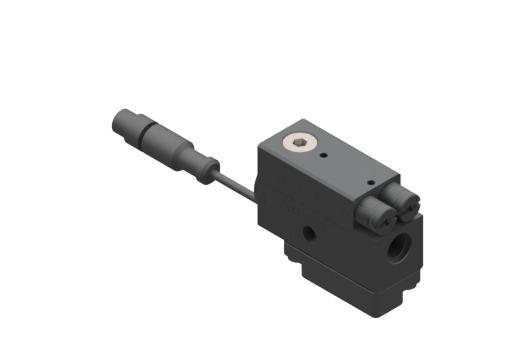

3030129
EJ-ATM-LINE-SMALLX2-LP-2 vacuum pump with holder, G1/8" vacuum port, pre-set vacuum switch NPN -30 kPa
Air Feeding Connection
G1/8''
Air Feeding Out
G1/8''
Ejector Characteristics
Bassa pressione di alimentazione
Ejector Number Of Stages
2.0
Ejector Size
SMALL
Max Flow Rate
0.5 Nl/s
Max Vacuum
-82.0 kPa
Weight
73.0 Gr
3030130
EJ-ATM-LINE-SMALLX2-LP-2 vacuum pump with holder, G1/8" vacuum port, pre-set vacuum switch NPN -50 kPa
Air Feeding Connection
G1/8''
Air Feeding Out
G1/8''
Ejector Characteristics
Bassa pressione di alimentazione
Ejector Number Of Stages
2.0
Ejector Size
SMALL
Max Flow Rate
0.5 Nl/s
Max Vacuum
-82.0 kPa
Weight
73.0 Gr
3030131
EJ-ATM-LINE-SMALLX2-LP-2 vacuum pump with holder, G1/8" vacuum port, pre-set vacuum switch NPN -70 kPa
Air Feeding Connection
G1/8''
Air Feeding Out
G1/8''
Ejector Characteristics
Bassa pressione di alimentazione
Ejector Number Of Stages
2.0
Ejector Size
SMALL
Max Flow Rate
0.5 Nl/s
Max Vacuum
-82.0 kPa
Weight
73.0 Gr

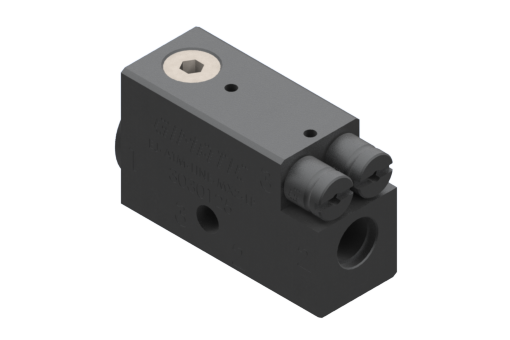

New 3030205
Vacuum pump EJ-ATM-LINE-SMALLX2-HV-2 with holder, G1/8'' vacuum port
Air Feeding Connection
G1/8''
Air Feeding Out
G1/8''
Ejector Characteristics
Alto grado di vuoto
Ejector Number Of Stages
2.0
Ejector Size
SMALL
Max Flow Rate
0.44 Nl/s
Max Vacuum
-92.0 kPa
Weight
62.0 Gr
3030125
Air Feeding Connection
G1/8''
Air Feeding Out
G1/8''
Ejector Characteristics
Bassa pressione di alimentazione
Ejector Number Of Stages
2.0
Ejector Size
SMALL
Max Flow Rate
0.5 Nl/s
Max Vacuum
-82.0 kPa
Weight
66.0 Gr
3030126
Air Feeding Connection
G1/8''
Air Feeding Out
G1/8''
Ejector Characteristics
Bassa pressione di alimentazione
Ejector Number Of Stages
2.0
Ejector Size
SMALL
Max Flow Rate
0.5 Nl/s
Max Vacuum
-82.0 kPa
Weight
73.0 Gr
3030127
Air Feeding Connection
G1/8''
Air Feeding Out
G1/8''
Ejector Characteristics
Bassa pressione di alimentazione
Ejector Number Of Stages
2.0
Ejector Size
SMALL
Max Flow Rate
0.5 Nl/s
Max Vacuum
-82.0 kPa
Weight
73.0 Gr
3030128
Air Feeding Connection
G1/8''
Air Feeding Out
G1/8''
Ejector Characteristics
Bassa pressione di alimentazione
Ejector Number Of Stages
2.0
Ejector Size
SMALL
Max Flow Rate
0.5 Nl/s
Max Vacuum
-82.0 kPa
Weight
73.0 Gr
3030129
Air Feeding Connection
G1/8''
Air Feeding Out
G1/8''
Ejector Characteristics
Bassa pressione di alimentazione
Ejector Number Of Stages
2.0
Ejector Size
SMALL
Max Flow Rate
0.5 Nl/s
Max Vacuum
-82.0 kPa
Weight
73.0 Gr
3030130
Air Feeding Connection
G1/8''
Air Feeding Out
G1/8''
Ejector Characteristics
Bassa pressione di alimentazione
Ejector Number Of Stages
2.0
Ejector Size
SMALL
Max Flow Rate
0.5 Nl/s
Max Vacuum
-82.0 kPa
Weight
73.0 Gr
3030131
Air Feeding Connection
G1/8''
Air Feeding Out
G1/8''
Ejector Characteristics
Bassa pressione di alimentazione
Ejector Number Of Stages
2.0
Ejector Size
SMALL
Max Flow Rate
0.5 Nl/s
Max Vacuum
-82.0 kPa
Weight
73.0 Gr
3030205 New
Air Feeding Connection
G1/8''
Air Feeding Out
G1/8''
Ejector Characteristics
Alto grado di vuoto
Ejector Number Of Stages
2.0
Ejector Size
SMALL
Max Flow Rate
0.44 Nl/s
Max Vacuum
-92.0 kPa
Weight
62.0 Gr
