MANUAL QUICK CHANGER - QC

Quick tool change on the robot.
Also suitable for vacuum pipelines.
Avoids errors in pneumatic and electrical connections.
4, 8, 10 or 12 pneumatic connections.
15 electrical connections
The two parts (robot side and gripper side) are supplied separately.
The QCX robot side can also cut off the compressed air with a safety valve.
The QCY robot side cuts off the compressed air automatically during disengagement.
Optional LOQC lock unit

Quick tool change on the robot.
Also suitable for vacuum pipelines.
Avoids errors in pneumatic and electrical connections.
4, 8, 10 or 12 pneumatic connections.
15 electrical connections
The two parts (robot side and gripper side) are supplied separately.
The QCX robot side can also cut off the compressed air with a safety valve.
The QCY robot side cuts off the compressed air automatically during disengagement.
Optional LOQC lock unit

Weight

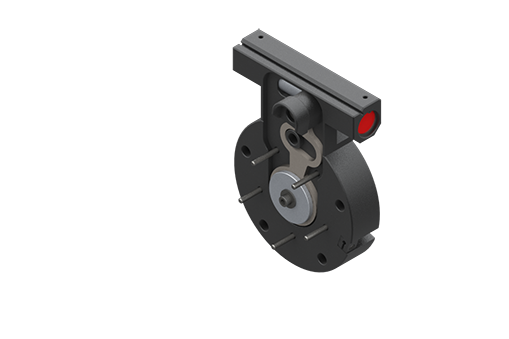

AQC150

AQC150

Pneumatic actuator for quick changer, QC150, M5

Weight
1480.0 Gr

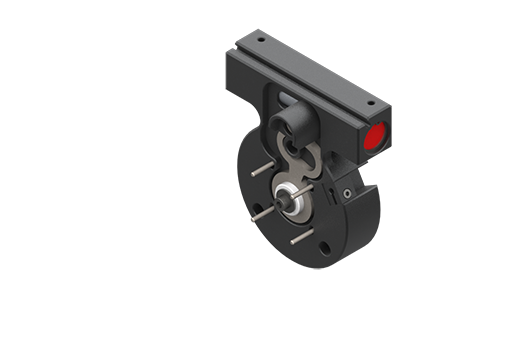

AQC90

AQC90

Pneumatic actuator for quick changer, QC90, M5

Weight
560.0 Gr

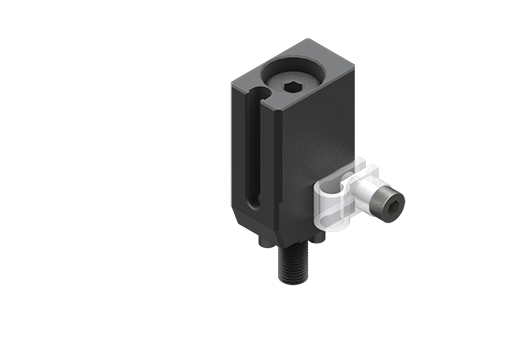

LOQC

LOQC

Lock unit for QC tool changer for magnetic sensor, adapter for inductive sensor

Weight
20.0 Gr

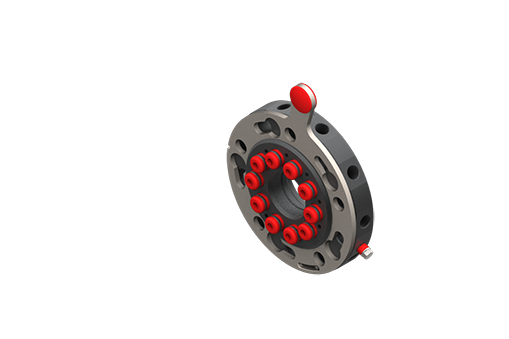

QC150-A

QC150-A

Pneumatic quick changer, -1/6 bar, robot side

Weight
1120.0 Gr

QC150-B

QC150-B

Pneumatic quick changer, -1/6 bar, gripper side

Weight
827.0 Gr

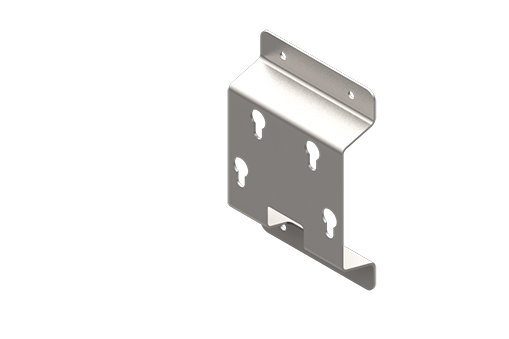

QC150-H

QC150-H

Horizontal QC150-B storage

Weight
950.0 Gr

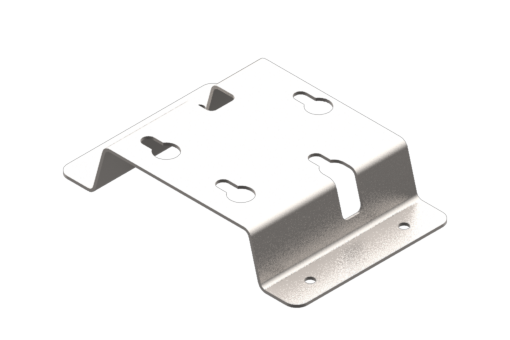

QC150-V

QC150-V

Vertical QC150 storage

Weight
744.0 Gr

QC150100

QC150100

Centring pin kit to be positioned on the robot side

Weight
250.0 Gr

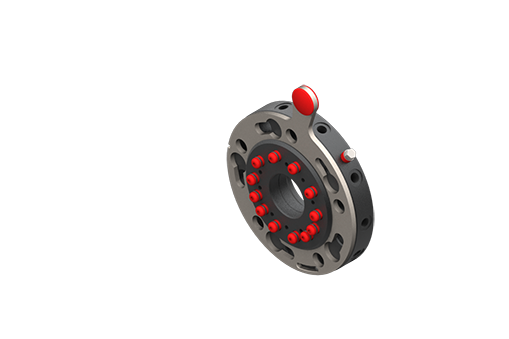

QC160-A

QC160-A

Pneumatic quick changer, -1/6 bar, robot side

Weight
1200.0 Gr

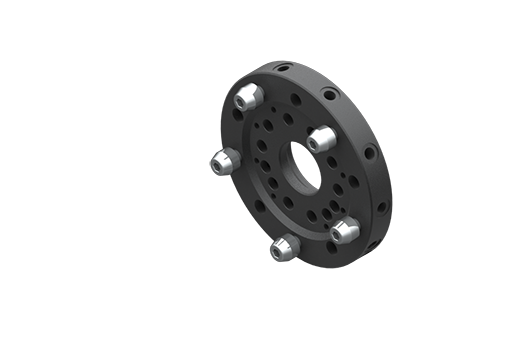

QC160-B

QC160-B

Pneumatic quick changer, -1/6 bar, gripper side

Weight
900.0 Gr

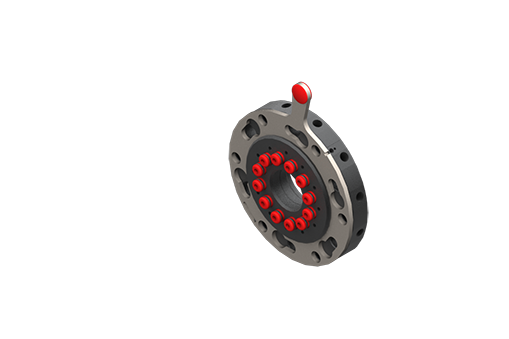

QC200-A

QC200-A

Pneumatic quick changer, -1/6 bar, robot side

Weight
2640.0 Gr

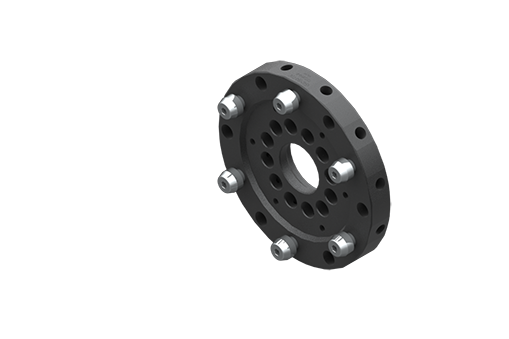

QC200-B

QC200-B

Pneumatic quick changer, -1/6 bar, gripper side

Weight
1890.0 Gr

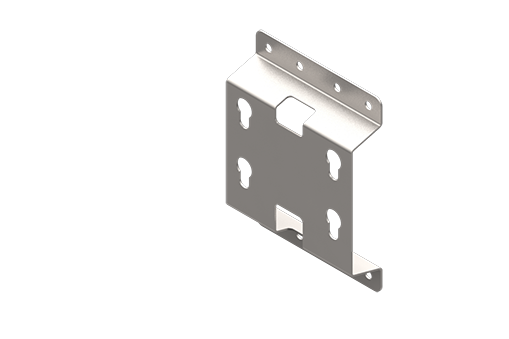

QC200-H

QC200-H

Horizontal QC200-B storage

Weight
1160.0 Gr

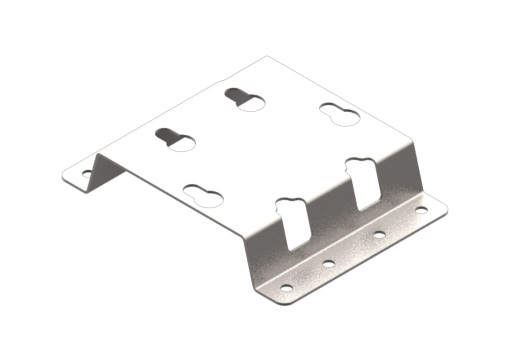

QC200-V

QC200-V

Vertical QC200 storage

Weight
1180.0 Gr

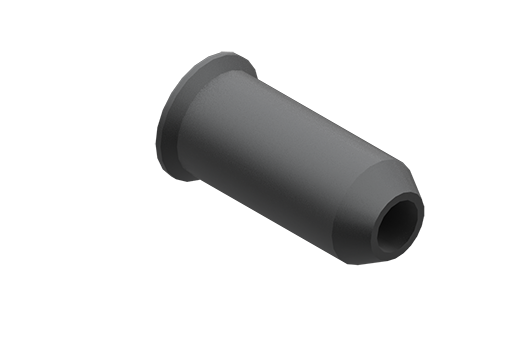

QC200120

QC200120

Centring pin kit to be positioned on the robot side

Weight
450.0 Gr

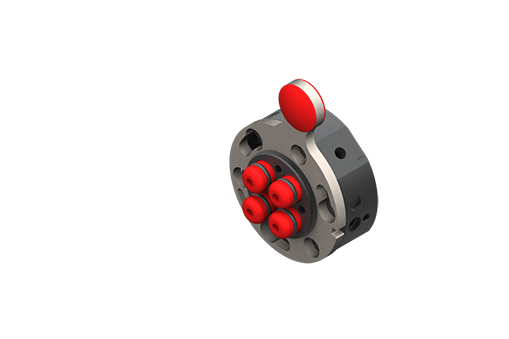

QC50-A

QC50-A

Pneumatic quick changer, -1/6 bar, robot side

Weight
103.0 Gr

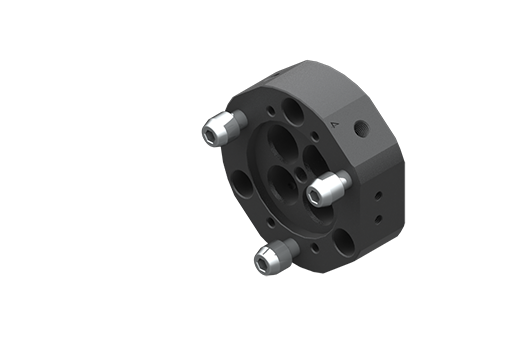

QC50-B

QC50-B

Pneumatic quick changer, -1/6 bar, gripper side

Weight
65.0 Gr

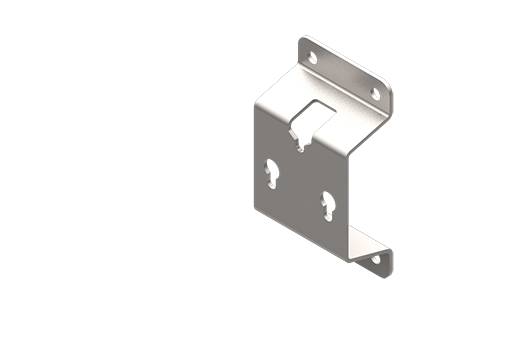

QC50-H

QC50-H

Horizontal QC50-B storage

Weight
122.0 Gr

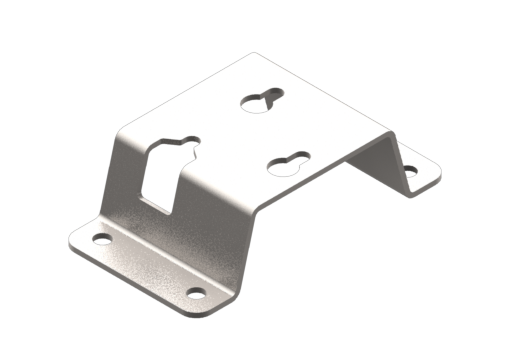

QC50-V

QC50-V

Vertical QC50 storage

Weight
120.0 Gr

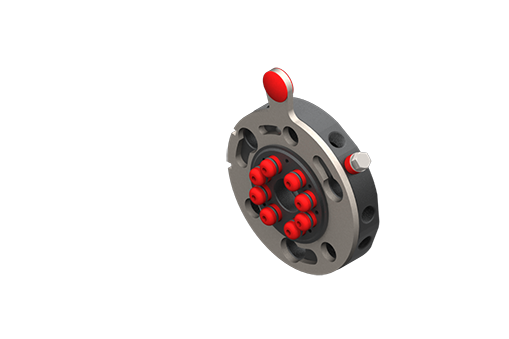

QC90-A

QC90-A

Pneumatic quick changer, -1/6 bar, robot side

Weight
318.0 Gr

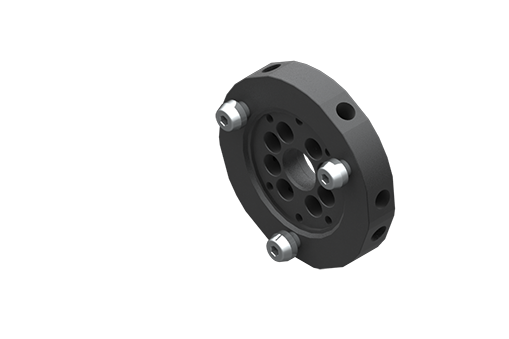

QC90-B

QC90-B

Pneumatic quick changer, -1/6 bar, gripper side

Weight
227.0 Gr

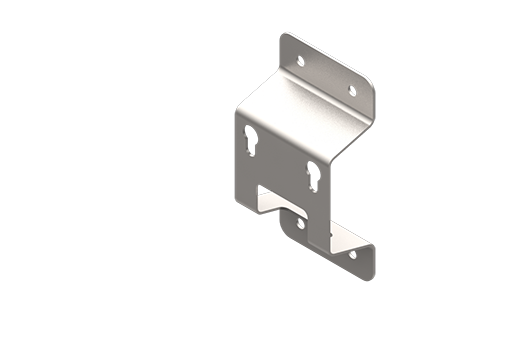

QC90-H

QC90-H

Horizontal QC90-B storage

Weight
270.0 Gr

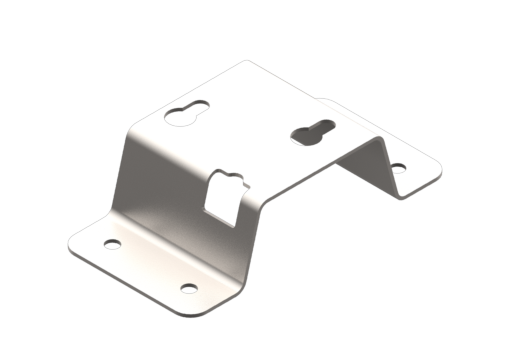

QC90-V

QC90-V

Vertical QC90 storage

Weight
289.0 Gr

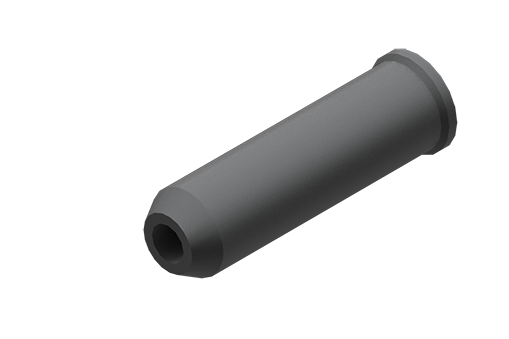

QC9065

QC9065

Centring pin kit to be positioned on the robot side

Weight
32.0 Gr

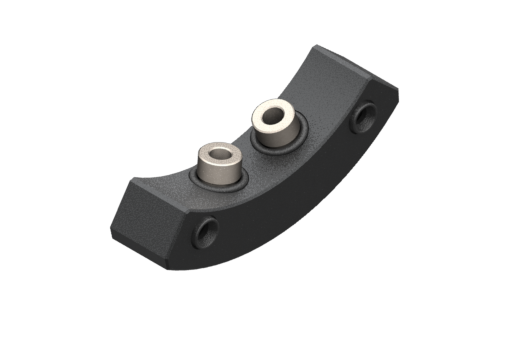

QCA90-A

QCA90-A

Kit for 2 additional pneumatic connections for QC90-A

Weight
53.0 Gr

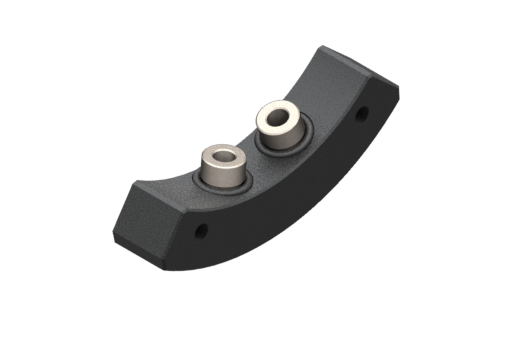

QCA90-B

QCA90-B

Kit for 2 additional pneumatic connections for QC90-B

Weight
53.0 Gr

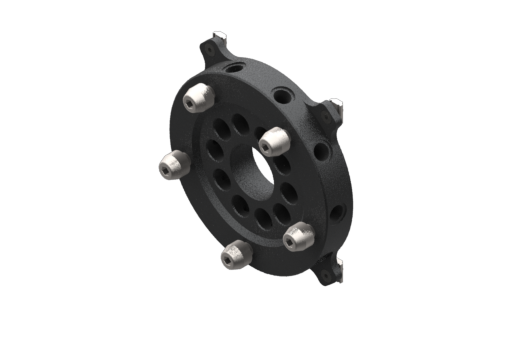

QCP150-B

QCP150-B

Quick changer on gripper side, with flange and screws

Weight
1090.0 Gr

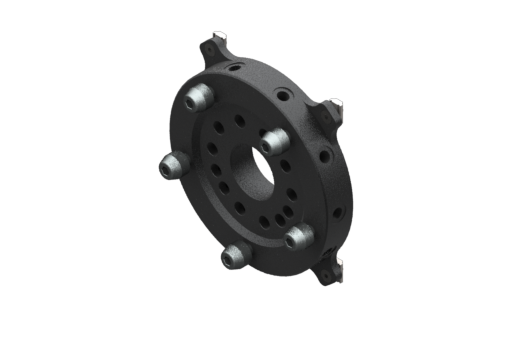

QCP160-B

QCP160-B

Pneumatic quick changer, -1/6 bar, gripper side, built-in flange, with screws and nuts

Weight
1150.0 Gr

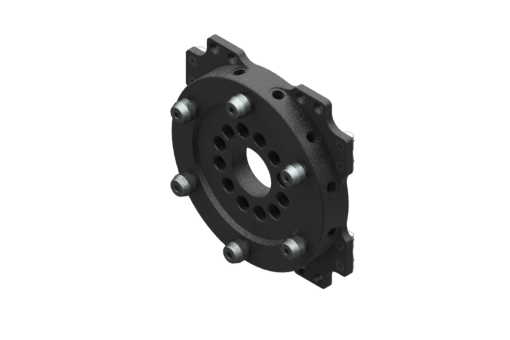

QCP200-B

QCP200-B

Pneumatic quick changer, -1/6 bar, gripper side, built-in flange, with screws and nuts

Weight
2400.0 Gr

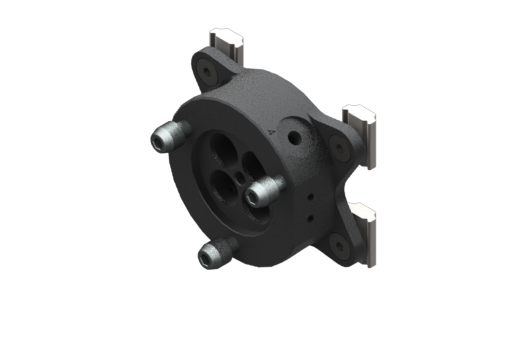

QCP50-B

QCP50-B

Pneumatic quick changer, -1/6 bar, gripper side, built-in flange, with screws and nuts

Weight
110.0 Gr

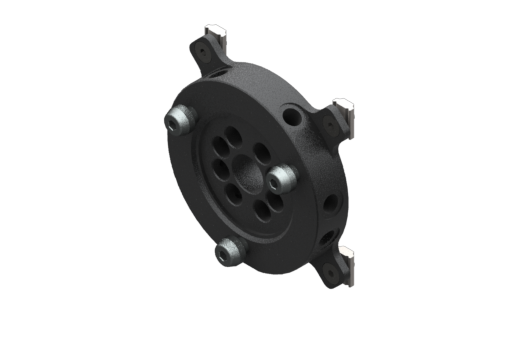

QCP90-B

QCP90-B

Quick changer on gripper side, with flange and screws

Weight
315.0 Gr

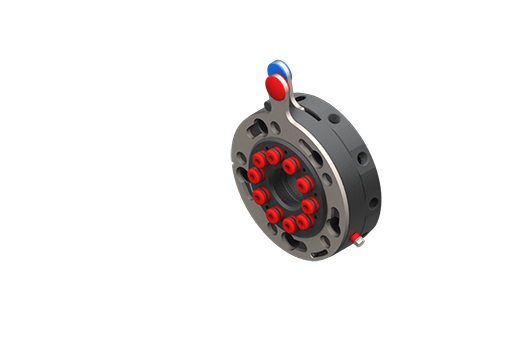

QCX150-A

QCX150-A

Pneumatic quick changer, -1/6 bar, robot side, with safety valve

Weight
2200.0 Gr

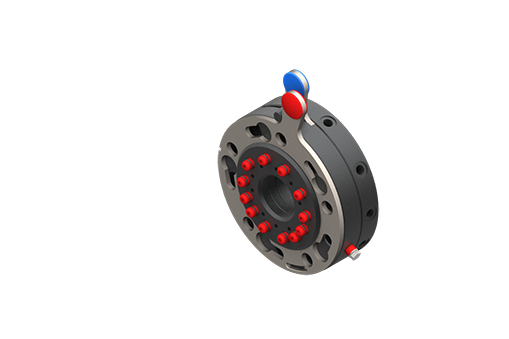

QCX160-A

QCX160-A

Pneumatic quick changer, -1/6 bar, robot side, with safety valve

Weight
2200.0 Gr

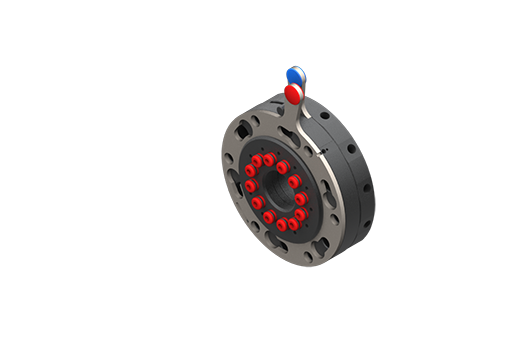

QCX200-A

QCX200-A

Pneumatic quick changer, -1/6 bar, robot side, with safety valve

Weight
4900.0 Gr

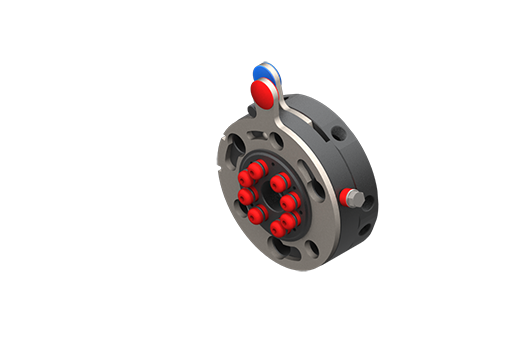

QCX90-A

QCX90-A

Pneumatic quick changer, -1/6 bar, robot side, with safety valve

Weight
595.0 Gr

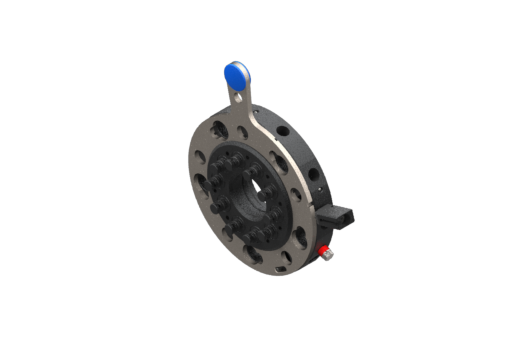

QCY150-A

QCY150-A

Pneumatic quick changer, -1/6 bar, robot side, with safety valve

Weight
1180.0 Gr

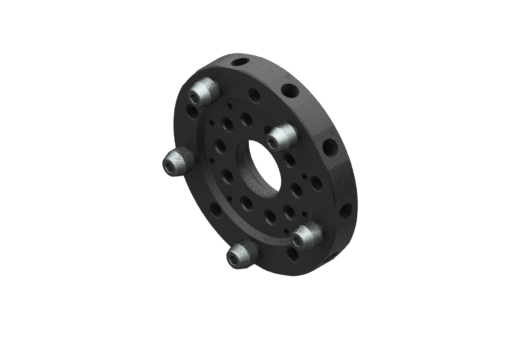

QCY150-B

QCY150-B

Pneumatic quick changer, -1/6 bar, gripper side for QCY150-A

Weight
850.0 Gr

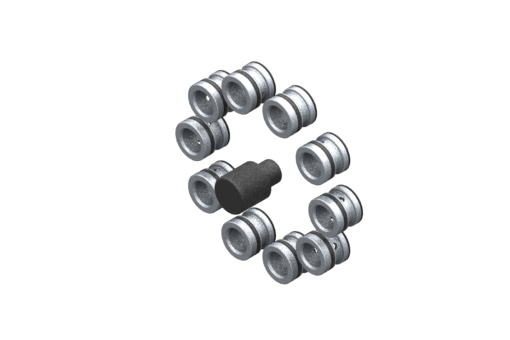

QCY150-KIT-01

QCY150-KIT-01

QC150-B to QCY150-B transformation kit, with O-rings, adapters and mounting tool

Weight
35.0 Gr

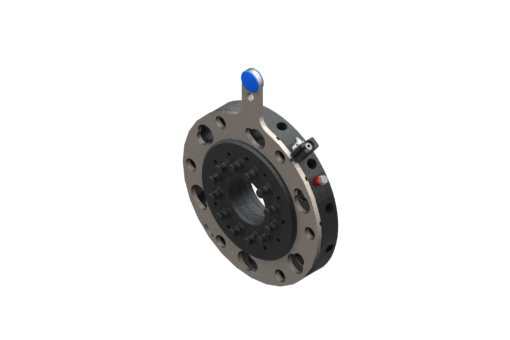

QCY200-A

QCY200-A

Pneumatic quick changer, -1/6 bar, robot side, with safety valve

Weight
2700.0 Gr

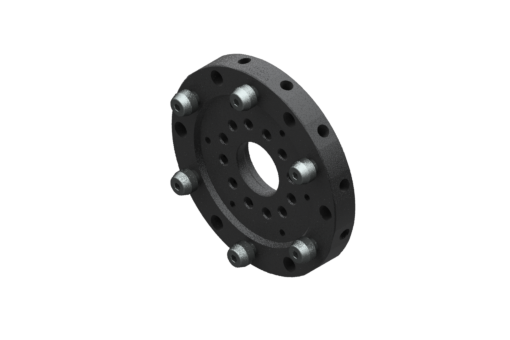

QCY200-B

QCY200-B

Pneumatic quick changer, -1/6 bar, gripper side for QCY200-A

Weight
1880.0 Gr

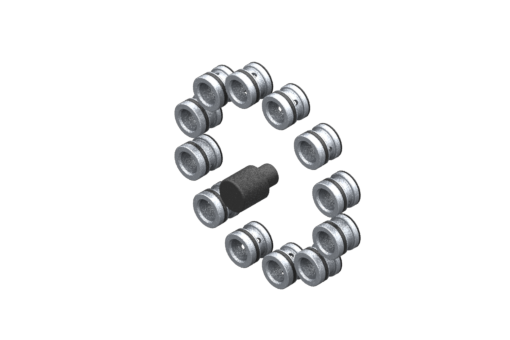

QCY200-KIT-01

QCY200-KIT-01

QC200-B to QCY200-B transformation kit, with O-rings, adapters and mounting tool

Weight
42.0 Gr

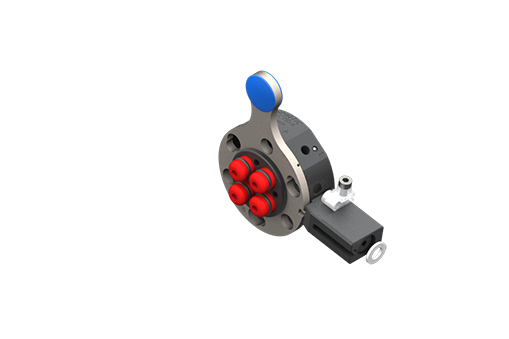

QCY50-A

QCY50-A

Pneumatic quick changer, -1/6 bar, robot side, with automatic safety valve

Weight
133.0 Gr

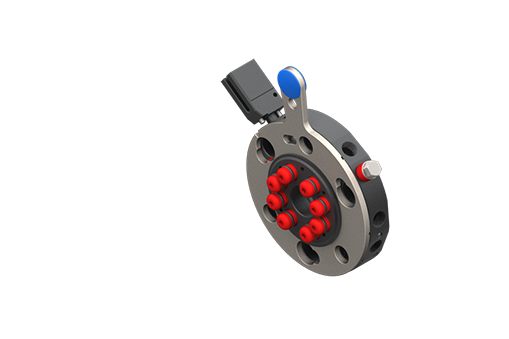

QCY90-A

QCY90-A

Pneumatic quick changer, -1/6 bar, robot side, with automatic safety valve

Weight
352.0 Gr
