Modular sensor box - SBM
Weight

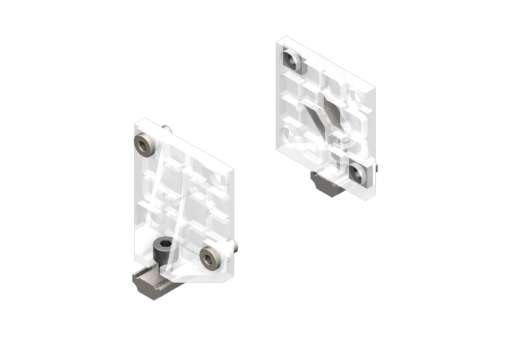

SBMK
Modular junction box, fastening module with termination contacts and fixing screws
Weight
50.0 Gr

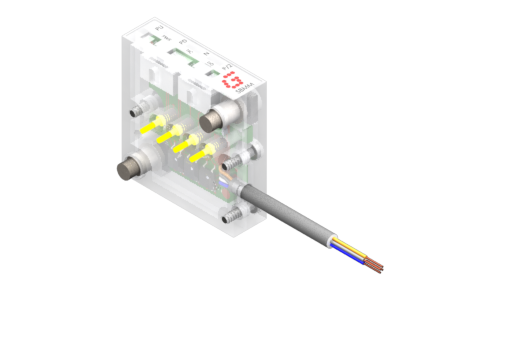

SBMM
Modular junction box, master module, 36x34x10 mm, 12-24Vdc, max 1 A, 1 NO output, 1 NC output, PNP/NPN configurable outputs, with integrated screws for modular assembly
Weight
50.0 Gr

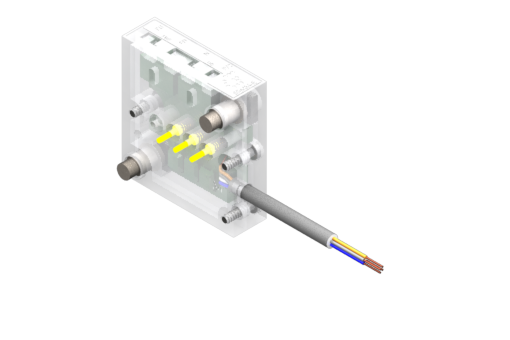

SBMM-E
Modular junction box, master module, 36x34x10 mm, 12-24Vdc, max 1 A, 1 NO output, 1 PNP/NPN configurable output, with integrated screws for modular assembly
Weight
50.0 Gr

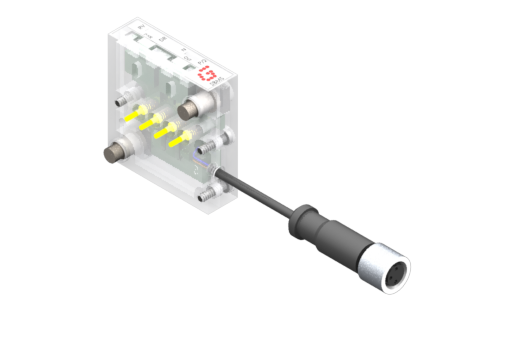

SBMS
Modular junction box, slave module, 36x34x10 mm, 12-24Vdc, 1 sensor input 150 mm with M8 3-pin fem. connector PNP-2 wires/NPN, 1 NO channel and 1 NC channels, configurable, with assembly screws
Weight
45.0 Gr

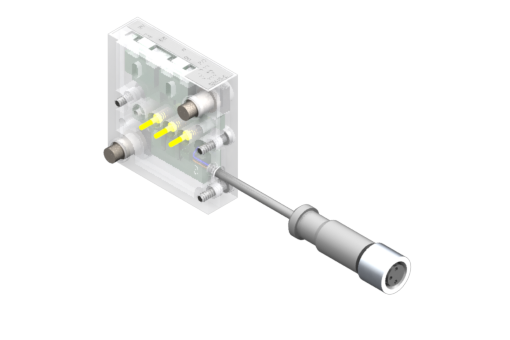

SBMS-E
Modular junction box, slave module, 36x34x10 mm, 12-24Vdc, 1 sensor input 150 mm with M8 3-pin fem. connector PNP-2 wires/NPN, 1 configurable NO channel, with assembly screws
Weight
45.0 Gr
