Sensor box (series SB) - SB
- Used for wiring the sensors of the EOATs.
- PNP and NPN signals can be converted.
- Inputs and outputs can be of the source (PNP), sink (NPN) or dry contact type.
- Several boxes can be connected in series to expand the number of sensors that can be managed.
- Input signal repetition LED to simplify troubleshooting (not for SB15).
- Supplied with cable clamp and kit for fixing to the profile.
- Used for wiring the sensors of the EOATs.
- PNP and NPN signals can be converted.
- Inputs and outputs can be of the source (PNP), sink (NPN) or dry contact type.
- Several boxes can be connected in series to expand the number of sensors that can be managed.
- Input signal repetition LED to simplify troubleshooting (not for SB15).
- Supplied with cable clamp and kit for fixing to the profile.
Weight

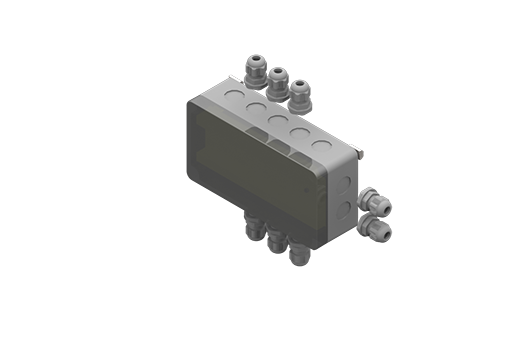

SB12C
Sensor box, 180x94x57 mm, 24Vdc, 1 A, connections with quick connecting terminals, max 12 PNP/NPN inputs, switching with relay, max 12 outputs type PNP/NPN/relay
Weight
325.0 Gr

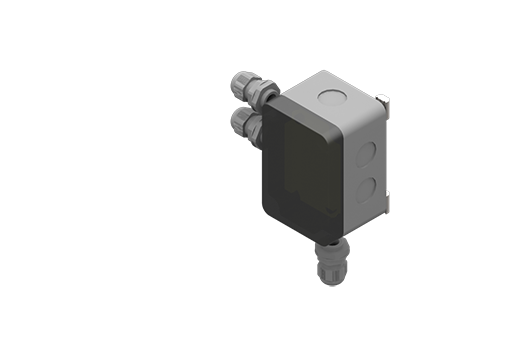

SB15
Sensor box for connection to the CEQC cable, 94x65x57 mm, connections with screw terminals for 15 inputs.
Weight
150.0 Gr

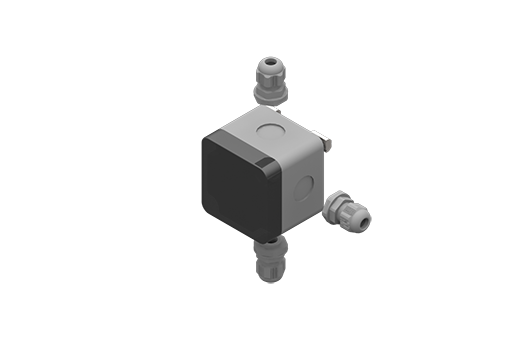

SB2C
Sensor box, 65x65x57 mm, 24Vdc, 1 A, connections with quick connecting terminals, maximum 2 PNP/NPN inputs, switching with relay,
Weight
120.0 Gr
SB4C
Sensor box, 94x65x57 mm, 24Vdc, 1 A, connections with quick connecting terminals, max 4 PNP/NPN inputs, switching with relay, max 4 outputs type PNP/NPN/relay.
Weight
160.0 Gr

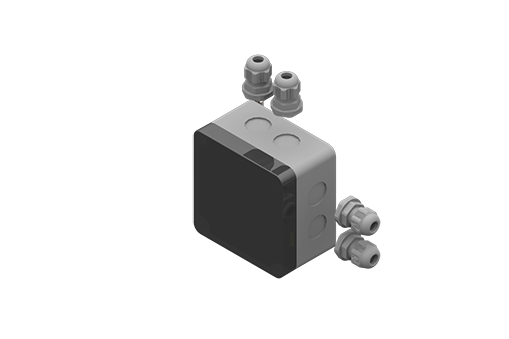

SB6C
Sensor box, 94x94x57 mm, 24Vdc, 1 A, connections with quick connecting terminals, maximum 6 PNP/NPN inputs, switching with relay
Weight
190.0 Gr

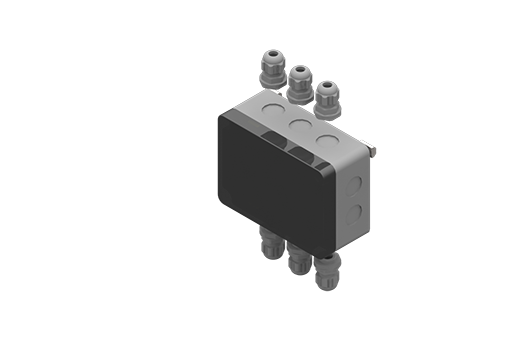

SB8C
Sensor box, 130x94x57 mm, 24Vdc, 1 A, connections with quick connecting terminals, maximum 8 PNP/NPN inputs, switching with relay
Weight
235.0 Gr

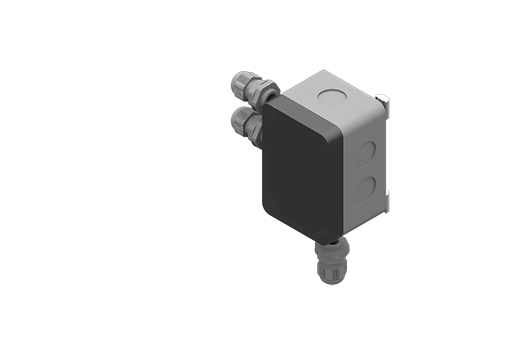

SB8F
Sensor box with microprocessor, 94x65x57 mm, 24Vdc, 1 A, connections with screw terminals, maximum 8 PNP/NPN inputs
Weight
165.0 Gr

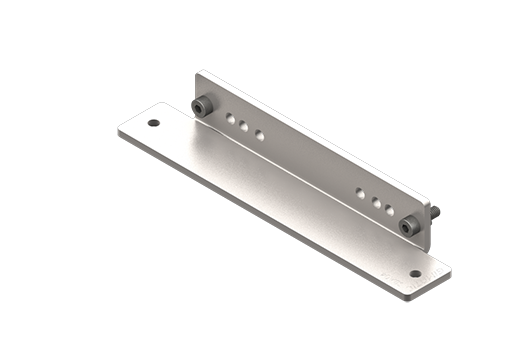

SBA04
Mounting bracket for connection boxes, with screws
Weight
140.0 Gr
