One finger angular pneumatic grippers for clamping series OFP - OFP
- Single-acting.
- Soft contact with HNBR pads, with customised fingers, or with O-rings in NBR, silicone, Viton.
- Various mounting accessories.
- Magnetic sensors and relevant mounting brackets as option.
- FDA-H1 food-grade grease.
- Single-acting.
- Soft contact with HNBR pads, with customised fingers, or with O-rings in NBR, silicone, Viton.
- Various mounting accessories.
- Magnetic sensors and relevant mounting brackets as option.
- FDA-H1 food-grade grease.
Weight
Jaw angular stroke
Closing torque

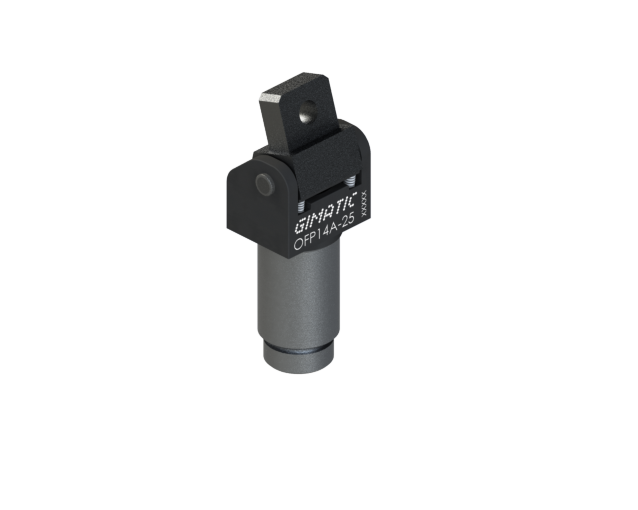

OFP14A-25
One-finger pneumatic gripper for clamping, diameter 14 mm, 2/8 bar, M5, jaw hole M5
Closing Torque
40.0 N*CM
Finger Angular Stroke
25.0 GRADI
Torque
40.0 N*cm
Weight
18.0 Gr

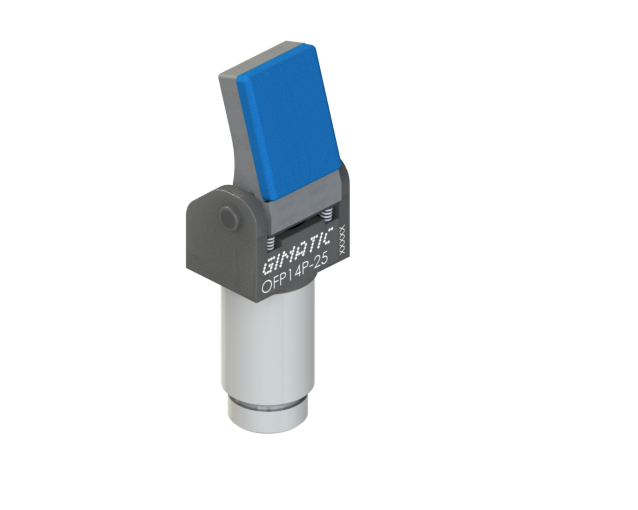

OFP14P-25
One-finger pneumatic gripper for clamping, diameter 14 mm, 2/8 bar, M5, HNBR pad
Closing Torque
100.0 N*CM
Finger Angular Stroke
21.0 GRADI
Torque
40.0 N*cm
Weight
17.0 Gr

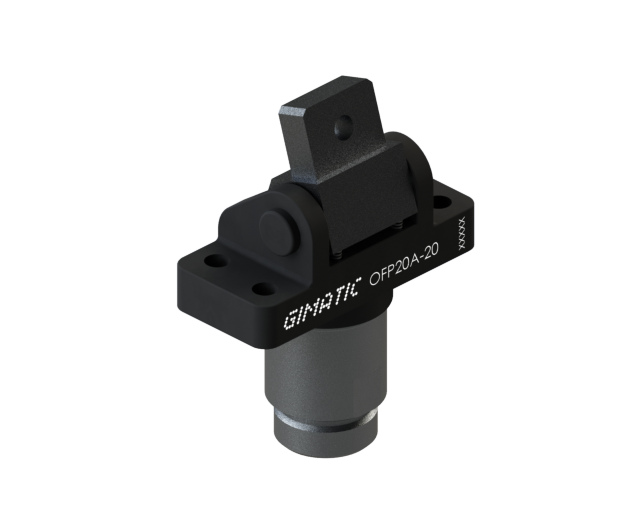

New OFP20A-20
One-finger pneumatic gripper for clamping, Ø20mm, 2-8 bar, M5, M5 threaded jaw
Closing Torque
40.0 N*CM
Finger Angular Stroke
25.0 GRADI
Torque
100.0 N*cm
Weight
35.0 Gr
OFP20N-20
One-finger pneumatic gripper for clamping, diameter 20 mm, 2/8 bar, M5, NBR pad
Closing Torque
100.0 N*CM
Finger Angular Stroke
21.0 GRADI
Torque
100.0 N*cm
Weight
35.0 Gr

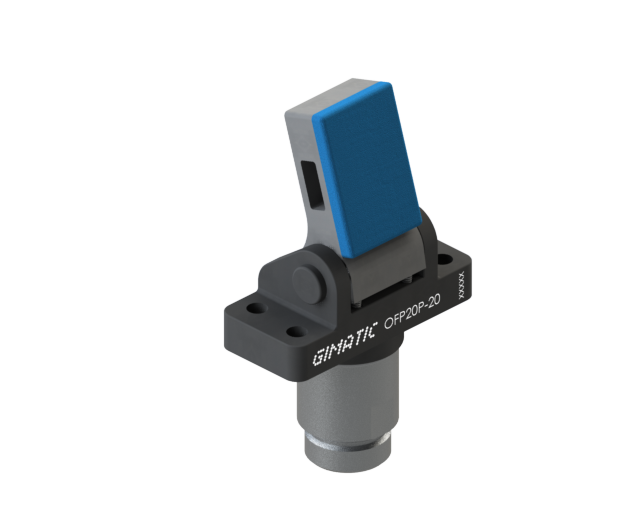

OFP20P-20
One-finger pneumatic gripper for clamping, diameter 20 mm, 2/8 bar, M5, HNBR pad
Closing Torque
100.0 N*CM
Finger Angular Stroke
21.0 GRADI
Torque
100.0 N*cm
Weight
35.0 Gr

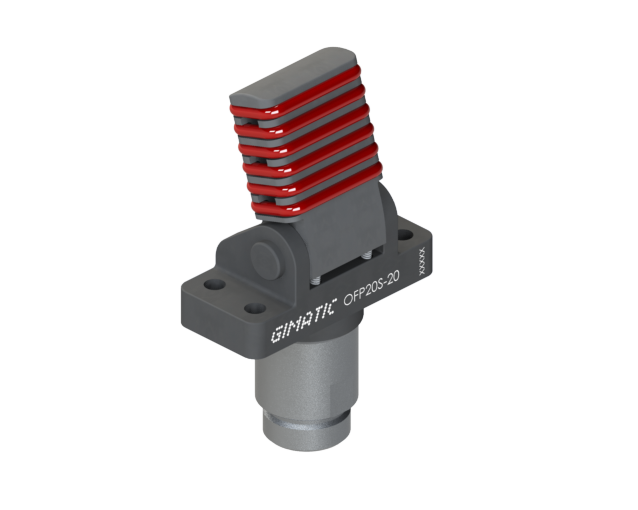

OFP20S-20
One-finger pneumatic gripper for clamping, diameter 20 mm, 2/8 bar, M5, silicone pad
Closing Torque
100.0 N*CM
Finger Angular Stroke
21.0 GRADI
Torque
100.0 N*cm
Weight
35.0 Gr
OFP20V-20
One-finger pneumatic gripper for clamping, diameter 20 mm, 2/8 bar, M5, Viton® pad
Closing Torque
100.0 N*CM
Finger Angular Stroke
21.0 GRADI
Torque
100.0 N*cm
Weight
35.0 Gr

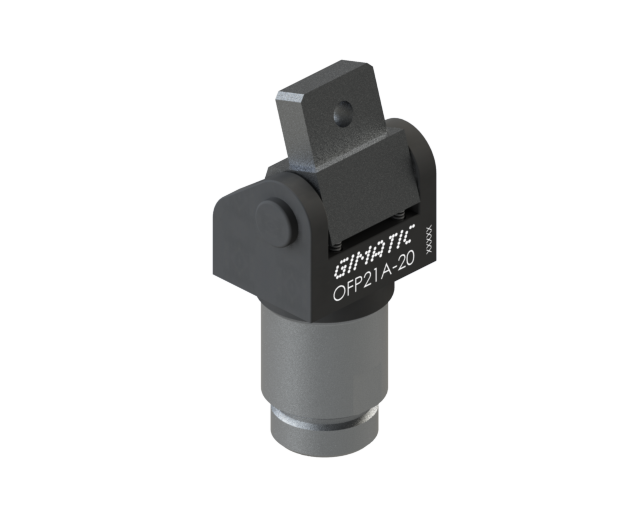

OFP21A-20
One-finger pneumatic gripper for clamping, Ø20mm, 2÷8bar, M5, jaw hole M5
Closing Torque
100.0 N*CM
Finger Angular Stroke
21.0 GRADI
Torque
100.0 N*cm
Weight
42.0 Gr

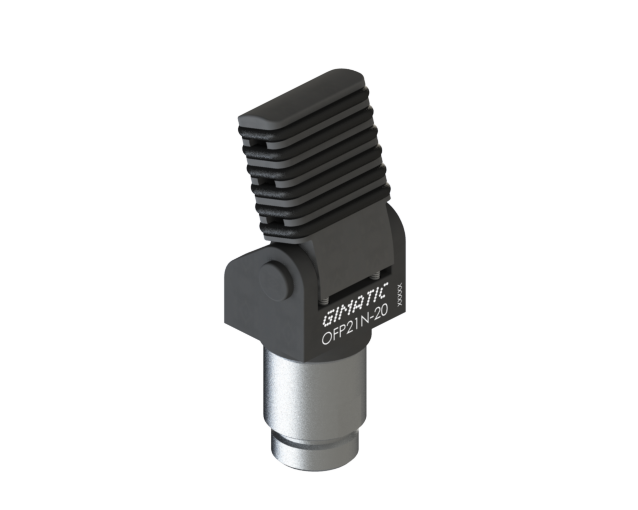

OFP21N-20
One-finger pneumatic gripper for clamping, diameter 20 mm, 2/8 bar, M5, NBR pad
Closing Torque
100.0 N*CM
Finger Angular Stroke
21.0 GRADI
Torque
100.0 N*cm
Weight
45.0 Gr

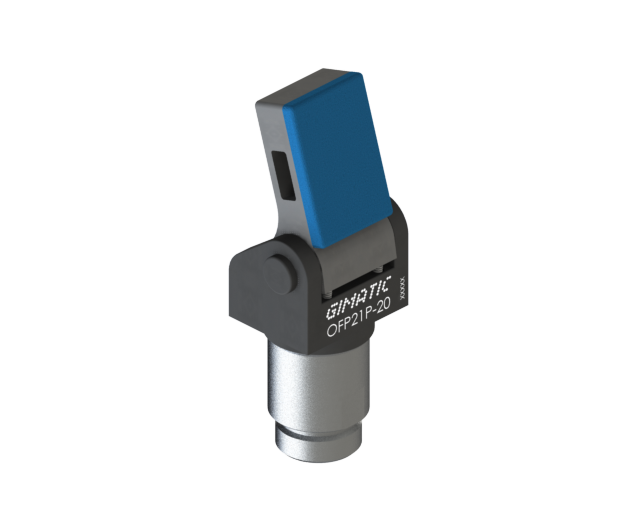

OFP21P-20
One-finger pneumatic gripper for clamping, Ø20mm, 2÷8bar, M5, HNBR pad
Closing Torque
100.0 N*CM
Finger Angular Stroke
21.0 GRADI
Torque
100.0 N*cm
Weight
45.0 Gr

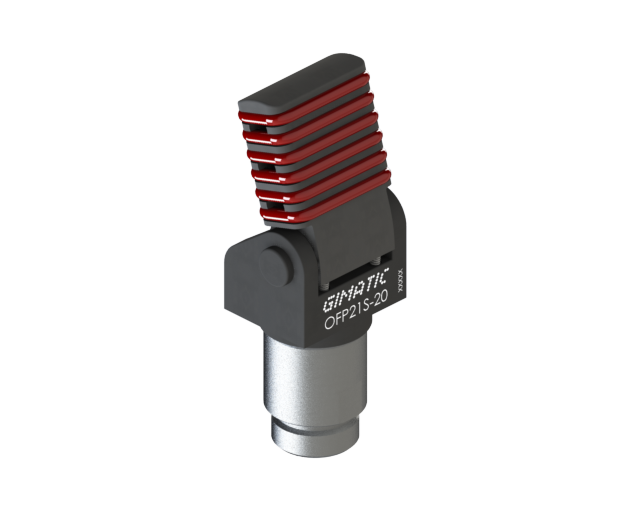

OFP21S-20
One-finger pneumatic gripper for clamping, diameter 20 mm, 2/8 bar, M5, silicone pad
Closing Torque
100.0 N*CM
Finger Angular Stroke
21.0 GRADI
Torque
100.0 N*cm
Weight
45.0 Gr

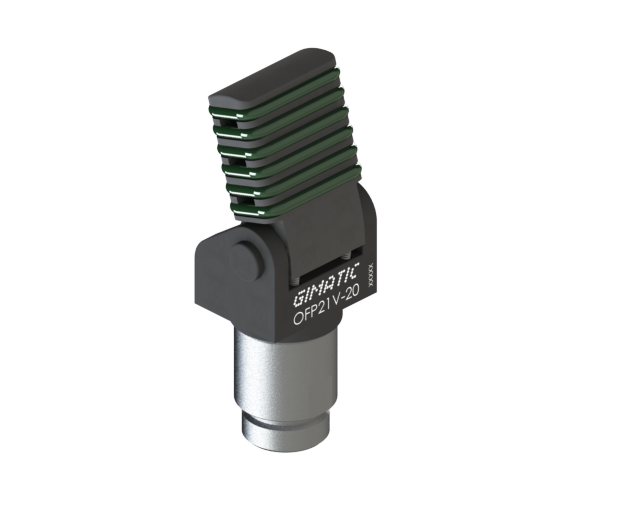

OFP21V-20
One-finger pneumatic gripper for clamping, Ø20mm, 2÷8bar, M5, Viton pad
Closing Torque
100.0 N*CM
Finger Angular Stroke
21.0 GRADI
Torque
100.0 N*cm
Weight
45.0 Gr
