3-jaw parallel grippers - XT
- Double-acting drive.
- Very high performance/price ratio.
- Lightweight, as light alloy and plastic resin had been utilized.
- Gripper mounting possible on two sides.
- Optional magnetic sensors.
- FDA-H1 food-grade grease.
- Double-acting drive.
- Very high performance/price ratio.
- Lightweight, as light alloy and plastic resin had been utilized.
- Gripper mounting possible on two sides.
- Optional magnetic sensors.
- FDA-H1 food-grade grease.
Load
Jaw linear stroke
Closing force
Opening force
Weight

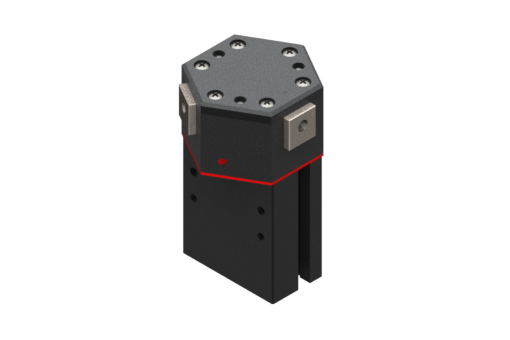

XT-20
Parallel self-centring pneumatic gripper, 3 jaws, 2/8 bar, M5
Actuation
Pneumatic
Closing Force
171.0 N
Finger Linear Stroke
3.6 mm
Force
171-201 N
Ip
54.0
Load
1.01 KG
Opening Force
201.0 N
Weight
210.0 Gr
XT-20-NC
Parallel self-centring pneumatic gripper, 3 jaws, normally closed, 4/8 bar, M5
Actuation
Pneumatic
Closing Force
216.0 N
Finger Linear Stroke
3.6 mm
Force
216-156 N
Ip
54.0
Load
1.08 KG
Opening Force
156.0 N
Weight
210.0 Gr

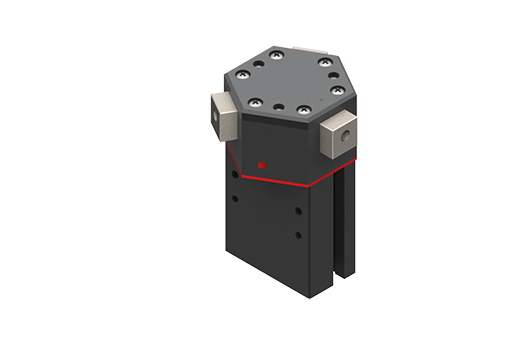

XT-20-NO
Parallel self-centring pneumatic gripper, 3 jaws, normally open, 4/8 bar, M5
Actuation
Pneumatic
Closing Force
126.0 N
Finger Linear Stroke
3.6 mm
Force
126-246 N
Ip
54.0
Load
1.23 KG
Opening Force
246.0 N
Weight
210.0 Gr

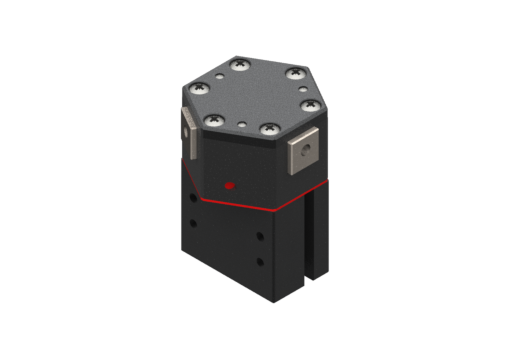

XT-26
Parallel self-centring pneumatic gripper, 3 jaws, 2/8 bar, M5
Actuation
Pneumatic
Closing Force
219.0 N
Finger Linear Stroke
6.6 mm
Force
219-240 N
Ip
54.0
Load
1.2 KG
Opening Force
240.0 N
Weight
350.0 Gr

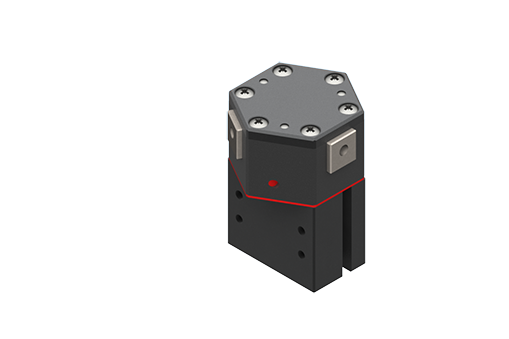

XT-26-NC
Parallel self-centring pneumatic gripper, 3 jaws, normally closed, 4/8 bar, M5
Actuation
Pneumatic
Closing Force
294.0 N
Finger Linear Stroke
6.6 mm
Force
294-165 N
Ip
54.0
Load
1.47 KG
Opening Force
165.0 N
Weight
350.0 Gr
XT-26-NO
Parallel self-centring pneumatic gripper, 3 jaws, normally open, 4/8 bar, M5
Actuation
Pneumatic
Closing Force
144.0 N
Finger Linear Stroke
6.6 mm
Force
144-315 N
Ip
54.0
Load
1.58 KG
Opening Force
315.0 N
Weight
350.0 Gr
XT-20
Actuation
Pneumatic
Closing Force
171.0 N
Finger Linear Stroke
3.6 mm
Force
171-201 N
Ip
54.0
Load
1.01 KG
Opening Force
201.0 N
Weight
210.0 Gr
XT-20-NC
Actuation
Pneumatic
Closing Force
216.0 N
Finger Linear Stroke
3.6 mm
Force
216-156 N
Ip
54.0
Load
1.08 KG
Opening Force
156.0 N
Weight
210.0 Gr
XT-20-NO
Actuation
Pneumatic
Closing Force
126.0 N
Finger Linear Stroke
3.6 mm
Force
126-246 N
Ip
54.0
Load
1.23 KG
Opening Force
246.0 N
Weight
210.0 Gr
XT-26
Actuation
Pneumatic
Closing Force
219.0 N
Finger Linear Stroke
6.6 mm
Force
219-240 N
Ip
54.0
Load
1.2 KG
Opening Force
240.0 N
Weight
350.0 Gr
XT-26-NC
Actuation
Pneumatic
Closing Force
294.0 N
Finger Linear Stroke
6.6 mm
Force
294-165 N
Ip
54.0
Load
1.47 KG
Opening Force
165.0 N
Weight
350.0 Gr
XT-26-NO
Actuation
Pneumatic
Closing Force
144.0 N
Finger Linear Stroke
6.6 mm
Force
144-315 N
Ip
54.0
Load
1.58 KG
Opening Force
315.0 N
Weight
350.0 Gr
