3-jaw self-centring pneumatic gripper - TGP20 - TGP
- Double-acting drive.
- Also available with spring open (TGP20-NO).
- Optional magnetic sensors.
- FDA-H1 food-grade grease.
- Supplied with centring sleeves for jaws and body.
- Double-acting drive.
- Also available with spring open (TGP20-NO).
- Optional magnetic sensors.
- FDA-H1 food-grade grease.
- Supplied with centring sleeves for jaws and body.
Load
Weight
Closing force
Opening force

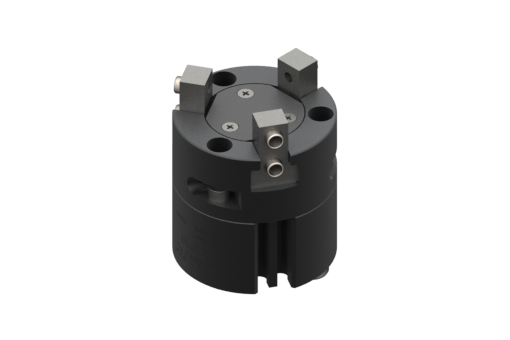

TGP20
Parallel self-centring pneumatic gripper, 3 jaws, Ø20 mm, 2-8 bar, M5
Actuation
Pneumatic
Closing Force
138.0 N
Finger Linear Stroke
4.0 mm
Ip
40.0
Load
0.83 KG
Opening Force
165.0 N
Torque
138-165 N*cm
Weight
130.0 Gr

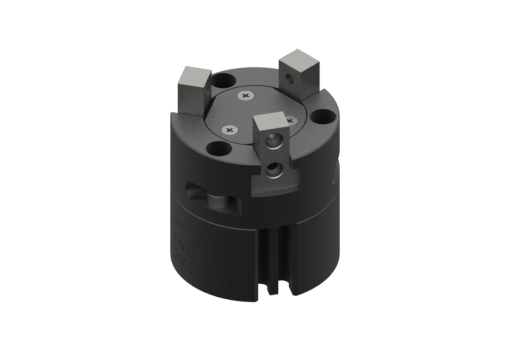

TGP20-NO
Parallel self-centring pneumatic gripper, 3 jaws, Ø20 mm, 2-8 bar, M5
Actuation
Pneumatic
Closing Force
108.0 N
Finger Linear Stroke
4.0 mm
Ip
40.0
Load
0.98 KG
Opening Force
195.0 N
Torque
108-195 N*cm
Weight
132.0 Gr
