3-jaw parallel self-centering pneumatic gripper series T - T
- Modular with Gimapick system.
- Double-acting drive.
- Air feeding possible directly from the fixing plate.
- Possibility to mount it on front with through screws.
- High gripping force and low weight.
- Optional magnetic sensors.
- FDA-H1 food-grade grease.
- Modular with Gimapick system.
- Double-acting drive.
- Air feeding possible directly from the fixing plate.
- Possibility to mount it on front with through screws.
- High gripping force and low weight.
- Optional magnetic sensors.
- FDA-H1 food-grade grease.
Load
Jaw linear stroke
Closing force
Weight
Opening force

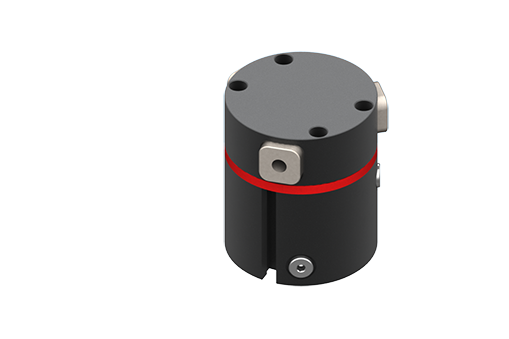

T30
Parallel self-centring pneumatic gripper, 3 jaws, 2.5/8 bar, M5
Actuation
Pneumatic
Closing Force
315.0 N
Finger Linear Stroke
3.0 mm
Force
315-345 N
Ip
40.0
Load
1.73 KG
Opening Force
345.0 N
Weight
325.0 Gr

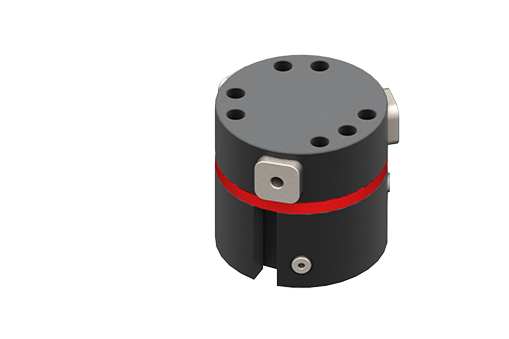

T40
Parallel self-centring pneumatic gripper, 3 jaws, 2.5/8 bar, M5
Actuation
Pneumatic
Closing Force
540.0 N
Finger Linear Stroke
5.0 mm
Force
540-600 N
Ip
40.0
Load
3.0 KG
Opening Force
600.0 N
Weight
745.0 Gr

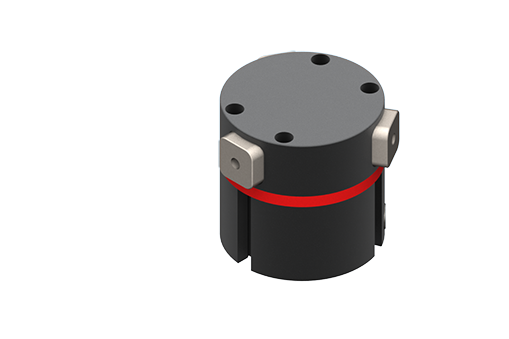

T63
Parallel self-centring pneumatic gripper, 3 jaws, 2.5/8 bar, G1/8
Actuation
Pneumatic
Closing Force
1320.0 N
Finger Linear Stroke
9.0 mm
Force
1320-1440 N
Ip
40.0
Load
7.2 KG
Opening Force
1440.0 N
Weight
1680.0 Gr
