3-jaw parallel-acting self-centering pneumatic gripper series SXT - SXT
- Trasmissione a doppio effetto.
- Elevata forza di presa.
- Grado di protezione IP67.
- Doppio O-Ring di tenuta sulle colonne.
- Adatto per ambienti difficili.
- Sensori magnetici opzionali.
- Grasso alimentare FDA-H1.
- Trasmissione a doppio effetto.
- Elevata forza di presa.
- Grado di protezione IP67.
- Doppio O-Ring di tenuta sulle colonne.
- Adatto per ambienti difficili.
- Sensori magnetici opzionali.
- Grasso alimentare FDA-H1.
Load
Jaw linear stroke
Weight
Closing force
Opening force

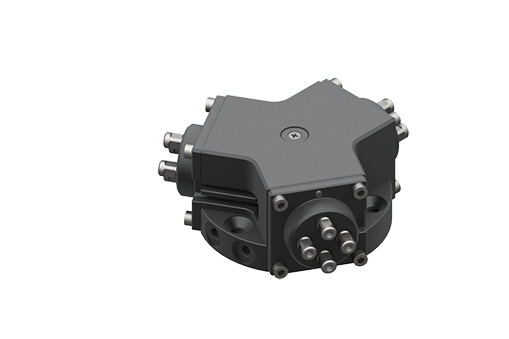

SXT2505
Parallel self-centring pneumatic gripper, 3 jaws, 2/8 bar, M5
Actuation
Pneumatic
Closing Force
585.0 N
Finger Linear Stroke
5.0 mm
Force
585-750 N
Ip
67.0
Load
3.75 KG
Opening Force
750.0 N
Weight
420.0 Gr

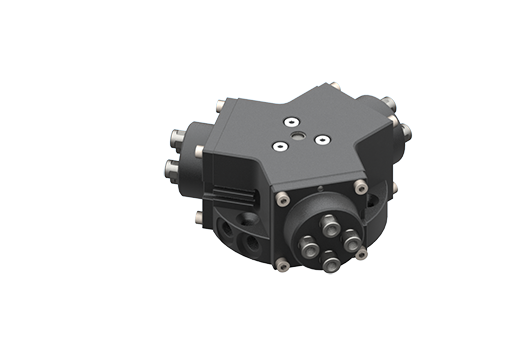

SXT4008
Parallel self-centring pneumatic gripper, 3 jaws, 2/8 bar, G1/8
Actuation
Pneumatic
Closing Force
1500.0 N
Finger Linear Stroke
8.0 mm
Force
1500-1950 N
Ip
67.0
Load
9.75 KG
Opening Force
1950.0 N
Weight
1100.0 Gr

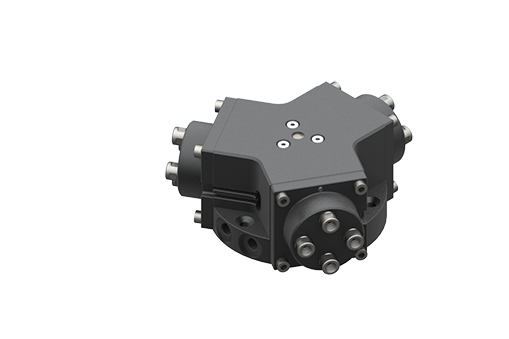

SXT5012
Parallel self-centring pneumatic gripper, 3 jaws, 2/8 bar, G1/8
Actuation
Pneumatic
Closing Force
2400.0 N
Finger Linear Stroke
12.0 mm
Force
2400-3150 N
Ip
67.0
Load
15.75 KG
Opening Force
3150.0 N
Weight
2000.0 Gr

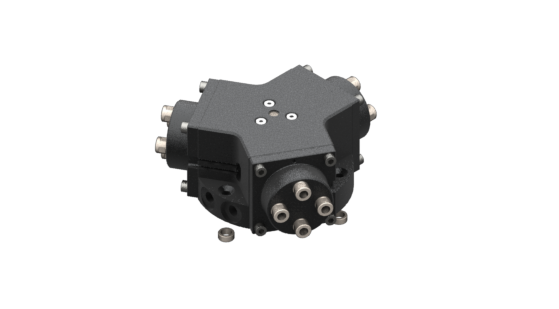

SXT5012-NC
Parallel self-centring pneumatic gripper, 3 jaws, normally closed, 4/8 bar, G1/8
Weight
2000.0 Gr

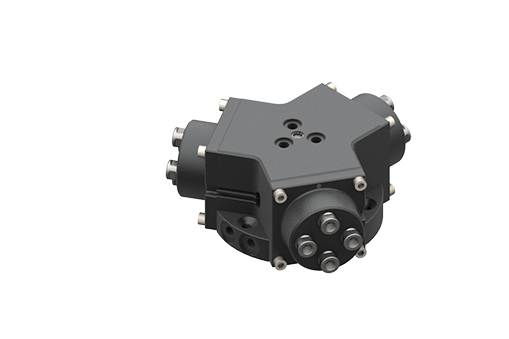

SXT6315
Parallel self-centring pneumatic gripper, 3 jaws, 2/8 bar, G1/8
Actuation
Pneumatic
Closing Force
3600.0 N
Finger Linear Stroke
15.0 mm
Force
3600-4950 N
Ip
67.0
Load
24.75 KG
Opening Force
4950.0 N
Weight
3800.0 Gr
SXT6315-NC
Parallel self-centring pneumatic gripper, 3 jaws, normally closed, 4/8 bar, G1/8
Weight
3850.0 Gr
SXT2505
Actuation
Pneumatic
Closing Force
585.0 N
Finger Linear Stroke
5.0 mm
Force
585-750 N
Ip
67.0
Load
3.75 KG
Opening Force
750.0 N
Weight
420.0 Gr
SXT4008
Actuation
Pneumatic
Closing Force
1500.0 N
Finger Linear Stroke
8.0 mm
Force
1500-1950 N
Ip
67.0
Load
9.75 KG
Opening Force
1950.0 N
Weight
1100.0 Gr
SXT5012
Actuation
Pneumatic
Closing Force
2400.0 N
Finger Linear Stroke
12.0 mm
Force
2400-3150 N
Ip
67.0
Load
15.75 KG
Opening Force
3150.0 N
Weight
2000.0 Gr
SXT5012-NC
Weight
2000.0 Gr
SXT6315
Actuation
Pneumatic
Closing Force
3600.0 N
Finger Linear Stroke
15.0 mm
Force
3600-4950 N
Ip
67.0
Load
24.75 KG
Opening Force
4950.0 N
Weight
3800.0 Gr
SXT6315-NC
Weight
3850.0 Gr
